SwitchesTP-LINKES220GMP

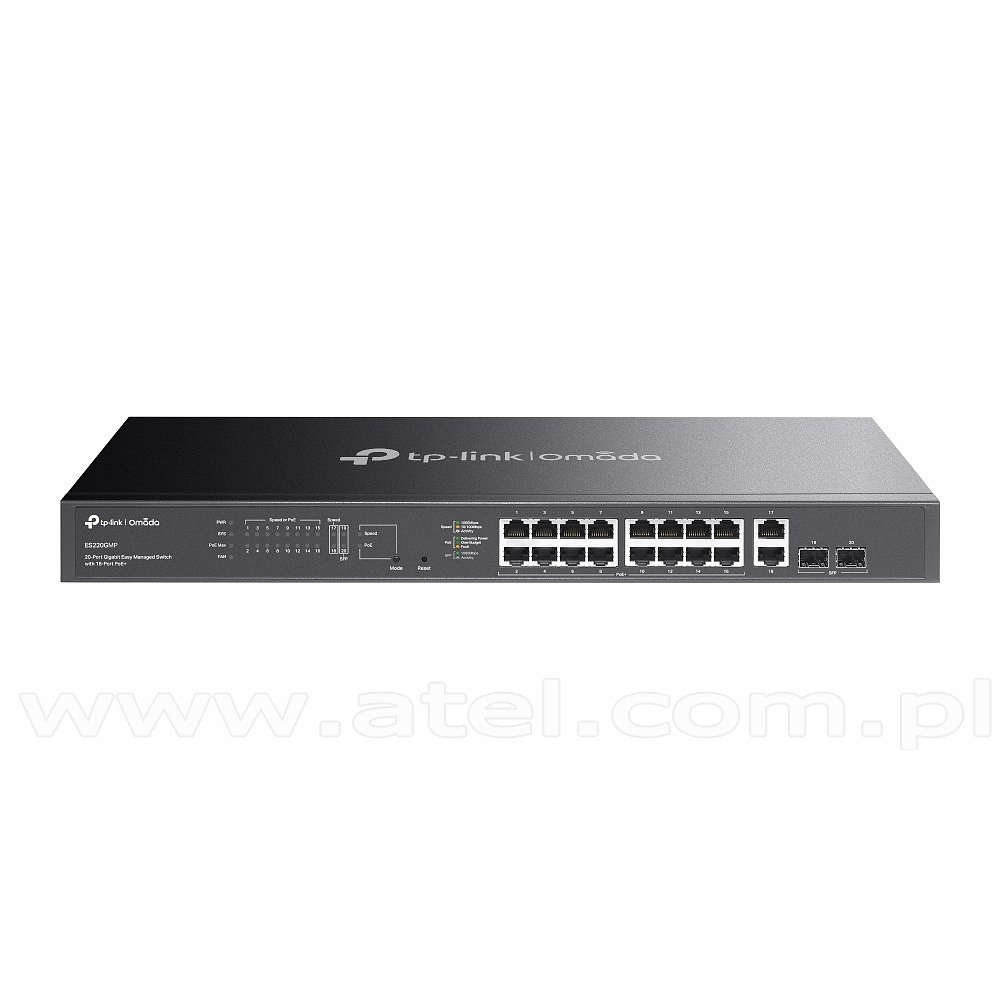

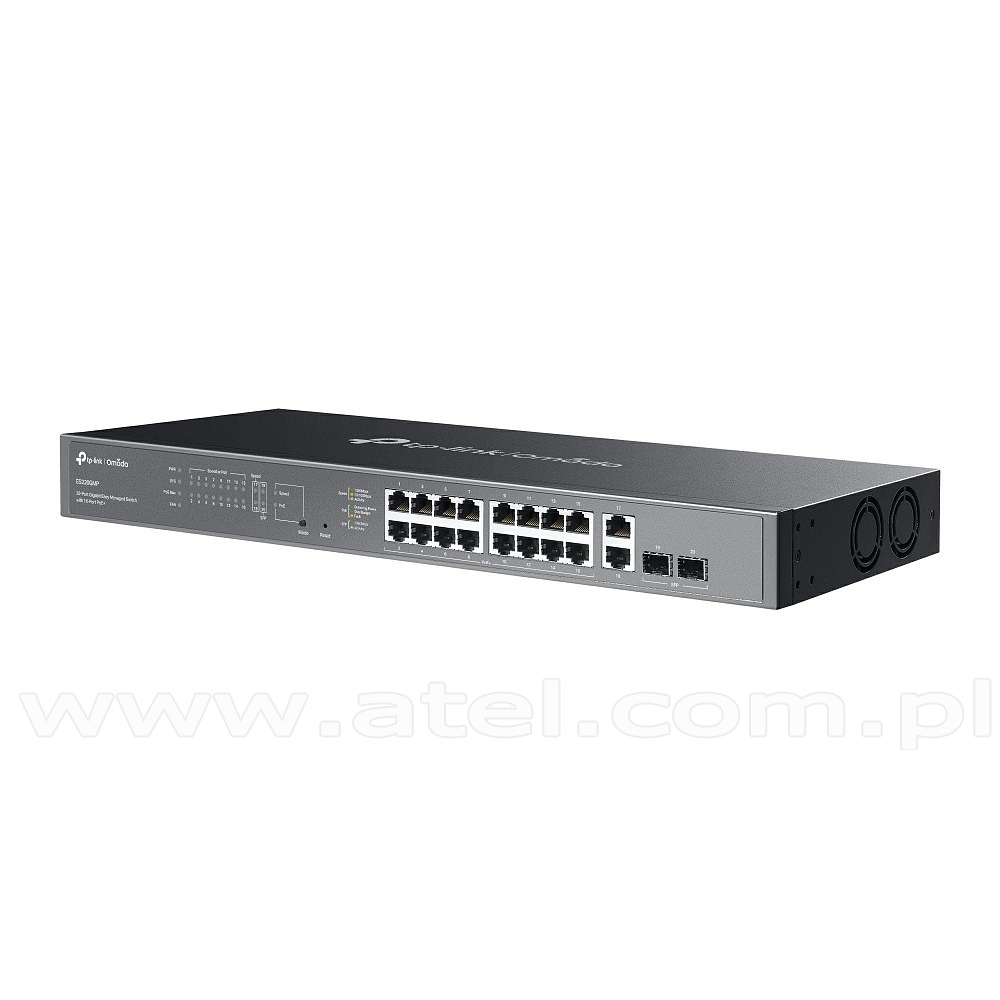

Managed switch, 18x 10/100/1000 RJ-45, 2 slide-in SFP, PoE+, 19" (TP-Link ES220GMP)

  • 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 2× Gigabit RJ45 port, 2× Gigabit SFP port
  • 250W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design
Standards IEEE 802.3i,
IEEE 802.3u,
IEEE 802.3ab,
IEEE 802.3af,
IEEE 802.3x,
IEEE 802.1q,
IEEE 802.1p,
IEEE 802.3at
Fan Quantity 2
Copper ports 18x 10/100/1000 Mbps RJ-45
SFP ports 2× Gigabit SFP Slot
PoE+ Ports Port1- Port16
Power Supply 250W
Switching Capacity 40Gbps
Packet Forwarding Rate 29.76 Mpps
Mac Address Table 8K
Jumbo Frame 15 KB
Packet Buffer Memory 4 Mb
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Switching architecture / speed Store and Forward
Quality of Service Support Port-Based/802.1p/DSCP priority,
Support 4 priority queues,
Rate Limit,
Storm Control
L2 Features IGMP Snooping V1/V2/V3,
Static Link Aggregation,
Port Mirroring,
Cable Diagnostics,
Loop Prevention,
PoE Auto Recovery,
Extend Mode
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs),
MTU/Port/Tag VLAN
Management
Omada App Yes. Requires the use of Omada Hardware Controller,
Omada Cloud-Based Controller,
or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller,
Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller,
Omada Cloud-Based Controller,
or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI,
DHCP Client,
Cable Diagnostics,
Automatic Device Discovery,
Batch Configuration,
Batch Firmware Upgrading,
Unified Configuration
Housing / case type 19",
metal
Dimensions 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Operating temperature -5°C ÷ 50°C
Operating humidity 10% ÷ 90%,
non-condensing
Power 100–240 VAC,
50/60 Hz
Certificates CE,
FCC,
RoHS
Package Contents ES220GMP,
Power Cord,
Installation Guide,
Resource CD,
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Warranty 5 years
Manufacturer TP-Link

« previous product  |  next product »     » show on list«» Switches «
Net Price: 148,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
