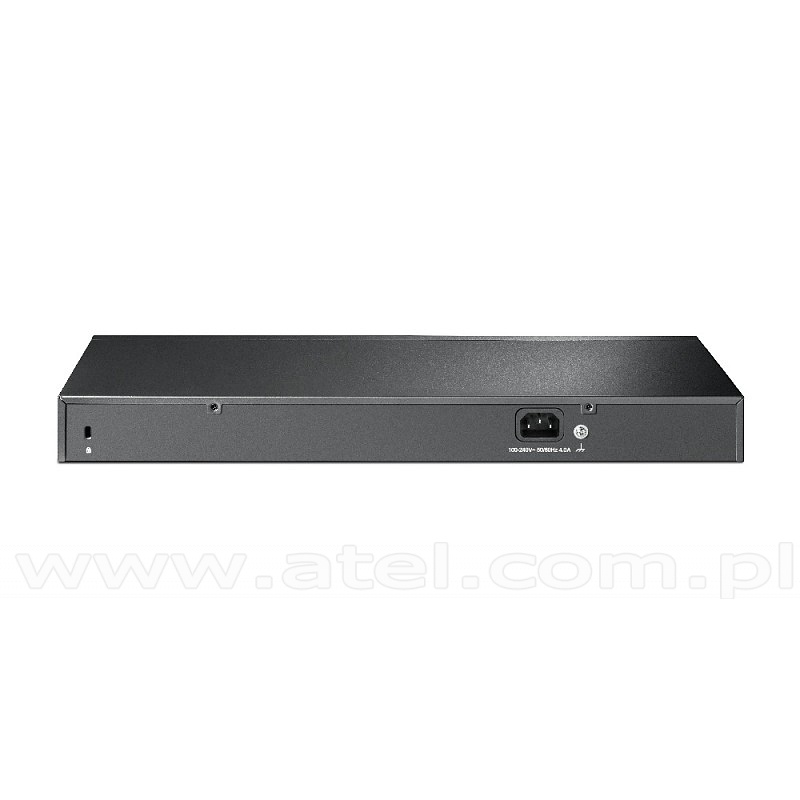

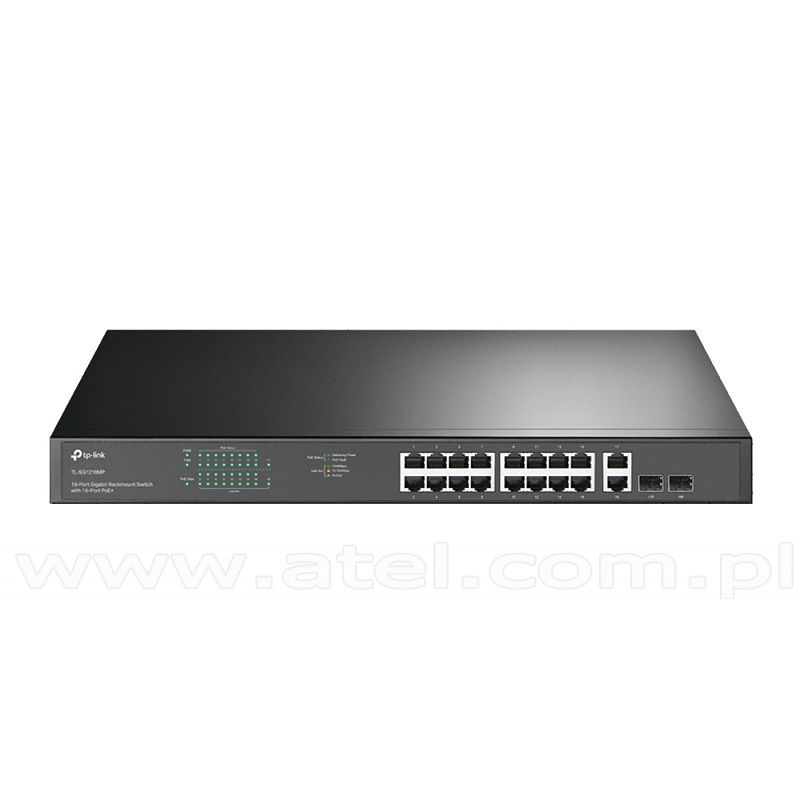

Unmanaged switch, 18x 10/100/1000 RJ-45, 2x SFP, PoE+ (TP-Link TL-SG1218MP)
- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
|---|---|
| Copper ports | 18x 10/100/1000 Mbps RJ-45 |
| SFP Ports | 2 Gigabit SFP Ports |
| Fan Quantity | 2 |
| PoE Ports | Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 250W |
| Performance: | |
| Switching Capacity | 36 Gb/s |
| Packet Forwarding Rate | 26.78 Mb/s |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs, 802.1p/DHCP QoS, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Power | 100-240VAC, 50/60Hz |
| Power Consumption | 21.4 W (220/50Hz. no PD connected), 286.64 W (220/50Hz. with 250W PD connected) |
| Max Heat Dissipation | 72.97 BTU/h (no PD connected), 977.44 BTU/h (with 250W PD connected) |
| Certificates | CE, FCC, RoHS |
| Warranty | 5 years |
| Manufacturer | TP-Link |
2.0_overview_03_large_1595331375544m.jpg?1620383570)
Net Price: 163,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
