MENU#05951

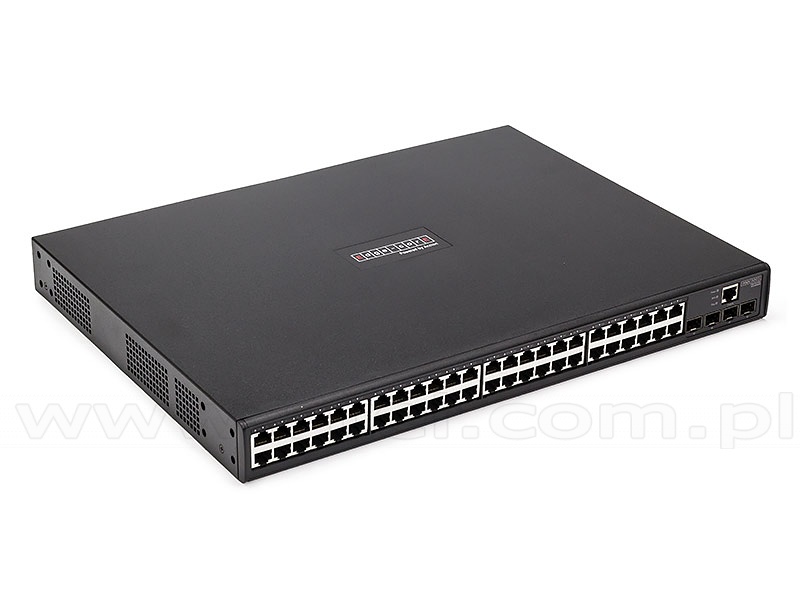

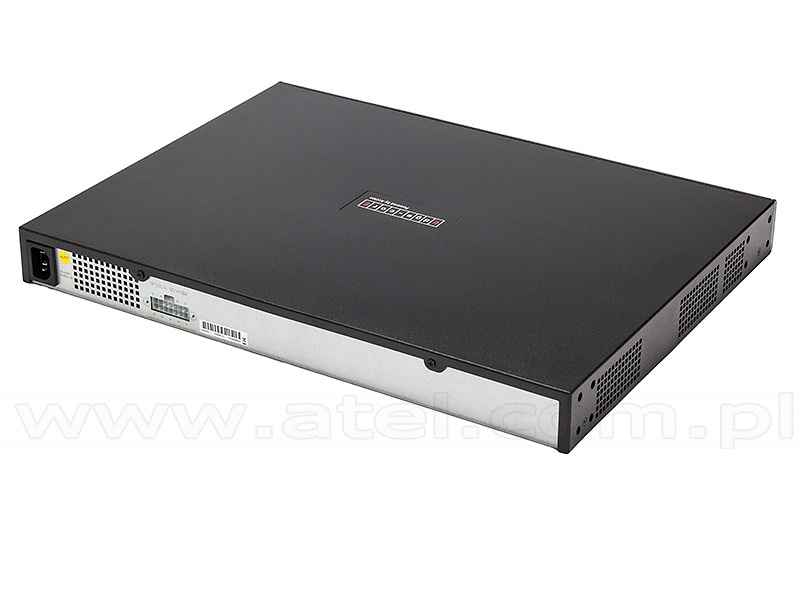

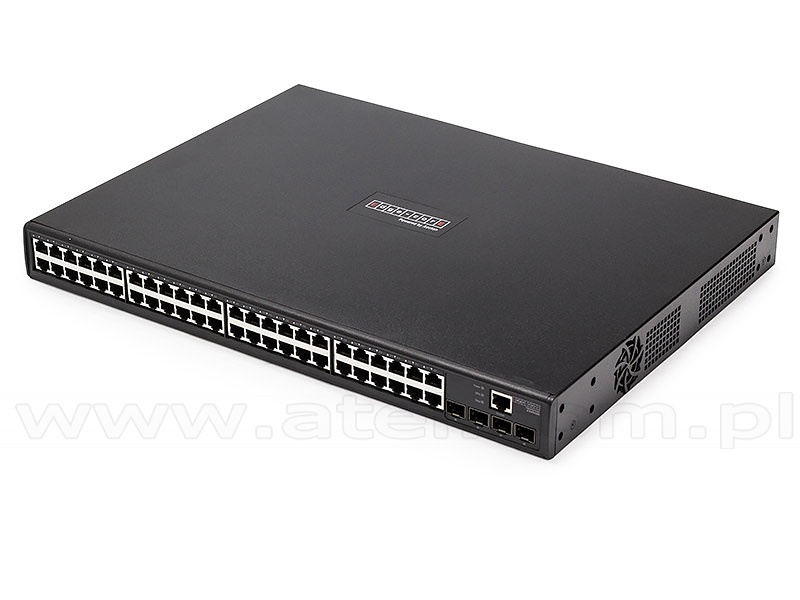

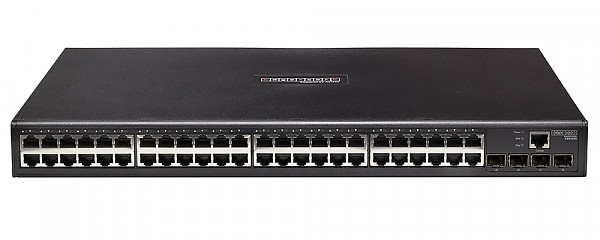

Managed switch L2, 44x 10/100/1000 RJ-45, 4 slide-in SFP / RJ-45 slots, IP stacking, IPv6, 19" (Edge-corE ES4548D)
| Standards | IEEE 802.3, IEEE 802.1D/w/s/p/Q/v/X |
|---|---|
| Copper ports | 44x 10/100/1000 Mbps RJ-45, 4x 1000 Mbps RJ-45 Combo |
| Free slots | 4x 1000 Mbps (SFP) Combo |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Packet flow control | Flow-Control, Back-Pressure |
| VLAN support | port-based, tag-based / 255, private VLAN, protocol-based VLAN, GVRP, Q-in-Q |
| I/O throughput management | Port Trunking, Bandwidth Control, Jumbo Frames (9 kB), Trunk Load Balancing |
| Transmission quality | 8 QoS queues, CoS, DiffServ, Spanning Tree, Rapid Spanning Tree, Multiple Spanning Tree, Port Mirroring, IGMP Snooping, IGMP Querier |
| Stacking features | up to 36 units, stacking bandwidth up to 2 Gbps |
| Event logging | syslog, event log, error log |
| Security | IEEE 802.1X, RADIUS, SSH, SSL, ACL, TACACS+, TACACS+ 3.0 |
| IPv6 features | IPv4/IPv6 Dual Protocol, IPv6 Multicast / Nicest, IPv6 Neighbor Discovery, ICMPv6, SNMP over IPv6, IPv6 ACL |
| Management | WWW, console, telnet, RMON, SNMP v1/v2c/v3 |
| Switching capacity [Gbps] | 96 |
| Forwarding rate [Mpps] | 71.4 |
| MAC address memory | 8000 |
| Buffer / operating memory [kb] | 12288 |
| Housing / case type | 19", metal |
| Power | ~230V AC 50Hz, Redundant Power Supply Connector |
| Dimensions | 440x331x44 mm |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity | 5% ÷ 90%, non-condensing |
| Weight | 4.34 kg |
| Certificates | CE, FCC Class A, VCCI Class A |
| Warranty | limited lifetime |
| Manufacturer | Edge-corE |
Software&Drivers
2007-07-26 Firmware (3,58 MB)
2007-07-26 MIB (50 KB)
TAGS:
SFP slot
Net Price: 395,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
