MENU#09465

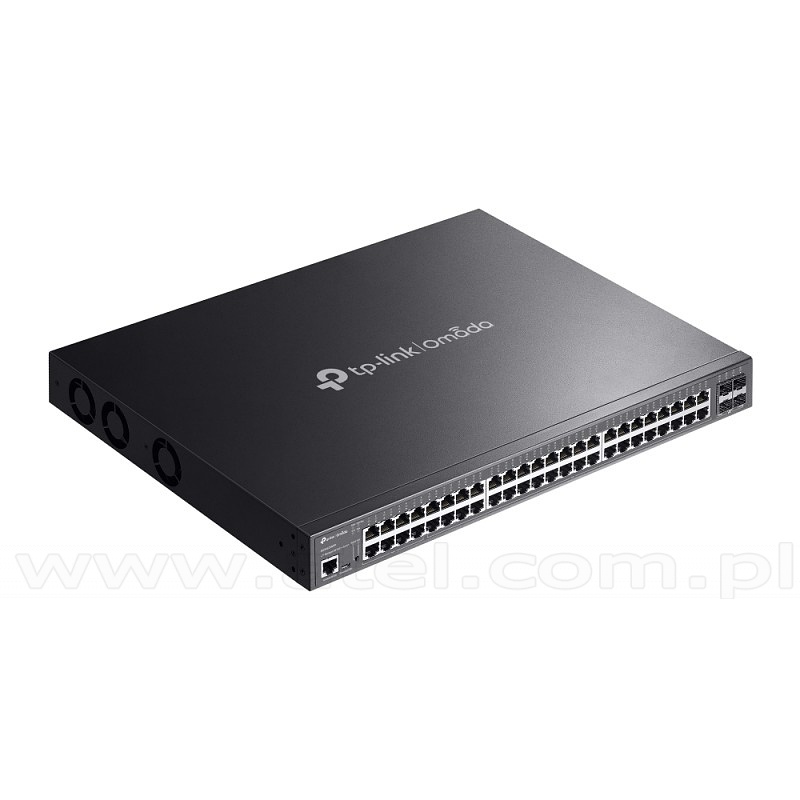

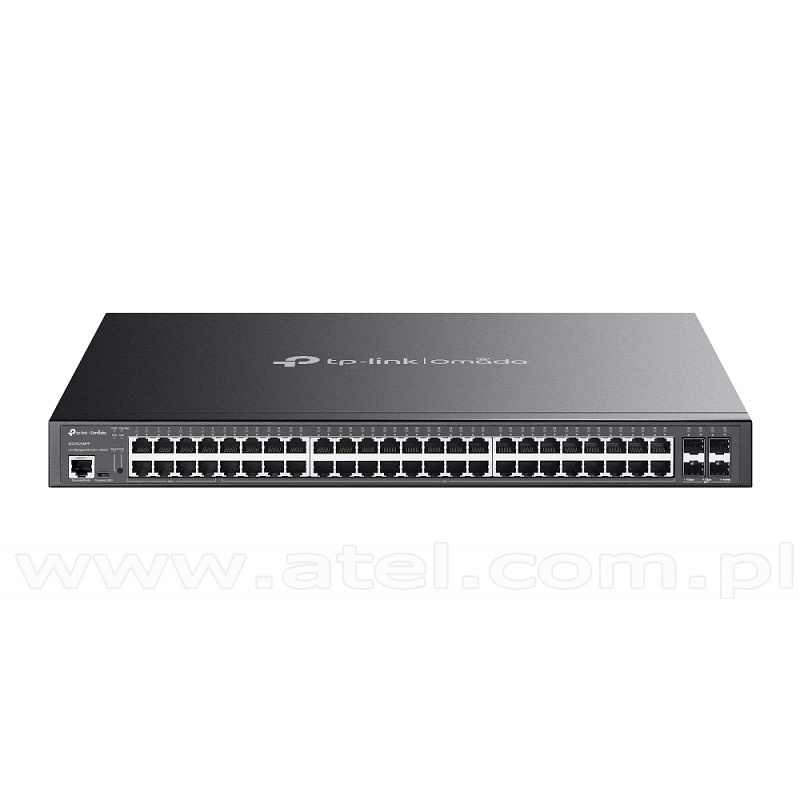

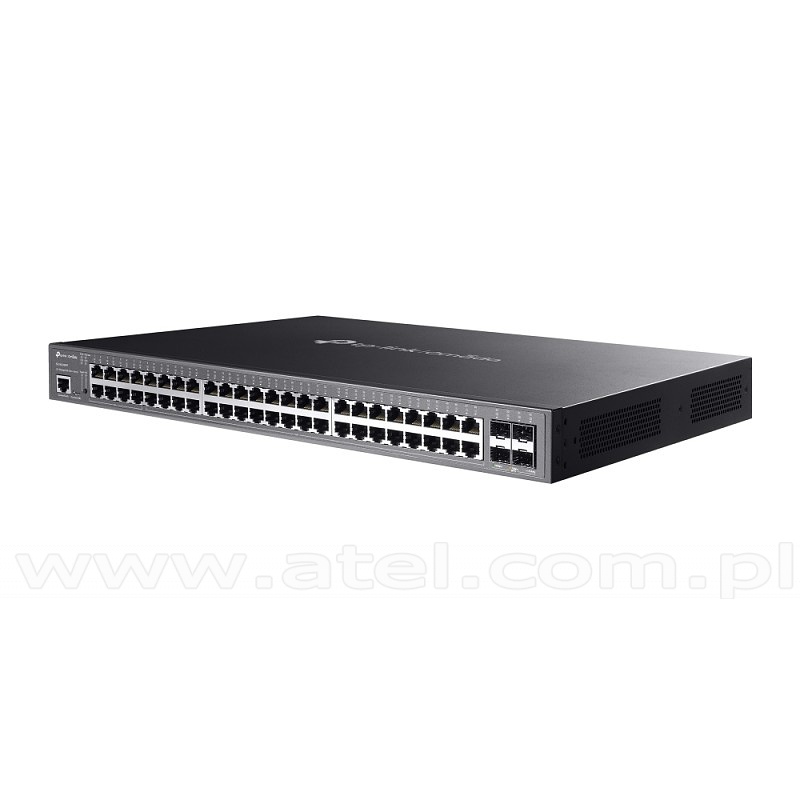

Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3452XMPP)
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget*
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Standards | IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports | 48x 10/100/1000 Mbps RJ-45 (8× PoE++, 40× PoE+) |
| Free slots | 4x SFP+ 10G |
| Additional ports | 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af/bt compliant |
| PoE Ports | PoE++ Ports Ports 1~8 (up to 90 W PoE Output per Port), PoE+ Ports Ports 9~48 (up to 30 W PoE Output per Port) |
| Power Budget | 750 W |
| Max Power Consumption | 913.4 W (110V/60Hz) ( with 750 W PD connected) |
| Max Heat Dissipation | 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected) |
| Performance | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service | Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features | DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | 511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN | VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security | AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features | Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | internal, 100~230VAC 50/60Hz |
| Certificates | CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
Net Price: 852,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
