MENU#09473

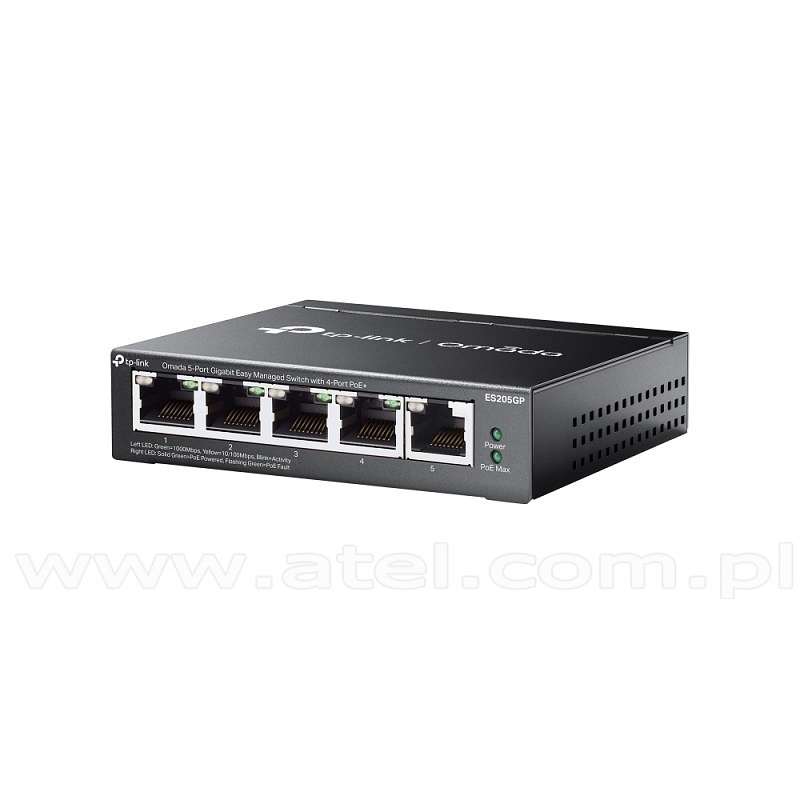

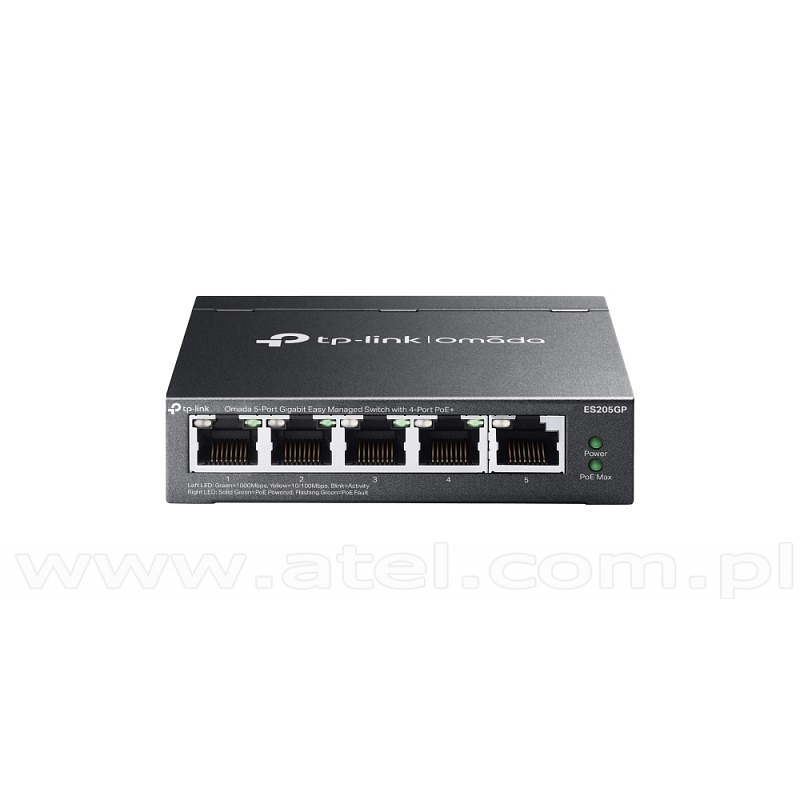

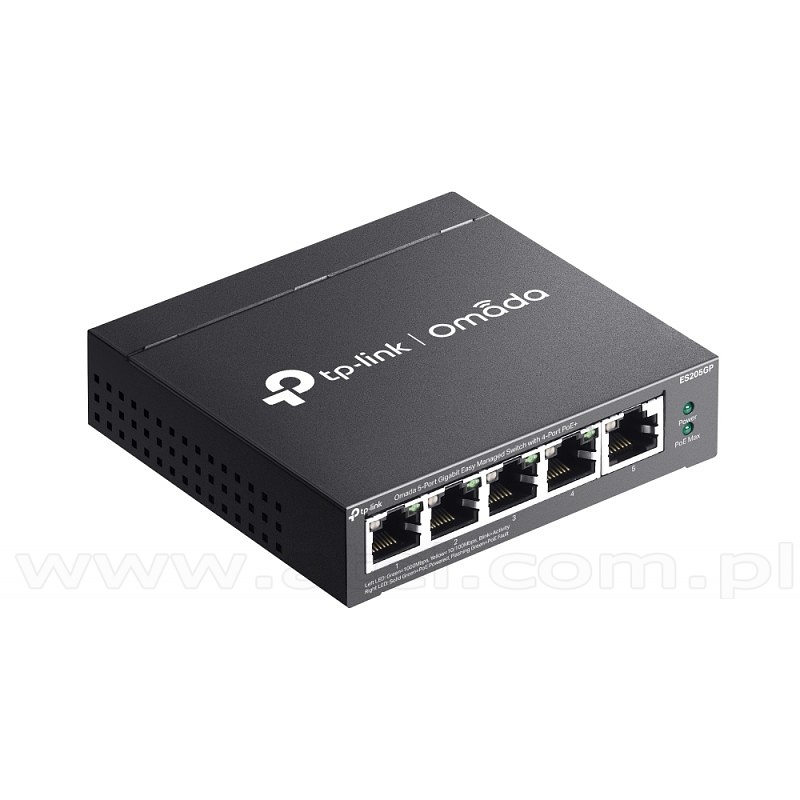

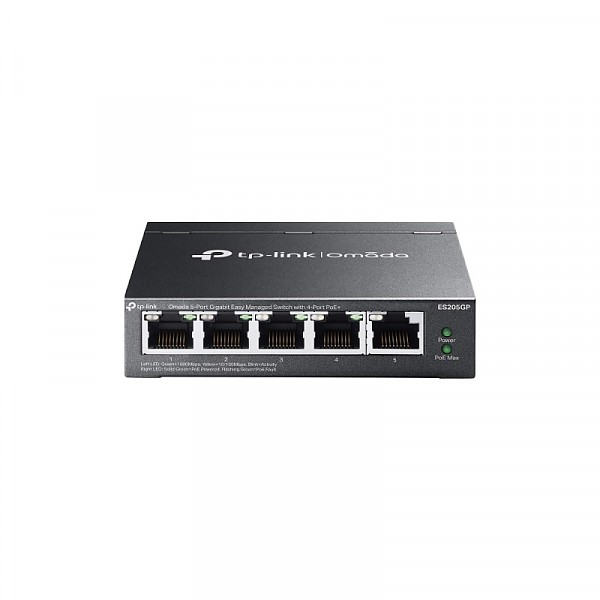

Smart switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link ES205GP)
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

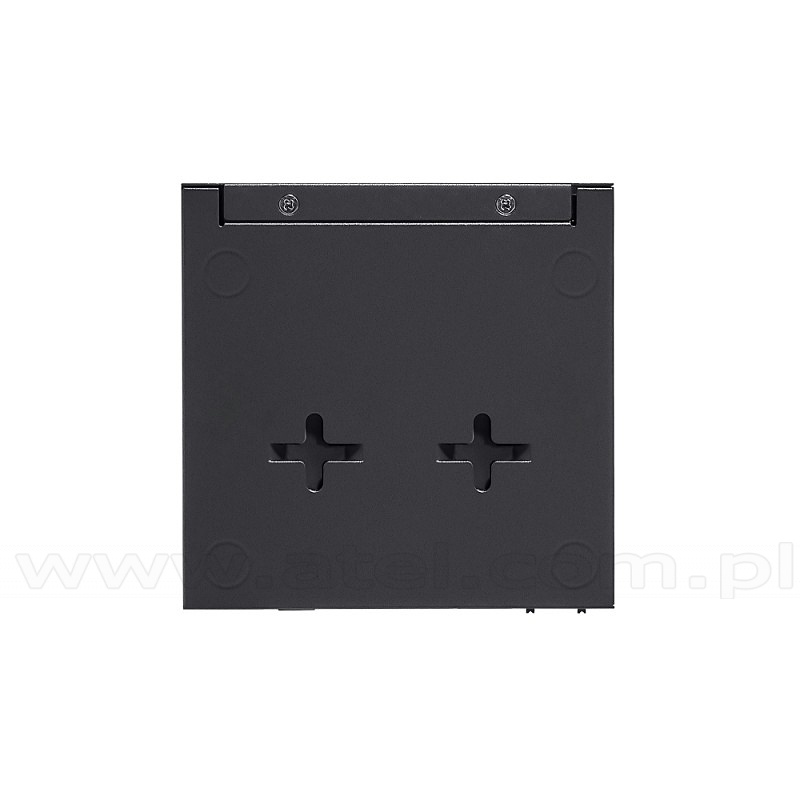

- Durable metal casing and desktop/wall mounting design
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
|---|---|
| Copper ports | 5x 10/100/1000 Mbps RJ-45 |
| PoE+ Ports | Port1- Port4 |
| Power Supply | 65W |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Packet Buffer Memory | 1.5 Mb |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Quality of Service | Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
| Management | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration |
| Housing / case type | desktop, metal |
| Dimensions | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |

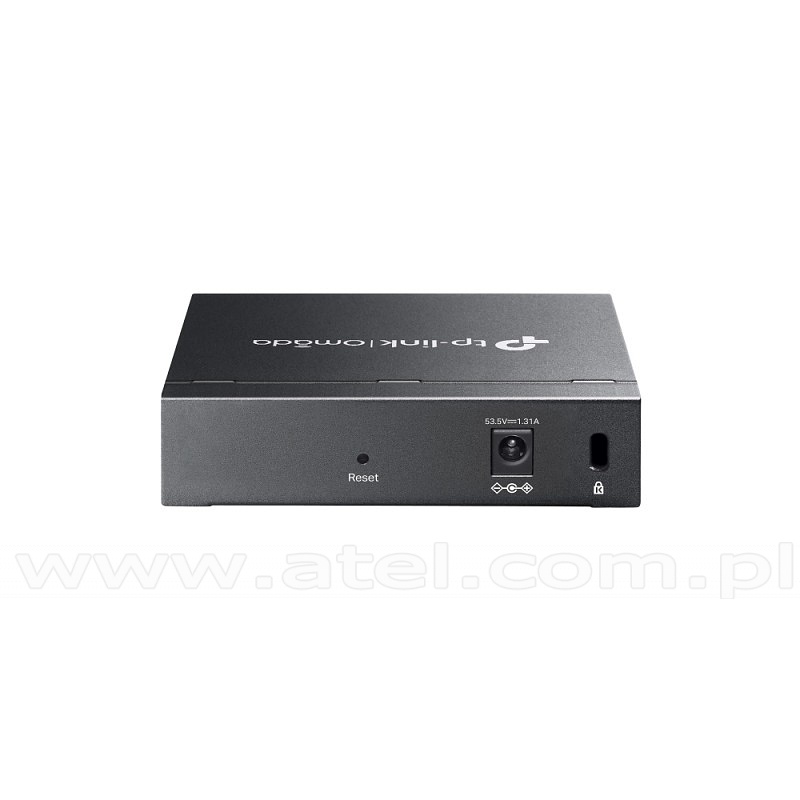

| Power | External Power Adapter (Output 53.5 VDC/1.31 A) |
| Power Consumption | 4.52W (max. no PD connected), 75.16W (max. with 65W PD connected) |
| Max Heat Dissipation | 15.41BTU/h(no PD connected), 256.30BTU/h(with 65W PD connected) |
| Certificates | CE, FCC, RoHS |
| Package Contents | ES205GP, Power Cord, Installation Guide, Resource CD, Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Warranty | 5 years |
| Manufacturer | TP-Link |
TAGS:
PoE plus
Net Price: 37,90 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
