MENU#08531

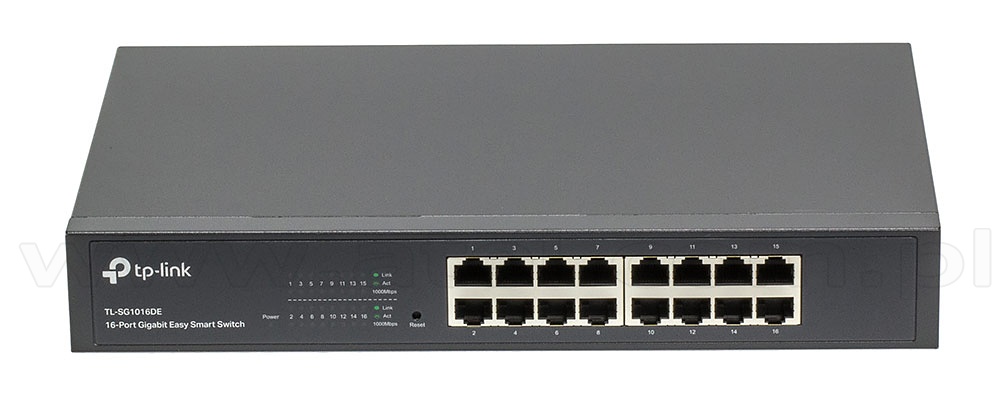

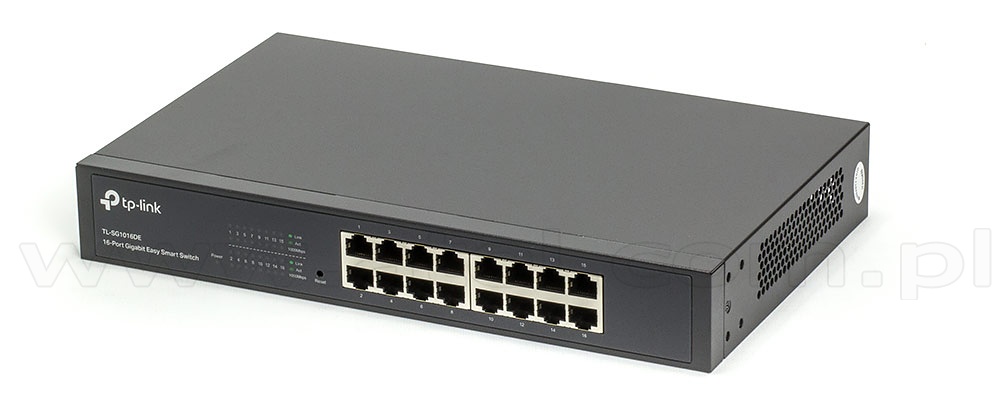

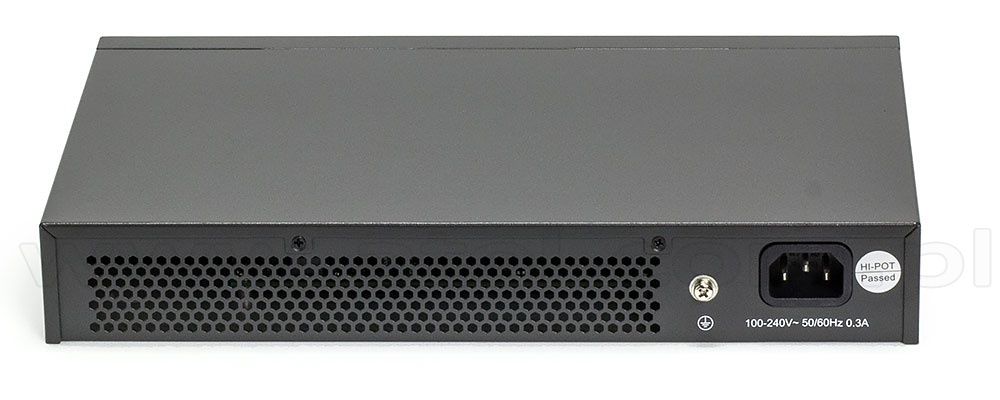

Smart switch, 16x 10/1000 RJ-45, 19" Rack-mounting Bracket (TP-Link TL-SG1016DE)
- 16 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 40%
- Simple network set-up on top of plug-and-play connectivity
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
- 19" Rack-mounting Bracket
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|---|---|
| Copper ports | 16x 10/100/1000 Mbps RJ-45 |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Packet flow control | Flow-Control, Back-Pressure |
| Switching Capacity | 32Gbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 512KB |
| Packet Forwarding Rate | 23.8Mpps |
| Jumbo Frame | 10240Bytes |
| Forwarding rate | 14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
| Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Power | internal, ~230V AC 50Hz |
| Certificates | CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
