MENU#07126

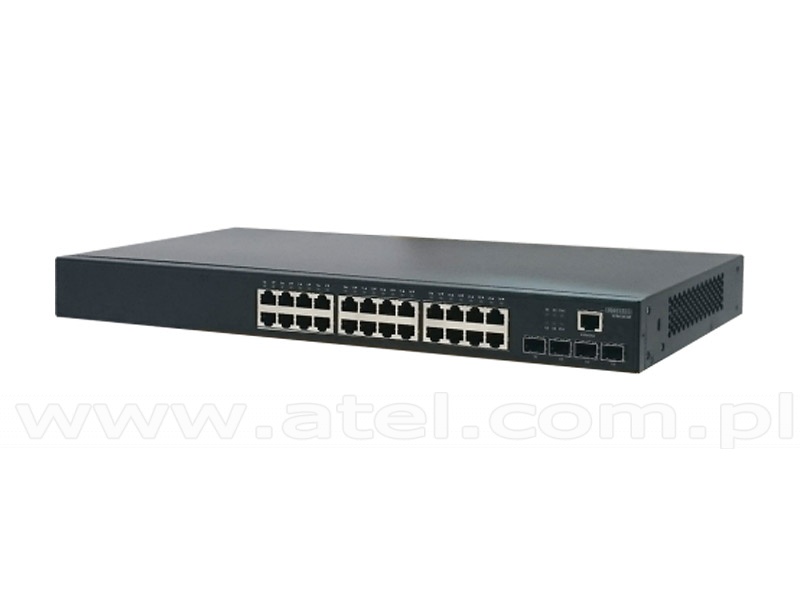

Managed switch L2, 24x 10/100/1000 RJ-45, 4x 10G SFP+, 19" (Edge-corE ECS4120-28T)
| Ports | |
|---|---|
| RJ-45 10/100/1000BASE-T ports | 24 |
| SFP+ 10 Gigabit ports | 4 |
| RJ-45 console port | 1 |
| Performance | |
| Forwarding Rate [Mpps] | 95 |
| Switching Capability [Gbps] | 128 |
| SDRAM | 512MB |
| L2 Features | |
| Flow Control | IEEE 802.3x for full duplex mode, Back-Pressure for half duplex mode |
| Spanning Tree Protocol (STP) | IEEE 802.1D (STP). IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), BPDU Guard, BPDU filtering, Root Guard, Loopback detection |
| VLANs support | Supports 4K IEEE 802.1Q VLANs, Port-based, GVRP, IEEE 802.1v Protocol-based VLANs, Mac-based VLANs, IP subnet based VLAN, Private VLAN (Traffic Segmentation per port/ VLAN), Guest VLAN, Voice VLAN, VLAN Trunking |
| Support IGMP | IGMP v1/v2/v3 snooping, IGMP Proxy reporting, IGMP Filtering, IGMP Throttling, IGMP Immediate Leave, IGMP Querier |
| Others | MVR (Multicast VLAN Registration), Supports QinQ, Supports select QinQ, UDLD, G.8032 (ERPS), Supports jumbo frames up to 10KB, Supports Digital Diagnostic Monitoring (DDM), Cable Diagnostic, Auto-negotiation for port speed and duplex mode |
| Security | |
| IEEE 802.1x | Port-based, MAC-based, VLAN Assignment, Guest VLAN |
| Management Access Filtering | SNMP, WEB, Telnet |
| TACACS+ | Authentication, Accounting, Authorization |
| RADIUS (RFC2138) | Authentication, Accounting |
| Quality of Service (QoS) | IEEE 802.1p, DSCP, 8 H/W Queues, DiffServ (RFC2474) |
| Priority Queue Scheduling | WRR, Strict Priority, Hybrid |
| Rate Limiting | Ingress, Egress |
| Others | ACL L2/L3/L4, HTTP and SSL ( Secured Web), Dynamic ARP inspection (DAI), Instruction lock (link detection), MAC Based Authentication, MAC Filter, SSH v1.5/ v2.0 (Secured Telnet Session), Username/Password Authentication (Local/Remote) |
| Management | |
| Switch Management | CLI via console port or Telnet, WEB management |
| Firmware & Configuration | Firmware upgrade via TFTP server, Supports dual image, Supports auto configuration provision, Supports auto firmware upgrade, Multiple configuration files, Configuration file upload/download via TFTP server |
| Remote Monitoring (RMON) | 1,2,3 & 9 groups |
| SNMP | v1, v2c, v3 |
| Others | BOOTP, DHCP client for IP address assignment, SNTP, NTP, IP clustering, Port mirroring, VLAN mirror, sFlow, Event/Error Log/Syslog, Remote log(RFC3164), SMTP, MIB I/II, LLDP (802.1ab), Auto traffic control |
| IPv6 Features | ICMPv6, ICMPv6 Redirect, IPv4/IPv6 Dual Protocol Stack, IPv6 ACL L2/L3/L4, IPv6 Address Types (Unicast), Manual Configuration, Stateless Auto-configuration |
| IPv6 Management | Support - IPv6 SNTP, SNMP over IPv6, IPv6 Telnet, Remote IPv6 Ping, IPv6 Syslog, IPv6 DNS Resolver, IPv6 TFTP, HTTP over IPv6, SSH over IPv6 |
| IPv6 Neighbor Discovery | Router Discovery, Duplicate Address Detection, Parameter Discovery, Prefix Discovery, Address Resolution, Unreachable Neighbor Detection |
| General | |
| Packet Buffer | 1.5MB |
| Flash Memory | 256MB |
| MAC Address Table | 16K |
| LED Indicators | Port, Uplink, System, Diagnostic |
| Dimensions | 440 x 220 x 44 mm |
| Weight | 2.35kg |
| Operating temperature | 0 ÷ 50°C |
| Operating humidity | 10% ÷ 90%, noncondensing |
| Power Supply | 100 to 240 V, 50-60 Hz |
| Power Consumption | 21.48 |
| Regulatory approvals | |
| Vibration | IEC 68-2-36, IEC 68-2-6 |
| Shock | IEC 68-2-29 |
| Drop | IEC 68-2-32 |
| Certification | CE Mark, FCC Class A, CISPR Class A, BSMI |
| Manufacturer | Edge-corE |
TAGS:
SFP slot
| * For special orders only
Net Price: 662,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
