MENU#09026

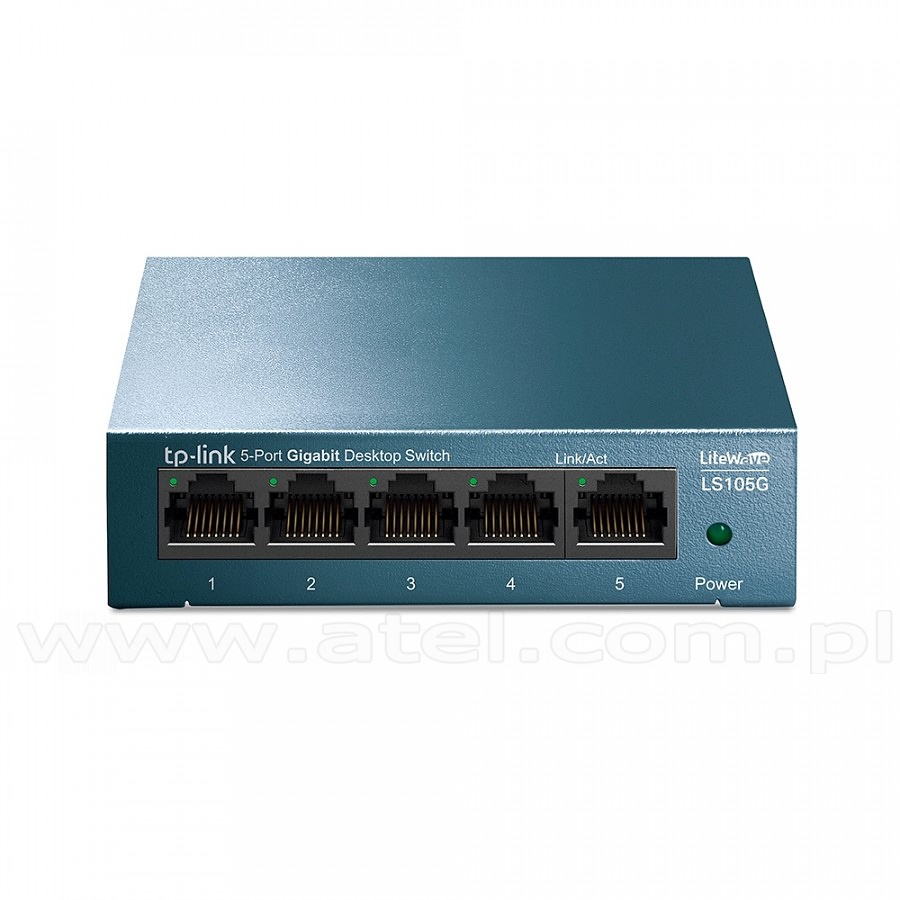

Unmanaged switch, 5x 10/100/1000 RJ-45, desktop (TP-Link LS105G)
- 5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
- Fanless design ensures quiet operation
| Standards | IEEE 802.3/i/u/x/ab, IEEE 802.1p |
|---|---|
| Copper ports | 5x 10/100/1000 Mbps RJ-45 |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Packet flow control | Flow-Control, Back-Pressure |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Housing / case type | desktop, metal |
| Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Storage Temperature | -40°C ÷ 70°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | external 5V DC 0.6A, ~230V AC |
| Max Power Consumption | 2.776W (220V/50Hz) |
| Max Heat Dissipation | 9.466 BTU/h |
| Certificates | CE, FCC, RoHS |
| Warranty period | 2 years |
| Manufacturer | TP-Link |
Net Price: 12,20 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
