MENU#09355

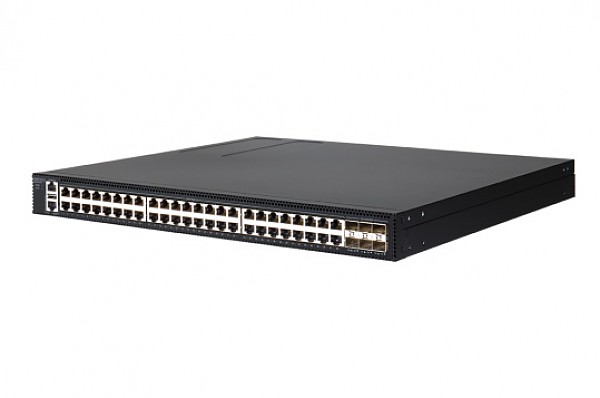

Managed switch, 48x 10/100/1000 RJ-45 ports, 6x 25G SFP28 ports, 19" (Edge-core ECS4150-54T)
- Best price-performance Gigabit Ethernet access switch with 25G uplinks
- Full Gigabit Ports: 48x gigabit RJ45 ports and 6x 25gigabit SFP28 ports provide high-speed connections
- Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
| Standards | IEEE 802.3ae 10GBase-SR/LR, IEEE802.3ay 25GBase-SR, IEEE 802.3cc 25GBASE-LR, IEEE 802.3z 1000BASE-SX/LX |
|---|---|
| Copper ports | 48x 10/100/1000 Mbps RJ-45 |
| SFP ports | 6x 25G SFP28 |
| Additional ports | 1× RJ45 Console Port, 1x Managment port, USB Managment port |
| Software features | |
| Quality of Service | 8 hardware queues per port, IEEE 802.1p CoS, IP Precedence, DSCP, MAC Access control list, IP standard access control list, IP extended access control list, Strict Priority, Weighted Round Robin, Strict + WRR, GE Resolution 64 Kbps ~ 1.000 Mbps, 10G Resolution 64 Kbps ~ 10.000 Mbps, 25GE Resolution 64 Kbps~25.000 Mbps, Auto Traffic Control |
| L2 Features | 10/100/1000BASE-T copper interfaces, Auto-negotiation for port speed and duplex mode, Auto MDI/MDI-X, Multi-speed (1G/10G/25G) fiber interfaces, IEEE 802.3ae (10GBASE-SR/LR), IEEE 802.3ay (25GBASE-SR), IEEE 802.3cc (25GBASE-LR), IEEE 802.3z (1000BASE-SX/LX) transceivers 10G/25G DAC/AOC, Digital Diagnostic Monitoring on 25G SFP28 port, IEEE 802.3x for full duplex mode, Back-Pressure for half duplex mode, Jumbo frames 10KB, Broadcast/Multicast/Unknown Unicast storm control , IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP) 64 instances, BPDU Guard, BPDU filtering, Root Guard, BPDU transparent, Loopback detection, Non-Spanning Tree loopback detection, ITU-T G.8032v2 Ethernet Ring Protection Switch, Sub 50 msec convergence, Revertive operation mode, Multiple-ring network, Q-in-Q, xSTP, CDP, VTP and PVST+, LLDP, CDP/PVST+ Filtering, Selective Q-in-Q, Static Trunk, IEEE 802.3ad LACP, 28 trunk groups up to 8 GE/ 6 25GE ports per group, SA+DA, SA, DA, SIP+DIP, SIP, DIP, Multi-chassis Link Aggregation, Static LACP, IGMP Authentication, IGMP v1/v2/v3 snooping, IGMP Proxy reporting, IGMP Filtering, IGMP Throttling, IGMP Immediate Leave, IGMP Querier, MVR supports 5 multicast VLANs, VLAN Mirror, Mac Based Mirror, ACL Mirror, Remote port mirror (RSPAN) |
| VLAN | Supports 4K VLAN, Port-based VLAN, IEEE 802.1Q VLAN, GVRP, IEEE 802.1v Protocol-based VLAN, IP Subnet-based VLAN, MAC-based VLAN, Traffic Segmentation |
| IPv6 Support | IIPv4/IPv6 dual protocol stack, IPv6 Address Types Stack (Unicast), IPv6 Neighbor Discovery, Duplicate address, Address resolution, Unreachable neighbor detection, Stateless auto-configuration, Manual configuration, Remote IPv6 ping, IPv6 Telnet support, HTTP over IPv6, SNMP over IPv6, IPv6 Syslog support, IPv6 TFTP support, MLD Snooping v1/v2, IPv6 Source Guard, DHCPv6 Snooping, MVR6 |
| Security | Port security, IEEE 802.1X port based and MAC based authentication, IEEE 802.1X Supplicant, Dynamic VLAN Assignment, Auto QoS, MAC authentication, Web authentication, Voice VLAN, Guest VLAN, MAC Access control list, IP standard access control list, IP extended access control list, IPv6 ACL, DHCP Snooping, DHCP Info, DHCP Option 82, DHCP Option 82 Relay, IP Source Guard, PPPoE IA, Dynamic ARP Inspection, Denial of Service, Login Security, RADIUS authentication, RADIUS accounting, TACACS + authentication, TACACS + accounting, TACACS + authorization, Management Interface Access Filtering (SNMP/Web/Telnet), SSH (v1.5/v2.0) for security Telnet, SSL for HTTPS, SNMPv3 |
| Management | |
| Management Features | Zero Touch provisioning, mDNS, CLI via console port or Telnet management, Web management, SNMP (v1/v2c/v3), Firmware upgrade via TFTP/HTTP/FTP/SFTP server, Multiple configuration files, Configuration file upload/download via TFTP/HTTP/FTP/SFTP server, RMON (groups 1,2,3 and 9), DHCP client for IP address assignment, DHCP dynamic provision Option (66/67), SNTP, Syslog (local Flash), Remotelog (RFC3164), SMTP (E-mail Notification), Supports LLDP (802.1ab), sFlow (v4/v5), IPv6 sFlow |
| Switching capacity [Gbps] | 396 |
| Packet Forwarding Rate | 295 Mpps |
| MAC Address Table | 32K |
| Jumbo Frame | 10 KB |
| Dimensions | 442 × 420 × 43.6 mm |
| Weight | 4.7 kg |
| Operating temperature | -5°C ÷ 45°C |
| Operating humidity | 5% ÷ 95%, non-condensing |
| Power | 100~240VAC 50/60Hz |
| Max Power Consumption | 52 W |
| Certificates | FCC Class A, CE, Safety Compliance (CB/UL) |
| Warranty period | 3 years |
| Manufacturer | Edge-core |
| * For special orders only
Net Price: 932,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
