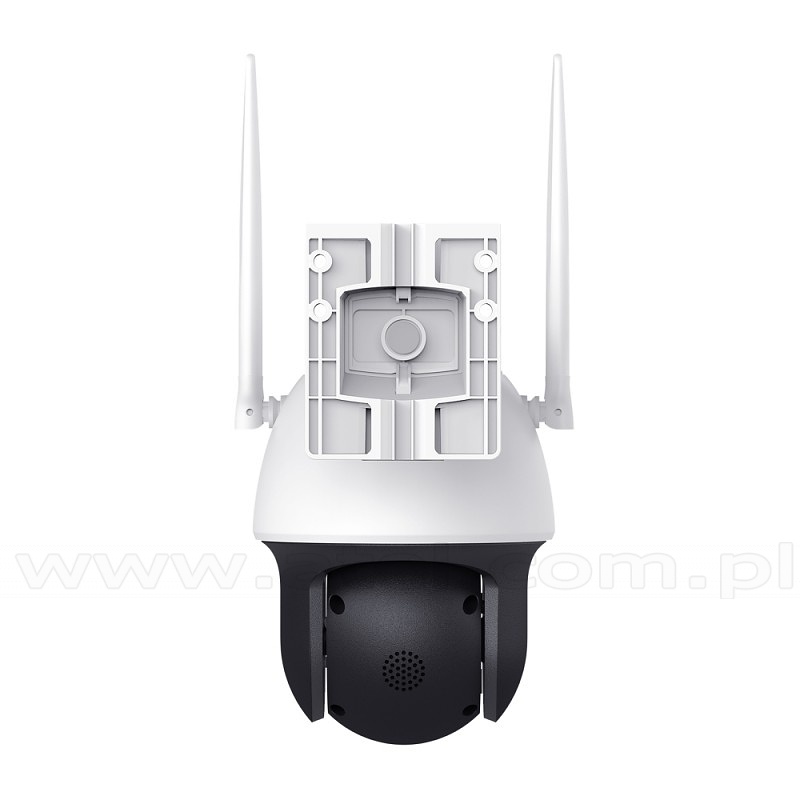

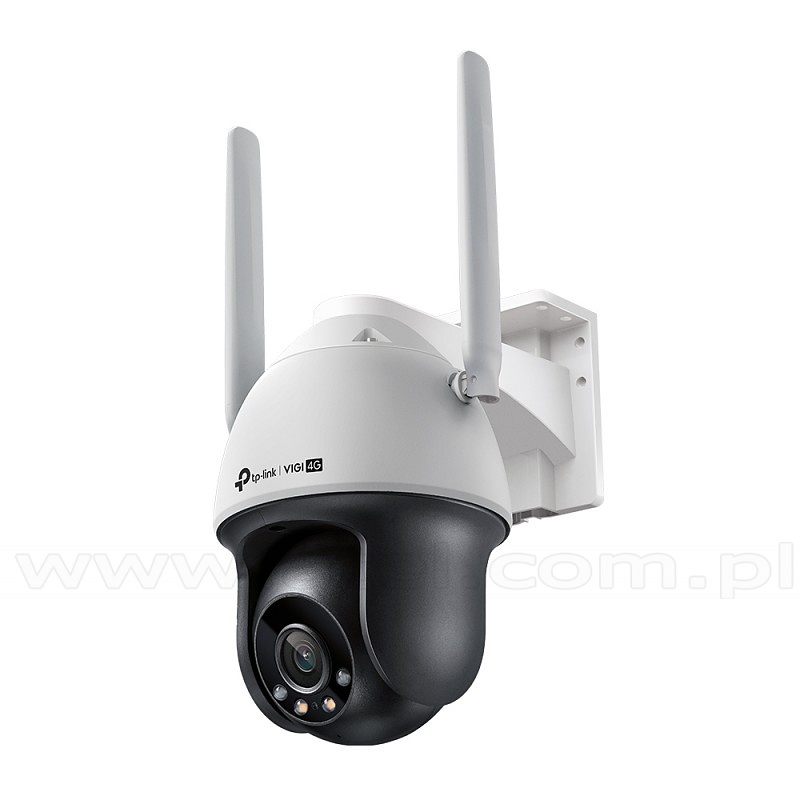

4 Mpx Outdoor Pan Tilt Network Camera lens 4mm (TP-Link VIGI C540-4G 4mm)
- 4MP Super-High Definition and 24h Full-Color

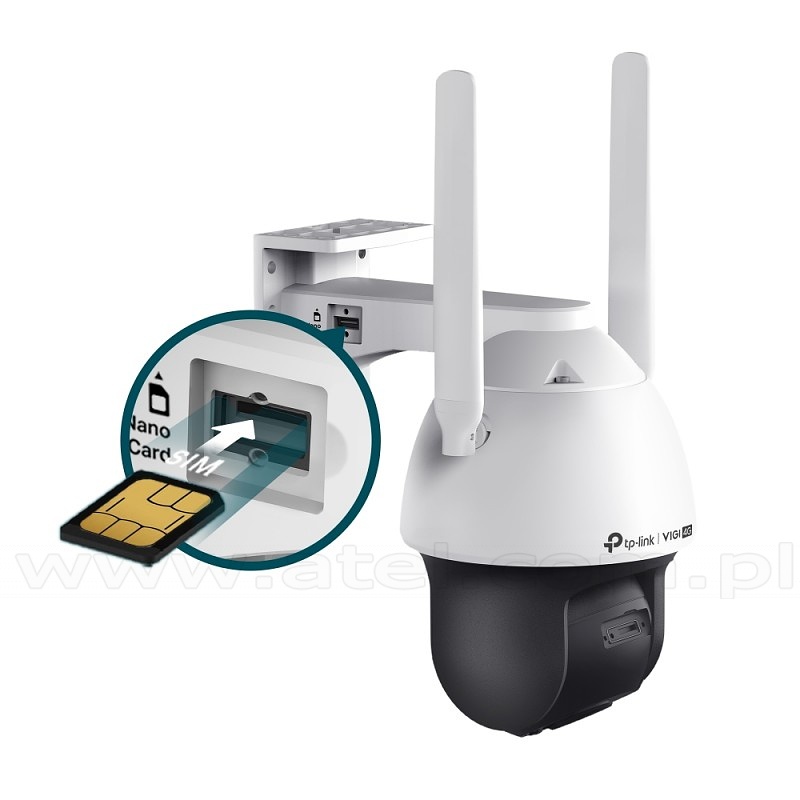

- 4G Mobile Networking
- 360° Monitoring and Auto Tracking
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66† Waterproof and Onboard Storage§
| HARDWARE FEATURES: | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC Max 14W, PoE Class 0 |
| Dimensions( H X W X D ) | 120 × 172 × 198 mm |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| NETWORK: | |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| CAMERA: | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Lens | 4 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Viewing Angle | horizontal FOV 79°, vertical FOV 43°, diagonal FOV 93° |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Pan/tilt Range | Pan 0° to 350°, Tilt 0° to 120° |
| Minimum Illumination | Color 0.1 Lux@F2.0, 0 Lux with IR |
| Weatherproof Rating | IP66 |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| VIDEO/IMAGE: | |
| Video Compression | Main stream- H.265+/H.265/H.264+/H.264, Sub-Stream- H.265/H.264 |
| Frame Rate & Resolutions | Frame Rate- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution- 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240 |
| Video Streaming | Main Stream, Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| SMART FEATURE-SET: | |
| Smart Event | Human & Vehicle Classification, Area Intrusion, Detection, Line-Crossing Detection, People, Detection, Vehicle Detection, Region Entering, Detection, Region Exiting Detection, Object, Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification ONVIF, HTTPS |
| Region of Interest | 1 Region |
| OTHERS: | |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Certification | CE/BSMI/VCCI/ONVIF |
| Package Contents | VIGI Network Camera, Quick Start Guide, Mounting Accessories |
| Environment | Operating Temperature -30°~60° |
Net Price: 151,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
