MENU#09493

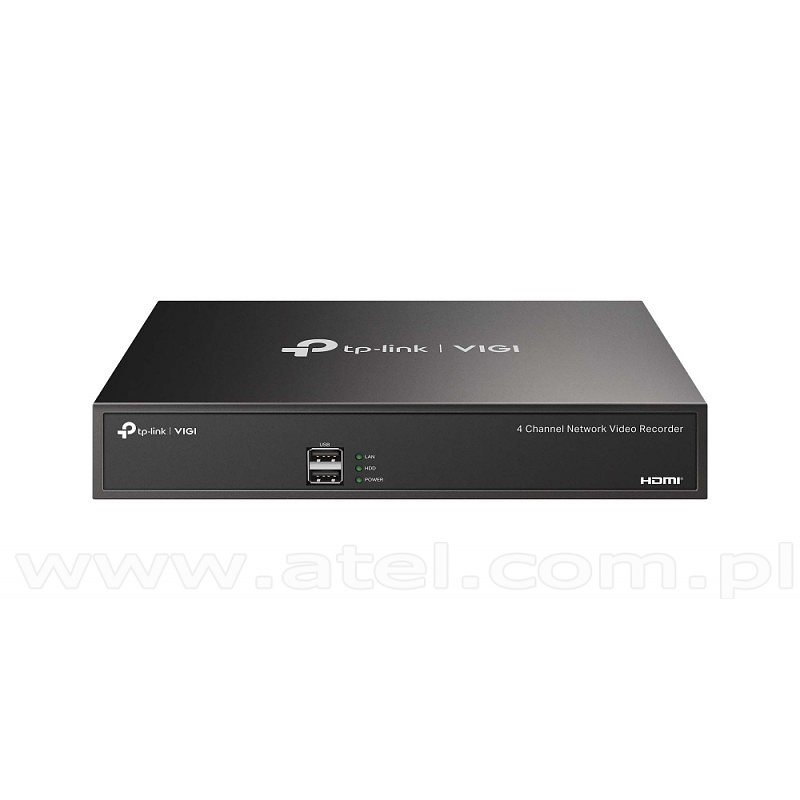

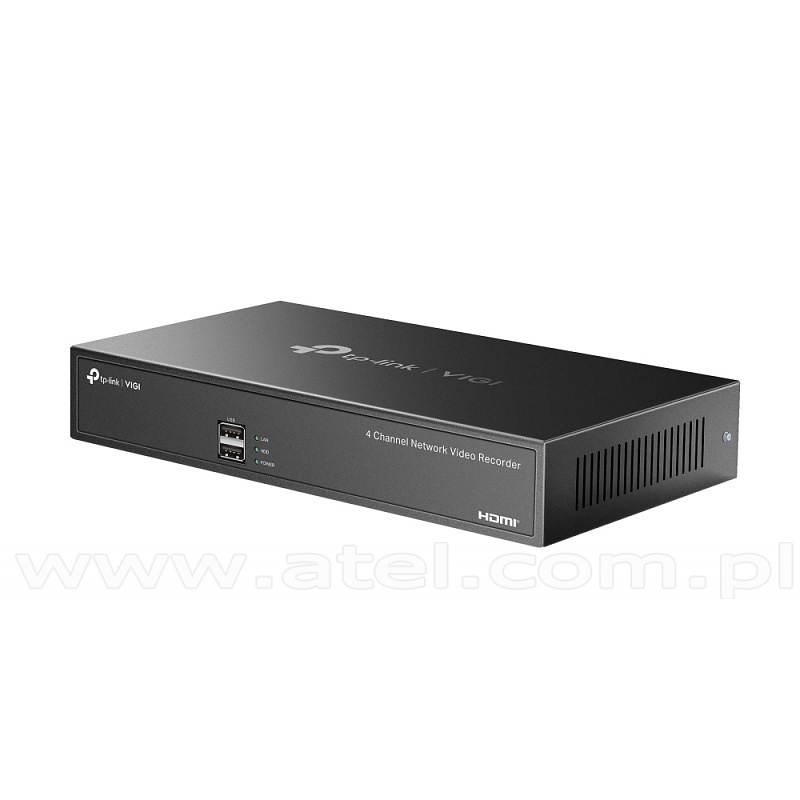

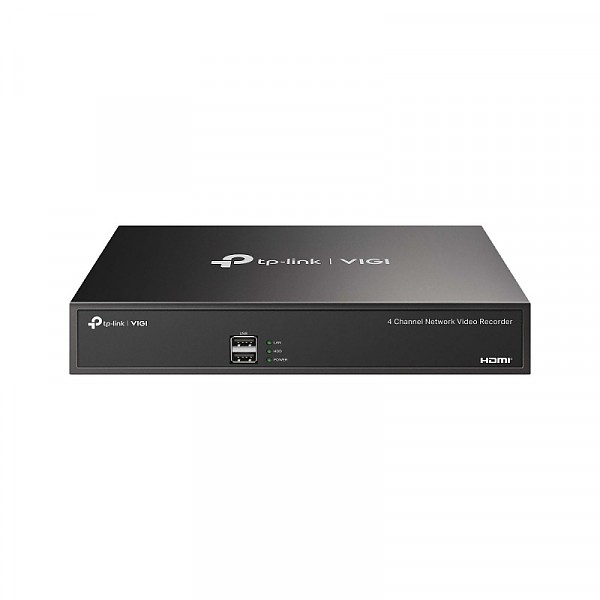

4 Channel Network Video Recorder (TP-Link VIGI NVR1004H)
- 4-Channel Live View and 4K HDMI Video Output
- Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 4-Channel Synchronous Playback
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 10 TB)
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
| HARDWARE FEATURES: | |
|---|---|

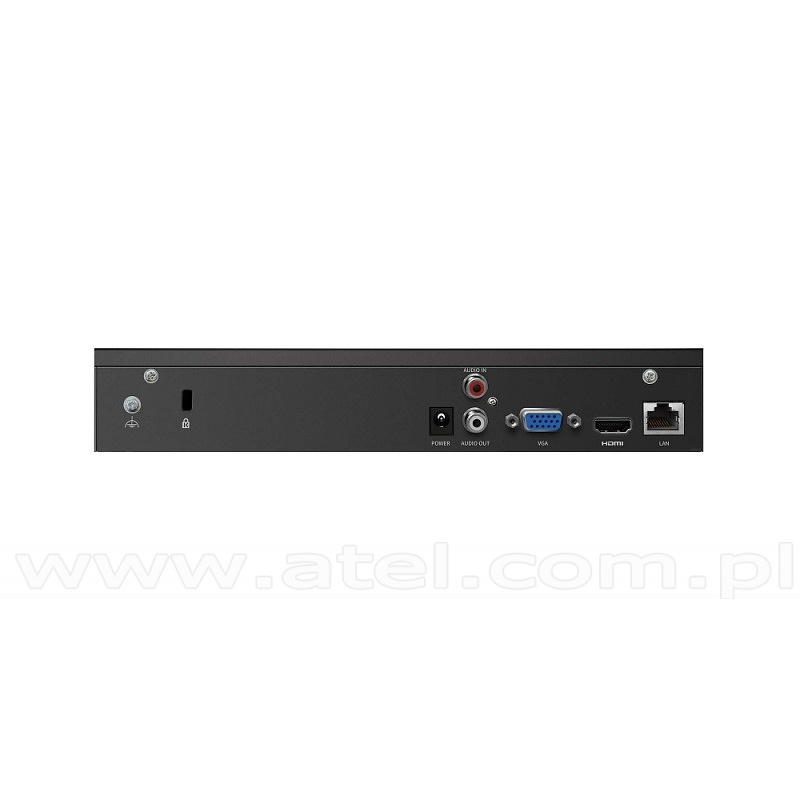

| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, 2× USB 2.0 |
| External Power Supply | DC 12V/1,5A |
| Dimensions( H X W X D ) | 246.2 × 148.2 × 45 mm |
| Power Consumption | 4.25 W (without disk) |
| NETWORK: | |
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| VIDEO/IMAGE: | |
| Video Input | 4-Channel IP Video Input, up to 8 MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| DECODING: | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| HARD DISK: | |
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| OTHERS: | |
| Package Contents | VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide |
| Environment | Operating Temperature -10°~55° |
Net Price: 90,10 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
