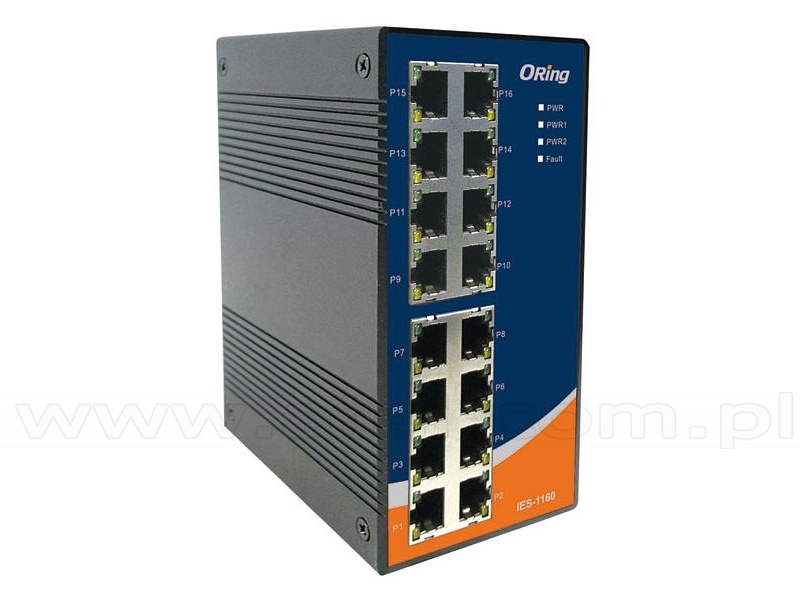

Unmanaged switch, 16x 10/100 RJ-45 (ORing IES-1160)
IES-1160 is the unmanaged Ethernet switch with 16x10/100Base-T(X) port. IES-1160 support redundant power inputs, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments. Especially, IES-1160 features dual different redundant DC power inputs, two DC power inputs are on terminal block to avoid any unexpected fails on power on. Thus, IES-1160 could guarantee a non-stop operation. Therefore, the switch is one of the most reliable choice for highly-unmanaged Ethernet application.
| Physical Ports | |
|---|---|
| 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 16 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control |
| MAC Table | 8192 MAC addresses |
| Processing | Store-and-Forward |
| Software Features | Port configuration, Port status, Port statistics, Port monitoring, Port security |
| LED Indicators | |
| Power indicator | Green - Power LED x 3 |
| Fault indicator | Yellow - Indicate PWR1 or PWR2 failure |
| 10/100TX RJ45 port indicator | Green for port Link/Act, Yellow for Duplex/Collision |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
| Power consumption (typical) | 9W |
| Overload current protection | present |
| Reverse polarity protection | present on terminal block |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 74.3mm x 109.2mm x 153.6mm |
| Weight | 1060g |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -40÷70°C (-40÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only
Net Price: 408,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
