#06540
Industrial Switches › ORING NETWORKING › IGS-9080-LA-PN

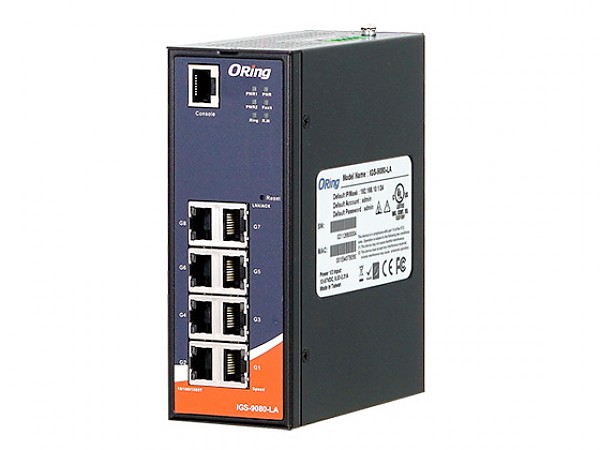

Managed switch, 8x 10/1000 RJ-45, O/Open-Ring <20ms, L2 (ORing IGS-9080-LA-PN)

IGS-9080-LA-PN is layer2 managed Ethernet switch with 8x 10/100/1000Base-T(X) ports, which is designed for various industrial applications, including manufacturing, process automation, transportation, and energy industries. The PROFINET certification of this product line ensures its compliance with rigorous industry standards and seamless communication compatibility with PROFINET systems. The switch support Ethernet redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40oC to 75oC. IGS-9080-LA-PN can also be managed centralized and convenient by Open-Vision, except the web-based interface, Telnet and console (CLI) configuration.
Physical Ports
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
Technology
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1Q-2014 MSTP (compatible with STP/RSTP),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
PROFINET CC-B v2.40 certified,
MRP client (MRC)
Priority Queues 8
Processing Store-and-Forward
Switching latency 7 µs
Switching bandwidth 8 Gbps
Throughput (packet per second) 11.9Mpps@64Bytes packet
Max. Number of Available VLANs 4095
IGMP multicast groups 256 for each VLAN
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security
Software Features STP/RSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging and GVRP supported,
IGMP Snooping for multicast filtering,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security,
Modbus TCP
Network Redundancy O-Ring,
Open-Ring,
O-Chain,
MRP,
MSTP (RSTP/STP compatible)
LED Indicators
Ring Master indicator Green - indicates system operated in O-Ring Master mode
Ring Indicator Green - Indicates that the system operating in O-Ring mode,
Green Blinking - Indicates that the Ring is broken.
Fault indicator Amber - Indicates unexpected event occurred
10/100/1000TX RJ45 port indicator Dual color LED - Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual DC inputs. 12~48VDC on 6-pin terminal block
Power consumption (typical) 13.2Watts (power device not included)
Hi-POT 1.5KV AC
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 54.3 (W) x 120 (D) x 145.1 (H) mm (2.13 x 4.72 x 5.71 inches)
Weight 779g
Environmental
Storage Temperature -40÷85°C(-40÷185°F)
Operating Temperature -40÷75°C (-40÷167°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55035,
EN 55032),
FCC Part 15 B
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15 B class A
EMS IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),
IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF)
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety UL61010-1
Warranty
Warranty period 5 years
Print to PDF
Technical Support
* For special orders only
Net Price: 544,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
