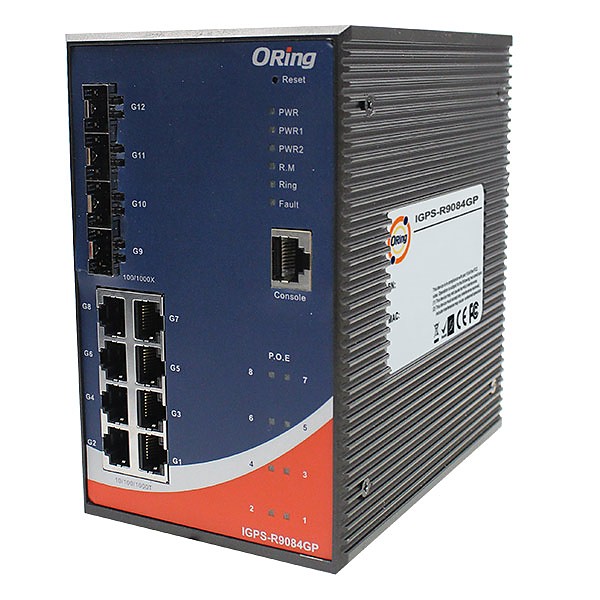

Industrial Switches › ORING NETWORKING › IGPS-R9084GP

Managed switch, L3, 8x 10/1000 RJ-45 PoE + 4 slide-in SFP slots, O/Open-Ring <20ms (ORing IGPS-R9084GP)

IGPS-R9084GP is Layer-3 managed redundant ring PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. The IGPS-R9084GP supports Layer-3 routing for better network performance on large-scale LANs into multiple subnets to support long-haul and EMI immunity communications. The hardware Layer-3 switch is optimized to transmit data as fast as Layer-2 switches. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-R9084GP also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-R9084GP switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection and support wide operating temperature from -40°C to 75°C. IGPS-R9084GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Physical Ports
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX (with PoE) 8
100/1000 SFP 4
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
Technology
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX and 100Base-FX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.z for 1000Base-X,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol),
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table 8192 MAC addresses
Priority Queues 8
Processing Store-and-Forward
Switching latency 7 µs
Switching bandwidth 24 Gbps
Max. Number of Available VLANs 256
IGMP multicast groups 128 for each VLAN
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security
Software Features Hardware routing,
RIP and static routing,
IEEE 1588v2 clock synchronization,
IEEE 802.1D Bridge,
auto MAC address learning/aging and MAC address (static),
Multiple Registration Protocol (MRP),
RSTP/MSTP (IEEE 802.1w/s),
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging,
Voice VLAN,
IGMP v2/v3 Snooping,
IP-based bandwidth management,
Application-based QoS management,
DOS/DDOS auto prevention,
Port configuration,
status,
statistics,
monitoring,
security,
DHCP Server/Client/snooping,
DHCP Relay,
Modbus TCP,
ARP inspection,
SMTP Client
Network Redundancy O-Ring,
Open-Ring,
O-Chain,
MRP,
MSTP (RSTP/STP compatible)
LED Indicators
Power Indicator (PWR) Green - Power LED x 2
Ring Master indicator Green - indicates system operated in O-Ring Master mode
Ring Indicator Green - Indicates that the system operating in O-Ring mode,
Green Blinking - Indicates that the Ring is broken.
Fault indicator Amber - Indicates unexpected event occurred
100/1000Base-X SFP Port Indicator Green for port Link/Act.
10/100/1000TX RJ45 port indicator Green for Link/Act indicator,
Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps
PoE indicator Green - PoE enabled LED x 8
Power
Input power Dual DC inputs. 50~57VDC on 6-pin terminal block
Power consumption (typical) 19Watts (PoE output not included)
Overload current protection present
Reverse polarity protection not present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 96.4 (W) x 108.5 (D) x 154 (H) mm
Weight 1560g
Environmental
Storage Temperature -40÷85°C(-40÷185°F)
Operating Temperature -40÷75°C (-40÷158°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years
Print to PDF
Technical Support
TAGS: PoE, SFP slot
* For special orders only
Net Price: 1 220,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
