Rack 10", 19" cases, cabinets › #04959

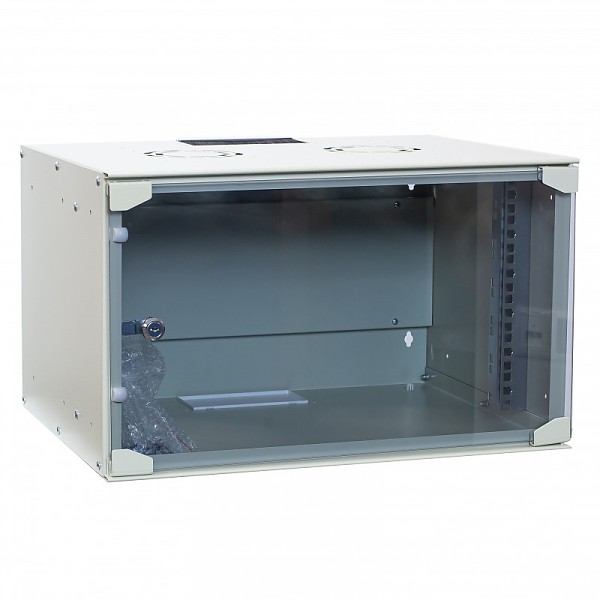

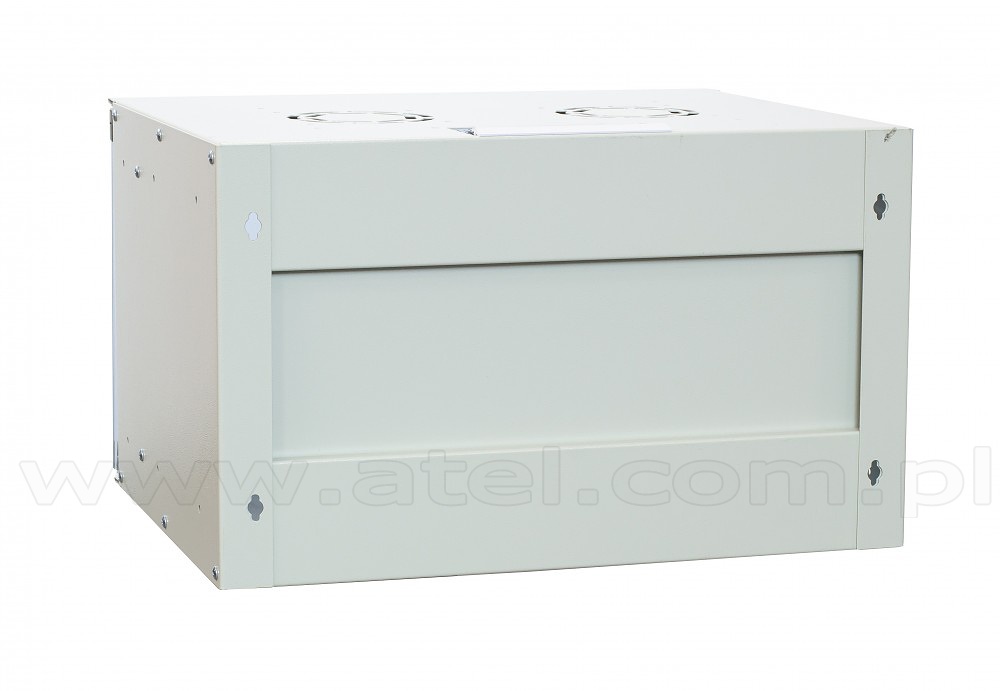

Wall-mounted 19" cabinet, 6U, glass door, 340 x 520 x 400 mm
Wall-mounted rack cabin with a 6U working height and a depth of 300mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions | 6U 19", 340x520x400 mm, (H x W x D), 300mm working depth, (distance from bars to rear panel) |
|---|---|
| Type | wall-mounted, welded body |

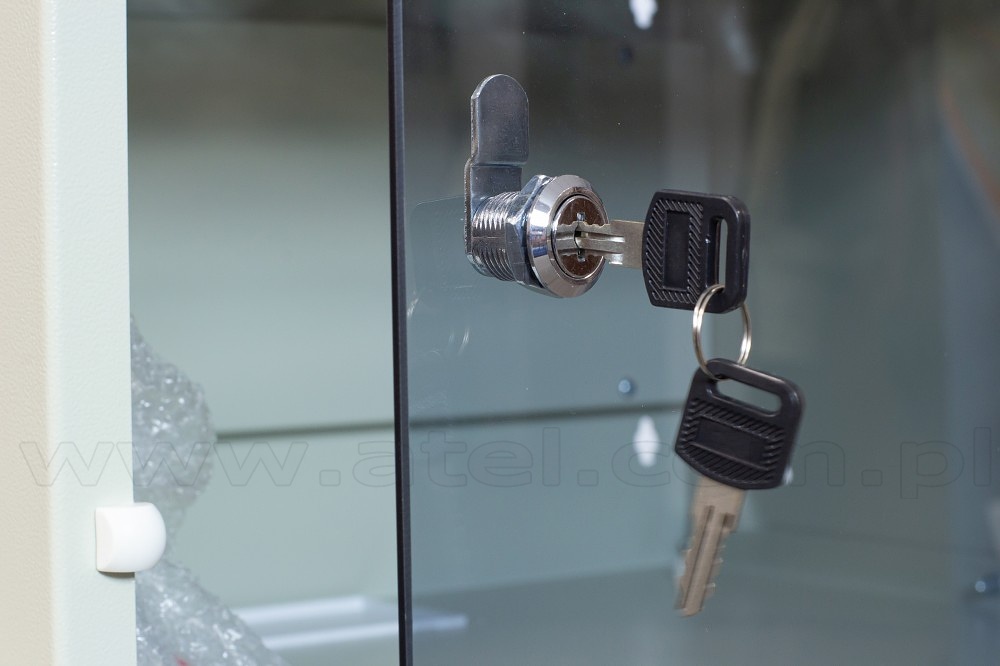

| Door | 4mm toughened glass |

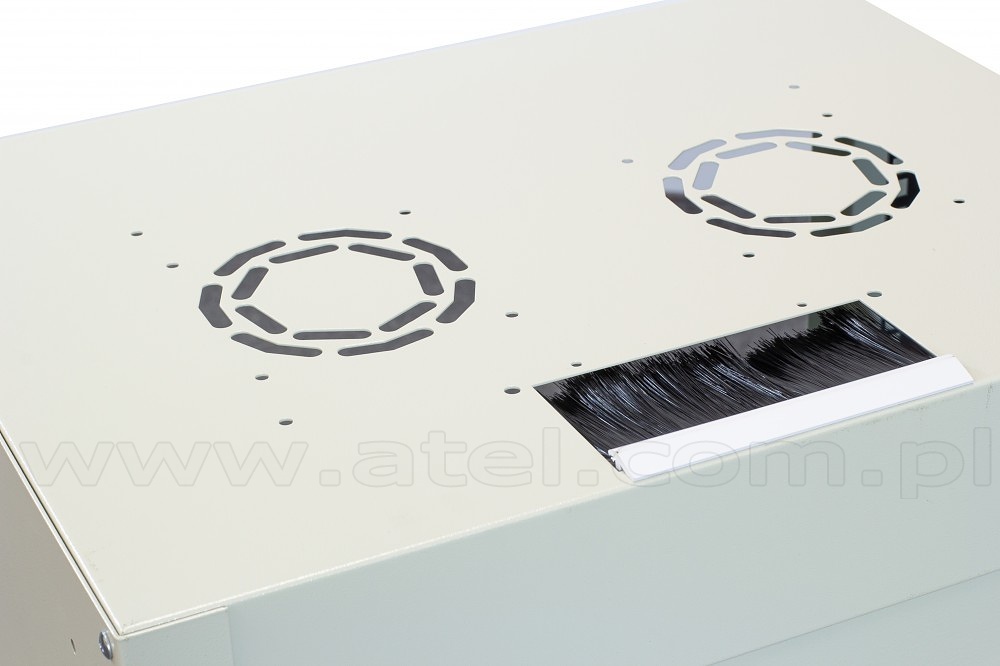

| Cable entry | top + bottom |

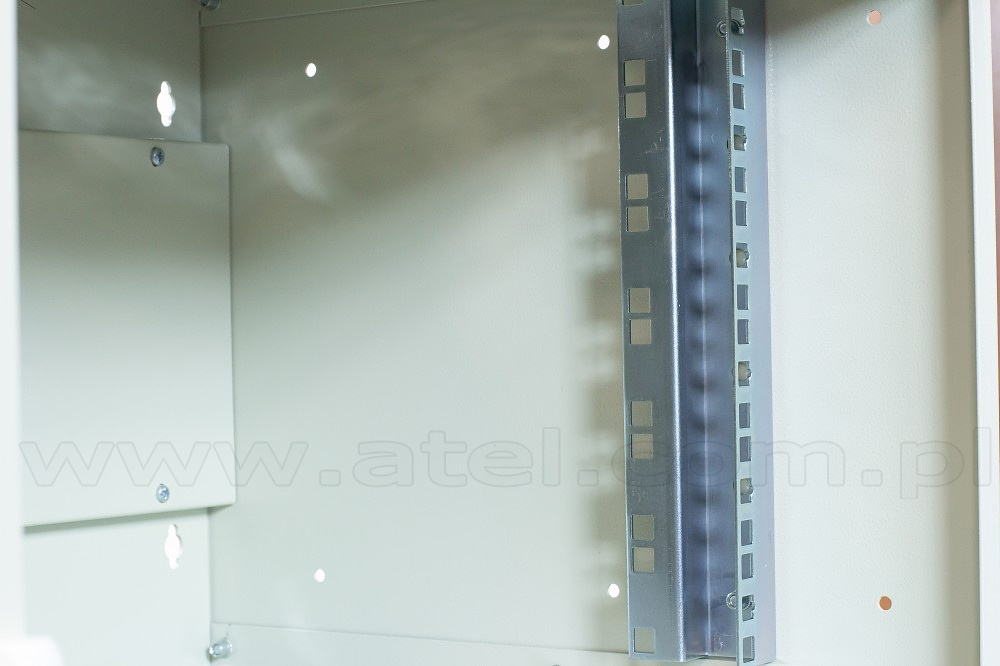

| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 7035 (grey) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
Recommended accessories:
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
Net Price: 55,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
