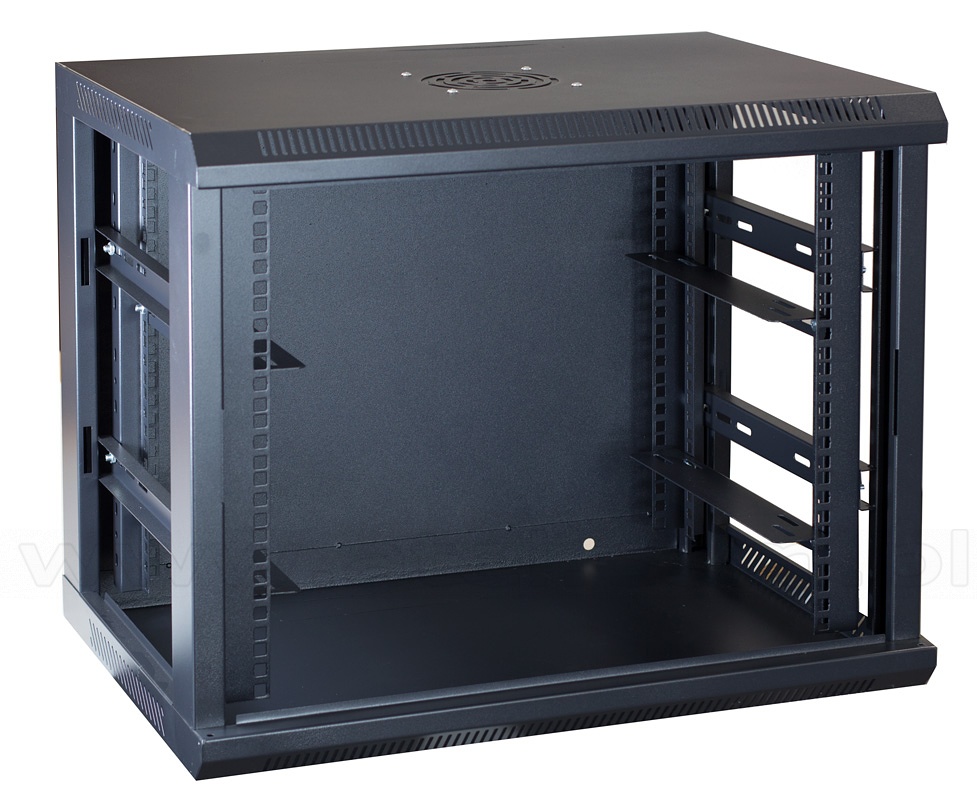

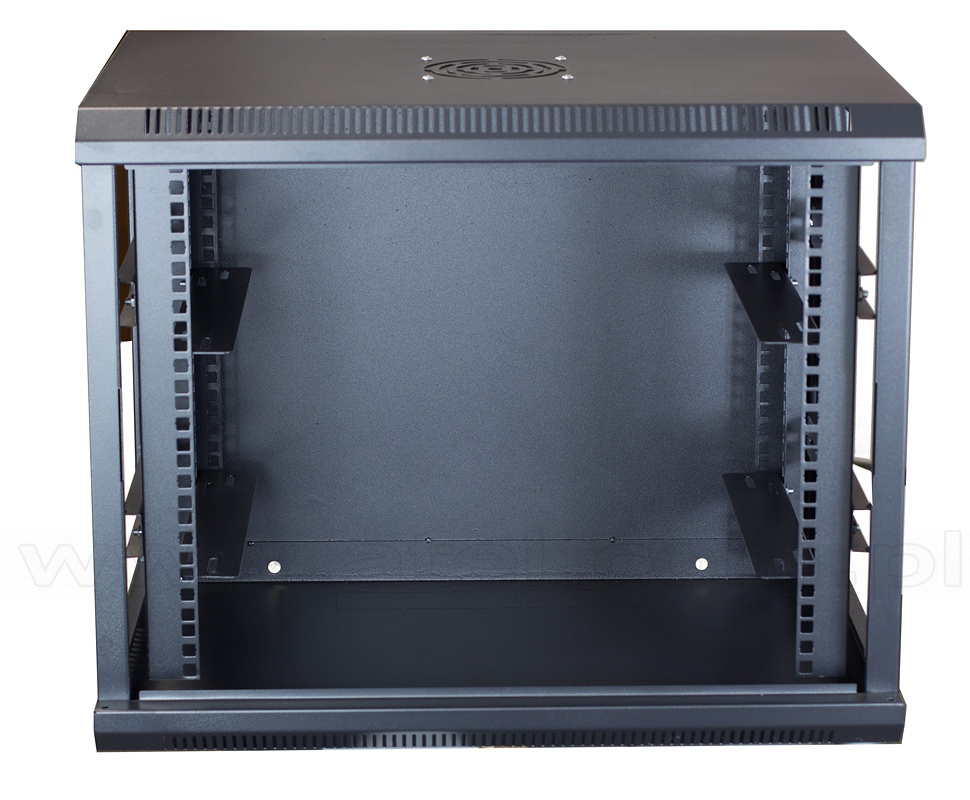

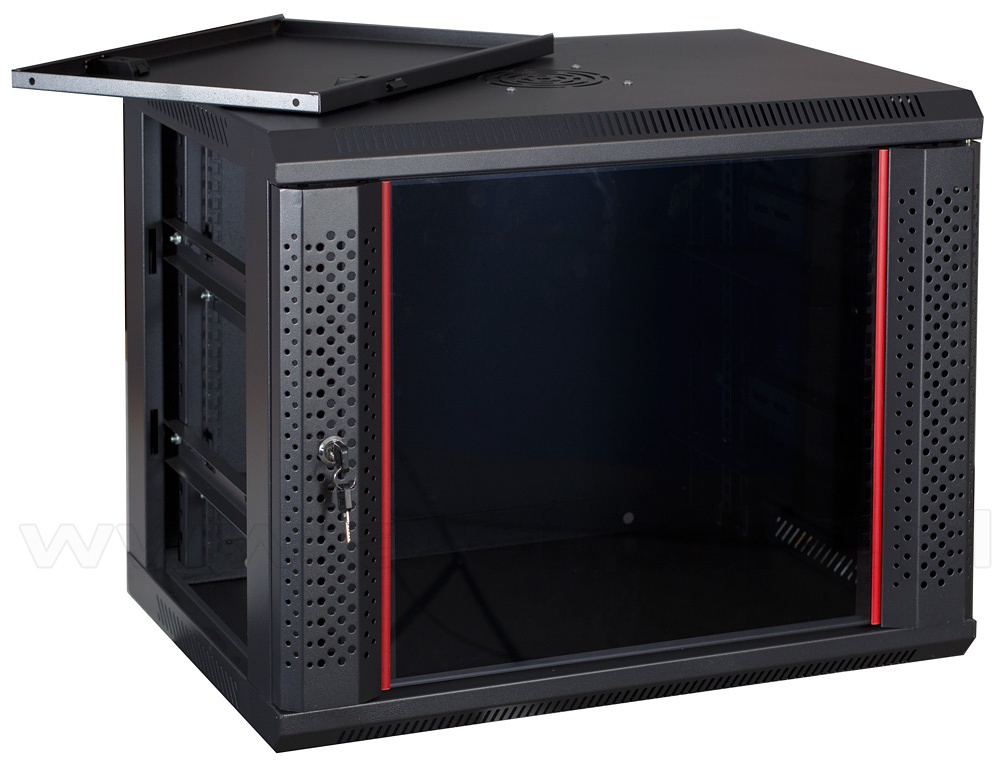

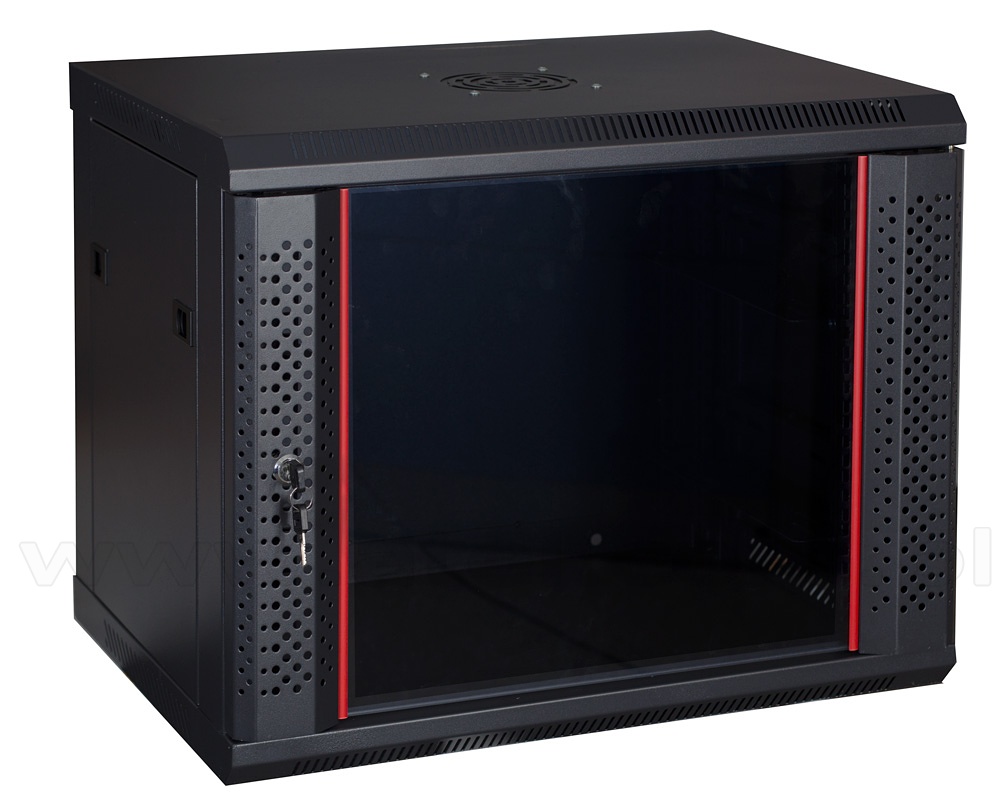

Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm, black
Wall-mounted rack cabin with 9U working height and a depth of 500mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
| Dimensions | 9U 19", 480x600x600 mm, (H x W x D), 500mm working depth, (distance from bars to rear panel) |
|---|---|
| Type | wall-mounted, welded body, removable sides |
| Door | 4mm toughened glass |
| Cable entry | top + bottom, 50 x 260mm |
| Mounting profiles | 1 pair (front) |
| Fan openings | yes |
| Colour | RAL 9005 (black) |
| Protection degree | IP 20 |
| Additional equipment | 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting |
Recommended accessories:
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
Also available in grey color:
#04963 Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
Also available in grey color:
#04963 Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm
Net Price: 90,40 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
