MENU#09560

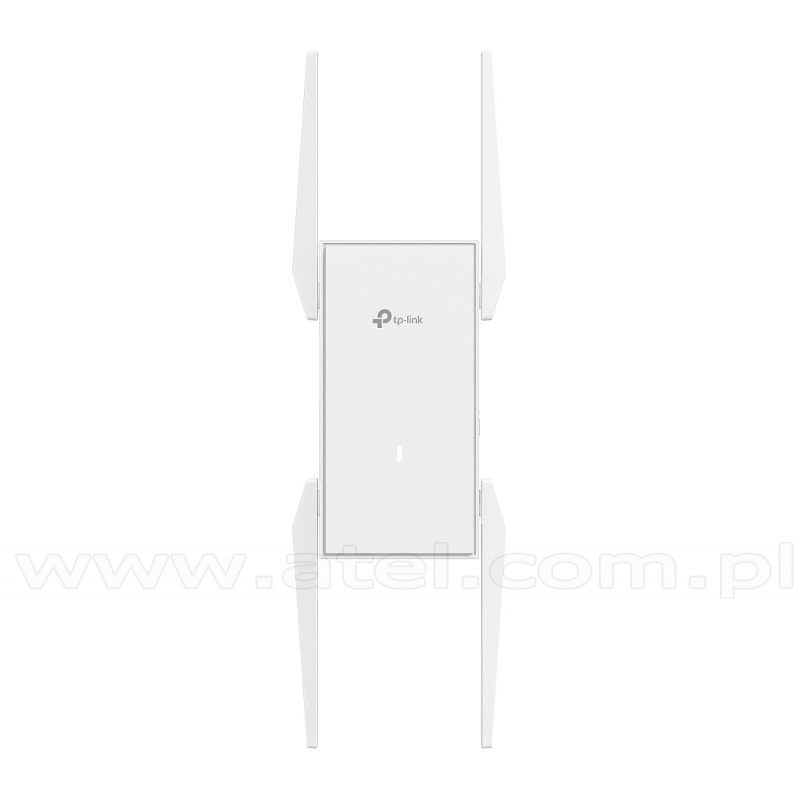

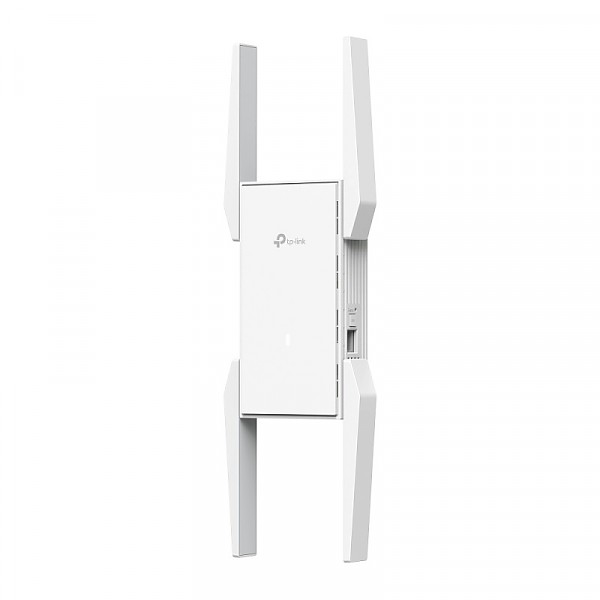

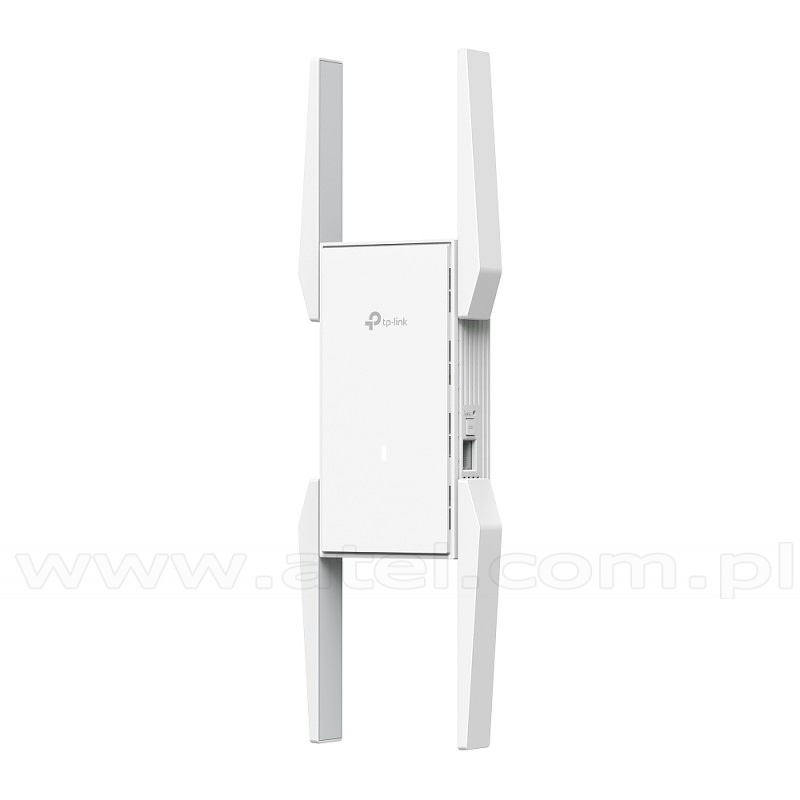

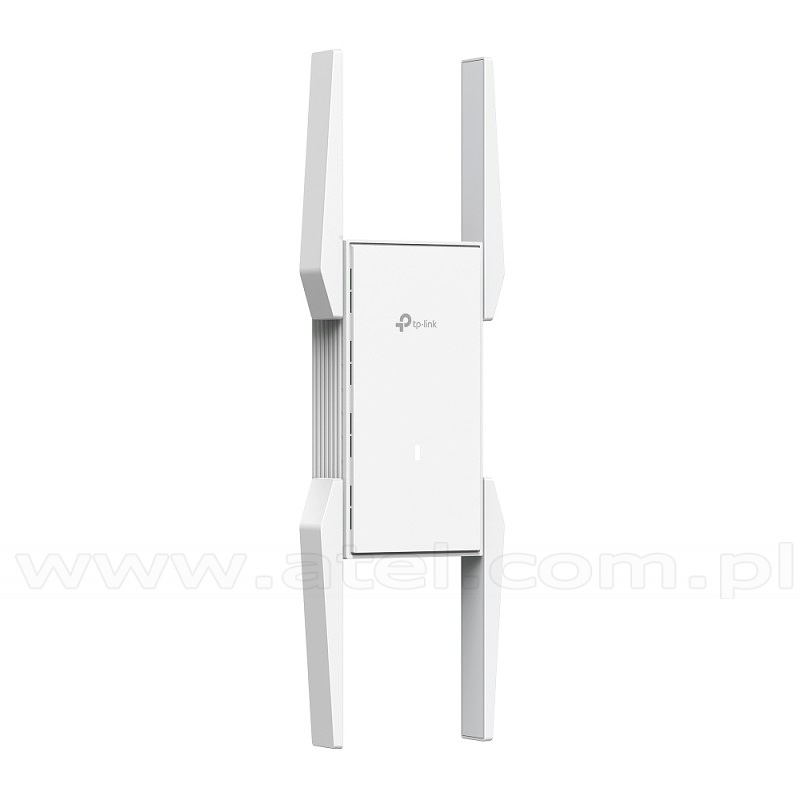

5400Mbps Outdoor Wireless Extender, AX5400 (TP-Link EAP673-Extender)
- AX5400 Dual-Band WiFi 6: Up to 5.4 Gbps wireless speeds .
- WiFi Dead-Zone Killer: Four high-gain external antennas extend WiFi signals to every dead zone.
- AP Mode: Simply plug in an Ethernet cable to create a new WiFi AP.
- Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios.
- Easy & Quick Installation: Standard AC power supply for flexible deployment.
- Quick adoption: Conveninet operation via Omada web or app once the extender powers on.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
| Ports | 1× 1G Ethernet Port |
|---|---|
| Bluetooth | yes |
| Button | Reset |
| Frequency range | 5 GHz and 2,4 GHz |
| Signal Rate | 5 GHz Up to 4804 Mbps, 2.4 GHz Up to 574 Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | Internal Omni, 2,4 GHz 4× 3 dBi, 5 GHz 4× 5 dBi |
| Dimensions | 6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm) |
| Power | 100-240 V ~ 50/60 Hz |
| Power Consumption | 18W |
| Mounting | Plug in |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | EAP673-Extender, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates | CE, FCC, RoHS, IC |
Net Price: 103,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
