#09126
Routers › TP-LINK › ER605

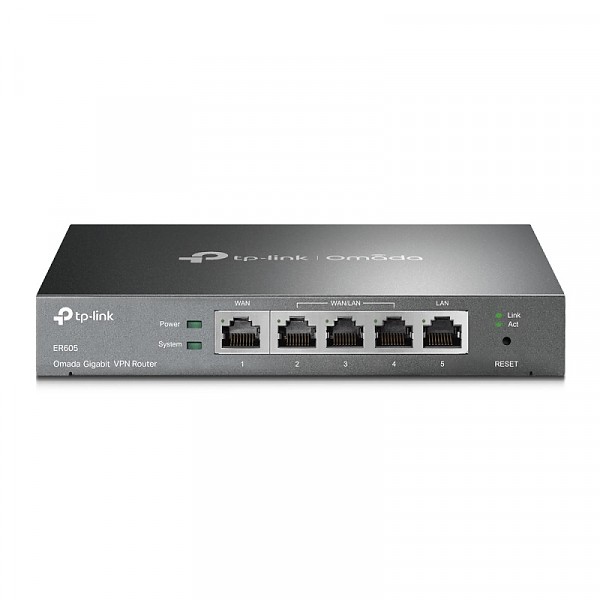

Gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, desktop (TP-Link TL-ER605 (TL-R605))

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Five Gigabit Ports: High-speed wired connectivity.
  • Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
  • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Standards IEEE 802.3u/ab/x/q
Copper ports 1x Fixed Gigabit RJ45 WAN Port,
1x Fixed Gigabit RJ45 LAN Ports,
3x Changeable Gigabit RJ45 WAN/LAN Ports
Flash SPI 16MB
DRAM 128MB
Performance
Concurrent Session 25,000
IPsec VPN Throughput 41,5 Mbps
Basic functions
WAN Connection Type Static/Dynamic IP,
PPPoE,
PPTP,
L2TP
MAC Clone Modify WAN/LAN MAC Address
DHCP DHCP Server,
DHCP Address Reservation,
Multi-IP Interfaces,
Multi-Net DHCP
IPv6 Developing
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
Advanced functions
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing Static Routing,
Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control,
Guarantee & Limited Bandwidth
Load Balance Intelligent Load Balance,
Application Optimized Routing,
Link Backup (Timing§,
Failover),
Online Detection
NAT One-to-One NAT,
Multi-Net NAT,
Virtual Server,
Port Triggering,
NAT-DMZ,
FTP/H.323/SIP/IPSec/PPTP ALG,
UPnP
Security SPI Firewall,
VPN Passthrough,
FTP/H.323/PPTP/SIP/IPsec ALG,
DoS Defence,
Ping of Death,
Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN 20 IPSec VPN Tunnels,
LAN-to-LAN,
Client-to-LAN,
Main,
Aggressive Negotiation Mode,
DES,
3DES,
AES128,
AES192,
AES256 Encryption Algorithm,
IKEv1/v2,
MD5,
SHA1 Authentication Algorithm,
NAT Traversal (NAT-T),
Dead Peer Detection (DPD),
Perfect Forward Secrecy (PFS)
PPTP VPN PPTP VPN Server,
10 PPTP VPN Clients,
16 Tunnels,
PPTP with MPPE Encryption
L2TP VPN L2TP VPN Server,
10 L2TP VPN Clients,
16 Tunnels,
L2TP over IPSec
OpenVPN OpenVPN Server,
10 OpenVPN Clients,
16 OpenVPN Tunnels
Security
Filtering WEB Group Filtering,
URL Filtering,
Web Security
ARP Inspection Sending GARP Packets,
ARP Scanning,
IP-MAC Binding§
Attack Defense TCP/UDP/ICMP Flood Defense,
Block TCP Scan (Stealth FIN/Xmas/Null),
Block Ping from WAN
Access Control Source/Destination IP Based Access Control
Web Authentication No Authentication,
Simple Password,
Hotspot（Local User / Voucher* / SMS* / Radius*）,
External Radius Sever,
External Portal Sever,
Facebook
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Service Dynamic DNS (Dyndns,
No-IP,
Peanuthull,
Comexe)
Maintenance Web Management Interface,
Remote Management,
Export & Import Configuration,
SNMP v1/v2c/v3,
Diagnostics (Ping & Traceroute),
NTP Synchronize,
Syslog Support
Management Features Automatic Device Discovery,
Intelligent Network Monitoring,
Abnormal Event Warnings,
Unified Configuration,
Reboot Schedule,
Captive Portal Configuration,
ZTP (Zero-Touch Provisioning)
Dimensions 158 × 101 × 25 mm (6,2 × 4,0 × 1,0 in)
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power internal,
~230V AC 50Hz
Certificates CE,
FCC,
RoHS
Manufacturer TP-Link
