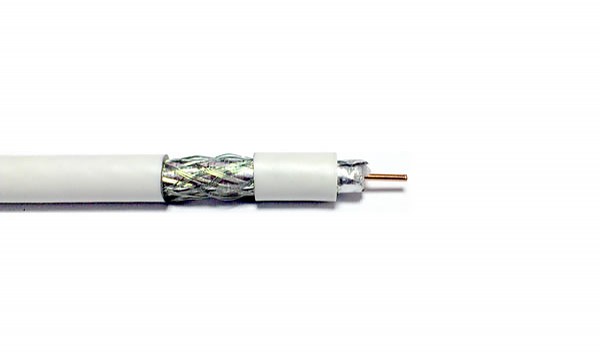

| center conductor | 1.02 mm / copper wire (Cu) |
|---|---|
| dielectric | 4.7 mm |
| screen | Al-PES foil |
| braid | 64x0.12 Al |
| outer shell | 6.8mm/LSOH |
| impedance | 75Ω |
| capacitance | 52 ± 2 pF/m |
| return loss | 1-1000 MHz - >23dB, 1000-3000 MHz - >20dB |
| screening attenuation | 1-1000MHz - >90dB |
| attenuation | 5 MHz - 5 MHz - 1.7 dB/100m, 50 MHz - 5.0 dB/100m, 200 MHz - 8.7 dB/100m, 400 MHz - 12.8 dB/100m, 800 MHz - 18.0 dB/100m, 1000 MHz - 19.8 dB/100m, 1350 MHz - 23.8 dB/100m, 1750 MHz - 28.0 dB/100m, 2150 MHz - 31.4 dB/100m, 3000 MHz - 38.0 dB/100m |
TAGS:
LSOH
Net Price: 24,50 EUR Unit: roll 100m
|
|
Minimal order quantity: 1 x roll 100m Quantity in the smallest collective package: 1 x roll 100m |
