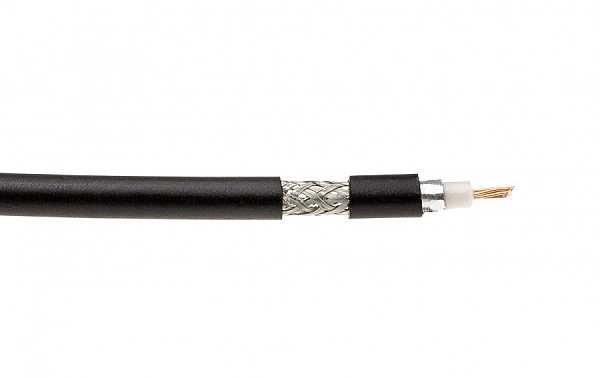

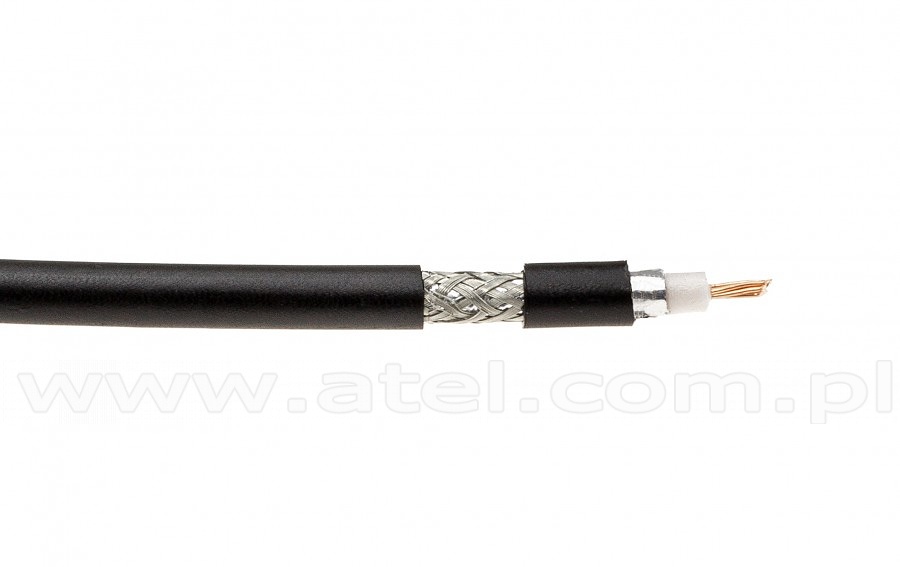

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (LSOH), 100 m
High performance outdoor coaxial cable for WLAN communication (2,4 GHz).
| Internal wire | 7x0.45 / cooper (Cu) |
|---|---|
| Insulation | 3.60mm |
| Shield | Double Al foil, 96x0.12Cu |
| External coating | 5.4mm/LSOH |
| Attenuation 20°C [dB/100m] | |
| 5 MHz | 1,8 |
| 50 MHz | 6,8 |
| 200 MHz | 12,5 |
| 400 MHz | 17,8 |
| 800 MHz | 26 |
| 1000 MHz | 29,6 |
| 1350 MHz | 34,7 |
| 1750 MHz | 40 |
| 2150 MHz | 44,5 |
| 3000 MHz | 53,2 |
| Return loss [dB] | |
| 5-30 MHz | >22 |
| 30-470 MHz | >20 |
| 470-1000 MHz | >18 |
| 1000-2150 MHz | >18 |
Can use connector for H155
TAGS:
LSOH
Net Price: 72,30 EUR Unit: roll 100m
|
|
Minimal order quantity: 1 x roll 100m Quantity in the smallest collective package: 1 x roll 100m |
