Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
100/1000 Mbps SFP Ports | 4 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 24 Gbps |
Max. Number of Available VLANs | 256 |
Number of VLAN IDs | VID 1 to 4094 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 3 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator | Green - Indicate system operated in O-Ring mode |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for port 1000Mbps Link/Act, Amber for 10/100Mbps Link/Act |
100/1000Base-X SFP port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 12.5W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 74.3mm x 109.2mm x 153.6mm |
Weight | 1070g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷70°C (-14÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |

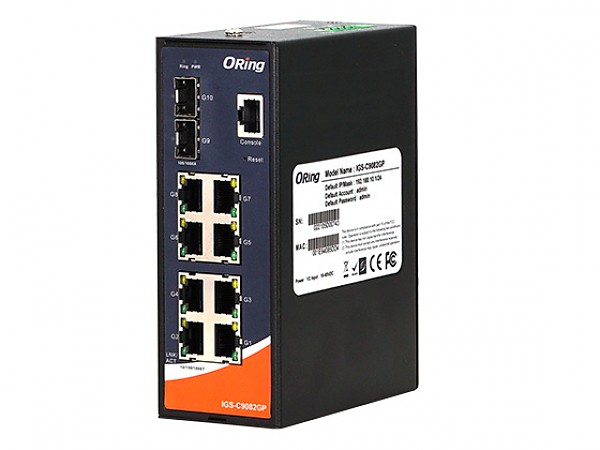

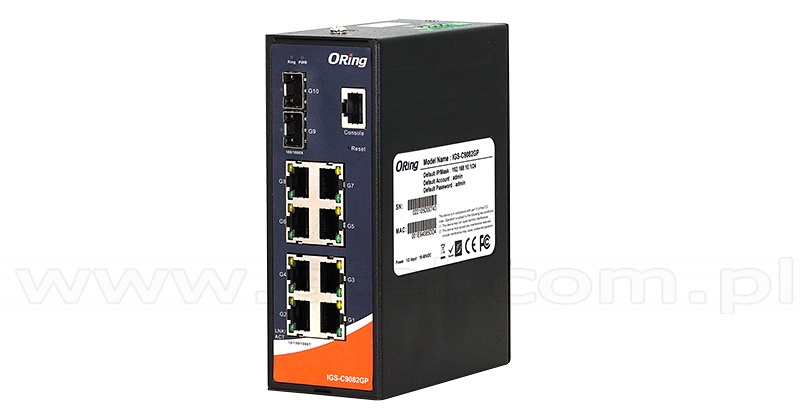

Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1Q-2014 MSTP (compatible with STP/RSTP), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 8 Gbps |
Throughput (packet per second) | 11.9Mpps@64Bytes packet |
Max. Number of Available VLANs | 4095 |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security, Modbus TCP |
Network Redundancy |
O-Ring, Open-Ring, O-Chain, MRP, MSTP (RSTP/STP compatible) |
LED Indicators | |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
Ring Indicator |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Amber - Indicates unexpected event occurred |
10/100/1000TX RJ45 port indicator | Dual color LED - Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12~48VDC on 6-pin terminal block |
Power consumption (typical) | 13.2Watts (power device not included) |
Hi-POT | 1.5KV AC |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 54.3 (W) x 120 (D) x 145.1 (H) mm (2.13 x 4.72 x 5.71 inches) |
Weight | 779g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-40÷167°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMC |
CE EMC (EN 55035, EN 55032), FCC Part 15 B |
EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
EMS |
IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF) |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
Safety | UL61010-1 |
Warranty | |
Warranty period | 5 years |

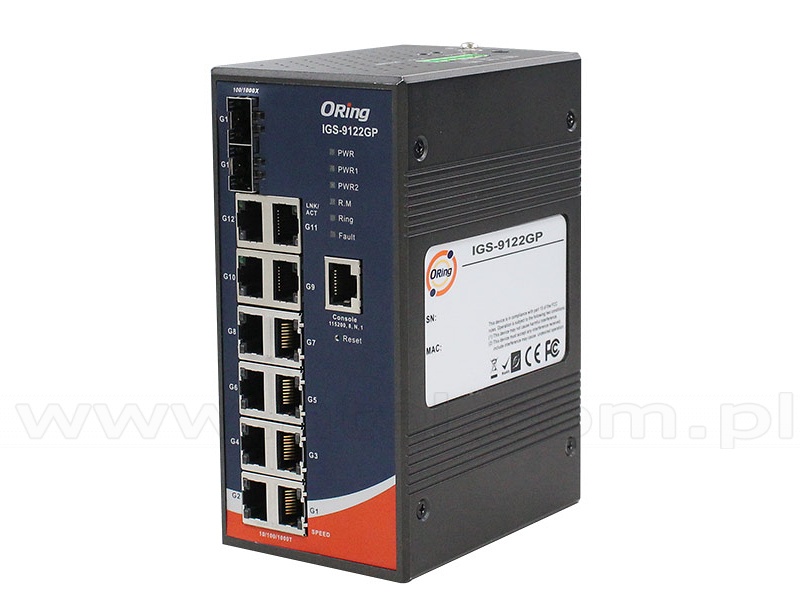

Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 12 |
100/1000 Mbps SFP Ports | 2 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 28 Gbps |
Max. Number of Available VLANs | 256 |
Number of VLAN IDs | VID 1 to 4094 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 3 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator | Green - Indicate system operated in O-Ring mode |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for port 1000Mbps Link/Act, Amber for 10/100Mbps Link/Act |
100/1000Base-X SFP port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 12.67W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 74.3mm x 109.2mm x 153.6mm |
Weight | 765g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷70°C (-14÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |

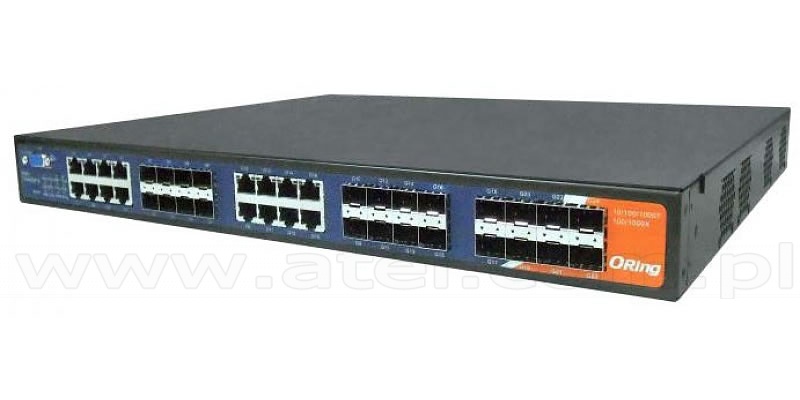

Physical Ports | |
---|---|
Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports | 16 |
100/1000Base-X with SFP ports | 8 |
RS-232 Serial Console Port |
RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 128 Gbps |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, Guest VLAN, MAC address limit, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static), Multiple Registration Protocol (MRP), MSTP (RSTP/STP compatible), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging , IGMP v2/v3 Snooping, IP-based bandwidth management, Application-based QoS management, DOS/DDOS auto prevention, Port configuration, status, statistics, monitoring, security, DHCP Server/Client, DHCP Relay, Modbus TCP, SMTP Client, NTP server |
Network Redundancy |
O-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible) |
LED Indicators | |
Power Indicator | Green LED x 3 Power indicator for AC and DC |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
100/1000Base-X SFP+ Port Indicator | Green for port Link/Act. |
Fault Contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power |
100~240VAC with power cord, and dual 48VDC(36~72VDC) power inputs at 6-pin terminal block |
Power consumption (typical) | 28.2W |
Overload current protection | Present with terminal block |
Reverse Polarity Protection | Present |
Physical Characteristic | |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 4437g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40 to 75 °C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports | 16 |
100/1000Base-X with SFP ports | 8 |
RS-232 Serial Console Port |
RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 128 Gbps |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, Guest VLAN, MAC address limit, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static), Multiple Registration Protocol (MRP), MSTP (RSTP/STP compatible), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging , IGMP v2/v3 Snooping, IP-based bandwidth management, Application-based QoS management, DOS/DDOS auto prevention, Port configuration, status, statistics, monitoring, security, DHCP Server/Client, DHCP Relay, Modbus TCP, SMTP Client, NTP server |
Network Redundancy |
O-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible) |
LED Indicators | |
Power Indicator | Green LED x 3 Power indicator for AC and DC |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
100/1000Base-X SFP+ Port Indicator | Green for port Link/Act. |
Fault Contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | 100~240VAC with power socket |
Power consumption (typical) | 28.2W |
Overload current protection | not present |
Reverse Polarity Protection | Present |
Physical Characteristic | |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 4117g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40 to 75 °C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 16 |
Gigabit Combo Port with 10/100/1000Base-T(X) and 100/1000Base-X SFP Port | 4 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 4 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 40 Gbps |
Max. Number of Available VLANs | 256 |
Number of VLAN IDs | VID 1 to 4094 |
IGMP multicast groups | 1024 |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring, Open-Ring, O-RSTP |
DDM Function |
Voltage, Current, Temperature |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 3 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator |
Green - Indicate system operated in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100TX RJ45 port indicator |
Green for port Link/Act, Yellow for Duplex/Collision |
1000X / Fiber port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Redundant Input power |
Dual power inputs. 85~264VAC/88~373VDC on 3-pin terminal block, IGS-P9164GC-LV version with dual 12/48VDC power inputs on 2-pin terminal block |
Power consumption (typical) | 18W |
Overload current protection | present |
Reverse polarity protection | present on terminal block |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 115mm x 159mm x 154mm |
Weight | 2186g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷70°C (-14÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Power Automation |
IEC 61850-3, IEEE 1613 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 16 |
100/1000 Mbps SFP Ports | 8 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 48 Gbps |
Max. Number of Available VLANs | 256 |
Number of VLAN IDs | VID 1 to 4094 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 2 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator | Green - Indicate system operated in O-Ring mode |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for port 1000Mbps Link/Act, Amber for 10/100Mbps Link/Act |
100/1000Base-X SFP port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 20W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 96.4mm x 105.5mm x 154mm |
Weight | 1265g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷70°C (-14÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |

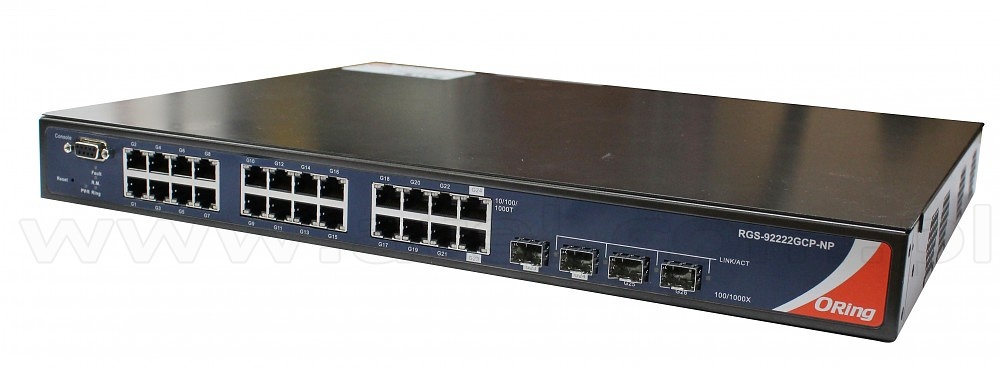

Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 22 |
Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports | 2 |
100/1000Base-X with SFP ports | 2 |
RS-232 Serial Console Port |
RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 52 Gbps |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, QoS assignment, Guest VLAN, MAC address limit, TACACS+, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
O-Ring, Open-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible), Fast Recovery |
LED Indicators | |
Power Indicator | Green LED Power indicator |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
100/1000Base-X SFP+ Port Indicator | Green for port Link/Act. |
Power | |
Input power | 100~240VAC with power cord |
Power consumption (typical) | 22W |
Overload current protection | present |
Reverse Polarity Protection | not present |
Physical Characteristic | |
Dimension (W x D x H) | 443.7mm x 200mm x 44mm |
Weight | 2850 g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40 to 75 °C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |

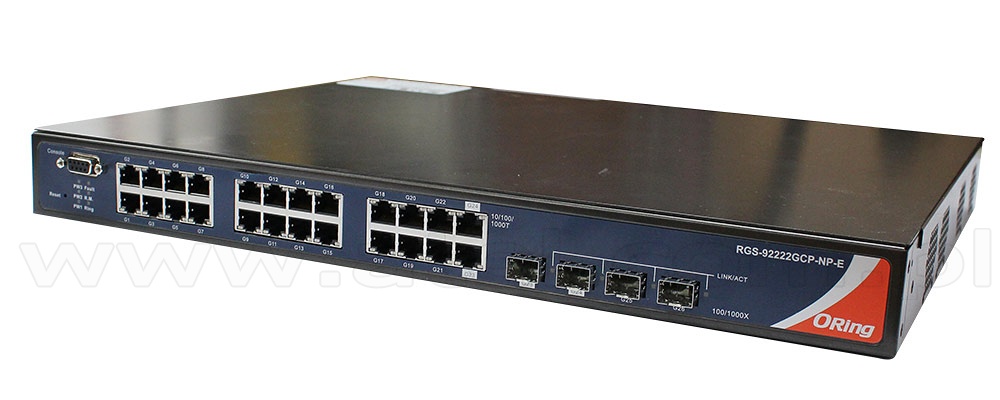

Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 22 |
Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports | 2 |
100/1000Base-X with SFP ports | 2 |
RS-232 Serial Console Port |
RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 52 Gbps |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, QoS assignment, Guest VLAN, MAC address limit, TACACS+, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
O-Ring, Open-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible), Fast Recovery |
LED Indicators | |
Power Indicator | Green LED x 3 Power indicator for AC and DC |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
100/1000Base-X SFP+ Port Indicator | Green for port Link/Act. |
Fault Contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power |
100~240VAC with power cord, and dual 48VDC(36~72VDC) power inputs at 6-pin terminal block |
Power consumption (typical) | 23W |
Overload current protection | present |
Reverse Polarity Protection | Present on DC only |
Physical Characteristic | |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 4360g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40 to 75 °C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 24 |
100/1000Base-X with SFP ports | 4 |
RS-232 Serial Console Port |
RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 56 Gbps |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, QoS assignment, Guest VLAN, MAC address limit, TACACS+, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security, Modbus TCP |
Network Redundancy |
O-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible), Fast Recovery |
LED Indicators | |
Power Indicator | Green LED Power indicator |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
100/1000Base-X SFP+ Port Indicator | Green for port Link/Act. |
Power | |
Input power | 100~240VAC with power cord |
Power consumption (typical) | 30W |
Overload current protection | present |
Reverse Polarity Protection | not present |
Physical Characteristic | |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 4210 g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40 to 75 °C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
MTBF | 395,736 hrs |
Warranty | |
Warranty period | 5 years |
Page 10 of 12
|
