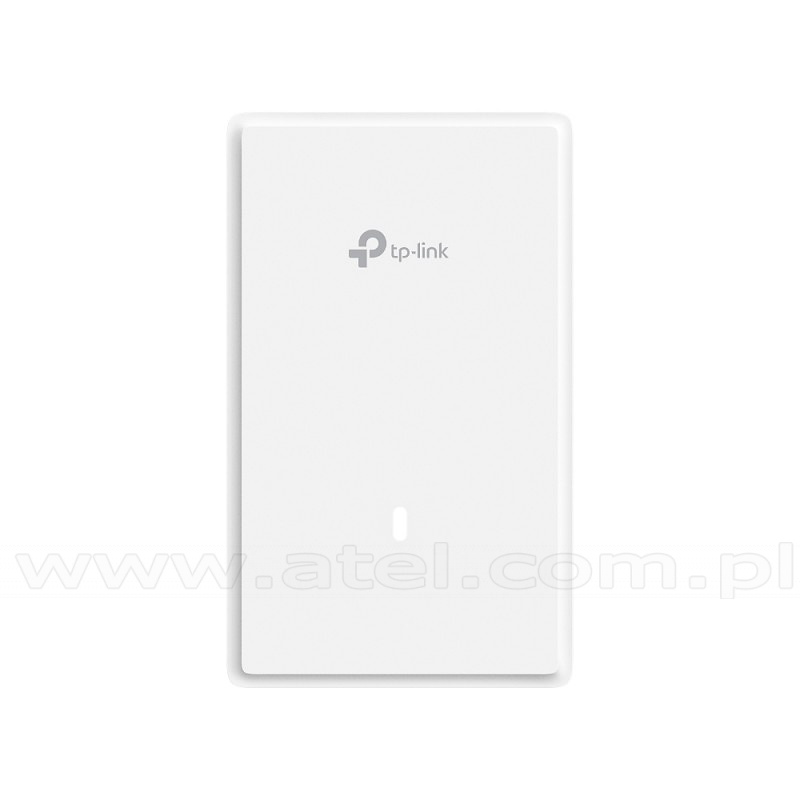

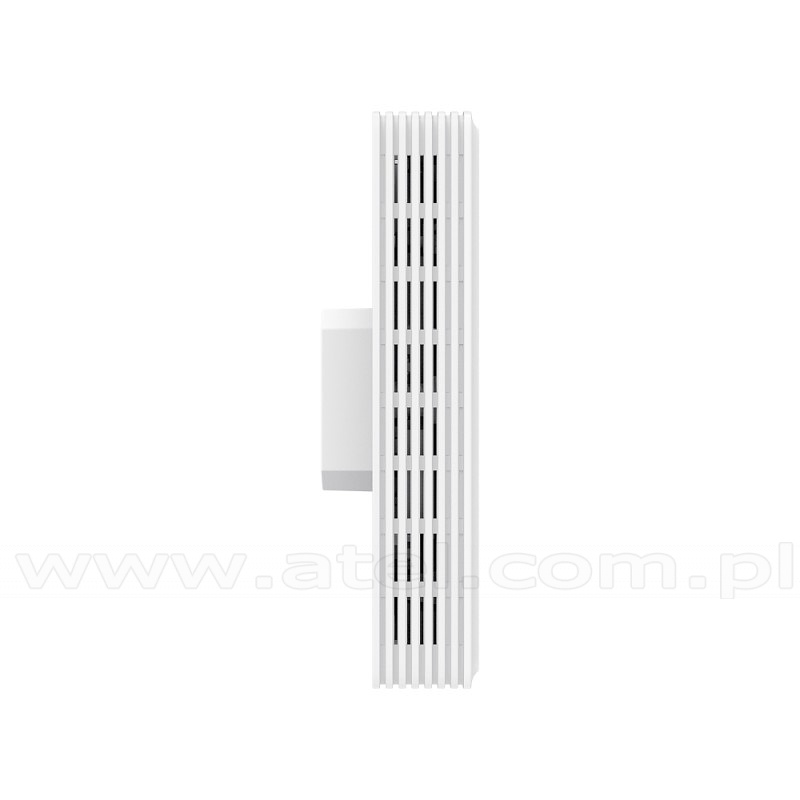

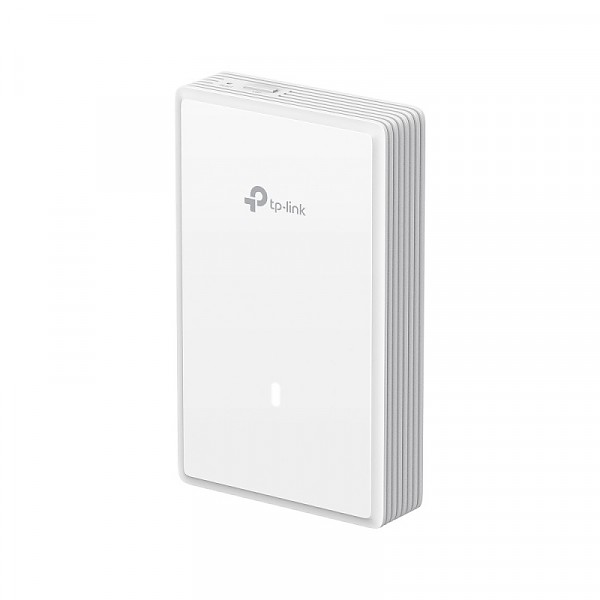

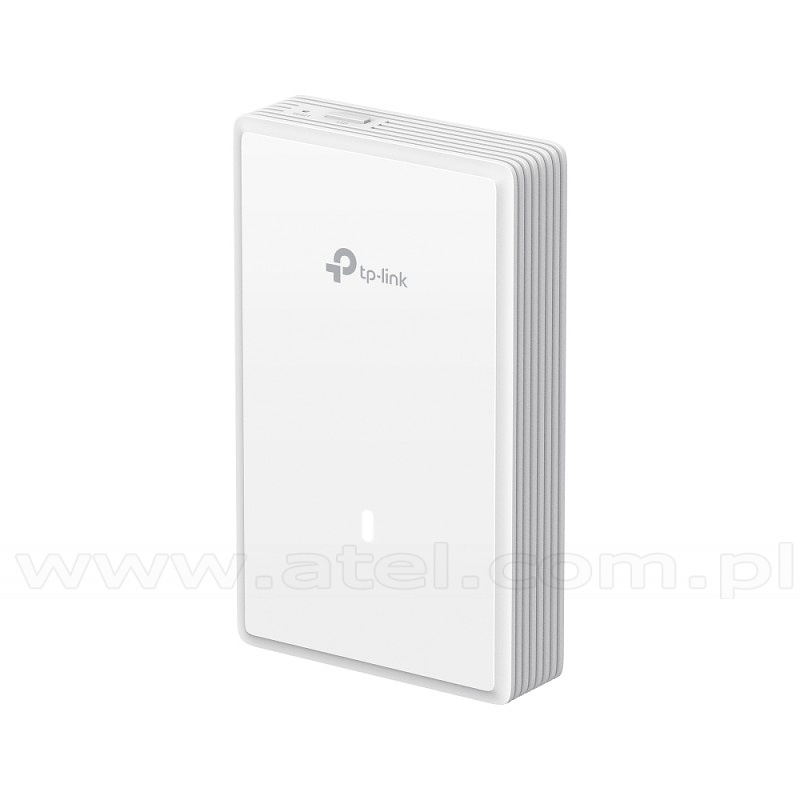

3600Mbps Outdoor Wireless Access Point, BE3600 (TP-Link EAP725-Wall)
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 160 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.

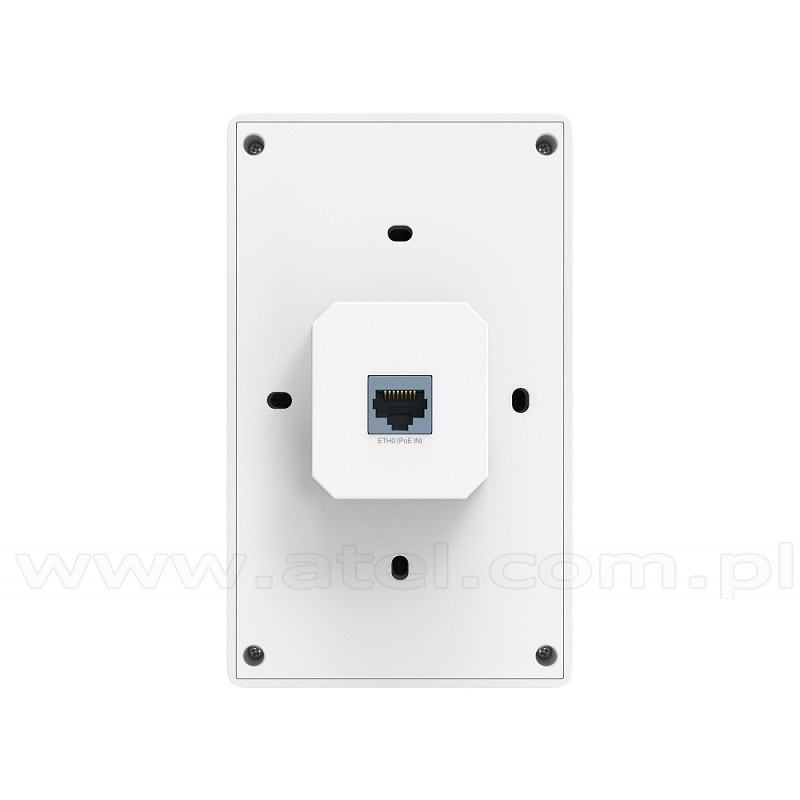

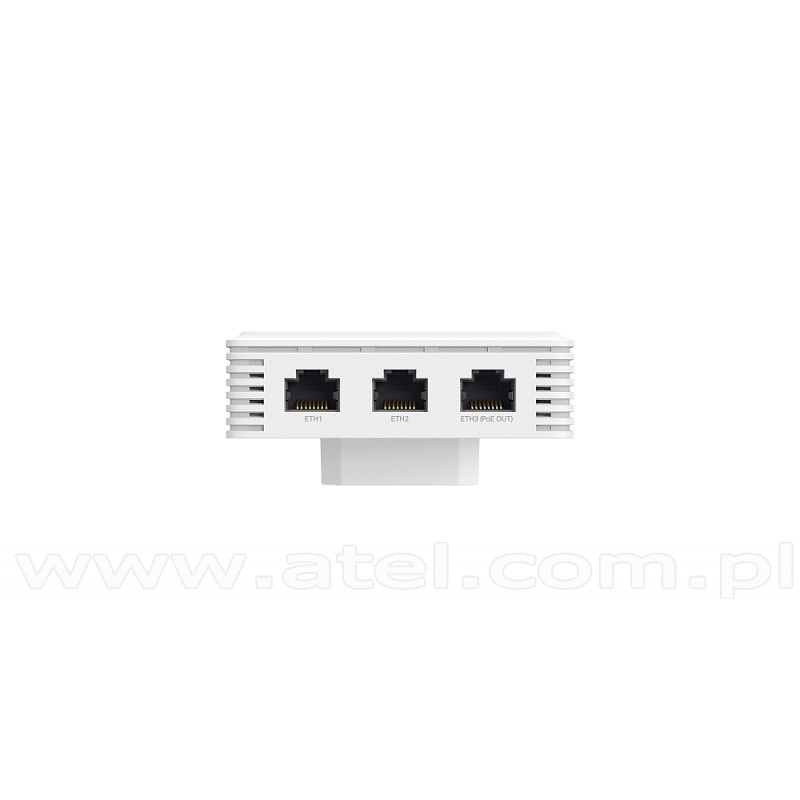

| Ports | 1× 2,5G Ethernet Port, Downlink 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
|---|---|
| Button | Reset |
| Frequency range | 5 GHz and 2,4 GHz |
| Signal Rate | 5 GHz Up to 2882 Mbps, 2.4 GHz Up to 688 Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | Internal Omni, 2,4 GHz 2× 4 dBi, 5 GHz 2× 5 dBi |
| Dimensions | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Power | 802.3at/bt PoE (Power adapter is not included), 12V DC |
| Power Consumption | 802.3bt 17W (PoE Out support 15.4W), 802.3at 17W (PoE Out support 7W) |
| Mounting | Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | EAP725-Wall, Ceiling/Wall Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates | CE, FCC, RoHS, IC |
Net Price: 114,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
517,00 EUR
