MENU#09251

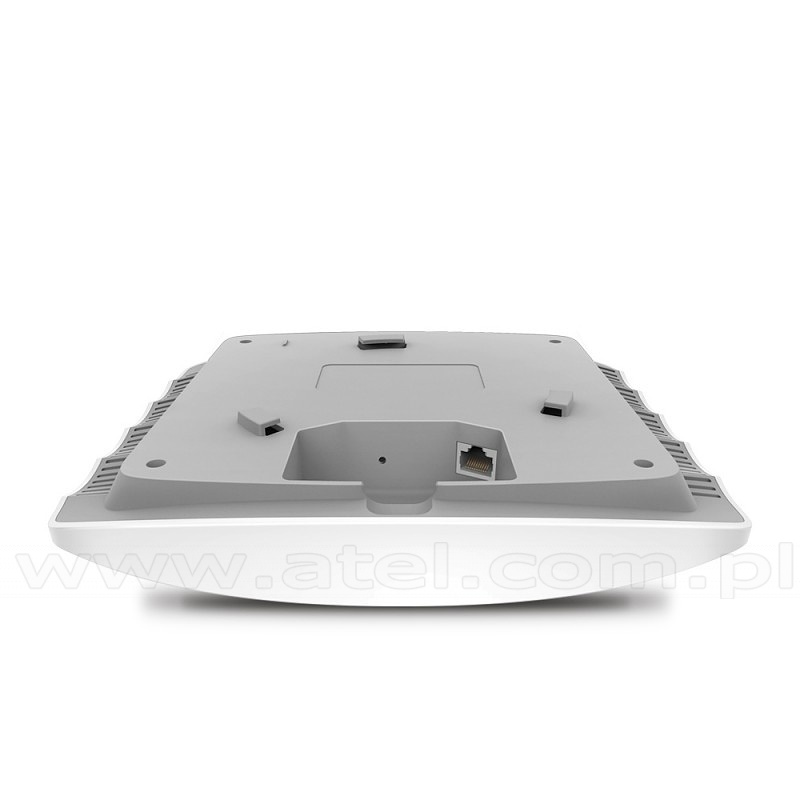

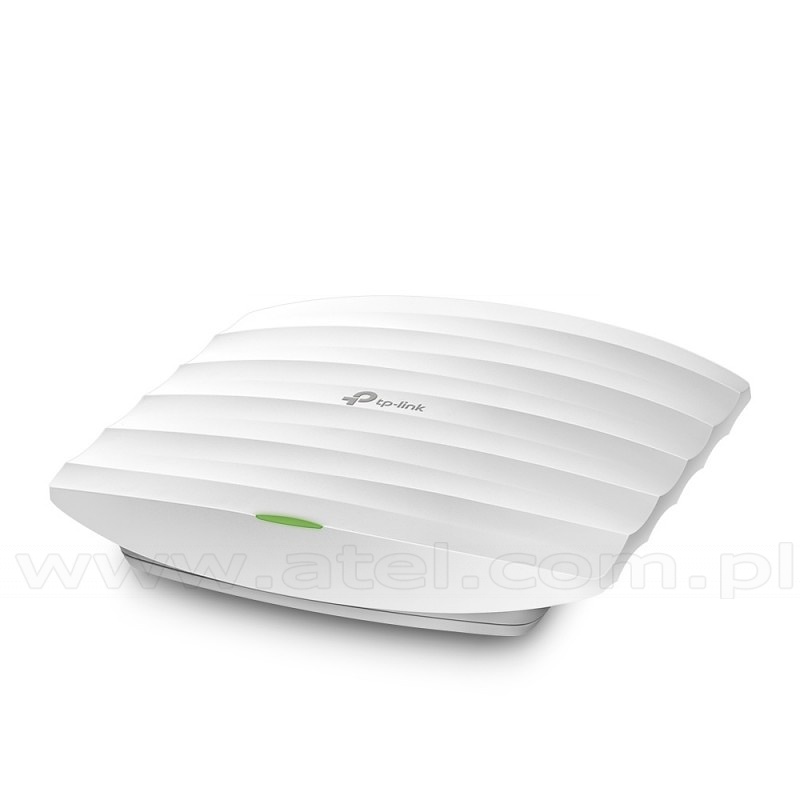

1350Mbps Outdoor Wireless Access Point, AC1350 (TP-Link EAP223)
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3af PoE) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate | 5GHz Up to 867Mbps, 2.4GHz Up to 450Mbps |
| EIRP | CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | 3 Internal Omni 2.4GHz- 4dBi, 5GHz- 5dBi |
| Dimensions | 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm) |
| Power | 802.3af/at PoE, 48V Passive PoE (+4,5pins; -7,8pins.) (PoE Adapter IS NOT Included) |
| Power Consumption | 9.7 W |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~60°C (-32℉~144℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | AC1200 Wireless Dual Band Gigabit Access Point EAP223, Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Certificates | CE, FCC, RoHS |
| Warranty | 5 years |
