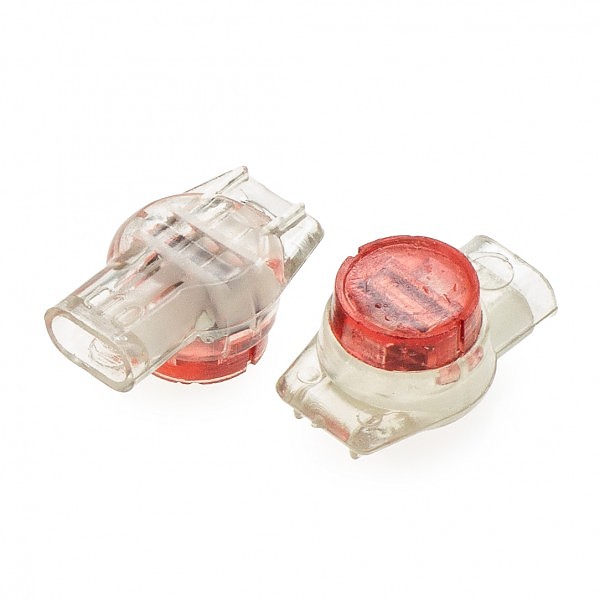

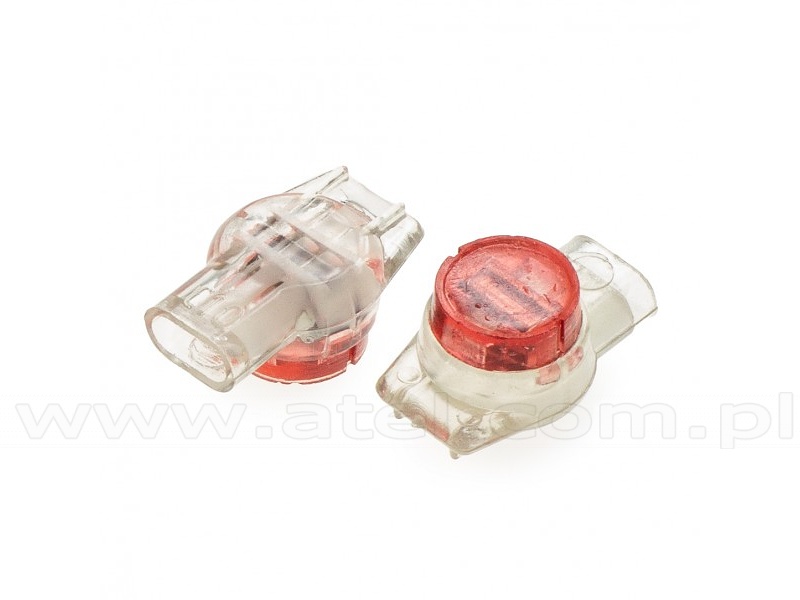

UR connector, 100pcs/bag
UR connectors enable connecting wires without the need of isolation stripping. They are filled with gel, which protects wires from corrosion.
UR connectors should be used for wires with external coat up to 1.67mm in diameter and 0.4-0.9 wire diameter.
Made of transparent polycarbonate with a red clamp.
UR connectors should be used for wires with external coat up to 1.67mm in diameter and 0.4-0.9 wire diameter.
Made of transparent polycarbonate with a red clamp.

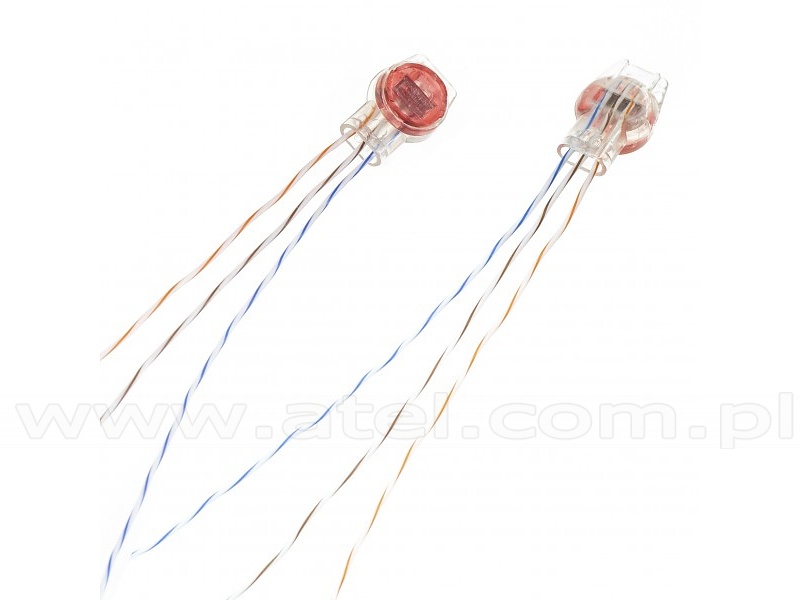

| Purpose | connecting three wires |
|---|---|
| Maximum diameter of the external coat | 1.67mm |
| Core diameter | 0.4-0.9mm |
| Dimensions | 19x12x8.5mm (6mm after tightening) |
| Filling | hydrophobic gel, protecting against corrosion |

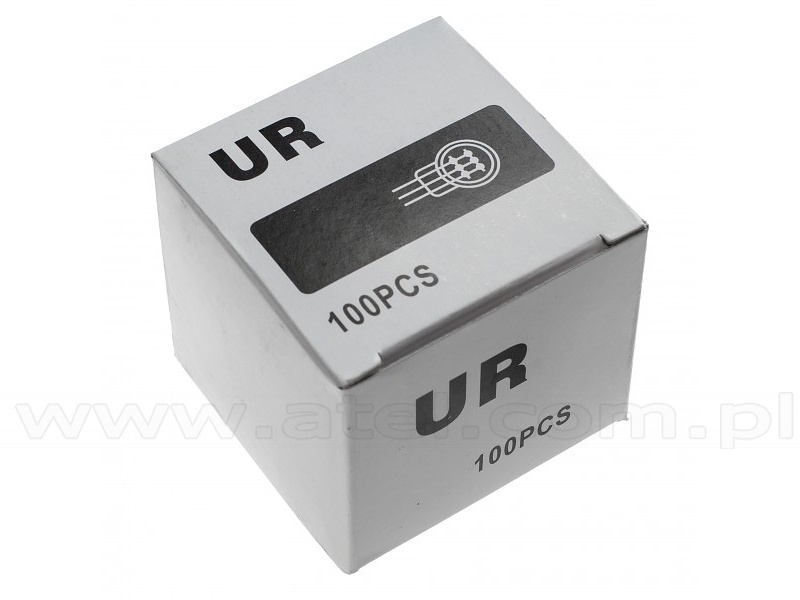

| Packaging | cardboard, 61x63x57mm |
Recommended crimping tools:
#03291- Splices crimping tool (Hanlong HT-105)
#02253- Splices crimping tool (Atex 311)
#03291- Splices crimping tool (Hanlong HT-105)
#02253- Splices crimping tool (Atex 311)
Net Price: 4,34 EUR Unit: 100pcs
|
|
Minimal order quantity: 1 x 100pcs Quantity in the smallest collective package: 1 x 100pcs |
