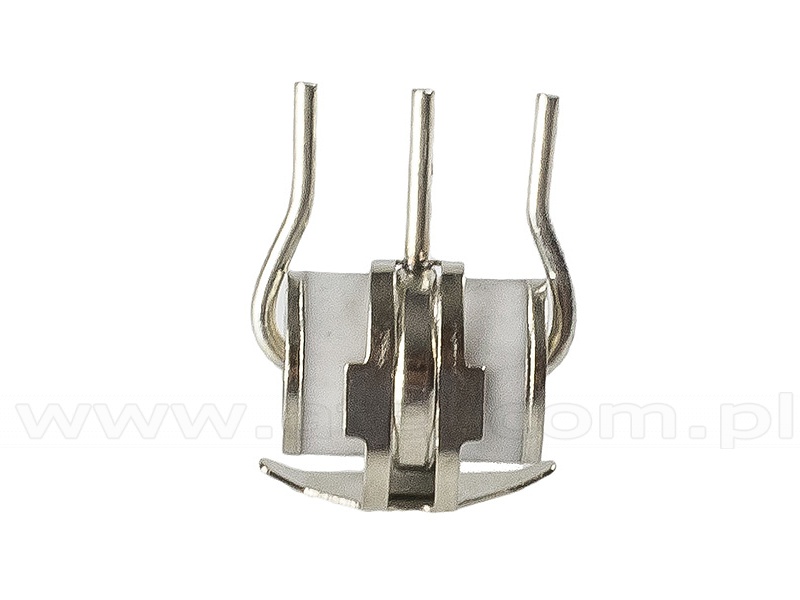

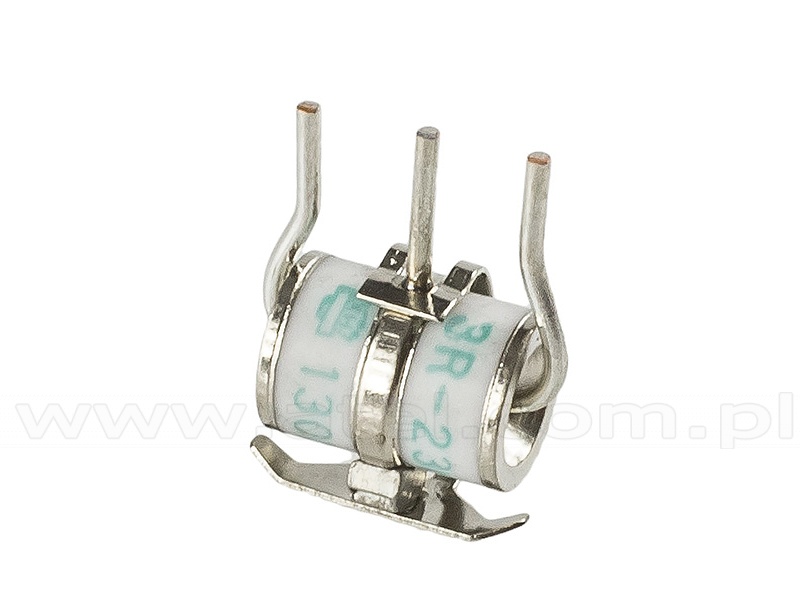

Gas tube surge arrester, 3-pole, fail safe
3 Pole Gas Arrester protects telecommunication circuits against overvoltage which are usually caused by lightning.
Arresters are placed individually in special magazines, for each contact separately. Resistance grounding system should not exceed 4 ohms, which will provide the most effective protection when connected to the 3 pole gas arresters.
Arresters are placed individually in special magazines, for each contact separately. Resistance grounding system should not exceed 4 ohms, which will provide the most effective protection when connected to the 3 pole gas arresters.
| Size | 8x10mm |
|---|---|
| Voltage | 230V |
| Maximum impulse spark-over voltage | 800V (1KV/µs) |
| Impulse discharge current | 10kA, 8/20µs; 10 times |
| Impulse discharge current | 100A, 10/100µs; 300 times |
Compatible with: #01885- 10 pairs 3-pole surge arrester magazine
Net Price: 0,564 EUR Unit: pcs
|
|
Minimal order quantity: 10 x pcs Quantity in the smallest collective package: 10 x pcs |
