  • Communication for industry
    • Industrial Switches
      • » GIGABIT ETHERNET / MANAGED SWITCHES

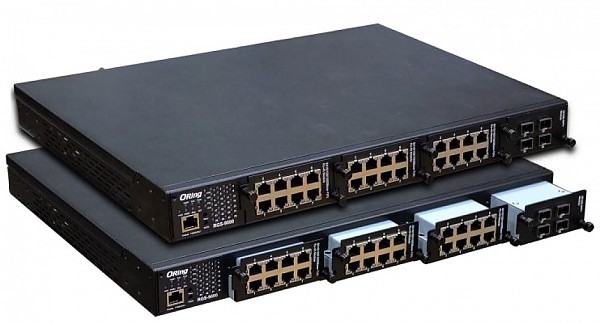

          #06507

          Managed modular switch, L3, 24x SFP + 4 slide-in SFP+ slots 10G, O/Open-Ring <30ms (ORing RGS-PR9000-HV)

          RGS-PR9000 is Layer-3 modular managed redundant ring Ethernet switch with 4 slots. The switch is designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 oC to 85 oC (If use 10G SFP module then operating temperature is -20°C ~ 60°C). RGS-PR9000 can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet power substation and rolling stock application.
          Physical Ports
          Slot Number 4 (up to 3 slots for 8x1G port and 1 slot for 4x10G port)
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.z for 1000Base-X,
          IEEE 802.3ae for 10Gigabit Ethernet,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 128 Gbps
          Max. Number of Available VLANs 4095
          IGMP multicast groups 128 for each VLAN
          Port rate limiting User Define
          Security Features Device Binding security feature,
          Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          Single 802.1x and Multiple 802.1x,
          MAC-based authentication,
          QoS assignment,
          Guest VLAN,
          MAC address limit,
          TACACS+,
          VLAN (802.1Q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security,
          Https / SSH enhance network security,
          Web and CLI authentication and authorization,
          Authorization (15 levels),
          IP source guard
          Software Features Hardware routing,
          RIP and static routing,
          IEEE 1588v2 clock synchronization,
          IEEE 802.1D Bridge,
          auto MAC address learning/aging and,
          MAC address (static),
          Multiple Registration Protocol (MRP),
          MSTP (RSTP/STP compatible),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging,
          IGMP v2/v3 Snooping,
          IP-based bandwidth management,
          Application-based QoS management,
          DOS/DDOS auto prevention,
          Port configuration,
          status,
          statistics,
          monitoring,
          security,
          DHCP Server/Client,
          DHCP Relay,
          Modbus TCP,
          SMTP Client,
          SNTP Server
          Network Redundancy O-Ring,
          Open-Ring,
          O-Chain,
          MRP,
          MSTP(RSTP/STP compatible)
          LED Indicators
          Power Indicator (PWR) Green Indicates that the system ready. The LED is blinking when the system is upgrading firmware
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          Fault indicator Amber - Indicates unexpected event occurred
          Supervisor Login Indicator (RMT) Green - System is accessed remotely
          Smart LED Display system Link/Act(LK/ACT) / Speed(SPD) / Duplex(FDX) / Remote (RMT) green LED indicator x 4
          Mode select Button (MODE) Link/Act(LK/ACT) / Speed(SPD) / Duplex(FDX) / Remote (RMT) mode select button,
          Port 1 ~ 28 Link/Act(LK/ACT) LED show - Green x 28
          Fault Contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual 100~240VAC / 100~370VDC power inputs at terminal block
          Power consumption (typical) 43.5W
          Overload current protection present
          Physical Characteristic
          Dimension (W x D x H) 440mm x 356mm x 44mm
          Weight 6600g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature 10G SFP+ module absent -40 to 70°C (-40 to 158°F ),
          10G SFP+ module used -20 to 60 °C (-4 to 140°F )
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Warranty
          Warranty period 5 years
          Modules:
          #08898 8x1G module, RJ-45 (ORing SWM-80GT)
          #08897 8x1G module, SFP (ORing SWM-08GP)
          Managed modular switch, L3, 24x SFP + 4 slide-in SFP+ slots 10G, O/Open-Ring <30ms (ORing RGS-PR9000-HV)
          for special orders only
          Net Price: 1 710,00 EUR
          product card»
          #08158

          Managed switch, 3x 10/1000 RJ-45 + 2x1000 SFP w/DDM, O/Open-Ring <20ms (ORing IGS-3032GC)

          IGS-3032GC is a full gigabit managed Redundant Ring Ethernet switch with 3x10/100/1000Base-T(X) and 2xGigabit combo ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 20ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
          IGS-3032GC can be managed centralized and convenient by a powerful windows utility - Open-Vision.
          The redundant DC power inputs guarantee a non-stop operation. The backup power input will take over immediately when the primary DC power input fails.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 3
          1000 Mbps SFP Ports 2
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 10 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 256
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          MSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          DDM Function Voltage,
          Current,
          Temperature
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Amber - Indicate unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Yellow for Duplex/Collision
          1000X / Fiber port Indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Triple DC inputs +12 ~ +48VDC or -12 ~ -48VDC on 7-pin terminal block,
          12 ~ 45VDC on power jack
          Power consumption (typical) 10W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 54.1mm x 106.1mm x 145.4mm
          Weight 1022g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-14÷140°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 3x 10/1000 RJ-45 + 2x1000 SFP w/DDM, O/Open-Ring <20ms (ORing IGS-3032GC)
          for special orders only
          Net Price: 515,00 EUR
          product card»

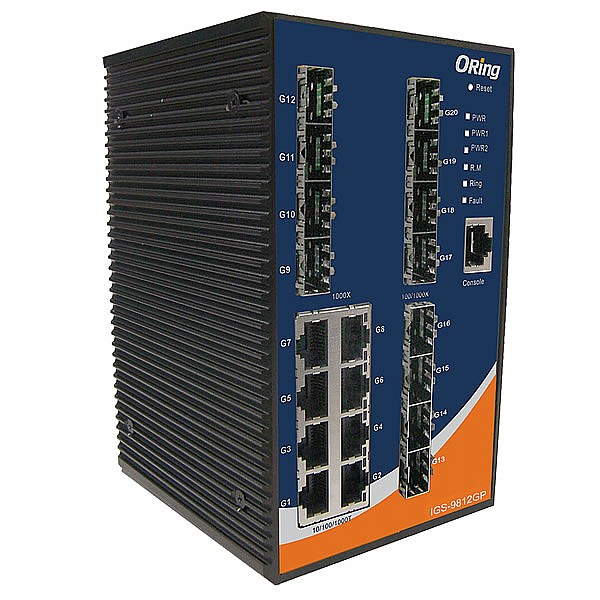

          #07901

          Managed switch, 8x 10/1000 RJ-45 + 12x100/1000 SFP w/DDM, O/Open-Ring <20ms (ORing IGS-P9812GP-HV)

          IGS-P9812GP is IEC 61850-3 managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X SFP ports. The switch is designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. And the switch designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40°C to 75°C. IGS-P9812GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet power substation and rolling stock application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          100/1000Base-X SFP Port 12
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 40 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 1024
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          MSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          DDM Function Voltage,
          Current,
          Temperature
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          Fault indicator Amber - Indicate unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Yellow for Duplex/Collision
          1000X / Fiber port Indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Redundant Input power Dual power inputs. 85~264VAC/88~373VDC on 6-pin terminal block,
          IGS-P9812GP-LV - version with dual 12/48VDC power inputs on 6-pin terminal block
          Power consumption (typical) 24W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 115mm x 159mm x 154mm
          Weight 1870g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-14÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Power Automation IEC 61850-3,
          IEEE 1613
          Network security IEC 62443-4-2
          Warranty
          Warranty period 5 years
          IGS-P9812GP-LV - version with dual 12/48VDC power inputs
          Managed switch, 8x 10/1000 RJ-45 + 12x100/1000 SFP w/DDM, O/Open-Ring <20ms (ORing IGS-P9812GP-HV)
          for special orders only
          Net Price: CallCall
          product card»
          #07655

          Managed switch, 8x 10/1000 RJ-45 + 12x100/1000 SFP w/DDM, O/Open-Ring <30ms (ORing IGS-9812GP)

          IGS-9812GP is managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 12x100/1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 oC to 70 oC. IGS-9812GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet power substation and rolling stock application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          100/1000 Mbps SFP Ports 12
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 40 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 128 for each VLAN
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          MSTP,
          O-Ring
          DDM Function Voltage,
          Current,
          Temperature
          LED Indicators
          Power / Ready indicator Green - Ready LED x 2
          Ring Master indicator Green - Indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Amber - Indicate unexpected event occurred
          10/100/1000Base-T(X) RJ45 port indicator Green for port 1000Mbps Link/Act,
          Amber for 10/100Mbps Link/Act
          100/1000Base-X SFP port Indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 10W
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 96.4mm x 105.5mm x 154mm
          Weight 1210g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-14÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 8x 10/1000 RJ-45 + 12x100/1000 SFP w/DDM, O/Open-Ring <30ms (ORing IGS-9812GP)
          for special orders only
          Net Price: 1 000,00 EUR
          product card»
          #06568

          Managed switch, 8x 10/1000 RJ-45 + 2x100/1G/2.5G SFP, O/Open-Ring <30ms (ORing IGS-C9082GP)

          IGS-C9082GP Series are managed redundant ring Ethernet switch with up to 8x10/100/1000 Base-T(X) ports and
          2x100/1G/2.5G Base-X, SFP socket which is specifically designed for the toughest. IGS-C9082GP Series support wide
          operating temperature from -40℃ to 75℃ which can fulfill most of the requirement of operation environment. Therefore,
          the IGS-C9082GP Series switch is one of the most reliable choices for highly-managed Ethernet application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          100/1G/2.5GBase-X, SFP socket 2
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 18 Gbps
          Max. Number of Available VLANs 4096
          IGMP multicast groups 128 for each VLAN
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          MSTP,
          O-Ring
          DDM Function Voltage,
          Current,
          Temperature
          Power
          Input power Dual DC inputs. 12÷48VDC on 5-pin terminal block
          Power consumption (typical) 10W
          Overload current protection present
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x D x H) 52mm x 110mm x 140mm
          Weight <700 g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷75°C (-14÷163°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55032) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-31
          Vibration IEC60068-2-6
          MTBF >400,000 Hours
          Warranty
          Warranty period 5 years
          Managed switch, 8x 10/1000 RJ-45 + 2x100/1G/2.5G SFP, O/Open-Ring <30ms (ORing IGS-C9082GP)
          Net Price: 508,00 EUR
          product card»
          #07909

          Managed switch, 8x 10/1000 RJ-45 + 4x100/1000 SFP w/DDM, O/Open-Ring <30ms (ORing IGS-9084GP)

          IGS-9084GP is managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X SFP ports. The switch is designed for Railway application and fully compliant with the requirement of EN50155/EN50121-4 standard. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40°C to 75°C. IGS-9084GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. In addition, with its rugged design for railway certification, i.e., EN50155/EN50121-4 standard, make IGS-9084GP to be solid and reliable for railway traffic communication and transportation application. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          100/1000 Mbps SFP Ports 4
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 24 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 128 for each VLAN
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          MSTP,
          O-Ring
          DDM Function Voltage,
          Current,
          Temperature
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Amber - Indicate unexpected event occurred
          10/100/1000Base-T(X) RJ45 port indicator Green for port 1000Mbps Link/Act,
          Amber for 10/100Mbps Link/Act
          100/1000Base-X SFP port Indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 12.5W
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 74.3mm x 109.2mm x 153.6mm
          Weight 1070g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-14÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS IEC61000-4-2 (ESD),
          IEC61000-4-3 (RS),
          IEC61000-4-4 (EFT),
          IEC61000-4-5 (Surge),
          IEC61000-4-6 (CS),
          IEC61000-4-8,
          IEC61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          IGS-9084GP-FB2-MM - version with bypass MM
          IGS-9084GP-FB2-SS - version with bypass SS
          Managed switch, 8x 10/1000 RJ-45 + 4x100/1000 SFP w/DDM, O/Open-Ring <30ms (ORing IGS-9084GP)
          for special orders only
          Net Price: 950,00 EUR
          product card»
          #06540

          Managed switch, 8x 10/1000 RJ-45, O/Open-Ring <20ms, L2 (ORing IGS-9080-LA-PN)

          IGS-9080-LA-PN is layer2 managed Ethernet switch with 8x 10/100/1000Base-T(X) ports, which is designed for various industrial applications, including manufacturing, process automation, transportation, and energy industries. The PROFINET certification of this product line ensures its compliance with rigorous industry standards and seamless communication compatibility with PROFINET systems. The switch support Ethernet redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40oC to 75oC. IGS-9080-LA-PN can also be managed centralized and convenient by Open-Vision, except the web-based interface, Telnet and console (CLI) configuration.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1Q-2014 MSTP (compatible with STP/RSTP),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          PROFINET CC-B v2.40 certified,
          MRP client (MRC)
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 8 Gbps
          Throughput (packet per second) 11.9Mpps@64Bytes packet
          Max. Number of Available VLANs 4095
          IGMP multicast groups 256 for each VLAN
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security,
          Modbus TCP
          Network Redundancy O-Ring,
          Open-Ring,
          O-Chain,
          MRP,
          MSTP (RSTP/STP compatible)
          LED Indicators
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          Ring Indicator Green - Indicates that the system operating in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          Fault indicator Amber - Indicates unexpected event occurred
          10/100/1000TX RJ45 port indicator Dual color LED - Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12~48VDC on 6-pin terminal block
          Power consumption (typical) 13.2Watts (power device not included)
          Hi-POT 1.5KV AC
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 54.3 (W) x 120 (D) x 145.1 (H) mm (2.13 x 4.72 x 5.71 inches)
          Weight 779g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷75°C (-40÷167°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMC CE EMC (EN 55035,
          EN 55032),
          FCC Part 15 B
          EMI EN 55032,
          CISPR32,
          EN 61000-3-2,
          EN 61000-3-3,
          FCC Part 15 B class A
          EMS IEC/EN 61000-4-2 (ESD),
          IEC/EN 61000-4-3 (RS),
          IEC/EN 61000-4-4 (EFT),
          IEC/EN 61000-4-5 (Surge),
          IEC/EN 61000-4-6 (CS),
          IEC/EN 61000-4-8(PFMF)
          Shock IEC60068-2-27
          Free Fall IEC60068-2-31
          Vibration IEC60068-2-6
          Safety UL61010-1
          Warranty
          Warranty period 5 years
          Managed switch, 8x 10/1000 RJ-45, O/Open-Ring <20ms, L2 (ORing IGS-9080-LA-PN)
          for special orders only
          Net Price: 544,00 EUR
          product card»
          #07912

          Managed switch, 12x 10/1000 RJ-45 + 2x100/1000 SFP w/DDM, O/Open-Ring <30ms (ORing IGS-9042GP)

          ORing’s managed Ethernet switches are designed for industrial applications, such as rolling stock and vehicle applications. IGS-9122GP is managed redundant ring Ethernet switch with 12x10/100/1000Base-T(X) copper ports and 2x100/1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) 、Open-Ring 、O-Chain、MRP and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40°C to 75°C. IGS-9122GP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 12
          100/1000 Mbps SFP Ports 2
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 28 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 128 for each VLAN
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          MSTP,
          O-Ring
          DDM Function Voltage,
          Current,
          Temperature
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Amber - Indicate unexpected event occurred
          10/100/1000Base-T(X) RJ45 port indicator Green for port 1000Mbps Link/Act,
          Amber for 10/100Mbps Link/Act
          100/1000Base-X SFP port Indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 12.67W
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 74.3mm x 109.2mm x 153.6mm
          Weight 765g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-14÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS IEC61000-4-2 (ESD),
          IEC61000-4-3 (RS),
          IEC61000-4-4 (EFT),
          IEC61000-4-5 (Surge),
          IEC61000-4-6 (CS),
          IEC61000-4-8,
          IEC61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 12x 10/1000 RJ-45 + 2x100/1000 SFP w/DDM, O/Open-Ring <30ms (ORing IGS-9042GP)
          for special orders only
          Net Price: 959,00 EUR
          product card»
          #06515

          Managed switch, 16x 10/100/1000 COMBO Ports with SFP + 8 slide-in SFP slots, O/Open-Ring <30ms (ORing RGS-9168GCP-E-EU)

          RGS-9168GCP series are Gigabit managed redundant ring Ethernet switch with 16xGigabit combo ports and 8x100/1000Base-X, SFP socket. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And RGS-9168GCP series support wide operating temperature from -40 oC to 75 oC. RGS-9168GCP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports 16
          100/1000Base-X with SFP ports 8
          RS-232 Serial Console Port RS-232 in DB-9 connector with console cable. 115200bps,
          8,
          N,
          1
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.z for 1000Base-X,
          IEEE 802.3ae for 10Gigabit Ethernet,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 128 Gbps
          IGMP multicast groups 256 for each VLAN
          Port rate limiting User Define
          Security Features Device Binding security feature,
          Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          Single 802.1x and Multiple 802.1x,
          MAC-based authentication,
          Guest VLAN,
          MAC address limit,
          VLAN (802.1Q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security,
          Https / SSH enhance network security,
          Web and CLI authentication and authorization,
          Authorization (15 levels),
          IP source guard
          Software Features IEEE 802.1D Bridge,
          auto MAC address learning/aging and MAC address (static),
          Multiple Registration Protocol (MRP),
          MSTP (RSTP/STP compatible),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging ,
          IGMP v2/v3 Snooping,
          IP-based bandwidth management,
          Application-based QoS management,
          DOS/DDOS auto prevention,
          Port configuration,
          status,
          statistics,
          monitoring,
          security,
          DHCP Server/Client,
          DHCP Relay,
          Modbus TCP,
          SMTP Client,
          NTP server
          Network Redundancy O-Ring,
          O-Chain,
          MRP,
          MSTP(RSTP/STP compatible)
          LED Indicators
          Power Indicator Green LED x 3 Power indicator for AC and DC
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          Fault indicator Amber - Indicate unexpected event occurred
          10/100/1000Base-T(X) RJ45 port indicator Green for Link/Act indicator,
          Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps
          100/1000Base-X SFP+ Port Indicator Green for port Link/Act.
          Fault Contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power 100~240VAC with power cord,
          and dual 48VDC(36~72VDC) power inputs at 6-pin terminal block
          Power consumption (typical) 28.2W
          Overload current protection Present with terminal block
          Reverse Polarity Protection Present
          Physical Characteristic
          Dimension (W x D x H) 431mm x 342mm x 44mm
          Weight 4437g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40 to 75 °C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Warranty
          Warranty period 5 years
          Managed switch, 16x 10/100/1000 COMBO Ports with SFP + 8 slide-in SFP slots, O/Open-Ring <30ms (ORing RGS-9168GCP-E-EU)
          for special orders only
          Net Price: 1 750,00 EUR
          product card»
          #06514

          Managed switch, 16x 10/100/1000 COMBO Ports with SFP + 8 slide-in SFP slots, O/Open-Ring <30ms (ORing RGS-9168GCP-EU)

          RGS-9168GCP series are Gigabit managed redundant ring Ethernet switch with 16xGigabit combo ports and 8x100/1000Base-X, SFP socket. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And RGS-9168GCP series support wide operating temperature from -40 oC to 75 oC. RGS-9168GCP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports 16
          100/1000Base-X with SFP ports 8
          RS-232 Serial Console Port RS-232 in DB-9 connector with console cable. 115200bps,
          8,
          N,
          1
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.z for 1000Base-X,
          IEEE 802.3ae for 10Gigabit Ethernet,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 128 Gbps
          IGMP multicast groups 256 for each VLAN
          Port rate limiting User Define
          Security Features Device Binding security feature,
          Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          Single 802.1x and Multiple 802.1x,
          MAC-based authentication,
          Guest VLAN,
          MAC address limit,
          VLAN (802.1Q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security,
          Https / SSH enhance network security,
          Web and CLI authentication and authorization,
          Authorization (15 levels),
          IP source guard
          Software Features IEEE 802.1D Bridge,
          auto MAC address learning/aging and MAC address (static),
          Multiple Registration Protocol (MRP),
          MSTP (RSTP/STP compatible),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging ,
          IGMP v2/v3 Snooping,
          IP-based bandwidth management,
          Application-based QoS management,
          DOS/DDOS auto prevention,
          Port configuration,
          status,
          statistics,
          monitoring,
          security,
          DHCP Server/Client,
          DHCP Relay,
          Modbus TCP,
          SMTP Client,
          NTP server
          Network Redundancy O-Ring,
          O-Chain,
          MRP,
          MSTP(RSTP/STP compatible)
          LED Indicators
          Power Indicator Green LED x 3 Power indicator for AC and DC
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          Fault indicator Amber - Indicate unexpected event occurred
          10/100/1000Base-T(X) RJ45 port indicator Green for Link/Act indicator,
          Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps
          100/1000Base-X SFP+ Port Indicator Green for port Link/Act.
          Fault Contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power 100~240VAC with power socket
          Power consumption (typical) 28.2W
          Overload current protection not present
          Reverse Polarity Protection Present
          Physical Characteristic
          Dimension (W x D x H) 431mm x 342mm x 44mm
          Weight 4117g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40 to 75 °C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Warranty
          Warranty period 5 years
          Managed switch, 16x 10/100/1000 COMBO Ports with SFP + 8 slide-in SFP slots, O/Open-Ring <30ms (ORing RGS-9168GCP-EU)
          for special orders only
          Net Price: 1 440,00 EUR
          product card»


top

Page 9 of 15
