  • Communication for industry
    • Industrial Switches
      • » FAST ETHERNET / MANAGED SWITCHES
          #06598

          Managed switch, 8x 10/100 RJ-45 + 2x1000 SFP, O/Open-Ring <10ms (ORing IES-3082GP)

          IES-3082GP is managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) and 2x100/1000Base-X SFP ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IES-3082GP can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for highly-managed and Fiber Ethernet application.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          1000 Mbps SFP Ports 2
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1X for Authentication,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 5.6 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 256
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Flashing to indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Yellow - Indicate unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Yellow for Duplex/Collision
          Fiber port indicator Green for port Link/Act,
          Yellow for Link
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Triple DC inputs. 12÷48VDC on 7-pin terminal block,
          12÷45VDC on power jack
          Power consumption (typical) 9W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 52mm x 106mm x 144mm
          Weight 730g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-40÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 8x 10/100 RJ-45 + 2x1000 SFP, O/Open-Ring <10ms (ORing IES-3082GP)
          Net Price: 492,00 EUR
          product card»
          #07999
          NEW

          Managed switch, 8x 10/100 RJ-45 + 2x1000 SFP, O/Open-Ring <10ms (ORing IES-3082GP-LA)

          IES-3082GP-LA is managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports and 2x100/1000Base-X，SFP socket. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), O-Chain, MRP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain providing ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. All function of IES-3082GP-LA can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 75o C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for highly-managed Ethernet application.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          1000 Mbps SFP Ports 2
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1X for Authentication,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 5.6 Gbps
          Max. Number of Available VLANs 256
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 256
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Flashing to indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Yellow - Indicate unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Yellow for Duplex/Collision
          Fiber port indicator Green for port Link/Act,
          Yellow for Link
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Reset Button < 5 sec- System reboot,
          > 5 sec- Factory default
          Power
          Input power Dual DC inputs,
          12~48VDC on 4-pin terminal block
          Power consumption (typical) 6W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 54.3mm x 107mm x 145mm
          Weight 676g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷75°C (-40÷167°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 8x 10/100 RJ-45 + 2x1000 SFP, O/Open-Ring <10ms (ORing IES-3082GP-LA)
          for special orders only
          Net Price: 375,00 EUR
          product card»

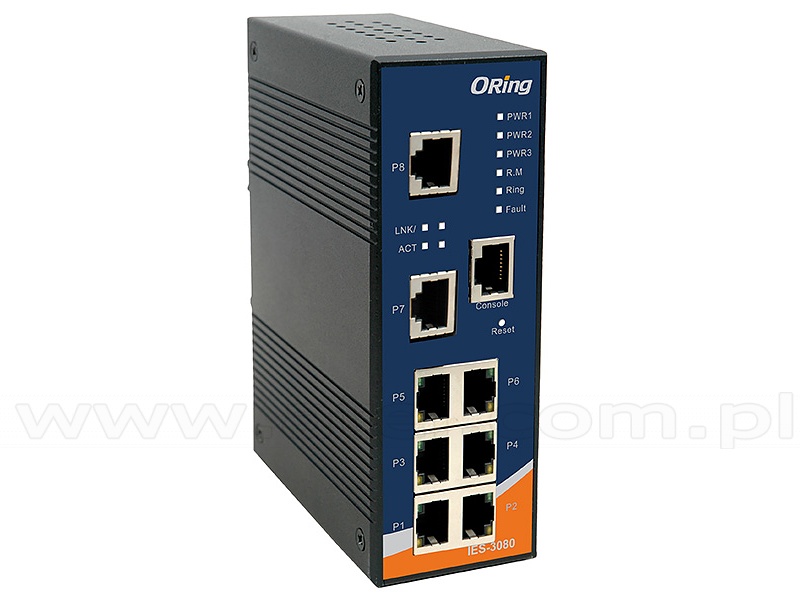

          #06593

          Managed switch, 8x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3080)

          IES-3080 / IES-3062 series are managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) and 2x10/100Base-T(X), 100Base-FX, 1000Base-T, 1000Base-SX or 1000Base-LX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. IES-3080 / IES-3062 series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Fiber Ethernet application.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1X for Authentication,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
          IEEE 1588 for Precise Time Protocol Client
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 5.6 Gbps
          Max. Number of Available VLANs 4096
          Number of VLAN IDs VID 1 to 4094
          IGMP multicast groups 256
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - Flashing to indicate system operated in O-Ring Master mode
          O-Ring indicator Green - Indicate system operated in O-Ring mode
          Fault indicator Yellow - Indicate unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Yellow for Duplex/Collision
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Triple DC inputs. 12÷48VDC on 7-pin terminal block,
          12÷45VDC on power jack
          Power consumption (typical) 5W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 52mm x 106mm x 144mm
          Weight 710g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-40÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 8x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3080)
          Net Price: 397,00 EUR
          product card»

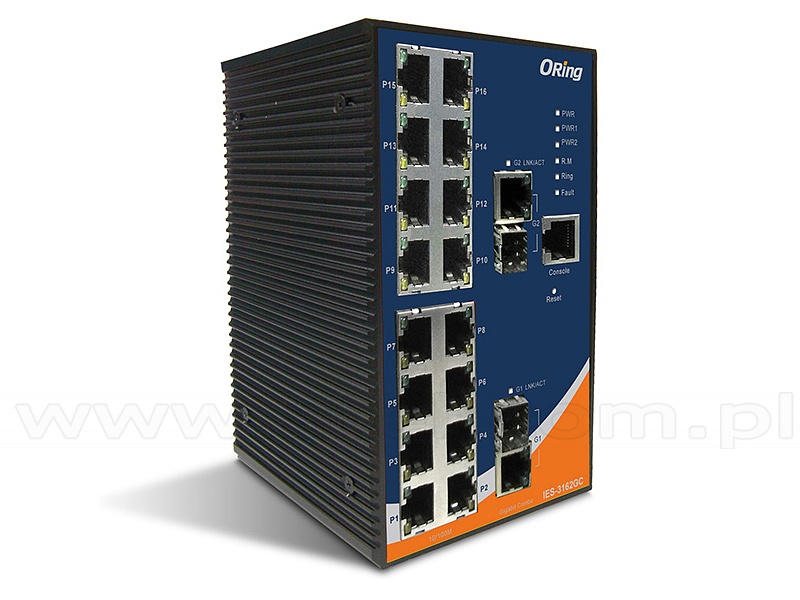

          #06990

          Managed switch, 16x 10/100 RJ-45 + 2 slide-in SFP slots / RJ-45, O/Open-Ring <10ms (ORing IES-3162GC)

          IES-3162GC is the managed Redundant Ring Ethernet switch with 16x10/100Base-T(X) ports and 2xgigabit combo ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. All function of IES-3162GC can be managed centralized and convenient by a powerful windows utility - Open-Vision. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 16
          1000 COMBO with SFP 2
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1X for Authentication,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 7.2 Gbps
          Max. Number of Available VLANs 4096
          IGMP multicast groups 1024
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security,
          Modbus TCP
          Network Redundancy STP,
          RSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          Fault indicator Amber - Indicates unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Amber for Duplex/Collision
          10/100/1000TX RJ45 port indicator Green for port Link/Act,
          Amber for 100Mbps
          Fiber port indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 12W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 74.3mm x 109.2mm x 153.6mm
          Weight 1100g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-40÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 16x 10/100 RJ-45 + 2 slide-in SFP slots / RJ-45, O/Open-Ring <10ms (ORing IES-3162GC)
          for special orders only
          Net Price: 729,00 EUR
          product card»
          #07635

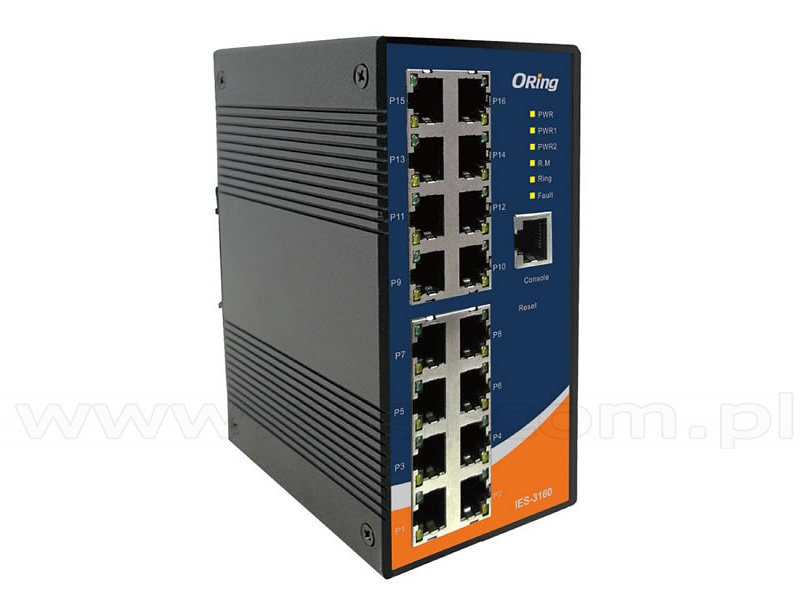

          Managed switch, 16x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3160)

          IES-3160 is an managed Redundant Ring Ethernet switch with 16x10/100Base-T(X) ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. All function of IES-3160 can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Ethernet application.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 16
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1X for Authentication,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 7.2 Gbps
          Max. Number of Available VLANs 4096
          IGMP multicast groups 1024
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security,
          Modbus TCP
          Network Redundancy STP,
          RSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          Fault indicator Amber - Indicates unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Amber for Duplex/Collision
          10/100/1000TX RJ45 port indicator Green for port Link/Act,
          Amber for 100Mbps
          Fiber port indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 12W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 74.3mm x 109.2mm x 153.6mm
          Weight 1100g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-40÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 16x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3160)
          for special orders only
          Net Price: 668,00 EUR
          product card»
          #07634

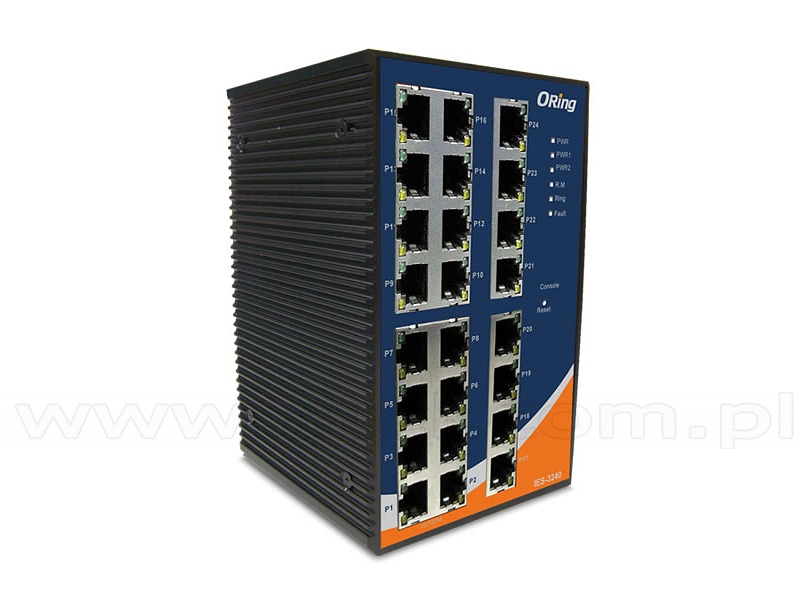

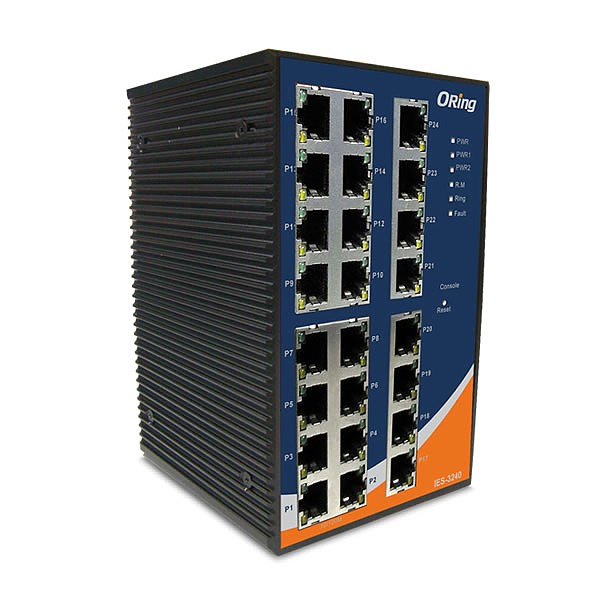

          Managed switch, 16x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3240)

          IES-3240 is an managed Redundant Ring Ethernet switch with 24x10/100Base-T(X) ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. All function of IES-3240 can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Ethernet application.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 24
          RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.1D for STP (Spanning Tree Protocol),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1X for Authentication,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 4
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 7.2 Gbps
          Max. Number of Available VLANs 4096
          IGMP multicast groups 1024
          Port rate limiting User Define
          Security Features Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy STP,
          RSTP,
          O-Ring,
          Open-Ring,
          O-RSTP
          LED Indicators
          Power / Ready indicator Green - Ready LED x 3
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          Fault indicator Amber - Indicates unexpected event occurred
          10/100TX RJ45 port indicator Green for port Link/Act,
          Amber for Duplex/Collision
          10/100/1000TX RJ45 port indicator Green for port Link/Act,
          Amber for 100Mbps
          Fiber port indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 12W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 74.3mm x 109.2mm x 153.6mm
          Weight 1100g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷70°C (-40÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Managed switch, 16x 10/100 RJ-45, O/Open-Ring <10ms (ORing IES-3240)
          for special orders only
          Net Price: CallCall
          product card»
          #06516

          Managed switch, 24x 10/100Base-T(X) RJ45 Ports + 2x 10/100/1000 COMBO Ports with SFP, O/Open-Ring <10ms (ORing RES-9242GC-EU)

          RES-9242GC is rack mount managed redundant ring Ethernet switch with 24x10/100Base-T(X) ports and 2xgigabit combo ports, SFP socket. RES-9242GC also support Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection) /Open-Ring/O-Chain/>*noteMRP/Fast Recovery and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RES-9242GC supported wide operating temperature from -40°C to 75°C. RES-9242GC can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          10/100Base-T(X) RJ45 Ports 24
          10/100/1000 COMBO with SFP 2
          RS-232 Serial Console Port RS-232 in DB-9 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 8.8 Gbps
          Max. Number of Available VLANs 4096
          IGMP multicast groups 256 for each VLAN
          Port rate limiting User Define
          Security Features Device Binding security feature,
          Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features IEEE 802.1D Bridge,
          auto MAC address learning/aging and MAC address (static),
          Multiple Registration Protocol (MRP),
          MSTP (RSTP/STP compatible),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units ,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging,
          IGMP v2/v3 Snooping,
          IP-based bandwidth management,
          Application-based QoS management,
          DOS/DDOS auto prevention,
          Port configuration,
          status,
          statistics,
          monitoring,
          security,
          DHCP Server/Client ,
          DHCP Relay,
          Modbus TCP,
          SMTP Client,
          NTP server
          Network Redundancy O-Ring,
          Open-Ring,
          O-ChainMRP,
          MSTP (RSTP/STP compatible)
          LED Indicators
          Power / Ready indicator Green - Ready LED x 2
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          10/100TX RJ45 port indicator Green for port Link/Act,
          Green for speed indicator ~ On for 100Mbps / Off for 10Mbps
          10/100/1000TX RJ45 port indicator Green for port Link/Act,
          Green for speed indicator ~ On for 100/1000Mbps / Off for 10Mbps
          Fiber port indicator Green for port Link/Act
          Power
          Input power 100~240VAC with power cord
          Power consumption (typical) 15.2W
          Overload current protection present
          Physical Characteristic
          Dimension (W x D x H) 440 x 200 x 44 mm (17.32 x 7.87 x 1.73 inch)
          Weight 2695g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷75°C (-40÷167°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class B
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1 (compliant,
          certification pending)
          Warranty
          Warranty period 5 years
          Managed switch, 24x 10/100Base-T(X) RJ45 Ports + 2x 10/100/1000 COMBO Ports with SFP, O/Open-Ring <10ms (ORing RES-9242GC-EU)
          for special orders only
          Net Price: 592,00 EUR
          product card»
          #06625

          Managed switch, 24x 10/100Base-T(X) RJ45 Ports + 2x 10/100/1000 COMBO Ports with SFP, O/Open-Ring <30ms (ORing RES-P9242GCL-HV)

          RES-P9242GCL series are 26-port rack mount managed redundant ring Ethernet switch with 24x10/100Base-T(X) and 2xGigabit Combo ports, SFP socket. These switches are designed for power substation application, and it is fully compliant with the requirement of IEC 61850-3 and IEEE 1613. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms), O-Chain, MRP*note, Fast Recovery and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RES-P9242GCL series can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          10/100Base-T(X) RJ45 Ports 24
          10/100/1000 COMBO with SFP 2
          RS-232 Serial Console Port RS-232 in DB-9 connector with console cable (115200bps 8 N 1)
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol),
          IEEE 802.1D for STP (Spanning Tree Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 8.8 Gbps
          Max. Number of Available VLANs 4096
          IGMP multicast groups 256 for each VLAN
          Port rate limiting User Define
          Security Features Device Binding security feature,
          Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          VLAN (802.1q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security
          Software Features IEEE 802.1D Bridge,
          auto MAC address learning/aging and MAC address (static),
          Multiple Registration Protocol (MRP),
          MSTP (RSTP/STP compatible),
          Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units ,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging,
          IGMP v2/v3 Snooping,
          IP-based bandwidth management,
          Application-based QoS management,
          DOS/DDOS auto prevention,
          Port configuration,
          status,
          statistics,
          monitoring,
          security,
          DHCP Server/Client ,
          DHCP Relay,
          Modbus TCP,
          SMTP Client,
          NTP server
          Network Redundancy O-Ring,
          O-ChainMRP,
          MSTP (RSTP/STP compatible)
          LED Indicators
          Power / Ready indicator Green - Ready LED x 2
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          10/100TX RJ45 port indicator Green for port Link/Act,
          Green for speed indicator ~ On for 100Mbps / Off for 10Mbps
          10/100/1000TX RJ45 port indicator Green for port Link/Act,
          Green for speed indicator ~ On for 100/1000Mbps / Off for 10Mbps
          Fiber port indicator Green for port Link/Act
          Fault Contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual 125~370VDC / 100~240VAC power inputs
          Power consumption (typical) 19.8W
          Overload current protection present
          Physical Characteristic
          Dimension (W x D x H) 443.7 x 262.7 x 44 mm
          Weight 4050g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷85°C (-40÷185°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMC CE EMC (EN 55024,
          EN 55032),
          FCC Part 15 B,
          IEC 61850/ IEEE1613
          EMI EN 55032,
          CISPR32,
          EN 61000-3-2,
          EN 61000-3-3,
          FCC Part 15B class A
          EMS EN 55024 (IEC/EN 61000-4-2 (ESD),
          IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),
          IEC/EN 61000-4-5 (Surge),
          IEC/EN 61000-4-6 (CS),
          IEC/EN 61000-4-8(PFMF),
          IEC/EN 61000-4-11 (DIP))
          Shock IEC60068-2-27
          Free Fall IEC60068-2-31
          Vibration IEC60068-2-6
          Safety EN60950-1
          Other IEC 61850/ IEEE1613
          Network security IEC 62443-4-2
          MTBF 262,968 hrs
          Warranty
          Warranty period 5 years
          Managed switch, 24x 10/100Base-T(X) RJ45 Ports + 2x 10/100/1000 COMBO Ports with SFP, O/Open-Ring <30ms (ORing RES-P9242GCL-HV)
          for special orders only
          Net Price: 1 220,00 EUR
          product card»
      • » GIGABIT ETHERNET / UNMANAGED SWITCHES
          #06658
          NEW

          Unmanaged switch, 4x 100/1G/2.5G RJ-45 + 2x1000/10G SFP+ (ORing IDGS-C1042GP+)

          IDGS-C1042GP+ is unmanaged Ethernet Switch with 4x10/100/1000/25000Base-T(X) ports with 2x1G/10GBase-X SFP ports
          and extended operating temperature range from -40℃ to 75℃ for the harsh environments. Therefore, the switch is one of
          the most reliable choices for rolling stock and highly unmanaged Ethernet application.
          Physical Ports
          10/100/1000/2500 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          1000/10GBase-X, SFP+ ports 2
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3bz for 2.5GBaseT,
          IEEE 802.3ae for 10G SFP+,
          IEEE 802.3x for Flow control
          MAC Table 8192 MAC addresses
          Processing Store-and-Forward
          Switching latency 10 µs
          Switching bandwidth 60 Gbps
          Power
          Input power Dual DC inputs. 12÷48VDC on 4-pin terminal block
          Power consumption (typical) 10W
          Overload current protection present
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x D x H) 28mm x 88mm x 130mm
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40÷75°C (-14÷163°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMC CE EMC (EN 55035,
          EN 55032),
          FCC Part 15 B
          Shock IEC60068-2-27
          Free Fall IEC60068-2-31
          Vibration IEC60068-2-6
          Safety EN 62368-1 (LVD)
          Warranty
          Warranty period 5 years
          Unmanaged switch, 4x 100/1G/2.5G RJ-45 + 2x1000/10G SFP+ (ORing IDGS-C1042GP+)
          for special orders only
          Net Price: 197,00 EUR
          product card»
          #06879

          Unmanaged switch, 4x 10/1000 RJ-45 + 1x 1000 SFP , slim housing (ORing IGS-1041GPA)

          IGS-1050A/IGS-1041GPA series are unmanaged gigabit Ethernet switches with 5 x 10/100/1000Base-T(X) ports or 4 x 10/100/1000Base-T(X) and 1 x 1000Base-X SFP ports. IGS-1050A/IGS-1041GPA series support redundant power inputs, rigid IP-30 housing and have DIP switches for enabling or disabling relay output alarm. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          1000Base-X SFP Ports 1
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3x for Flow control
          MAC Table 1024 MAC addresses
          Processing Store-and-Forward
          LED Indicators
          Power indicator Green - Power LED x 2
          Fault indicator Amber - Indicate PWR1 or PWR2 failure
          10/100/1000TX RJ45 port Indicator Green on only for 1000Mbit,
          Green and Amber on for 100Mbit,
          Amber on only for 10Mbit
          1000X SFP port Indicator Green for port Link/Act
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12÷48VDC on 6-pin terminal block
          Power consumption (typical) 5.5W
          Overload current protection present
          Reverse polarity protection present on terminal block
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 26.1mm x 94.9m x 144.3mm
          Weight 403g
          Environmental
          Storage Temperature -40÷85°C (-40÷185°F)
          Operating Temperature -10÷60°C (-40÷158°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950
          Warranty
          Warranty period 5 years
          Unmanaged switch, 4x 10/1000 RJ-45 + 1x 1000 SFP , slim housing (ORing IGS-1041GPA)
          for special orders only
          Net Price: 176,00 EUR
          product card»


top

Page 7 of 15
