- Communication for industry
-
- » WIRELESS 3G/4G ROUTERS#08188
Wireless router 3G, 2x 10/100 RJ-45 (WAN + LAN) + 1x 802.11a/b/g (WLAN) + 1x USB (ORing TAR-3120-M12)
ORing’s Transporter series cellular VPN router is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications.
TAR-3120-M12 is a reliable Dual-RF IEEE802.11a/b/g and IEEE 802.11b/g cellular VPN router with 2 ports LAN which is fully compliant with EN50155 certification. It supports 802.1X and MAC filter for security control. It can be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Cellular Modem dial-up. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modem.
TAR-3120-M12 EN50155 cellular VPN router use M-series connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TAR-3120-M12 provides dual RF wireless interfaces, which can provide IEEE 802.11 a/b/g and IEEE 802.11 b/g dual band wireless communication and can be applied to fulfill any demands of wireless applications. TAR-3120-M12 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports.Physical Ports 10/100Base-T(X) Ports RJ45 Auto MDI/MDIX 2 (M12 connector – D coding) WLAN Interface WAN Connection Type Static/Dynamic IP,
PPPoE,
3G Modem dial-upAntenna and Connector 2 x 2 dBi (b/g mode) / 3dBi (a mode) on Reverse SMA connector,
2 x 2 dBi (Cellular modem) on Reverse SMA connectorRadio Frequency Type DSSS,
OFDMModulation IEEE 802.11a OFDM with BPSK,
QPSK,
16QAM,
64QAMIEEE 802.11b CCK,
DQPSK,
DBPSKIEEE 802.11g OFDM with BPSK,
QPSK,
16QAM,
64QAMFrequency Band America / FCC 2.412~2.462 GHz (11 channels),
5.15 to 5.825 GHz (13 channels),
Europe CE / ETSI 2.412~2.472 Ghz (13 channels),
5.15 to 5.724 GHz (19 channels)Transmission Rate IEEE 802.11b 1 / 2 / 5.5 / 11 Mbps IEEE 802.11a/g 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps Transmit Power IEEE802.11a/b/g 20dBm max Receiver Sensitivity IEEE 802.11a -77dBm±2.0dB @ 54Mbps PER< 10% IEEE 802.11b -86dBm±1.5dB @ 11Mbps PER< 8%; IEEE 802.11g -78dBm±1.5dB @ 54Mbps PER< 10% Encryption Security WEP (64-bit and 128-bit key supported) WPA/WPA2 802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption Wireless Security SSID broadcast disable LED Indicators Power Indicator Green for Power indicator RJ45 Port Indicator Green for port Link/ Act at 100Mbps. Amber for port Link/ Act at 10Mbps. WLAN LEDs Green for WLAN Link/ Act Cellular modem LED Green for Cellular modem Link/ Act Fault Contact Relay Relay output to carry capacity of 3A at 24VDC Power Redundant Input Power Dual DC inputs. 12~48VDC on M23 connector (24VDC typ) Power Consumption 9.6 W Overload Current Protection Present Reverse Polarity Protection Present Physical Characteristics Enclosure IP-40 Dimensions (W x D x H) 125(W) x 65(D) x 196(H) mm (4.92 x 2.56 x 7.72 inch.) Weight (g) 1050 g Environmental Storage Temperature -40 to 85°C (-40 to 185°F) Operating Temperature -20 to 70°C (-4 to 158°F) Operating Humidity 5% to 95% Non-condensing EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2)EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11 Shock IEC60068-2-27,
EN61373Free Fall IEC60068-2-32 Vibration IEC60068-2-6,
EN61373Cooling EN60068-2-1 Dry Heat EN60068-2-2 Safety EN60950-1 Warranty 3 years
-
- » INDUSTRIAL ACCESS POINTS#06531
Wireless access point, 2x 10/100/1000 RJ-45 (LAN + PoE PD) + 1x 802.11b/g/n (WLAN) (ORing IAP-420+)
IAP-420 / IAP-420+ series are reliable 802.11 b/g/n WLAN Access Point with 2 ports LAN. It supports 802.1X and MAC filters for security control. It can be configured to operate in AP/Bridge/Repeater/AP-Client mode. You are able to configure IAP-420 / IAP-420+ series by WEB interface via LAN port or WLAN interface. In addition, IAP-420+ also provides P.D. feature on ETH1 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, IAP-420 / IAP-420+ series are one of the best communication solutions for wireless applications on the industrial network.Physical Ports 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 2 (one port with PoE) PoE PD Port Present at ETH,
Fully compliant with IEEE 802.3af Power Device specification,
Over load and short circuit protection,
Isolation Voltage 1000 VDC min.,
Isolation Resistance 108MΩ minWLAN interface Operating Mode AP/Bridge/Bridge/AP-Client Antenna Connector 1 x External reverse SMA-type antenna connector Radio Frequency Type DSSS,
OFDMModulation IEEE802.11b CCK,
DQPSK,
DBPSKModulation IEEE802.11g/n OFDM with BPSK,
QPSK,
16QAM,
64QAMFrequency Band 2.412~2.472 Ghz (13 channels) Transmission Rate IEEE802.11b 1/2/5.5/11 Mbps,
IEEE802.11g 6/9/12/18/24/36/48/54 Mbps,
IEEE802.11n UP to 150 MbpsTransmit Power 802.11b 19dBm ± 1.5dBm@11Mbps,
802.11g 17dBm ± 1.5dBm@54Mbps,
802.11gn HT20 16.5dBm ± 1.5dBm @MCS7,
802.11n HT40 14.5dBm ± 1.5dBm @MCS7Receiver Sensitivity 802.11b -90dBm ± 2dBm@1Mbps,
802.11g -72dBm ± 2dBm@54Mbps,
802.11n HT20 -68dBm ± 2dBm@MCS7Encryption Security WEP (64-bit ,128-bit key),
WPA/WPA2 PSK - TKIP and AES encryption (802.11i),
802.1X/RADIUS Authentication supportedWireless Security SSID broadcast disable Protocol Support ARP,
BOOTP,
DHCP,
DNS,
HTTPs,
IP,
ICMP,
SNTP,
TCP,
UDP,
RADIUS,
SNMP,
STP (IEEE 802.1D)LED Indicators Power Indicator LED x 3,
PWR 1, 2,
(PoE),
Green On- Power is on and functioning Normally.10/100Base-T(X) RJ45 Port Indicator 2 x LEDs,
Green for port Link/ ActWLAN LEDs LED,
Green (blinking) for WLANPower Redundant Input Power Dual DC inputs. 12~48VDC on 4-pin terminal block Power consumption (typical) 4W Overload Current Protection Present Reverse Polarity Protection Present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 41(W)x81(D)x95(H) mm Weight 292g Environmental Storage Temperature -40÷85°C Operating Temperature -10÷60°C Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMI FCC Part 15,
CISPR (EN55022) class AEMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
- » INDUSTRIAL 4G ROUTERS#06535
Wireless router 4G LTE, 2x 10/100 RJ-45 (LAN) + 1x 802.11b/g/n (WLAN) + 1x RS-232/422/485 (ORing IMG-4312-4G)
IMG-4312-4G is an innovative 1 port RS-232/422/485 and 4G LTE cellular Gateway with 2 port 10/100Base-T(X) port. IMG-4312-4G also provide IEEE802.11 b/g/n wifi interface which have 150Mbps link speed. It could be configured to connect to the internet by dialing up 2G/3.5G/LTE cellular modem to fulfill demands of various applications rapidly a. In addition, IMG-4312-4G can also transfer data into 5 host PCs simultaneously for backup purposes. In addition, IMG-4312+-4G also provides P.D. feature on ETH1 port which is fully compliant with IEEE802.3af PoE P.D. specification Therefore, IMG-4312-4G is one of the best solutions for applications of wireless and serial communication.Physical Ports 10/100 Base-T(X) Ports RJ-45 Auto MDI/MDIX 2 SIM Card Slot 1 (Only Mini SIM without adapter) WLAN interface Antenna Connector 1 x RP-SMA Female Modulation IEEE802.11b CCK,
DQPSK,
DBPSKModulation IEEE802.11g/n OFDM with BPSK,
QPSK,
16QAM,
64QAMFrequency Band 2.412~2.472 Ghz Transmission Rate IEEE802.11b 1/2/5.5/11 Mbps,
IEEE802.11g 6/9/12/18/24/36/48/54 Mbps,
IEEE802.11n UP to 150 MbpsTransmit Power 802.11b 19dBm ± 1.5dBm@11Mbps,
802.11g 17dBm ± 1.5dBm@54Mbps,
802.11gn HT20 16.5dBm ± 1.5dBm @MCS7,
802.11n HT40 14.5dBm ± 1.5dBm @MCS7Receiver Sensitivity 802.11b -90dBm ± 2dBm@1Mbps,
802.11g -72dBm ± 2dBm@54Mbps,
802.11n HT20 -68dBm ± 2dBm@MCS7Encryption Security WEP (64-bit ,128-bit key),
WPA/WPA2 PSK - TKIP and AES encryption (802.11i),
802.1X/RADIUS Authentication supportedCellular Interface Antenna Connector 2 x RP-SMA Female Cellular Standard GSM/GPRS/EGPRS/EDGE/WCDMA/HSDPA/HSUPA/LTE Band Option Europe(EU grade) LTE - 2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz,
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 800/850/900/1900/2100 MHz,
GSM/GPRS/EDGE - 850/900/1800/1900 MHzSerial Ports Connector DB9 x1 Operation Mode RS-232,
RS-422,
RS-485 4/2-wire,
can be configured by DS-ToolSerial Baud Rate 110 bps to 460.8 Kbps Data Bits 7, 8 Parity odd,
even,
none,
mark,
spaceStop Bits 1, 1.5, 2 RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485 (4-wire) Tx+, Tx-, Rx+, Rx-, GND RS-485 (2-wire) Data+, Data-, GND Flow Control XON/XOFF,
RTS/CTS,
DTR/DSRNetwork Protocol ICMP,
IP,
TCP,
UDP,
DHCP,
BOOTP,
DNS,
SNMP V1/V2c,
HTTPSLED Indicators Power Indicator 3 x LEDs,
Green On - Power is on10/100TX RJ45 port indicator 2 x LEDs,
Green for port Link/Act at 100Mbps.Serial TX / RX LEDs Red - Serial port is receiving data,
Green - Serial port is transmitting dataWIFI LEDs 1 x LED,
Green for WiFi Link/ ActWAN LED 1 x LED,
Green for Cellular modem Link/ ActPower Redundant Input Power Dual DC inputs. 12~48 VDC on 6-pin terminal block Power consumption (typical) 3W Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 45(W)x80.6(D)x95(H) mm Weight 368g Environmental Storage Temperature -40÷85°C (-40÷185°F) Operating Temperature -10÷60°C (14÷130°F) Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMI FCC Part 15,
CISPR (EN55022) class AEMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-31 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
-
- » RS-xxx SERVERS WITH LAN (RJ-45 / FO) INTERFACE#06526
Device server, 1x RS-232/422/485 + 2x 10/100 RJ-45 (LAN) (ORing IDS-312L)
IDS-312L is an innovative secure 1 port RS-232/422/485 to 2 port LAN device server with standard features of device server, such like TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings of Virtual Com. On the other hand, IDS-312L can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet connection breakdown or any host PC fails.
IDS-312L supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to guarantee a non-stop operation. With wide operating temperature, -40~70oC, and rugged IP-30 housing design, IDS-312L series could operate in the harsh industrial environment. Therefore, IDS-312L is the best solution to the high demand of secure serial to Ethernet critical data communication.Physical Ports 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 2 Serial Ports Connector DB9 x1 Operation Mode RS-232,
RS-422,
RS-485 4/2-wire,
can be configured by DS-ToolSerial Baud Rate 110 bps to 460.8 Kbps Data Bits 7, 8 Parity odd,
even,
none,
mark,
spaceStop Bits 1, 1.5, 2 RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485 (4-wire) Tx+, Tx-, Rx+, Rx-, GND RS-485 (2-wire) Data+, Data-, GND Flow Control XON/XOFF,
RTS/CTS,
DTR/DSRNetwork Protocol ICMP,
IP,
TCP,
UDP,
DHCP,
BOOTP,
DNS,
SNMP V1/V2c,
HTTPSLED Indicators Power indicator PWR 1(2) / Ready Green On - Power is on 10/100TX RJ45 port indicator Green for port Link/Act Serial TX / RX LEDs Amber - Serial port is receiving data,
Green - Serial port is transmitting dataPower Input power Dual DC inputs. 12÷48VDC on 4-pin terminal block Power consumption (typical) 1.44W Overload current protection present Reverse polarity protection present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 26 (W) x 75 (D) x 110 (H) mm Weight 227g Environmental Storage Temperature -40÷85°C (-40÷185°F) Operating Temperature -40÷70°C (40÷158°F) Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMI FCC Part 15B,
CISPR 32 ( EN55032 Class A)EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
-
#07970
Industrial Gigabit PoE Splitter, 1x10/1000 RJ-45 PoE + 1x10/1000 RJ-45 (ORing SPL-101GT)
SPL-101GT is a high power PoE Splitter for use in Power over Ethernet systems. With Ethernet Input (data + power) port and Output (data only) port, SPL-101GT may split power from existing LAN cable and convert up to 24VDC/1.25A for power hungry applications such as Wireless APs, Security cameras and IP Phones. The internal current limit, short-circuit and overload protection are implemented for use as a DC power supply.Physical Ports 10/100/1000Base-T(X) in RJ-45 Ethernet Port Input 1 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output 1 Operating Voltage Input Voltage 36 ~ 57 VDC / 4-pin terminal block Output Power 24V / 1.25mA,
30 Watts max. Per portLED Indicators Power indicator PWR / Ready 1 x LED,
Blue On - Power is on and is functioning NormallyProtection Short Circuit Protection present Over Load Protection present Isolation Protection 1500V Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 26.1mm x 70mm x 95mm Weight 250g Environmental Storage Temperature -40÷80°C(-40÷176°F) Operating Temperature -20÷70°C (-4÷158°F) Operating Humidity 5%÷90% Non-condensing Regulatory approvals EMI FCC Part 15,
CISPR (EN55022) class AEMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Safety EN60950-1 Warranty Warranty period 2 years

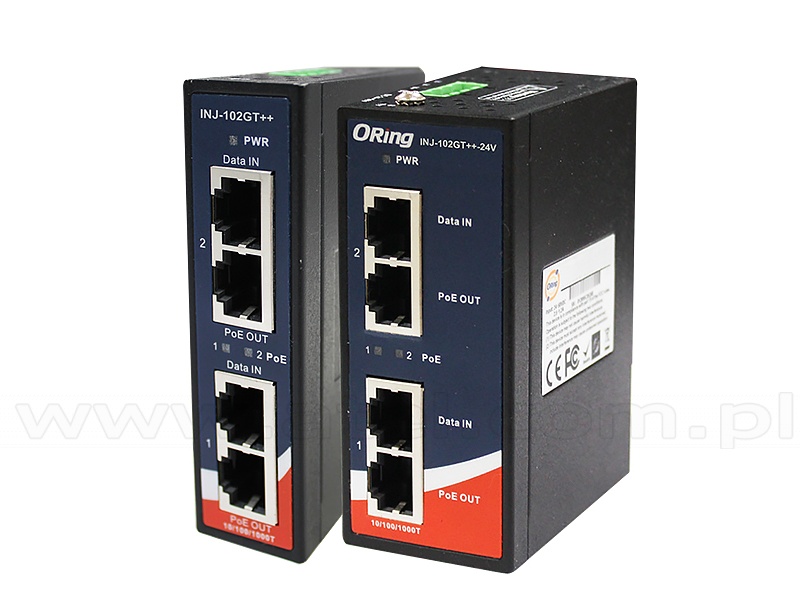

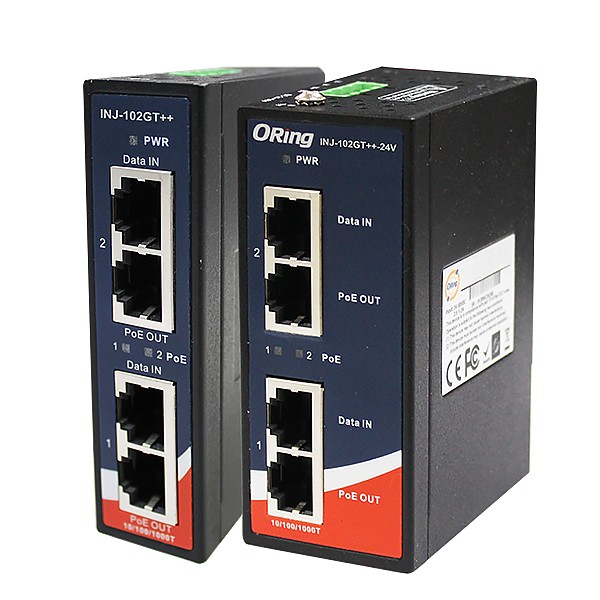

#07995Industrial Gigabit High Power Injector, 2x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 (ORing INJ-102GT++)
The INJ-102GT++ PoE Injector series is not only an IEEE802.3at compliant device but also an advanced high power PoE injector. It is intelligent detection that provided 2-ports 10/100/1000Base-T (X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Therefore, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-102GT++ PoE Injector. Typically in Gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 24~57VDC power input with boosting circuit, the total output power can be up to 180Watts[Note2] for all ports usage. The installer doesn’t need to worry about voltage drops caused by cable length. The INJ-102GT++ PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
Note1: The equipment being powered must be fully IEEE 802.3at/802.3af compliant in order for the power supply to be able to sense the PoE devices signature and apply power. Power is supplied on Ethernet pins 1/2 (V+) and 3/6 (V-).
Note 2: LTPoE++TM PSE technology is applied on this product. Only when an LTPoE++ TM Powered Device (PD) is attached can the PSE port deliver up to 180W of output power.Physical Ports 10/100/1000Base-T(X) in RJ-45 Ethernet Port Input 2 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output 2 Operating Voltage Input Voltage 50 ~ 57 VDC / 4-pin terminal block Output Power 57V / 3157mA,
180 Watts max. Per portLED Indicators Power indicator PWR / Ready 1 x LED,
Green On - Power is on and functioning NormallyPoE Indicators 2 x LED,
Blue On - PoE Device Link,
Blue Off - None PoE Device DetectedProtection Short Circuit Protection present Over Load Protection present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 26.1mm x 70mm x 95mm Weight 300g Environmental Storage Temperature -40÷80°C(-40÷176°F) Operating Temperature -20÷70°C (-4÷158°F) Operating Humidity 5%÷90% Non-condensing Regulatory approvals EMI FCC Part 15,
CISPR (EN55022) class AEMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
#06523Industrial Gigabit High Power Injector, 1x10/1000 RJ-45 PoE + 1x10/1000 RJ-45 (ORing INJ-101GT++-60W)
The INJ-101GT++ PoE Injector series is not only an IEEE802.3at compliant device but also an advanced high power PoE injector. It is intelligent detection that provided 1-ports 10/100/1000Base-T (X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Therefore, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-101GT++ PoE Injector. Typically in Gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. The INJ-101GT++ PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3af/at PoE standards, and provide the DIP switch configurator for High power PoE management.Physical Ports 10/100/1000Base-T(X) in RJ-45 Ethernet Port Input 1 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output 1 Operating Voltage Input Voltage 50 ~ 57 VDC / 4-pin terminal block Power Consumption 1 Watts (Not include PD's device) PoE Power Budget 60 Watts max LED Indicators Power indicator PWR / Ready 1 x LED,
Green On - Power is on and functioning NormallyPoE Indicators 1 x LED,
Blue On - PoE Device Link,
Blue Off - None PoE Device Detected,
Blink (Blue) - Overload presentProtection Short Circuit Protection present Over Load Protection present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 26.1(W)x70(D)x95(H)mm (1.03 x 2.76 x 3.74 inch) Weight 188g Environmental Storage Temperature -40÷85°C(-40÷185°F) Operating Temperature -40÷75°C (-40÷165°F) Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMC EN55032,
EN55024(CE EMC),
FCC Part 15B,
EN61000-3-2,
EN61000-3-3EMI CISPR 32,
EN55032,
FCC Part 15B class AEMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
#04536Network Management Utility (Oring Open Vision v3.6 M50)
A powerful management utility is important for administrators to monitor and manage all devices in a local network.
-
