#03883
Cable tester RJ-45 and Optical Power Meter, w/LCD, wire tracker, VFL (NOYAFA NF-8508)
Advanced cable tester that performs standard copper cable tests - wiremap, PoE test and length. Additionally fiber ports to perform optical power measurements and VFL. The other benefits are large colour LCD display
| Tested cabling |
RJ45, RJ11, fibre optic (2.5mm SC;ST;FC ferrule) |
|---|---|
| Functionality |
location of the damage site, cable length measurement, detection of short circuit; interruptions; reverse connections, measurement of the distance to damage, dynamic calibration of cable lenght measurement, temperature compensation, sound signaling |
| Wiring tests |
cable lenght, connection map, digital pair finder with generator, light pen |
| Fiber optic tests |
OPM -70..+10dBm 850/1300/1310/1490/1550/1625nm, VFL 10mW |
| Cable length measurement | 10÷200m |
| Measurement of the distance to damage | yes |
| PoE tests |
Standard/Non standard, voltage measurement, automatic detection, 60V max |
| Wire tracker |
digital, analogue 455kHz |
| Ergonomics |
big and clear LCD display, automatic shutdown, long operating time, measuring data memory |
| Power |
in-built 1500mAh battery, USB-C charging |
| Dimensions |
148x70x32 mm (main), 198x50x28 mm (reciever) |
| Warranty | 12 months |
| Manufacturer | NOYAFA |
The kit includes:
- main unit,
- wire pair tracker,
- USB A (M) - USB-C (M) connector,
- crocodile clips,
- RJ45-RJ45 and RJ11-RJ11 connectors,
- case.
Do not connect the tester or terminators to networks with voltage> 20V.
- main unit,
- wire pair tracker,
- USB A (M) - USB-C (M) connector,
- crocodile clips,
- RJ45-RJ45 and RJ11-RJ11 connectors,
- case.
Do not connect the tester or terminators to networks with voltage> 20V.
#07792
Optical power meter -50 ÷ +26dBm
Compact and an easy-to-use testing device for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has wide range of power measurement and high accuracy.
| Measurement Range (dBm) | -50 ÷ +26dBm |
|---|---|
| Detector type | InGaAs |
| Wavelength | 850~1600nm |
| Calibrated wave depths | 850/1300/1310/1490/1550/1625 nm |
| Resolution | 0.01dBm (0.1%) |
| Permissible operating temperature | -10 ° C ÷ 50 ° C |
| Storage temperature | -20 ° C ÷ 70 ° C |
| Power | 3x AAA battery |
| Dimensions | 130x65x32 mm |
| Weight | 122g (without batteries) |
| Kit includes |
Power meter, case, user manual, additional FC and SC adapter |
#07791
Optical power meter -70 ÷ +10dBm
Compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has a wide range of power measurement and a high accuracy.
| Measurement Range (dBm) | -70 ÷ +10dBm |
|---|---|
| Detector type | InGaAs |
| Wavelength | 850~1620nm |
| Calibrated wave depths | 850/1300/1310/1490/1550/1625 nm |
| Resolution | 0.01dBm (0.1%) |
| Permissible operating temperature | -10 ° C ÷ 50 ° C |
| Storage temperature | -20 ° C ÷ 70 ° C |
| Power | 3x AAA battery |
| Dimensions | 130x65x32 mm |
| Weight | 122g (without batteries) |
| Kit includes |
Power meter, case, user manual, additional FC and SC adapter |

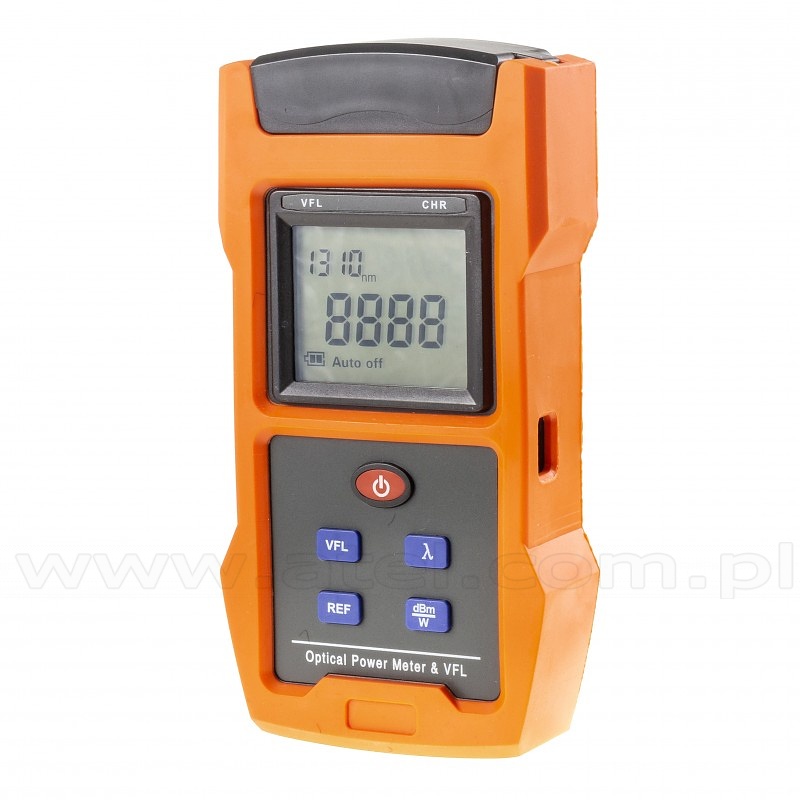

#07795
Optical power meter -70 ÷ +10dBm
Compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has a wide range of power measurement and a high accuracy.
Additionally equipped with VFL.
Additionally equipped with VFL.
| Measurement Range (dBm) | -70 ÷ +10dBm |
|---|---|
| Detector type | InGaAs |
| Wavelength | 850~1620nm |
| Calibrated wave depths | 850/1300/1310/1490/1550/1625 nm |
| Resolution | 0.01dBm (0.1%) |
| Measurement accuracy | 3% |
| Permissible operating temperature | -10 ° C ÷ 50 ° C |
| Storage temperature | -20 ° C ÷ 70 ° C |
| VFL |
Class III, <10mW, continuous or pulsating operation |
| Power | rechargeable battery (charger included) |
| Dimensions | 80x43x16mm |
| Weight | 280g |
#06819
Optical power meter SFPOWERMETER (SimpliFiber Pro)
| Measurement accuracy | ±0,25 dB |
|---|---|
| Connector |
removable, SC (standard), LC/ST (optional) |
| Detector type | InGaAs |
| Wavelength | 850/1300/1310/1490/1550/1625 nm |
| Measurement range |
10 dBm ÷ -52 dBm (850 nm), 10 dBm ÷ -60 dBm (1300/1310/1490/1550/1625 nm) |
| Measurement linearity for 850 nm |
± 0.2 dB (power from 0 dBm to -45 dBm), ± 0.25 dB (power < -45 dBm) |
| Measurement linearity for 1300/1310/1490/1550/1625 nm |
± 0.1 dB (power from 0 dBm to -55 dBm), ± 0.2 dB (power > 0 dBm and < -55 dBm) |
| Resolution | 0.01 dB |
| Battery life | 50 h |
| Memory | 1000 records |
| Dimensions | 165x80x39 mm |
| Operating temperatures | -10°C ÷ 50°C |
| Operating humidity |
up to 95%, non-condensing |
| Certificates |
CE, CSA, N10140 |
| Weight | 278g |
| Communication interface | USB |
| Producer | Fluke Networks |
#06820
Optical light source SM, 1310/1550 nm (SimpliFiber Pro)
| Connector type | SC |
|---|---|
| Wavelength | 1310/1550 nm |
| Emitter type | laser |
| Ouput power |
8 dBm (minimum), -7 dBm (typical) |
| Source stability | ±0.25 dB over 8 h |
| AA battery life | 30 h |
| Dimensions | 142x81x41 mm |
| Operating temperatures | -10°C ÷ 50°C |
| Operating humidity |
up to 95%, non-condensing |
| Certificates |
CE, CSA, N10140 |
| Weight | 278g |

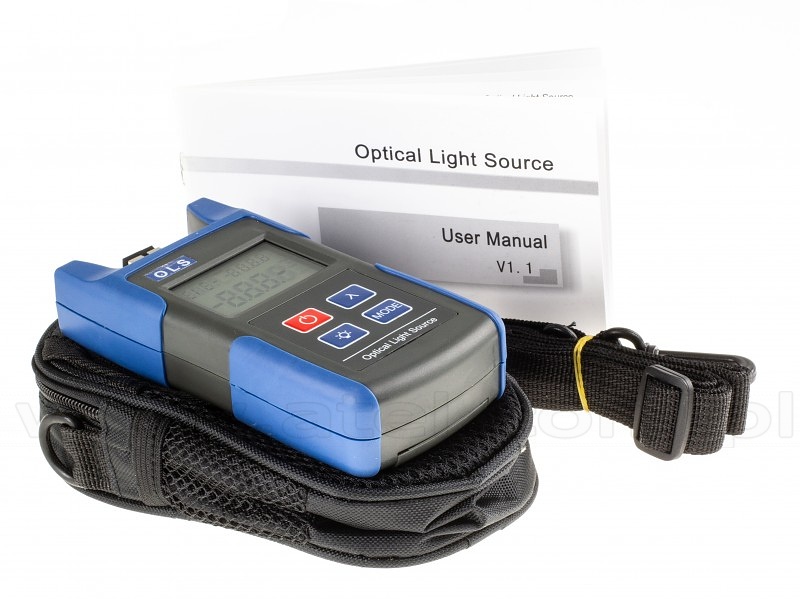

#07793
Optical light source, 1310/1550 nm
An optical light source with a wavelength of 1310 and 1550 nm for measuring multimode and singlemode fiber optic cables.
| Wavelength | 1310/1550nm |
|---|---|
| Power | -7 dBm |
| Battery life | 45 h |
| Power supply | 3x AAA battery |
| Source stability | 0.04 dBm |
| Permissible operating temperature | -10 ° C ÷ 50 ° C |
| Storage temperature | -20 ° C ÷ 70 ° C |
| Dimensions | 130 x 63 x 29 mm |
| Weight | 160 g |
| Kit contents |
light source, cover, user manual, case |
#07794
Optical light source, 850/1300 nm
An optical light source with a wavelength of 850 and 1300 nm for measuring multimode and singlemode fiber optic cables.
| Wavelength | 850/1300nm |
|---|---|
| Power | -15 dBm |
| Battery life | 45 h |
| Power supply | 3x AAA battery |
| Source stability | 0.04 dBm |
| Permissible operating temperature | -10 ° C ÷ 50 ° C |
| Storage temperature | -20 ° C ÷ 70 ° C |
| Dimensions | 130 x 63 x 29 mm |
| Weight | 160 g |
| Kit contents |
light source, cover, user manual, case |
#03840
Optical multimeter Noyafa NF-911C
The Optical multimeter Noyafa NF-911C is a measurement set in one housing, consisting of a precise source, an optical power meter and a visible light source, designed for bidirectional measurements of attenuation and reflectance in fiber optic systems and networks.
| Optical power meter | |
|---|---|
| Detector | InGaAs |
| Wavelength | 850 ÷ 1700 nm |
| Power range | +26 dBm ÷ -50 dBm |
| Resolution | 0.01dBm |
| Connector | universal 2.5mm |
| Source of light | |
| Wavelength | 1310 / 1550nm |
| Modulation frequency |
270Hz, 1kHz, 2kHz |
| Connector | universal 2.5mm |
| VFL | |
| Wavelength | 650nm |
| Power | 20mW |
| Connector | universal 2.5mm |
| General parameters | |
| Battery life | 240h |
| Power supply | 3x AA battery |
| Permissible operating temperature | -20 ° C ÷ 70 ° C |
| Dimensions | 160 x 75 x 32 mm |
| Weight | 205g |
| Kit contents |
Meter, Cover, User manual |
| Producer | Noyafa |
#05721
Visible light source - VISIFAULT (FL-VISIFAULT)
| Fiber compatibility |
singlemode, multimode |
|---|---|
| Wavelength | 650 nm |
| Connector |
standard 2,5 mm connector for SC/FC/ST optical connectors, 1,25 mm (LC/MU) with FL-NF380 |
| Laser safety rating | Class II |
| Max. output power | 1 mW |
| Output modes |
continuous, flashing (2 Hz ÷ 3 Hz) |
| Range |
3 km (multimode), 4 km (singlemode) |
| Impact strength | 1m drop |
| Vibration |
random, 2g, 5 Hz ÷ 500 Hz |
| Altitude | 3000 m |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
0% ÷ 95%, non-condensing |
| Dimensions | 157x52x37 mm |
| Weight | 0,18 kg |
| Power | 2x AA battery |
| Battery life | > 80h in continuous mode |
| Safety |
CSA C22.2 No. 1010.1 1992, EN 61010-1, CE |
| Warranty period | 12 months |
| Manufacturer | Fluke Networks |
