#07998
Unmanaged SPE switch, 4x 10 T1L + 1x 100 RJ-45 (ORing ITPS-141TX-T1L)
- Supports SPE (Single Paire Ethernet) 10Base-T1L compliant with IEEE 802.3cg standard
- Long distances point to point transmission up to 1000m
- Supports SCCP PoDL(Power over Data Line) PSE Types compliant with IEEE 802.3bu standard
- PoDL up to 50 Watts/1A per port
- Supports PoDL legacy mode
- Supports wide range 20~30VDC power input
- Supports QoS and flow control
- Rugged IP-30 housing design
ITPS-141TX-T1L is an ideal solution for factory, process automation infrastructure. The new single pair Ethernet technology can be integrated easily into an existing Ethernet infrastructure to simplify layout and also reduce the cost of cabling.
| Physical Ports | |
|---|---|
| 10Base-T1L with PoDL | 4 |
| 10/100Base-T(X) Port in RJ45 Auto MDI/MDIX | 1 |
| Technology | |
| Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control, IEEE 802.3cg for 10Base-T1L |
| IEEE 802.3bu for PoDL | |
| MAC Table | 1K MAC addresses |
| Processing | Store-and-Forward |
| LED Indicators | |
| Power indicator | Green - Power LED |
| 10Base-T1L (PoDL) indicator |
Green for port Link/Act, Amber for PoDL PD device is connected |
| 10/100Base-T(X) RJ45 port indicator |
Green for port Link/Act., Amber for 10Mbps/ Green for 100Mbps indicator |
| PoDL | |
| 24v |
Class 10~12, up to 20W |
| 50v |
Class 13~14, up to 30W |
| Force mode | Up to 50W/1A |
| PoDL Dip switch | |
| PoDL |
On - Enable PoDL, OFF - Disable PoDL |
| SCCP mode | Turn on SCCP-based classification ensures full operating voltage is applied by the Power Sourcing Equipment (PSE) when a valid PD is connected |
| Force mode | Force enable PoDL without classification (Does NOT support hot plugging before enabling Force mode) |
| Power | |
| Input power | DC 24VDC (20~30VDC) |
| Power consumption (typical) | Max.3.47A |
| PoE | Power Budget 80Watts |
| Overload current protection | present |
| Reverse polarity protection | present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 28 x 108.3 x 145.1 mm |
| Weight | 530g |
| Environmental | |
| Storage Temperature | -40÷85°C |
| Operating Temperature | -40÷70°C |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI |
FCC Part 15, CISPR (EN55032) class A |
| Warranty | |
| Warranty period | 5 years |

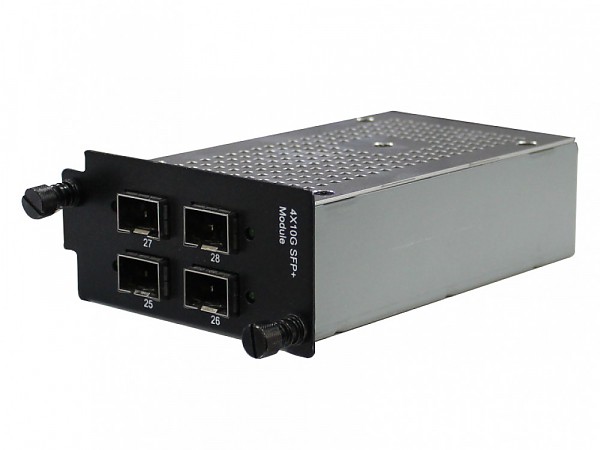

#07950
4x10G module, SFP+ (ORing SWM-04GP+_4)
Industrial 4-port Gigabit fiber module with 4x10G, SFP+ socket
#07963
4x1G module, SFP (ORing SWM-04GP_4)
Industrial 4-port Gigabit fiber module with 4x1G, SFP socket

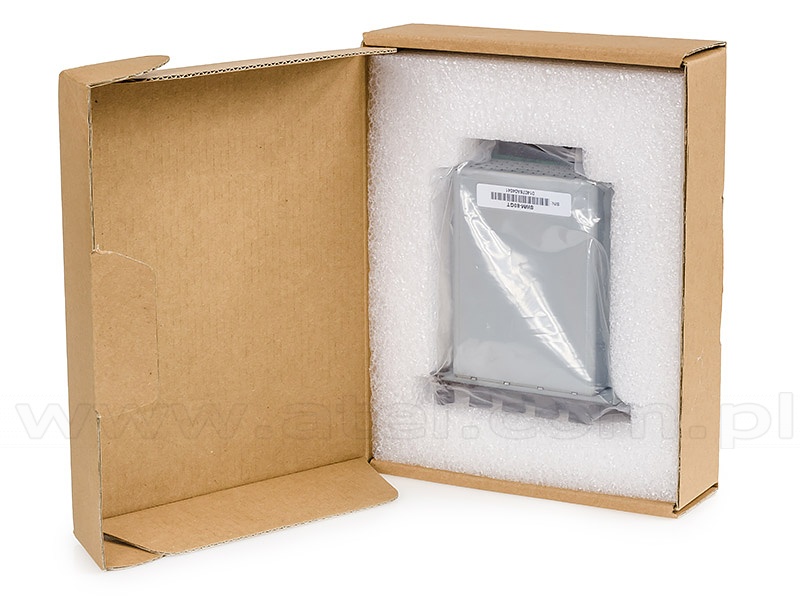

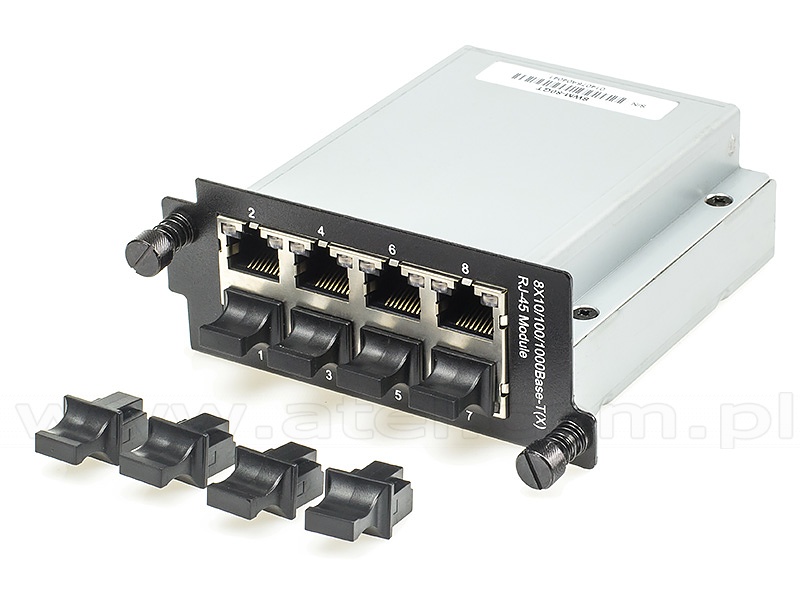

#08898

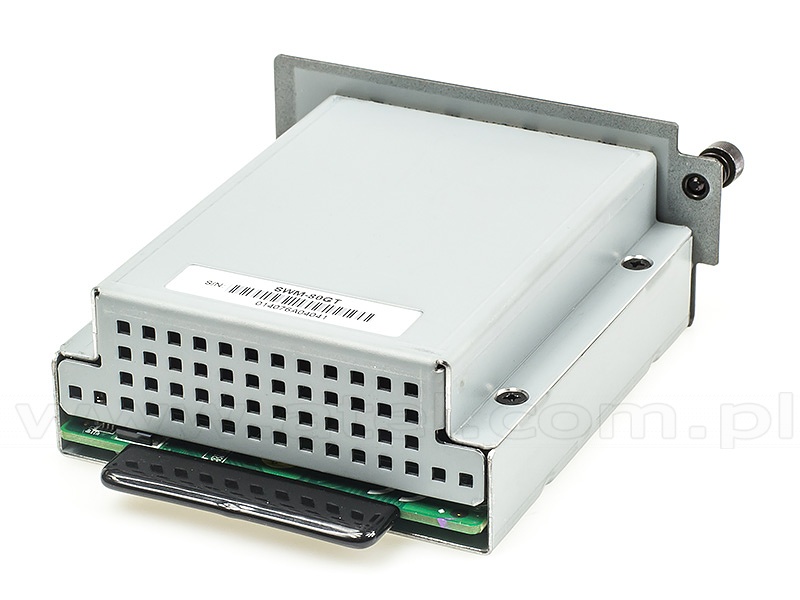

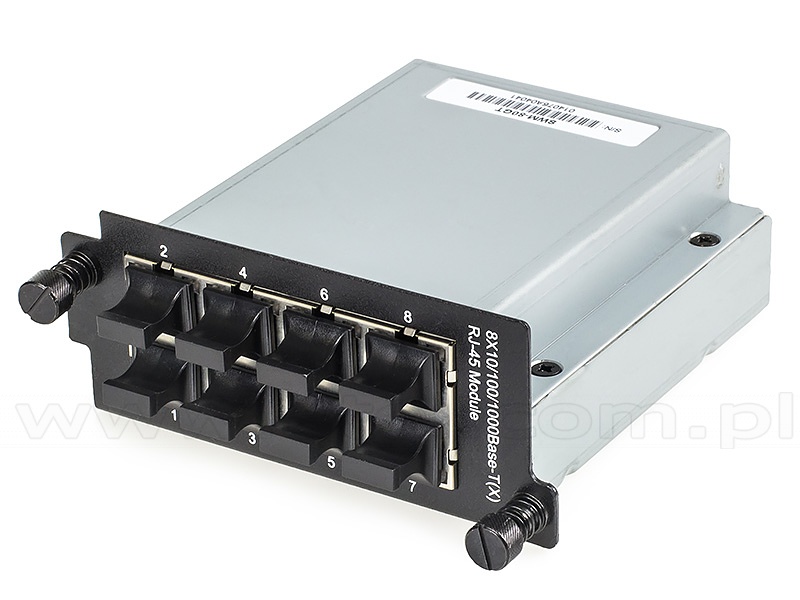

8x1G module, RJ-45 (ORing SWM-80GT)
Physical Ports
Industrial 8-port Gigabit Ethernet switch module with 8x10/100/1000Base-T(X) ports
Industrial 8-port Gigabit Ethernet switch module with 8x10/100/1000Base-T(X) ports
Compatible with:
#08899 Managed modular switch, 24x 10/1000 RJ-45 + 4 slide-in SFP+ slots 10G, O/Open-Ring <30ms (ORing RGS-P9000-HV)
#08899 Managed modular switch, 24x 10/1000 RJ-45 + 4 slide-in SFP+ slots 10G, O/Open-Ring <30ms (ORing RGS-P9000-HV)
#08897

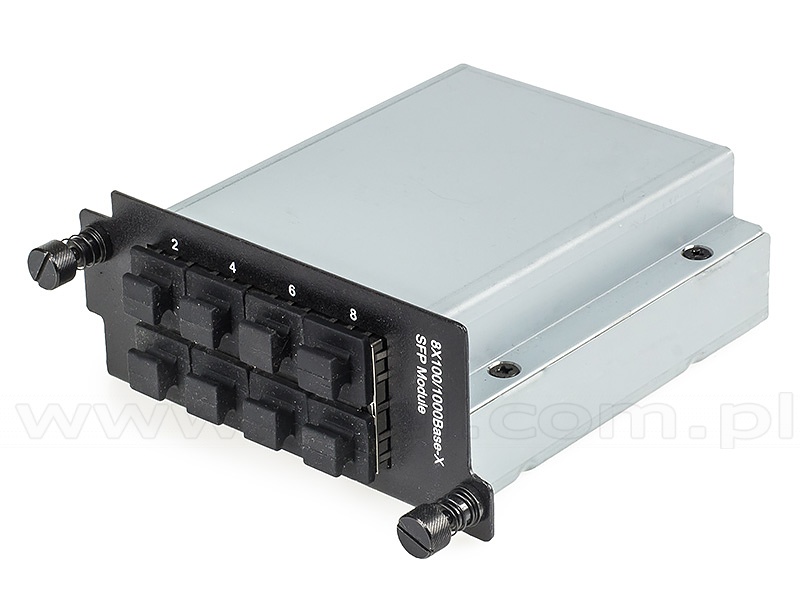

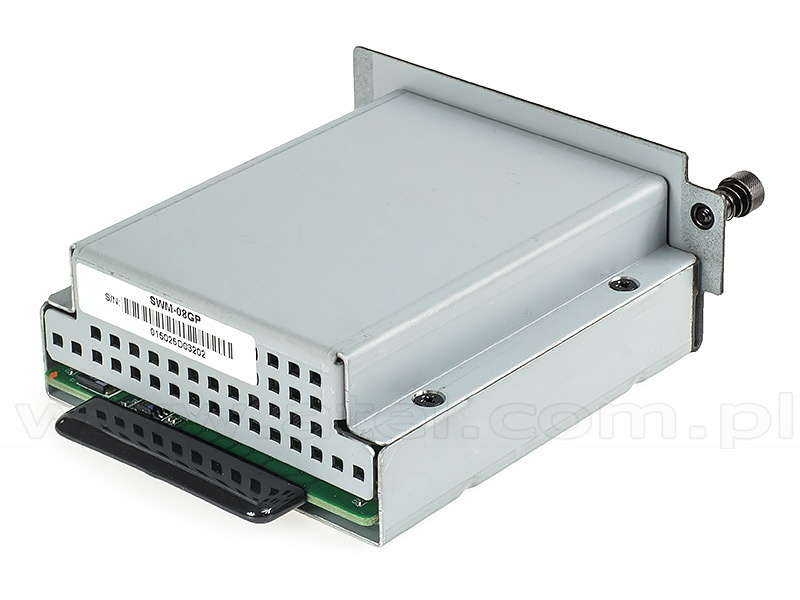

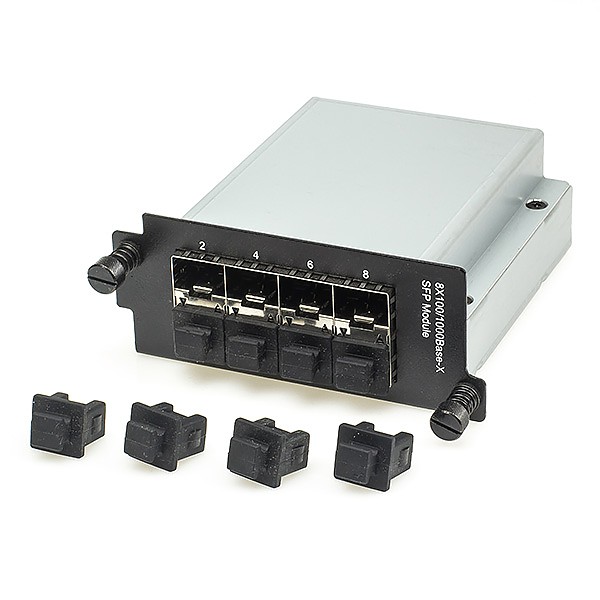

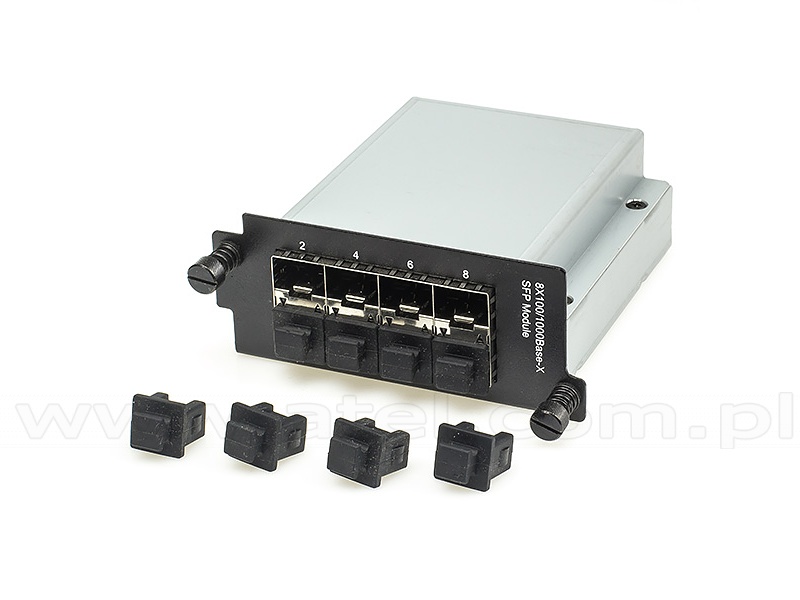

8x1G module, SFP (ORing SWM-08GP)
Industrial 8-port Gigabit fiber module with 8x100/1000Base-X, SFP socket
Compatible with:
#08899 Managed modular switch, 24x 10/1000 RJ-45 + 4 slide-in SFP+ slots 10G, O/Open-Ring <30ms (ORing RGS-P9000-HV)
#08899 Managed modular switch, 24x 10/1000 RJ-45 + 4 slide-in SFP+ slots 10G, O/Open-Ring <30ms (ORing RGS-P9000-HV)

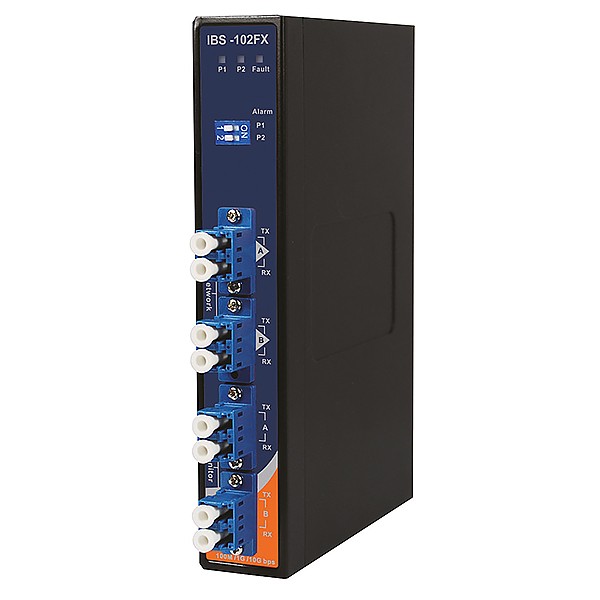

#07965
Bypass Switch, 4x LC Duplex (ORing IBS-102FX-MM-LC)
IBS-102FX series are the external Bypass switches for 100M/1G/10G fiber optical networks. These fiber optical bypass switches protect the network from failures and subsequent maintenance by ensuring network integrity during power loss. Each of these fiber optical bypass switches includes Network ports and Monitor ports. The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-link local networking device. When the power is on, the operation mode of the Bypass switch is set to Normal, and the local networking device is connected with main-network. When power failure occurs, the Bypass switch is swiftly set to bypass mode to isolate the main-network from the local networking device.
| Physical Ports | |
|---|---|
| LC connector | 4 Duplex Multi-mode LC connector |
| Fiber Ethernet | |
| Optical Fiber | Multi-mode - 50/125μm or 62,5/125μm |
| Operating Wavelength | 780÷1350 nm |
| Insert loss | <1.0 dB |
| Switch time | < 10ms |
| DIP Switch Settings | DIP Swicth No.1 - Power-1 failed warning detection – (On) relay enable (Off) relay disable |
| DIP Switch No.2 - Power-2 failed warning detection – (On) relay enable (Off) relay disable | |
| LED Indicators | |
| Power indicator | Green - Ready LED x 2 |
| Normal indicator | Green On - Operated in normal mode |
| Fault indicator | Amber - Indicates power failure occurred |
| Fault contact | |
| Relay | Relay output for power failure warning |
| Power | |
| Input power | Dual 12~48 VDC power inputs at DC-Jack and 4-pin terminal block |
| Power consumption (typical) | 2.7W |
| Overload current protection | present |
| Reverse polarity protection | present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 26.1mm x 94.9mm x 144.3mm |
| Weight | 405g |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -20÷70°C (-4÷158°F) |
| Operating Humidity | 10%÷90% Non-condensing |
| Regulatory approvals | |
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C) | 1,246,758 |
| Warranty | |
| Warranty period | 1 years |
#08445

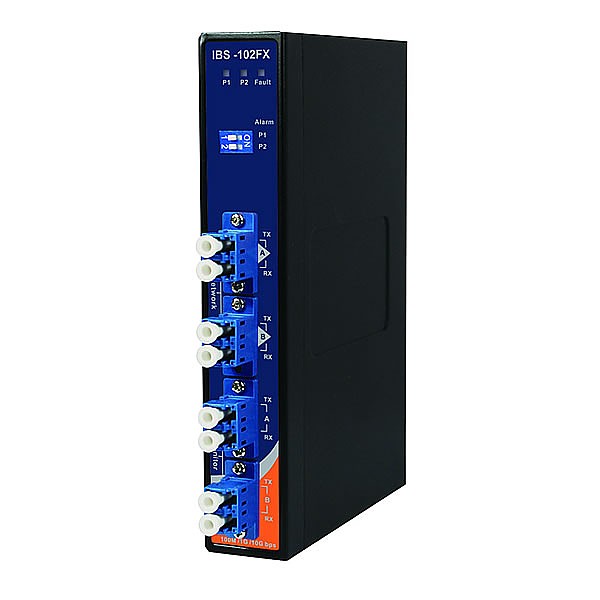

Bypass Switch, 4x LC Duplex (ORing IBS-102FX-SS-LC)

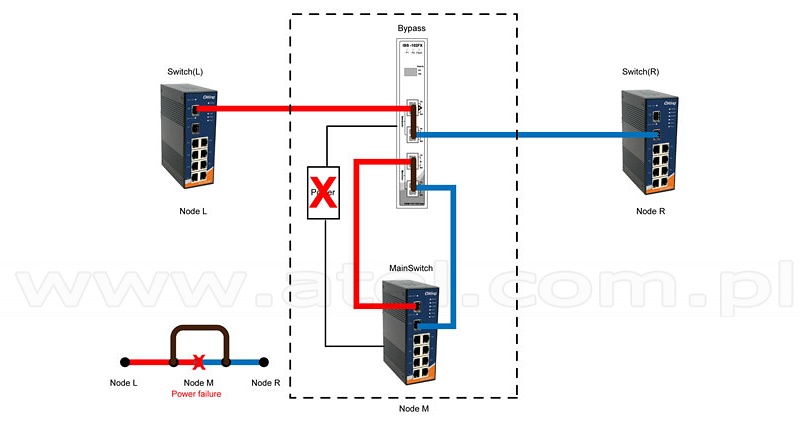

IBS-102FX series are the external Bypass switches for 100M/1G/10G fiber optical networks. These fiber optical bypass switches protect the network from failures and subsequent maintenance by ensuring network integrity during power loss. Each of these fiber optical bypass switches includes Network ports and Monitor ports. The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-link local networking device. When the power is on, the operation mode of the Bypass switch is set to Normal, and the local networking device is connected with main-network. When power failure occurs, the Bypass switch is swiftly set to bypass mode to isolate the main-network from the local networking device.
| Physical Ports | |
|---|---|
| LC connector | 4 Duplex Single-mode LC connector |
| Fiber Ethernet | |
| Optical Fiber | Single-mode - 9/125μm |
| Operating Wavelength | 1260÷1570 nm |
| Insert loss | 1.6 dB |
| Switch time | < 10ms |
| DIP Switch Settings | DIP Swicth No.1 - Power-1 failed warning detection – (On) relay enable (Off) relay disable |
| DIP Switch No.2 - Power-2 failed warning detection – (On) relay enable (Off) relay disable | |
| LED Indicators | |
| Power indicator | Green - Ready LED x 2 |
| Normal indicator | Green On - Operated in normal mode |
| Fault indicator | Amber - Indicates power failure occurred |
| Fault contact | |
| Relay | Relay output for power failure warning |
| Power | |
| Input power | Dual 12~48 VDC power inputs at DC-Jack and 4-pin terminal block |
| Power consumption (typical) | 2.7W |
| Overload current protection | present |
| Reverse polarity protection | present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 26.1mm x 94.9mm x 144.3mm |
| Weight | 405g |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -20÷70°C (-4÷158°F) |
| Operating Humidity | 10%÷90% Non-condensing |
| Regulatory approvals | |
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C) | 1,246,758 |
| Warranty | |
| Warranty period | 1 years |
