Physical Ports | |
---|---|
10/100Base-T(X) RJ45 Ports | 24 |
10/100/1000 COMBO with SFP | 2 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (9600bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control, IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1X for Authentication, IEEE 802.3ad for LACP (Link Aggregation Control Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 4 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 7.2 Gbps |
Max. Number of Available VLANs | 4096 |
IGMP multicast groups | 1024 |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, O-Ring, Open-Ring, O-RSTP |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 3 |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
10/100TX RJ45 port indicator |
Green for port Link/Act, Amber for Duplex/Collision |
10/100/1000TX RJ45 port indicator |
Green for port Link/Act, Amber for 100Mbps |
Fiber port indicator | Green for port Link/Act |
Power | |
Input power | 100~240VAC with power cord |
Power consumption (typical) | 33W |
Overload current protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 4350g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -10÷60°C (14÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
100/1G/2.5GBase-X, SFP socket | 2 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 18 Gbps |
Max. Number of Available VLANs | 4096 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Dynamic ARP inspection, Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 5-pin terminal block |
Power consumption (typical) | 10W |
Overload current protection | present |
Physical Characteristic | |
Enclosure | IP-40 |
Dimension (W x D x H) | 52mm x 110mm x 140mm |
Weight | <700 g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-14÷163°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55032) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
MTBF | >400,000 Hours |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
100/1G/2.5GBase-X, SFP socket | 2 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 18 Gbps |
Max. Number of Available VLANs | 4096 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Dynamic ARP inspection, Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 5-pin terminal block |
Power consumption (typical) | 10W |
Overload current protection | present |
Physical Characteristic | |
Enclosure | IP-40 |
Dimension (W x D x H) | 52mm x 110mm x 140mm |
Weight | <700 g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-14÷163°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55032) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
MTBF | >400,000 Hours |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
100/1G/2.5GBase-X, SFP socket | 2 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 18 Gbps |
Max. Number of Available VLANs | 4096 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Dynamic ARP inspection, Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 5-pin terminal block |
Power consumption (typical) | 10W |
Overload current protection | present |
Physical Characteristic | |
Enclosure | IP-40 |
Dimension (W x D x H) | 52mm x 110mm x 140mm |
Weight | <700 g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-14÷163°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55032) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
MTBF | >400,000 Hours |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
100/1G/2.5G SFP Ports | 2 |
1G/10G SFP Ports | 2 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 32k MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 66 Gbps |
Max. Number of Available VLANs | 4096 |
Number of VLAN IDs | VID 0 to 4095 |
IGMP multicast groups | 64 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
QoS |
TOS/Diffserv supported, CoS, Application based QoS, IP based bandwidth management |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 3 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator | Green - Indicate system operated in O-Ring mode |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for port 1000Mbps Link/Act, Amber for 10/100Mbps Link/Act |
1G/2.5GBase-X SFP port Indicator | Green for port Link/Act |
1G/10Gbase-X SFP Port Indicator | Green LED for Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Reset Function | |
Reset Button |
< 5 sec System reboot, > 5 sec Factory default |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 19W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 74.3mm x 125mm x 153.6mm |
Weight | 1078g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷75°C (-14÷167°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMC |
CE EMC (EN 55024, EN 55032), FCC Part 15 B |
EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
EMS |
EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
MTBF | 585191 hrs |
Warranty | |
Warranty period | 5 years |

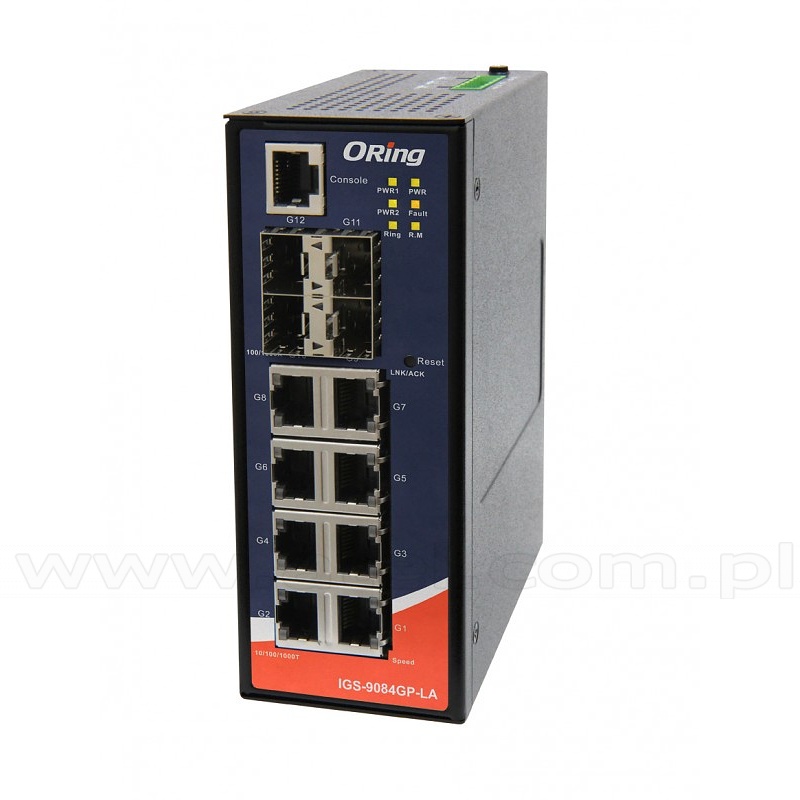

Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
100/1000 SFP | 4 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 24 Gbps |
Throughput (packet per second) | 17.856Mpps@64Bytes |
Max. Number of Available VLANs | 256 |
IGMP multicast groups | 256 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security, Modbus TCP |
Network Redundancy |
O-Ring, Open-Ring, O-Chain, MRP, MSTP (RSTP/STP compatible) |
LED Indicators | |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
Ring Indicator |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Amber - Indicates unexpected event occurred |
100/1000Base-X SFP Port Indicator | Green for port Link/Act. |
10/100/1000TX RJ45 port indicator | Dual color LED - Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12~48VDC on 6-pin terminal block |
Power consumption (typical) | 13Watts (power device not included) |
Hi-POT | 1.5KV AC |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 54.3 (W) x 108.3 (D) x 145.1 (H) mm (2.13 x 4.26 x 5.71 inches) |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷70°C (-40÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Network security | IEC 62443-4-2 |
Safety | EN60950 |
MTBF | 516416hrs |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
100/1000 Mbps SFP Ports | 12 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 40 Gbps |
Max. Number of Available VLANs | 256 |
Number of VLAN IDs | VID 1 to 4094 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, QoS assignment, Guest VLAN, MAC address limit, TACACS+, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard, Https / SSH enhance network security |
Software Features |
Hardware routing, RIP and static routing, IEEE 1588v2 clock synchronization, IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static), Multiple Registration Protocol (MRP), RSTP/MSTP (IEEE 802.1w/s), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging, Voice VLAN, IGMP v2/v3 Snooping, IP-based bandwidth management, Application-based QoS management, DOS/DDOS auto prevention, Port configuration, status, statistics, monitoring, security, DHCP Server/Client/snooping, DHCP Relay, Modbus TCP, ARP inspection, SMTP Client |
Network Redundancy |
STP, RSTP, MSTP, O-Ring |
DDM Function |
Voltage, Current, Temperature |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 2 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator | Green - Indicate system operated in O-Ring mode |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for port 1000Mbps Link/Act, Amber for 10/100Mbps Link/Act |
100/1000Base-X SFP port Indicator | Green for port Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 23W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 96.4mm x 145.5mm x 154mm |
Weight | 1520g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷70°C (-14÷158°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 16 |
1G/2.5G/10 SFP+ Ports | 4 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 16k MAC addresses |
Priority Queues | 8 |
Packet Buffer | 2MB |
Flash Memory | 512Mbits |
DRAM Size | 8Gbits |
Jumbo frame | Up to 10K Bytes |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 112 Gbps |
Max. Number of Available VLANs | 4096 |
Number of VLAN IDs | VID 0 to 4095 |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Enable/disable ports, MAC based port securitym Port based network access control (802.1x)m MAC-based authentication(802.1x)m VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Web and CLI authentication and authorization, IP source guard, Https / SSH enhance network security |
Software Features |
Routing protocols – static routing, RIP v1/v2, OSPF, PIM-SM, PIM-DM, VRRP, TSN protocols – 802.1AS, Qav, Qat, STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
LED Indicators | |
Power / Ready indicator | Green - Ready LED x 3 |
Ring Master indicator | Green - Indicate system operated in O-Ring Master mode |
O-Ring indicator | Green - Indicate system operated in O-Ring mode |
Fault indicator | Amber - Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for port 1000Mbps Link/Act, Amber for 10/100Mbps Link/Act |
1G/10Gbase-X SFP+ Port Indicator | Green LED for Link/Act |
Fault contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | Dual DC inputs. 12÷48VDC on 6-pin terminal block |
Power consumption (typical) | 23W |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 116.4mm x 170mm x 180mm |
Weight | 1530 g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -40÷60°C (-14÷140°F) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMC |
CE EMC (EN 55024, EN 55032), FCC Part 15 B |
EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
EMS |
EN 55024 (IEC/EN 61000-4-2 (ESD Contact 8KV, Air 10KV), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT Power 2KV, Single 2KV), IEC/EN 61000-4-5 (Surge Power 4KV, RJ45 4KV), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-31 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | |
Warranty period | 5 years |
Physical Ports | |
---|---|
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 24 |
1G/10GBase-X with SFP+ port | 4 |
RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.z for 1000Base-X, IEEE 802.3ae for 10Gigabit Ethernet, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table | 8192 MAC addresses |
Priority Queues | 8 |
Processing | Store-and-Forward |
Switching latency | 7 µs |
Switching bandwidth | 128 Gbps |
IGMP multicast groups | 128 for each VLAN |
Port rate limiting | User Define |
Security Features |
Device Binding security feature, Enable/disable ports, MAC based port security, Port based network access control (802.1x), Single 802.1x and Multiple 802.1x, MAC-based authentication, QoS assignment, Guest VLAN, MAC address limit, TACACS+, VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security, Https / SSH enhance network security, Web and CLI authentication and authorization, Authorization (15 levels), IP source guard |
Software Features |
STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
Network Redundancy |
O-Ring, Open-Ring, O-Chain, MRP, MSTP(RSTP/STP compatible), Fast Recovery |
LED Indicators | |
Power Indicator | Green - power indicator |
Ring Master indicator | Green - indicates system operated in O-Ring Master mode |
O-Ring Indicator (Ring) |
Green - Indicates that the system operating in O-Ring mode, Green Blinking - Indicates that the Ring is broken. |
Fault indicator | Green - System is operating continuously |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator, Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
1G/10GBase-X SFP+ Port Indicator | Green for port Link/Act. |
Fault Contact | |
Relay | Relay output to carry capacity of 1A at 24VDC |
Power | |
Input power | 100 ~ 240VAC with power cord |
Power consumption (typical) | 37.4W |
Overload current protection | present |
Physical Characteristic | |
Dimension (W x D x H) | 431mm x 342mm x 44mm |
Weight | 6597g |
Environmental | |
Storage Temperature | -40÷85°C(-40÷185°F) |
Operating Temperature | -20 to 60 °C (-4 to 140°F ) |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Warranty | |
Warranty period | 5 years |
ITPS-141TX-T1L is an ideal solution for factory, process automation infrastructure. The new single pair Ethernet technology can be integrated easily into an existing Ethernet infrastructure to simplify layout and also reduce the cost of cabling.
Physical Ports | |
---|---|
10Base-T1L with PoDL | 4 |
10/100Base-T(X) Port in RJ45 Auto MDI/MDIX | 1 |
Technology | |
Ethernet Standards |
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control, IEEE 802.3cg for 10Base-T1L |
IEEE 802.3bu for PoDL | |
MAC Table | 1K MAC addresses |
Processing | Store-and-Forward |
LED Indicators | |
Power indicator | Green - Power LED |
10Base-T1L (PoDL) indicator |
Green for port Link/Act, Amber for PoDL PD device is connected |
10/100Base-T(X) RJ45 port indicator |
Green for port Link/Act., Amber for 10Mbps/ Green for 100Mbps indicator |
PoDL | |
24v |
Class 10~12, up to 20W |
50v |
Class 13~14, up to 30W |
Force mode | Up to 50W/1A |
PoDL Dip switch | |
PoDL |
On - Enable PoDL, OFF - Disable PoDL |
SCCP mode | Turn on SCCP-based classification ensures full operating voltage is applied by the Power Sourcing Equipment (PSE) when a valid PD is connected |
Force mode | Force enable PoDL without classification (Does NOT support hot plugging before enabling Force mode) |
Power | |
Input power | DC 24VDC (20~30VDC) |
Power consumption (typical) | Max.3.47A |
PoE | Power Budget 80Watts |
Overload current protection | present |
Reverse polarity protection | present |
Physical Characteristic | |
Enclosure | IP-30 |
Dimension (W x D x H) | 28 x 108.3 x 145.1 mm |
Weight | 530g |
Environmental | |
Storage Temperature | -40÷85°C |
Operating Temperature | -40÷70°C |
Operating Humidity | 5%÷95% Non-condensing |
Regulatory approvals | |
EMI |
FCC Part 15, CISPR (EN55032) class A |
Warranty | |
Warranty period | 5 years |
Page 11 of 12
|
