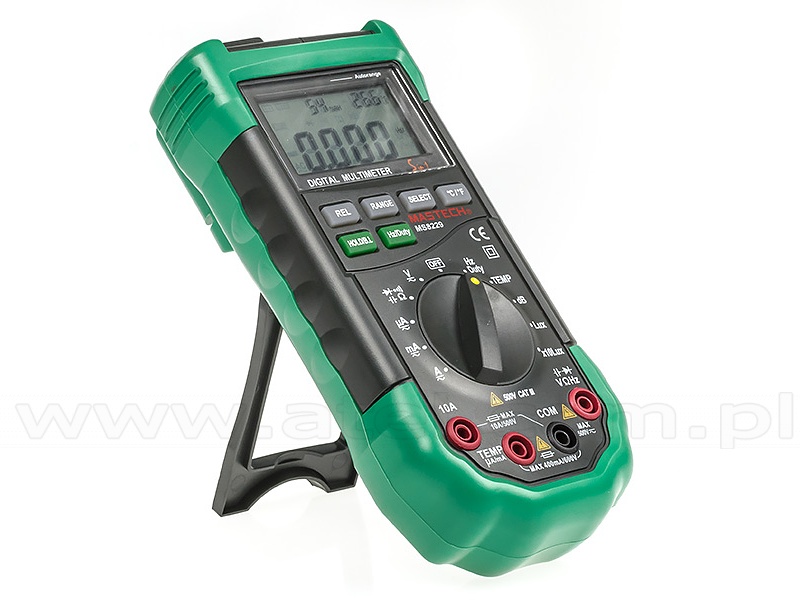

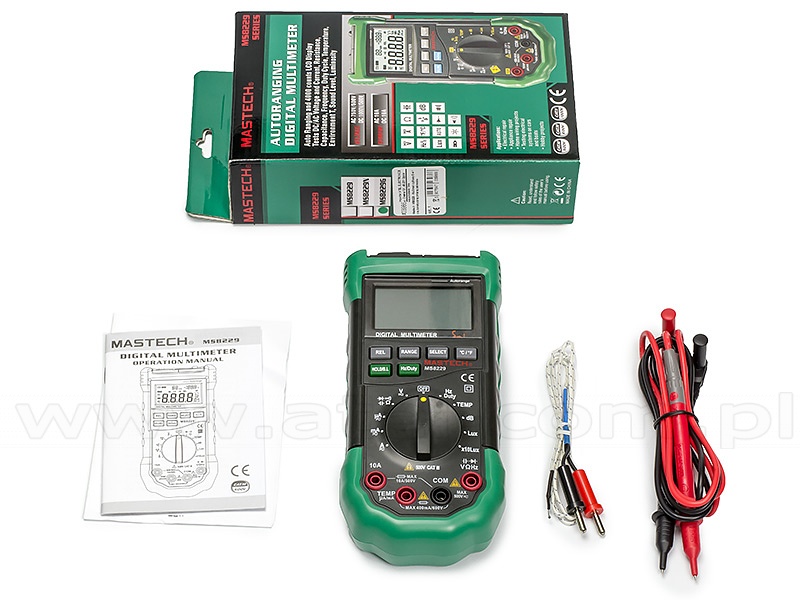

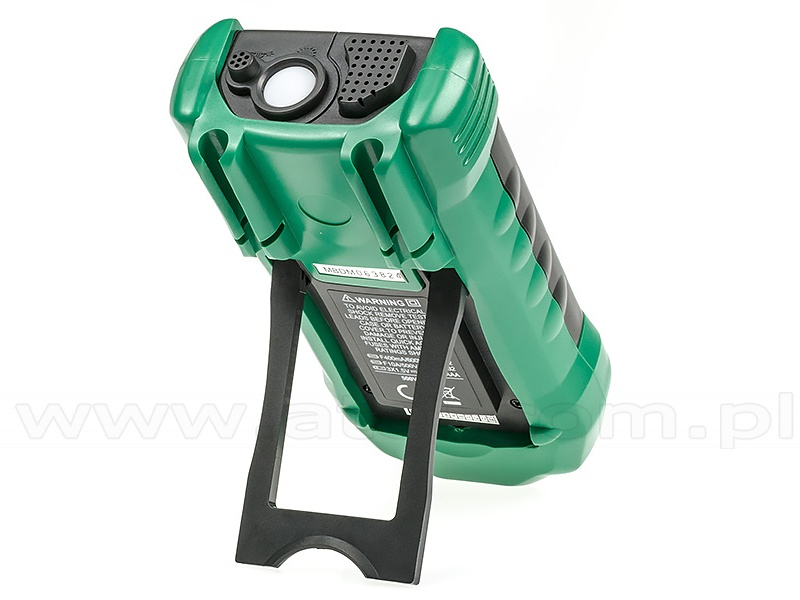

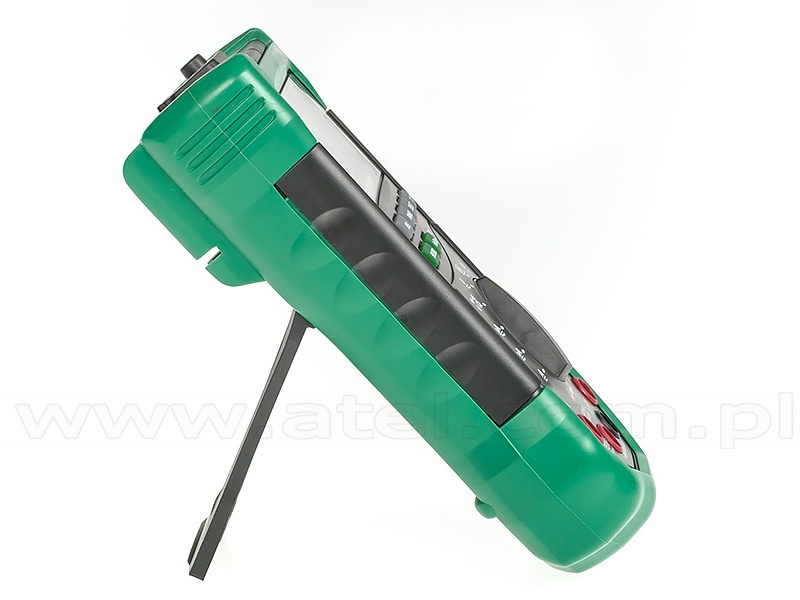

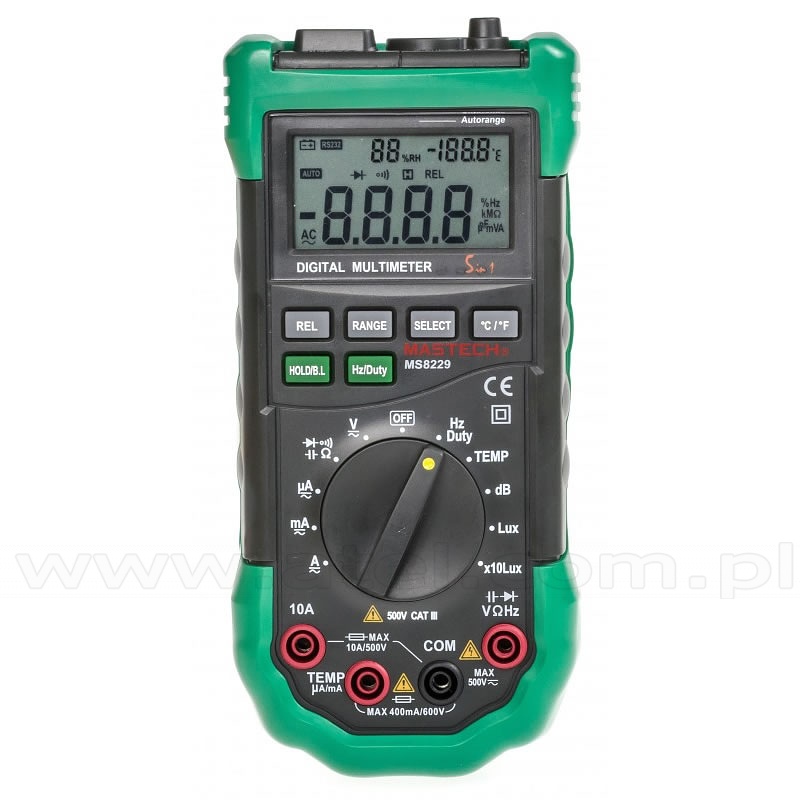

Mastech MS8229 - Digital Multimeter 5 in 1

The successor of the popular MS8209 meter, characterized by a modern design with the full functionality of its predecessor.

The MS8229 digital multimeter is a versatile measuring device. In addition to the standard functions, it offers the possibility to carry out measurements of lighting intensity, humidity, sound intensity and temperature. The MS8229 is equipped with an automatic ranging feature.
Max. LCD display 3999
Range selection automatic / manual
DC voltage 400m/4/40/400/600V ± 0.7%
AC voltage 400m/4/40/400 V ± 0.8%,
600 V ± 1.0%
DC current 400µ/4000µ/40m/400 mA ± 1.2%,
4/10 A ± 2.0%
AC current 400µ/4000µ/40m/400 mA ± 1.5%,
4/10 A ± 3.0%
Resistance 400/4k/40k/400k/4M/40 MΩ ± 1.0%
Capacitance 40n/400n/4µ/40µ/100 µF ± 3.0 %
Frequency 10± 2,0%,
100/1k/10k ± 1,5%,
100k/200kHz ± 2,0%
Duty cycle 0.1% ÷ 99.9% ± 3.0%
Temperature -20°C ÷ 1000°C ± 5.0%=
Humidity 20% ÷ 95% relative humidity (RH) ± 5.0% RH
Light 4000/40000 Lux ± 5.0%
Sound 40dB ÷ 100dB ± 4dB
Diode test yes
Continuity test yes
Data hold yes
Relative measurement yes
Back light yes
Dimensions 195x92x55 mm
Power 3x 1.5V AAA battery
Manufacturer Mastech

User Manual (700 KB)
MASTECH
« previous product  |  next product »     » show on list«» Digital multimeters «
MS8229
Net Price: 68,40 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
