MENU#09318

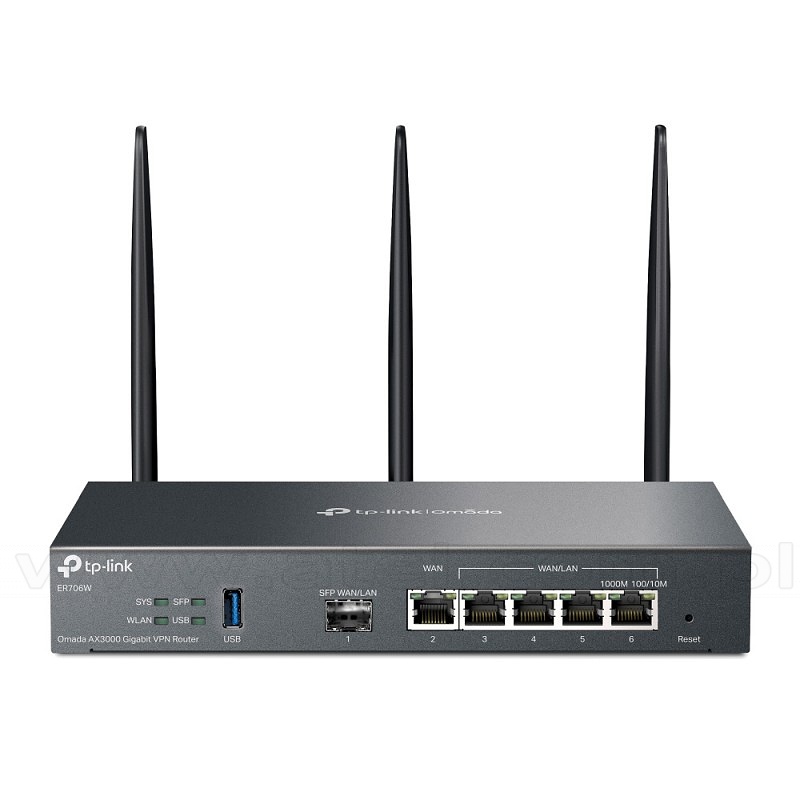

3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER706W)
- AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
- High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
| Standards | IEEE 802.3u/ab/z/x/q |
|---|---|
| Copper ports | 1 Gigabit SFP WAN/LAN Port, 1 Gigabit WAN Port, 4 Gigabit LAN/WAN Ports, 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Antenna | 2.4 GHz 2x 3 dBi dual-band detachable antennas, 5 GHz 3x 4.5 dBi dual-band detachable antennas |
| Performance | |
| GRE | Unencrypted 624,2 Mb/s, Encrypted 301,5 Mb/s |
| WireGuard VPN | 393,5 Mb/s |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 937,2 Mb/s / 936,1 Mb/s |
| NAT(DHCP) | 945,8 Mb/s / 940,6Mb/s |
| NAT(PPPoE) | 942,9 Mb/s / 942,9Mb/s |
| NAT (L2TP) | 837,4 Mb/s / 881,5 Mb/s |
| NAT (PPTP) | 803,0 Mb/s / 910,5 Mb/s |
| IPsec VPN Throughput | ESP-SHA1-AES256 646,9 Mb/s, ESP-SHA256-AES256 642,8 Mb/s, ESP-SHA384-AES256 648,9 Mb/s, ESP-SHA512-AES256 658,4 Mb/s |
| OpenVPN | 129,3 Mb/s |
| L2TP VPN Throughput | Unencrypted 1034,0 Mb/s, Encrypted 570,0 Mb/s |
| PPTP VPN Throughput | Unencrypted 1165,0 Mb/s, Encrypted 209,0 Mb/s |
| SSL VPN Throughput | 126,7 Mb/s |
| 66 Byte Packet forwarding rate | 1,453,489 p/s / 1,453,488 p/s |
| 1,518 Byte Packet forwarding rate | 81,274 p/s / 91,275 p/s |
| Basic functions | |
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | Developing |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced functions | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing, Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control, Guarantee & Limited Bandwidth |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing§, Failover), Online Detection |
| NAT | One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | SPI Firewall, VPN Passthrough, FTP/H.323/PPTP/SIP/IPsec ALG, DoS Defence, Ping of Death, Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IKEv1/v2, MD5, SHA1 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server, 10 PPTP VPN Clients, 50 Tunnels, PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server, 10 L2TP VPN Clients, 50 Tunnels, L2TP over IPSec |
| OpenVPN | OpenVPN Server, 10 OpenVPN Clients, 50 OpenVPN Tunnels |
| Web Authentication | No Authentication, Simple Password, Hotspot（Local User / Voucher* / SMS* / Radius*）, External Radius Sever, External Portal Sever, |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Syslog Support |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning) |
| Dimensions | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | 12VDC / 2A Power Adapter |
| Max Power Consumption | EU 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected), US 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
