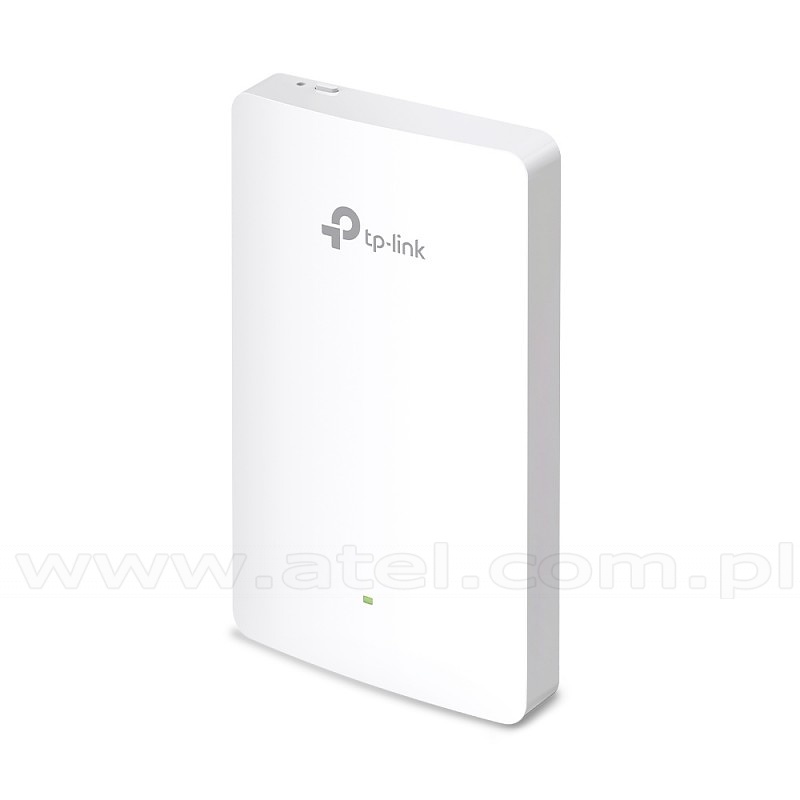

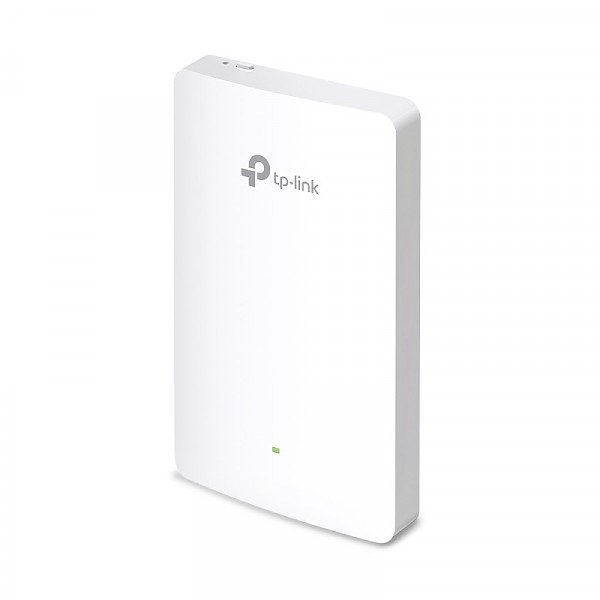

1800Mbps Outdoor Wireless Access Point, AX1800 (TP-Link EAP615-Wall)
- Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

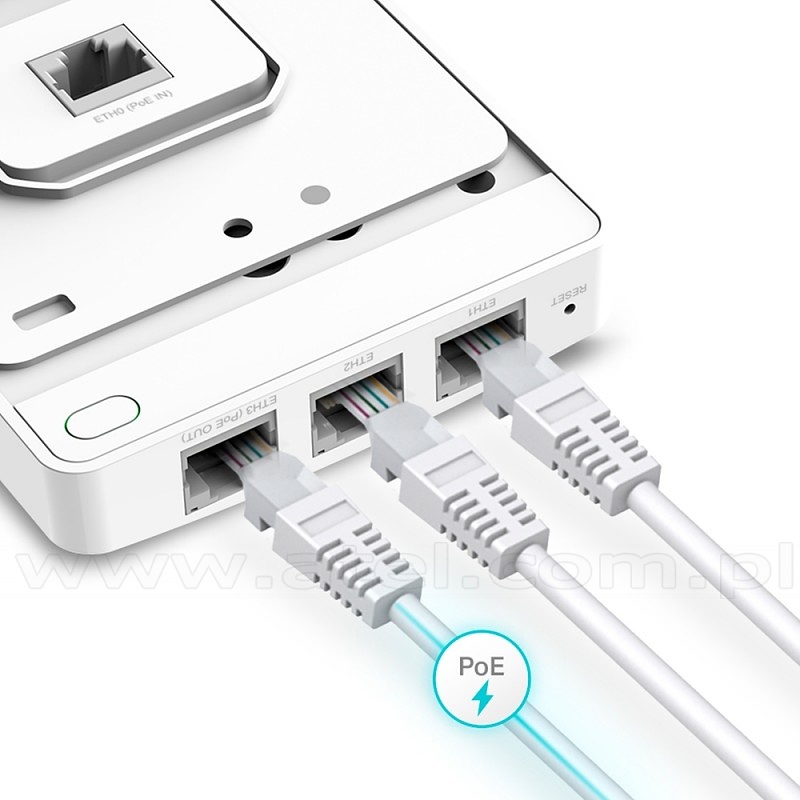

- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Centralized Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports | 10/100/1000Mbps (RJ-45) Port *1, Downlink- 10/100/1000Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate | 5GHz Up to 1201Mbps, 2.4GHz Up to 574Mbps |
| EIRP | CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | 2 Dual-Band Antennas, 2.4GHz- 2*3dBi, 5GHz- 2*4dBi |

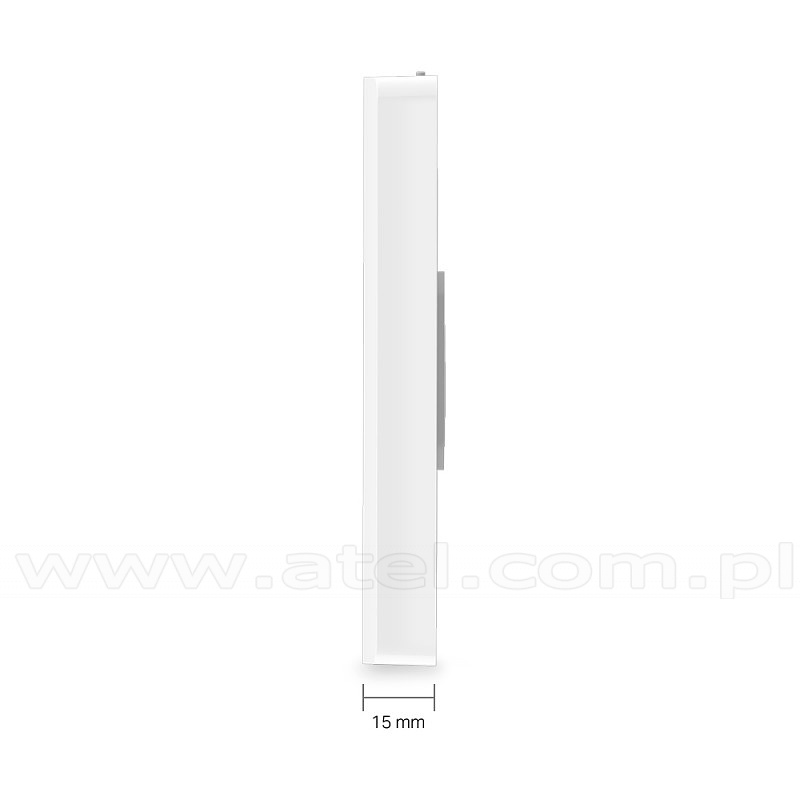

| Dimensions | 143 × 86 × 19.7mm (5.6 × 3.4 × 0.8 in) |
| Power | 802.3af/802.3at PoE |
| Power Consumption | EU 10W (802.3at PoE, PoE Out off), US 11.5W (802.3at PoE, PoE Out off) |
| Mounting | Wall Plate Mounting |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | EAP615-Wall, Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates | CE, FCC, RoHS |
| Warranty | 5 years |
TAGS:
PoE
Net Price: 71,50 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
