HARDWARE FEATURES: | |
---|---|
Standards and Protocols | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |

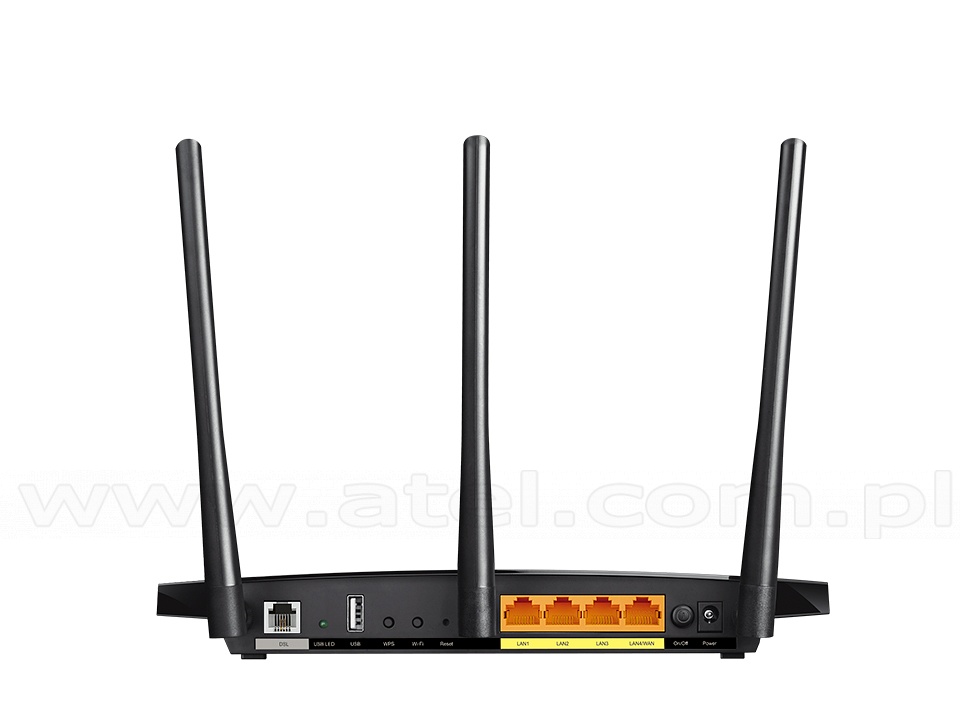

Interface | 1x10/100/1000Mbps RJ45 WAN/LAN Port, 3x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 1xUSB 2.0 Port |
Button | 1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS Button, 1 RESET Button |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
External Power Supply | 12VDC / 1.5A |
Dimensions (W X D X H) | 243,5×167,5×32,7mm |
Antenna Type | 3 External detachable dual band antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate | 5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
EIRP | <20dBm(EIRP), 5GHz <23dBm(EIRP) |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
SOFTWARE FEATURES: | |
Operating Modes | ADSL Modem Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service | ATM QoS, Traffic Control(IP QoS) |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ, ALG |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec |
ATM Features | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
Security | NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
Advanced Functions | Parental Control, Network Address Translation (NAT); Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management | Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
IPv6 | IPv6 and IPv4 dual stack |
OTHERS: | |
Certification | CE, FCC, IC, RoHS |

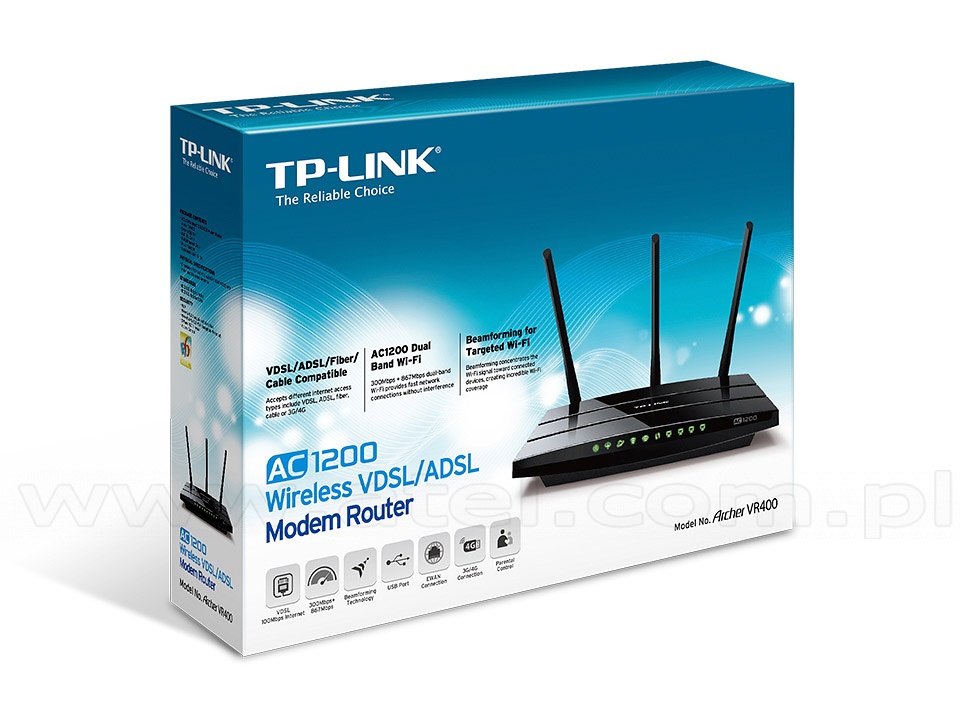

Package Contents | Archer VR400, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Power Adapter, Quick Installation Guide |
System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system. |
Environment | Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Manufacturer | TP-Link |
* For special orders only
Net Price: 61,70 EUR Unit: pcs
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
