#04604
TP-LinkTP-LINKArcher MR200

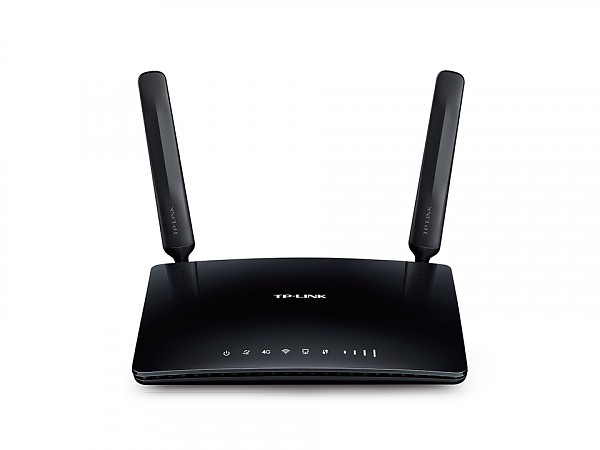

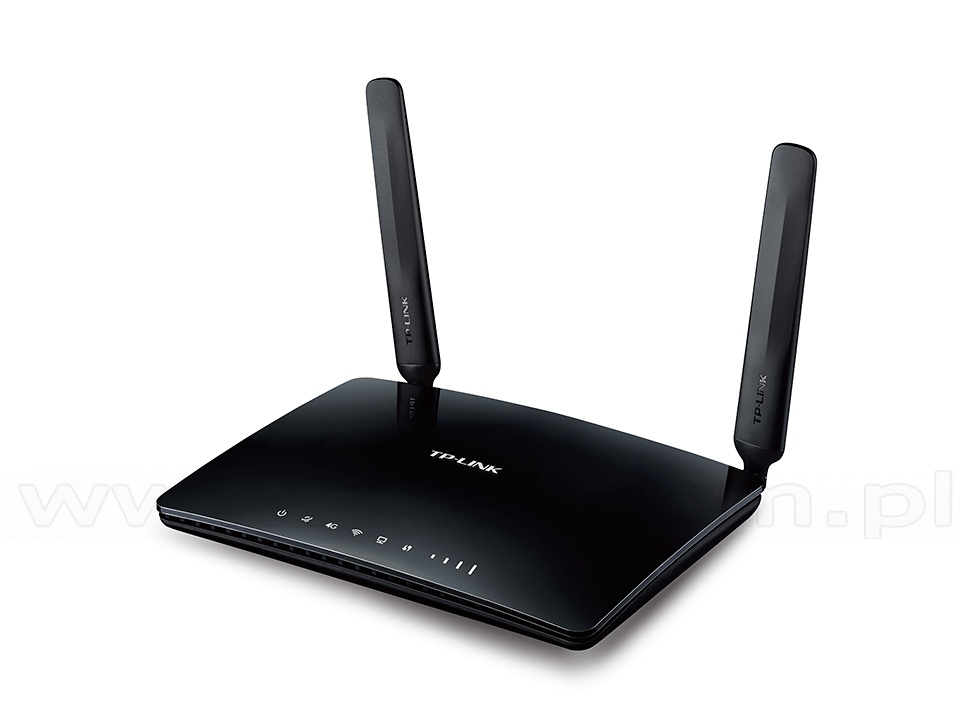

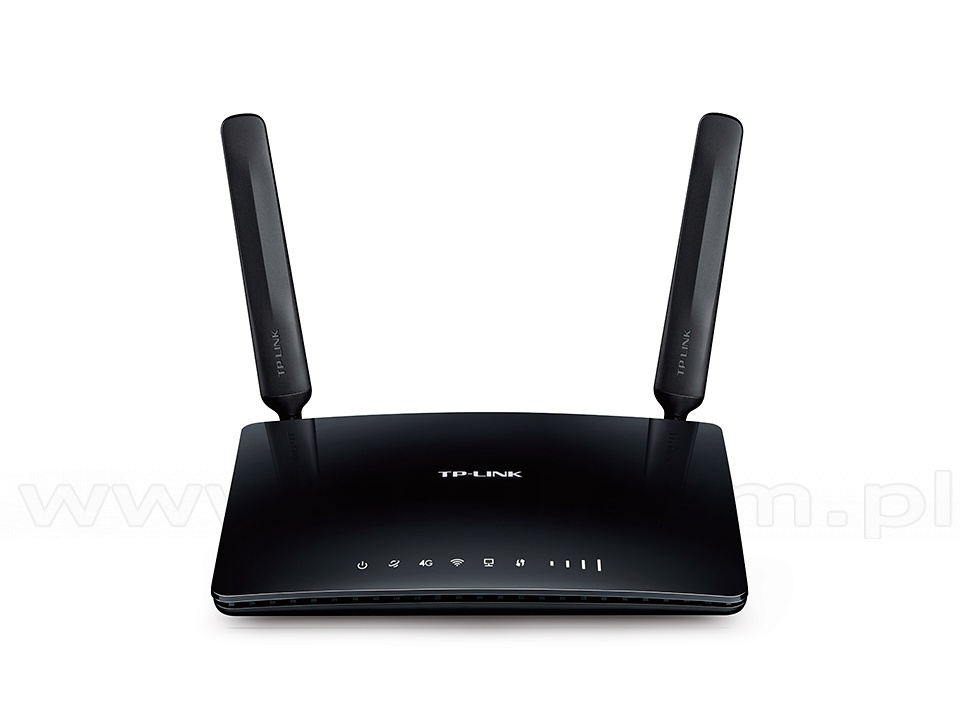

3G/4G Wireless AC750 Router, 750Mbps (TP-Link Archer MR200)

  • Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
  • Powerful, integrated antennas provide stable wireless connections and better coverage
  • Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
  • Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
  • Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
HARDWARE FEATURES:

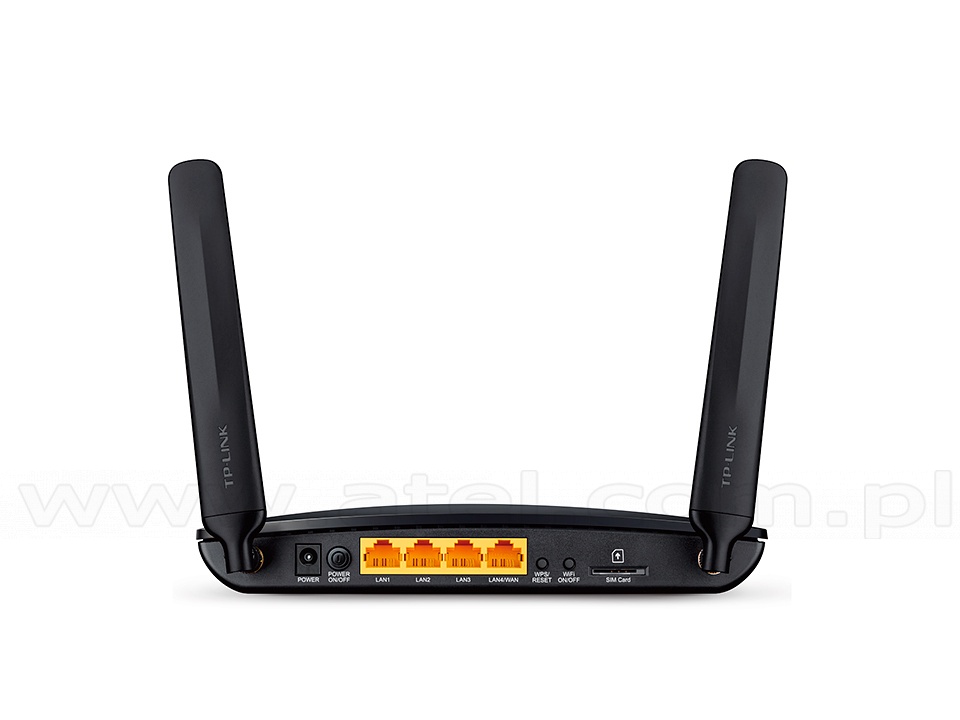

Interface 1 10/100Mbps LAN/WAN Port,
3 10/100Mbps LAN Ports,
1 SIM Card Slot
Button WPS/Reset Button,
Wireless On/Off Switch,
Power On/Off Button
External Power Supply 12VDC/1A
Dimensions ( W x D x H ) 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna Type 3 Internal Wi-Fi Antennas,
,
2 Detachable External 4G LTE Antennas
WIRELESS FEATURES:
Wireless Standards IEEE 802.11ac/n/a,
IEEE 802.11g,
IEEE 802.11b
Frequency 2.4GHz and 5GHz
EIRP <20dBm,
<23dBm(5GHz)
Signal Rate 300Mbps at 2.4GHz,
433Mbps at 5GHz
Wireless Security Support 64/128 bit WEP,
WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES:
Security NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service(DoS),
SYN Flooding,
Ping of Death
Operating Modes 3G/4G Router,
Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Access Control,
Local Management,
Remote Management
DHCP Server,
Client,
DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,
Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
NO-IP
VPN Pass-Through PPTP,
L2TP,
IPSec
Access Control Parental Control,
Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall,
IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
Guest Network 2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPN Supports up to 10 IPSec VPN tunnels
Network Type 4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz),
TDD-LTE (2300/2600MHz),
3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz),
2G EDGE/GPRS/GSM (850/900/1800/1900MHz)
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents 3G/4G Wireless AC Router,
RJ45 Ethernet Cable,
Power Adapter,
Quick Installation Guide,
Micro to Standard SIM Card Adapter,
Nano to Standard SIM Card Adapter
System Requirements Microsoft® Windows® 98SE,
NT,
2000,
XP,
Vista™ or Windows 7/8/8.1,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing

« previous product  |  next product »     » show on list«» TP-Link «
* For special orders only
Net Price: 69,40 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
