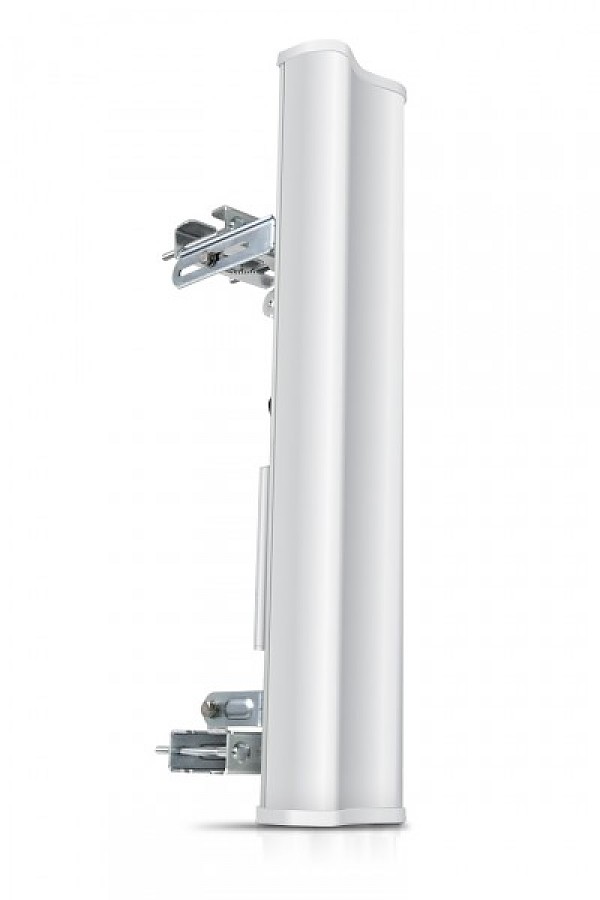

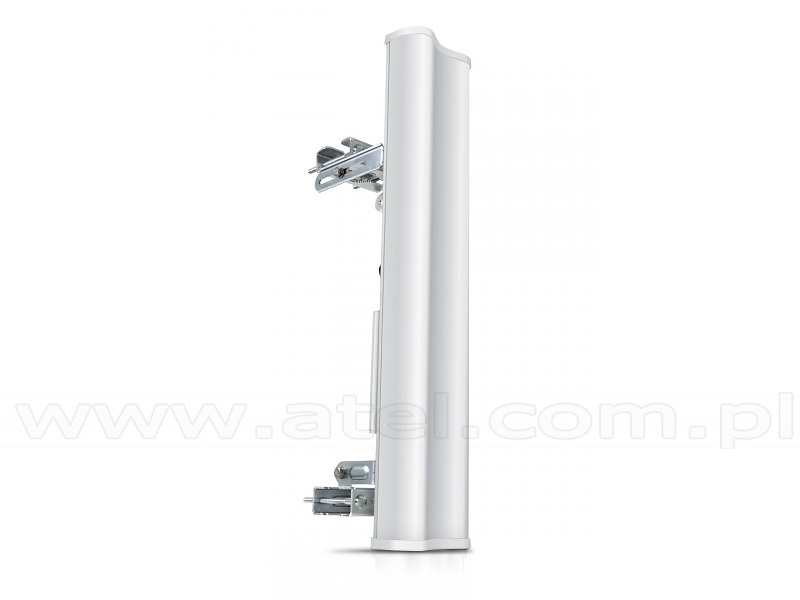

Omni-directional sector antenna AIRMAX 90 16dBi (Ubiquiti AM-2G16-90)
| Gain | 16.0 - 17.0 dBi |
|---|---|
| Frequency | 2.3 - 2.7 GHz |
| Vertical beam width | 90° (6 dB) |
| Horizontal beam width | 91° (6 dB) |
| Polarization | Dual Linear |
| VSWR | 1.5 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 169 N @ 200 km/h (38 lbf @ 125 mph) |
| Height | 700 mm |
| Width | 145 mm |
| Thickness | 79 mm |
| Weight | 3.9 kg |
| Cross-Pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
| * For special orders only
Net Price: 117,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
