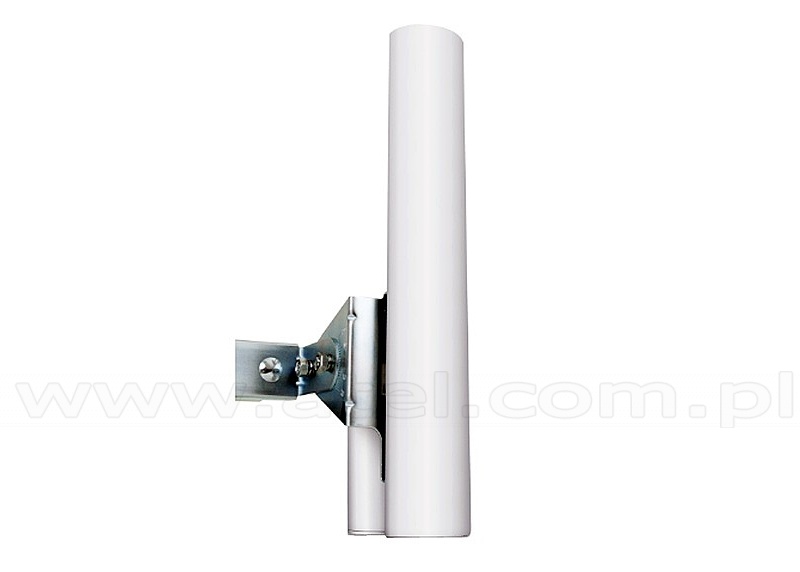

Airmax sector antenna 5 GHz, 17 dBi - 90 deg. (Ubiquiti 5G-90-17)
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
| Directional gain | 17 dBi |
|---|---|
| Frequency range | 4.9 - 5.9 GHz |
| Vertical beam width | 8 degree |
| Horizontal beam width | 93 degree |
| Polarization | dual linear |
| Cross-pol izolation | 22 db min. |
| Electrical downtilt | 4 degree |
| VSWR | 1,5 |
| Windloading | 120 mph |
| Connector | SMA-RP(F) |
| Height | 367 mm |
| Width | 63 mm |
| Thickness | 41 mm |
| Weight | 1.1 kg |
| Manufacturer | Ubiquiti |
COMPATIBLE :
#07007 AIRMAX ROCKET M
#07007 AIRMAX ROCKET M
Net Price: 34,90 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
