MENU#07006
| Standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.3u |
|---|---|

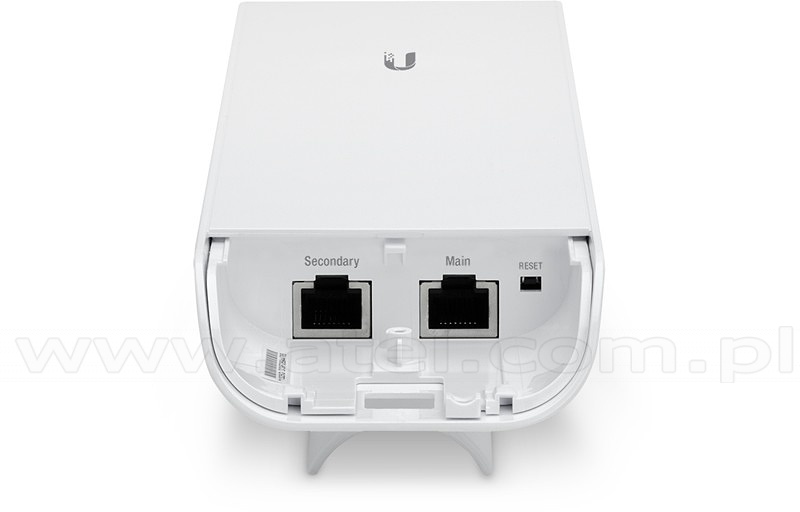

| Ports | 2x 10/100 Mbps RJ-45 |
| Operating modes | Access Point, Bridge, Client, WDS |
| Chipset | Atheros MIPS 24KC 400MHz |
| Operating memory | 32 MB SDRAM |
| Flash memory | 8 MB |
| Frequency range | 5470 MHz ÷ 5825 MHz |
| Max. output power | 27 dBm @ 6-24 Mbps, 25 dBm @ 36 Mbps, 23 dBm @ 48 Mbps, 22 dBm @ 54 Mbps, 27 dBm @ MSC0, 27 dBm @ MSC1, 27 dBm @ MSC2, 27 dBm @ MSC3, 26 dBm @ MSC4, 24 dBm @ MSC5, 22 dBm @ MSC6, 21 dBm @ MSC7, 27 dBm @ MSC8, 27 dBm @ MSC9, 27 dBm @ MSC10, 27 dBm @ MSC11, 26 dBm @ MSC12, 24 dBm @ MSC13, 22 dBm @ MSC14, 21 dBm @ MSC15 |
| Receiver sensitivity | -94 dBm @ 6-24 Mbps, -80 dBm @ 36 Mbps, -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps, -96 dBm @ MSC0, -95 dBm @ MSC1, -92 dBm @ MSC2, -90 dBm @ MSC3, -86 dBm @ MSC4, -83 dBm @ MSC5, -77 dBm @ MSC6, -74 dBm @ MSC7, -95 dBm @ MSC8, -93 dBm @ MSC9, -90 dBm @ MSC10, -87 dBm @ MSC11, -84 dBm @ MSC12, -79 dBm @ MSC13, -78 dBm @ MSC14, -75 dBm @ MSC15 |
| Antenna | build-in, 2x2 MIMO 14 dBi |
| VSWR | 1.6 |
| Beam width | 15° |
| Dimensions | 294x80x30 mm |
| Weight | 0.4 kg |
| Mounting | mast or wall with the aid of antenna wall support |
| Max. power consumption | 8 W |
| Power | PoE 15V |
| Operating temperatures | -30°C ÷ 80°C |
| Operating humidity | 5% ÷ 95%, non-condensing |
| Certificates | CE, FCC, IC RS210 |
| Manufacturer | Ubiquiti |
TAGS:
PoE
Net Price: 92,60 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
