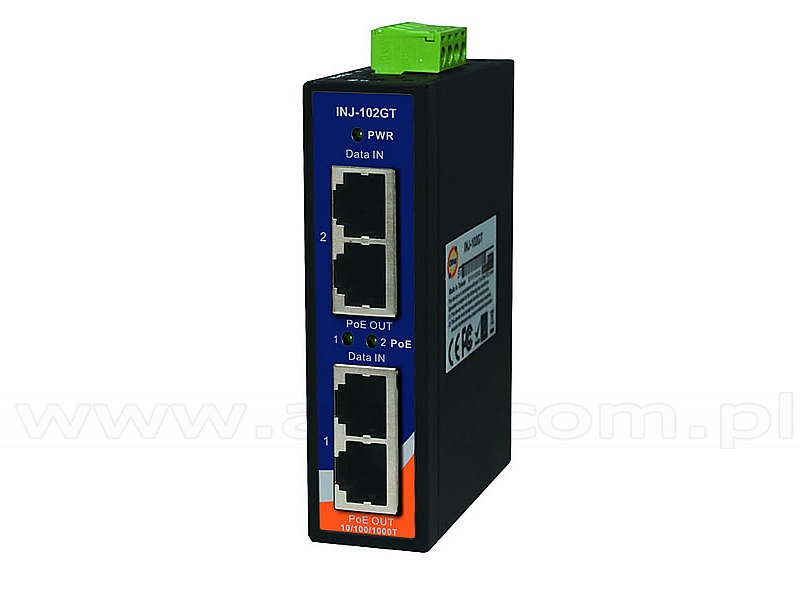

Industrial Gigabit High Power Injector, 2x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 (ORing INJ-102GT)
The INJ-102GT PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection, that provided 2-ports 10/100/1000Base-T(X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-102GT PoE Injector. Typically in gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 50~57V insertion, the installer doesn’t need to worry about voltage drops caused by cable length. The INJ-102GT PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
| Physical Ports | |
|---|---|
| 10/100/1000Base-T(X) in RJ-45 Ethernet Port Input | 2 |
| 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output | 2 |
| Operating Voltage | |
| Input Voltage | 50 ~ 57 VDC / 4-pin terminal block |
| Output Power | 50V / 600mA, 30 Watts max. Per port |
| LED Indicators | |
| Power indicator | PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
| PoE Indicators | 2 x LED, Blue On - PoE Device Link, Blue Blinking - Detecting PoE Device, Blue Off - None PoE Device Detected |
| Protection | |
| Short Circuit Protection | present |
| Over Load Protection | present |
| High Voltage Protection | present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 26.1mm x 70mm x 95mm |
| Weight | 250g |
| Environmental | |
| Storage Temperature | -40÷80°C(-40÷176°F) |
| Operating Temperature | -20÷70°C (-4÷158°F) |
| Operating Humidity | 5%÷90% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | |
| Warranty period | 2 years |
TAGS:
PoE
| * For special orders only
Net Price: 96,70 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
