WAVE INDUSTRIAL

WAVE INDUSTRIAL Products

Industrial-grade Communications devices - Machine-to-Machine

WAVE INDUSTRIAL
WAVE INDUSTRIAL


Industrial-grade SFP transceivers for most demanding applications.

Machine-to-Machine (M2M) Communications devices.

Atel Electronics is a exclusive distributor of Wave Industrial products

  • Computer Network Accessories
    • Switches
      • » GIGABIT ETHERNET / UNMANAGED SWITCHES
          #07666

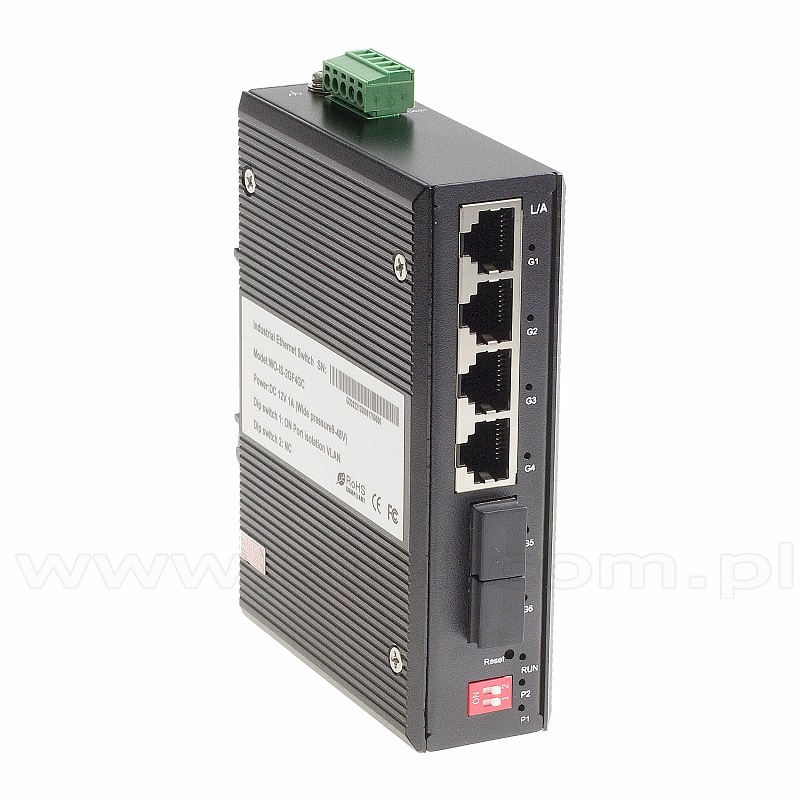

          Unmanaged switch, 4x 10/1000 RJ-45 + 2x 1000 SFP (Wave Industrial WO-IS-2GF4GC)

          WO-IS-2GF4GC is an industrial Ethernet switch with extended temperature ranges developed by Wave Optics to fulfill needs in industries including
          smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on. The two Gigabit fiber port and four Gigabit copper ports provide a high packet forwarding rate and an ample back plane bandwidth, making the transmission of images clear and smooth.
          Having an IP40 rated aluminum enclosure, a rail base designed to withstand severe vibration, and good EMC electromagnetic compatibility, this series of product is capable of working stably and reliably in extreme-temperature (-40°C to 85°C) and rugged industrial environments.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          100/1000Base-X SFP Ports 2
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3z for 1000Base-X
          MAC Table 2048 MAC addresses
          Power
          Input power Dual DC inputs. 9÷48VDC on 5-pin terminal block
          Power consumption (typical) 6W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x D x H) 37mm x 85m x 116mm
          Weight 430g
          Environmental
          Storage Temperature -40÷85°C (-40÷185°F)
          Operating Temperature -40÷85°C (-40÷185°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMS IEC61000-4-2(ESD) level 4,
          IEC 61000-4-4 (EFT) level 4,
          IEC61000-4-5(Surge) level 4
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          MTBF 500000h
          Unmanaged switch, 4x 10/1000 RJ-45 + 2x 1000 SFP (Wave Industrial WO-IS-2GF4GC)
          Net Price: 44,50 EUR
          product card»
  • top
    Communication for industry
    • M2M Devices
      • » M2M Routers
          #08983

          Wireless router M2M, 1x 10/100 (LAN), LTE, 2xSIM (WOI-RMBX-Lx2IO)

          The WOI-RMBX-Lx2IO is a small router made for wireless m2m applications. It is a compact device with all the standard interfaces powered by Telit embedded engine. Supporting UMTS/HSPA+/LTE it is dedicated for users seeking for easy and fast mobile Internet access. Internet connection is easily available and configurable via internet browser without any need of installing software or drivers for the device.
          Network standard
          GPRS Yes
          EDGE Yes
          UMTS Yes
          HSPA+ Yes
          LTE Yes
          Band
          Quad Yes
          GSM Modem
          RS232 Yes
          USB Yes
          Remote communication
          RS232 Yes
          RS485 Yes
          LAN 10/100Mbps Yes
          WiFi Optional
          Operation
          Inputs Yes x4
          Outputs Yes x4
          Analog inputs Yes x2
          Monitoring
          I/O state Yes/Yes
          GPS location Optional
          Power supply ON Yes
          Temperature Yes
          External Memory
          microSD card Yes
          Retrieving information from the interface and control
          CAN Optional
          RS232 Yes
          RS485 Yes
          I2C Yes
          Modbus Yes
          M-Bus available with external converter
          Control
          SMS Optional
          E-mail Optional
          MMS Optional
          DataCall Optional
          Programmable
          Python Yes
          C Yes
          SIM card
          Dual Yes
          Audio interface Optional
          Battery powered Optional
          Wireless router M2M, 1x 10/100 (LAN), LTE, 2xSIM (WOI-RMBX-Lx2IO)
          Net Price: CallCall
          product card»
    • Industrial Switches
      • » PoE SWITCHES SMART OR MANAGED
          #07671
          NEW

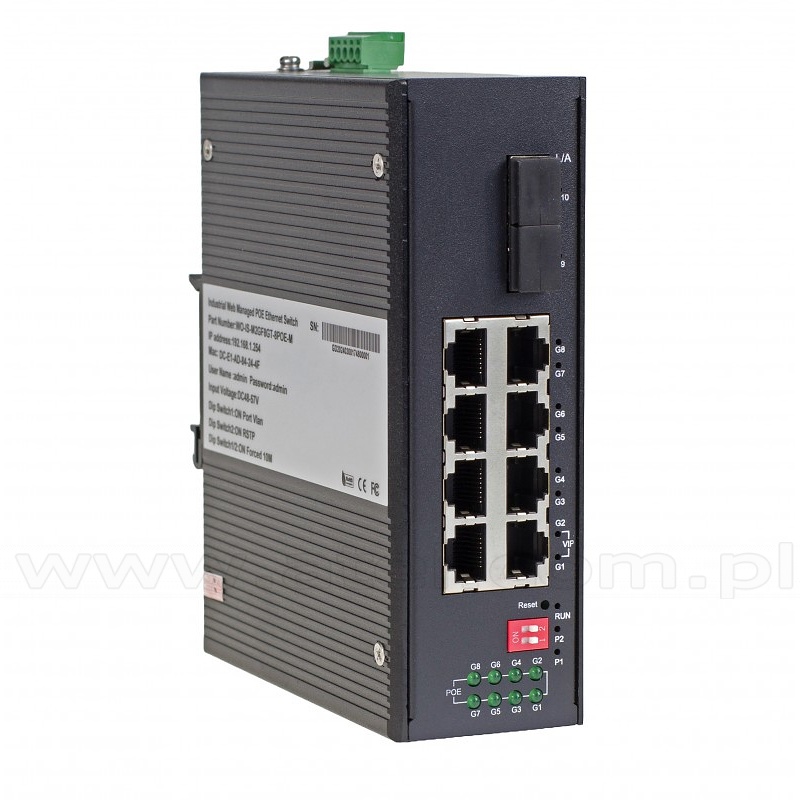

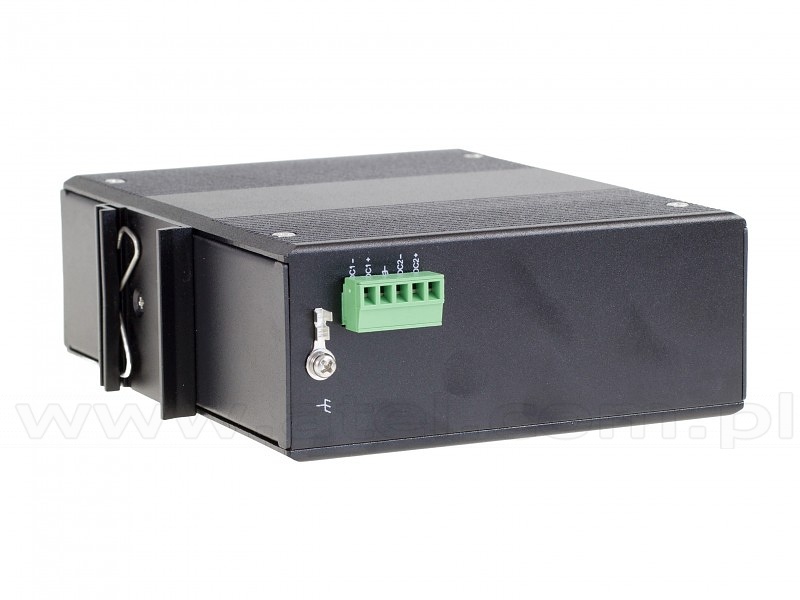

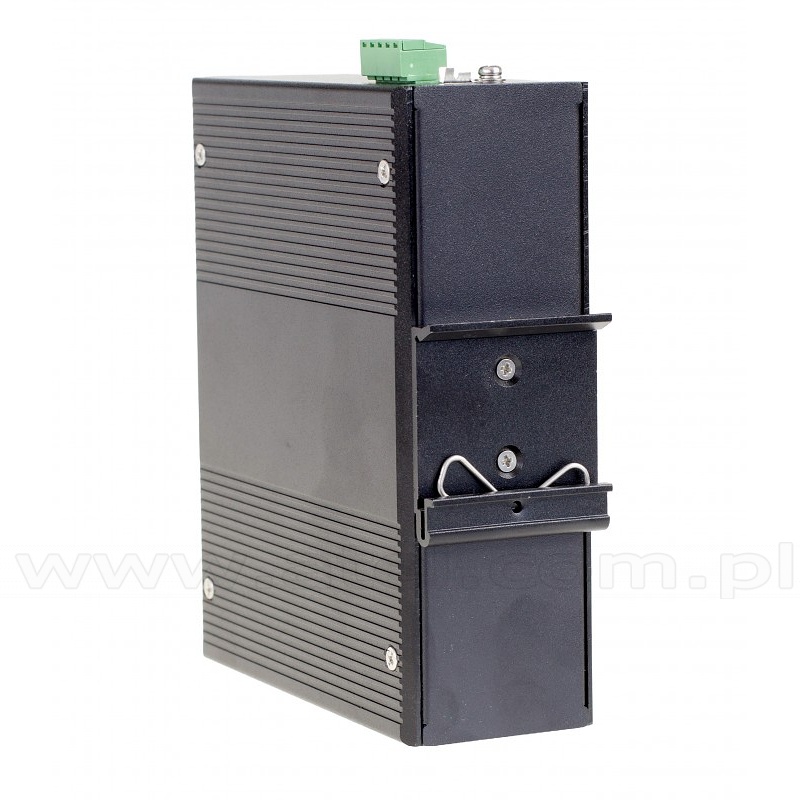

          Managed industrial switch, 8x 100/1000 RJ-45 PoE, 2x 1000 SFP (Wave Industrial WO-IS-M2GF8GT-8POE-M)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8 w/PoE
          1000Base-FX SFP ports 2
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45 ports,
          SFP slots,
          PoE (8)
          Power Dual DC inputs. 48÷57VDC on 4-pin terminal block
          Power consumption (typical) 12W
          PoE standards 802.3at,
          802.3af
          PoE budget 200W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 48mm x 142mm x 116mm
          Weight 580g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Managed industrial switch, 8x 100/1000 RJ-45 PoE, 2x 1000 SFP (Wave Industrial WO-IS-M2GF8GT-8POE-M)
          Net Price: 149,00 EUR
          product card»
      • » PoE SWITCHES UNMANAGED
          #07670
          NEW

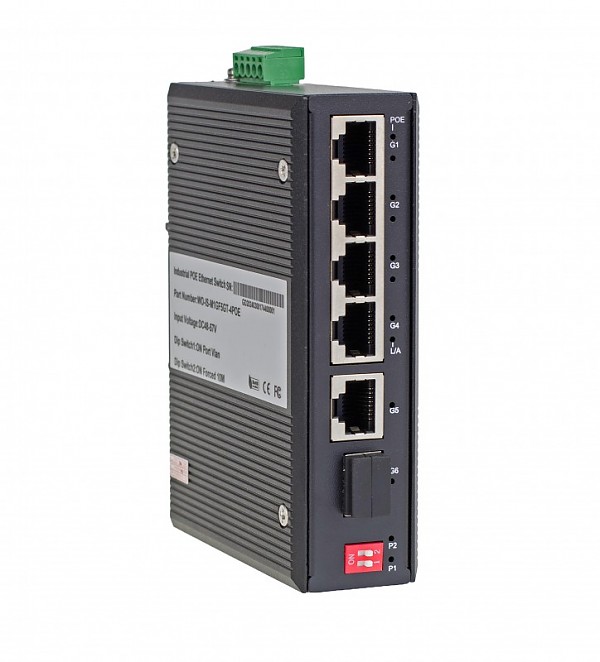

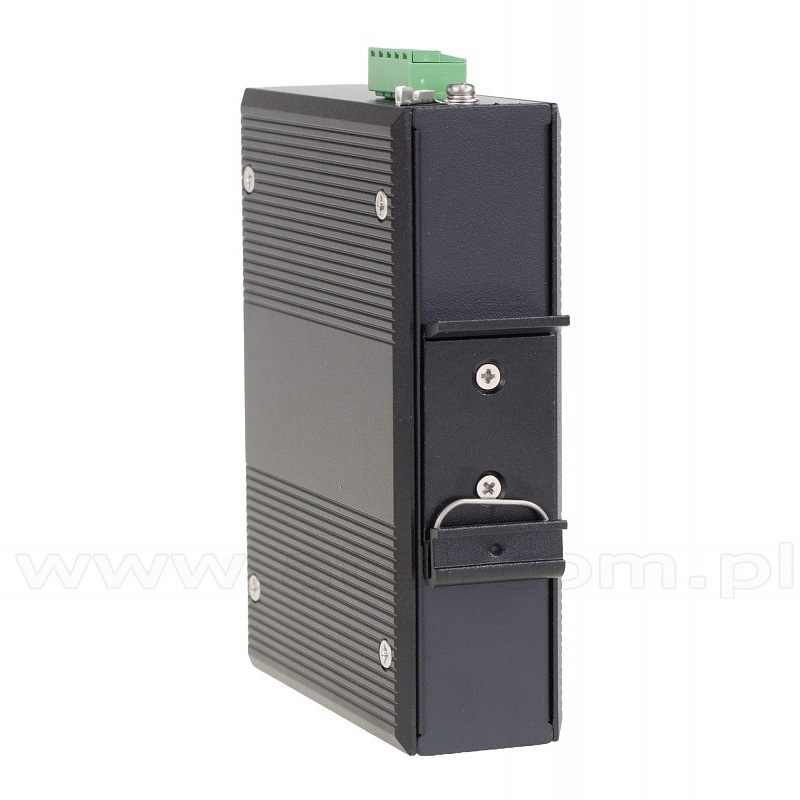

          Unmanaged industrial switch, 4x 100/1000 RJ-45 PoE, 1x 100/1000 RJ-45, 1x 1000 SFP (Wave Industrial WO-IS-M1GF5GT-4POE)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4 w/PoE + 1
          1000Base-FX SFP ports 1
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45 ports (5)
          Power Dual DC inputs. 48÷57VDC on 4-pin terminal block
          Power consumption (typical) 6.5W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 33mm x 115mm x 85mm
          Weight 350g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged industrial switch, 4x 100/1000 RJ-45 PoE, 1x 100/1000 RJ-45, 1x 1000 SFP (Wave Industrial WO-IS-M1GF5GT-4POE)
          Net Price: 78,60 EUR
          product card»
          #07672
          NEW

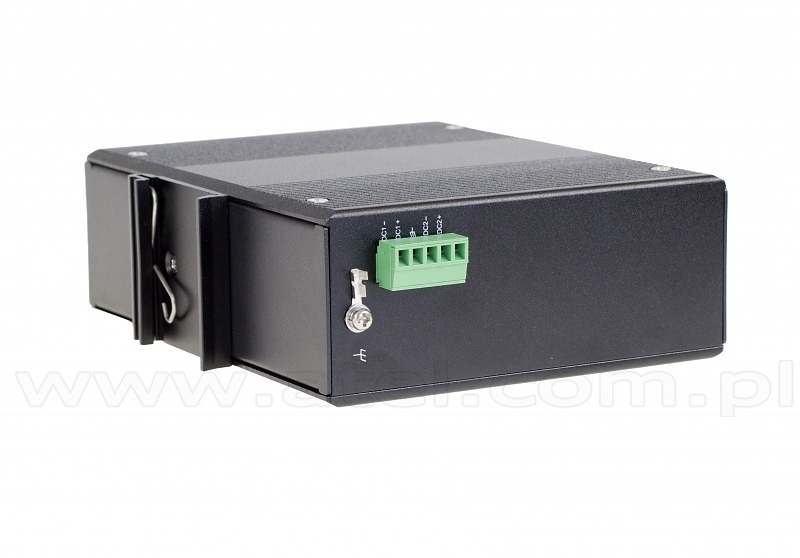

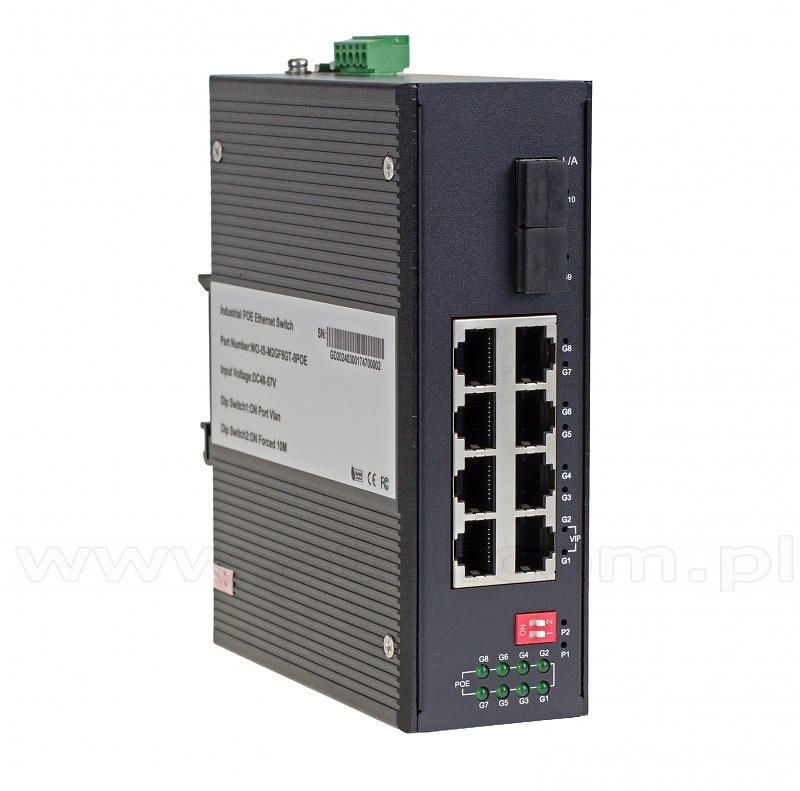

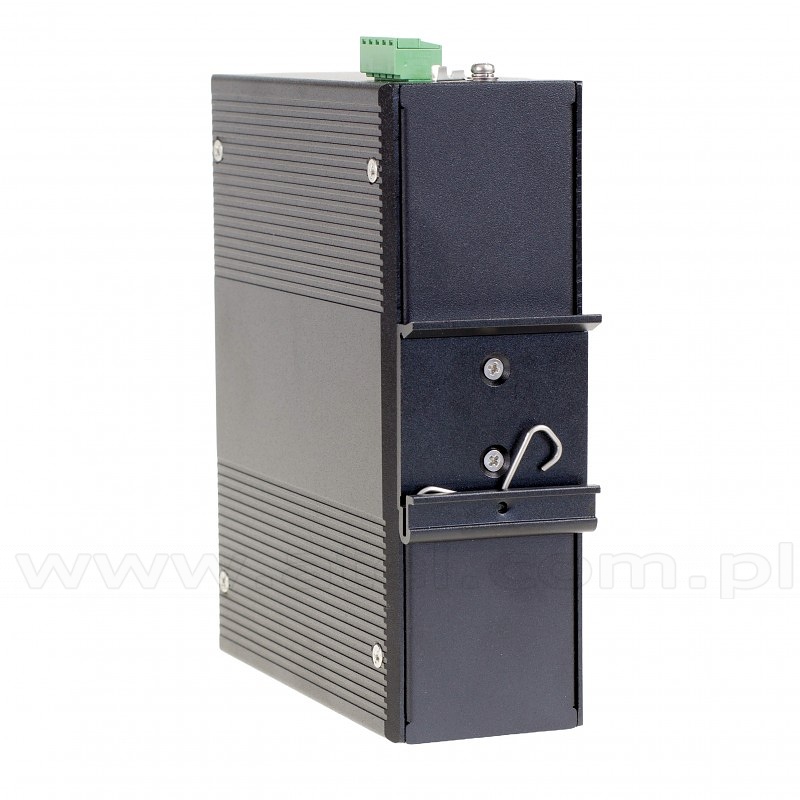

          Unmanaged industrial switch, 8x 100/1000 RJ-45 PoE, 2x 1000 SFP (Wave Industrial WO-IS-M2GF8GT-8POE)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8 w/PoE
          1000Base-FX SFP ports 2
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45 ports,
          SFP slots,
          PoE (8)
          Power Dual DC inputs. 48÷57VDC on 4-pin terminal block
          Power consumption (typical) 12W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 48mm x 142mm x 116mm
          Weight 600g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged industrial switch, 8x 100/1000 RJ-45 PoE, 2x 1000 SFP (Wave Industrial WO-IS-M2GF8GT-8POE)
          Net Price: 131,00 EUR
          product card»
      • » GIGABIT ETHERNET / UNMANAGED SWITCHES
          #07667
          NEW

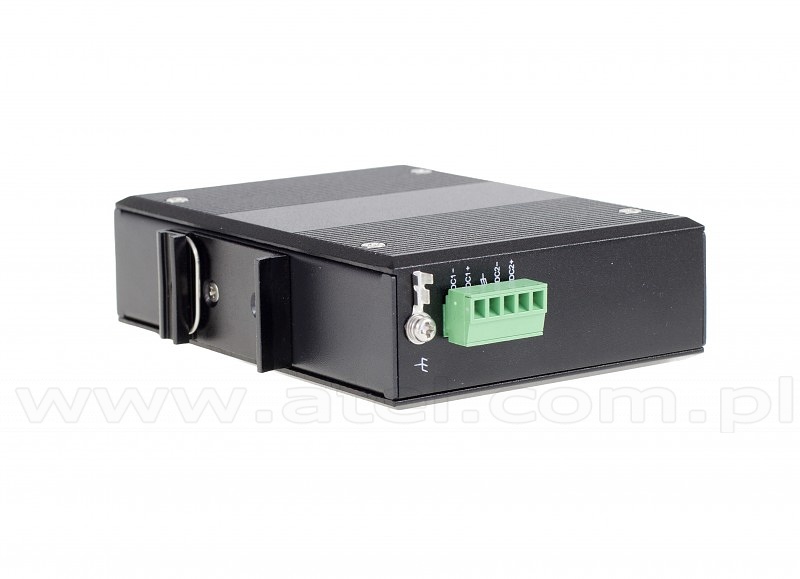

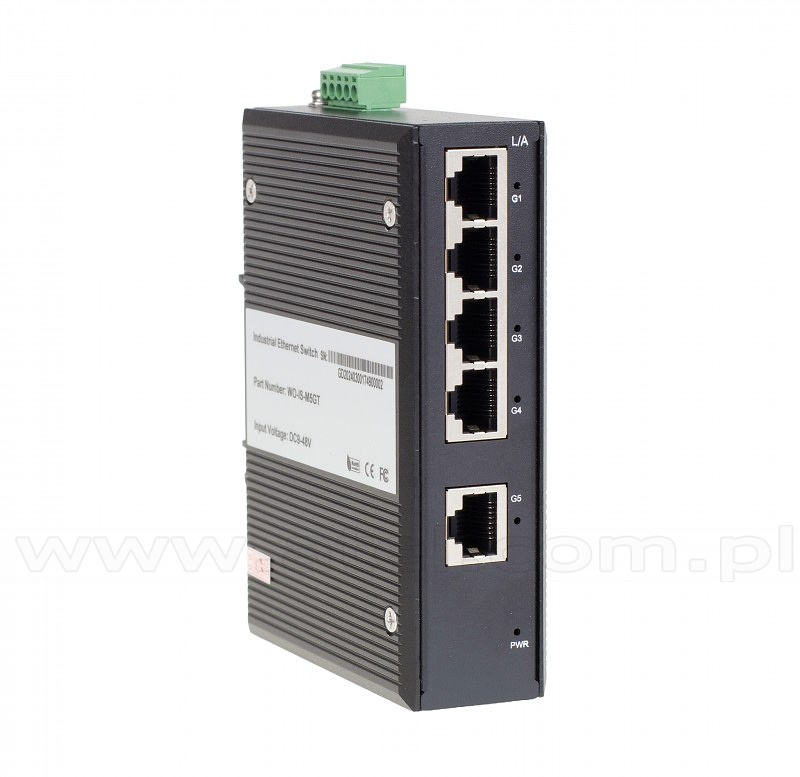

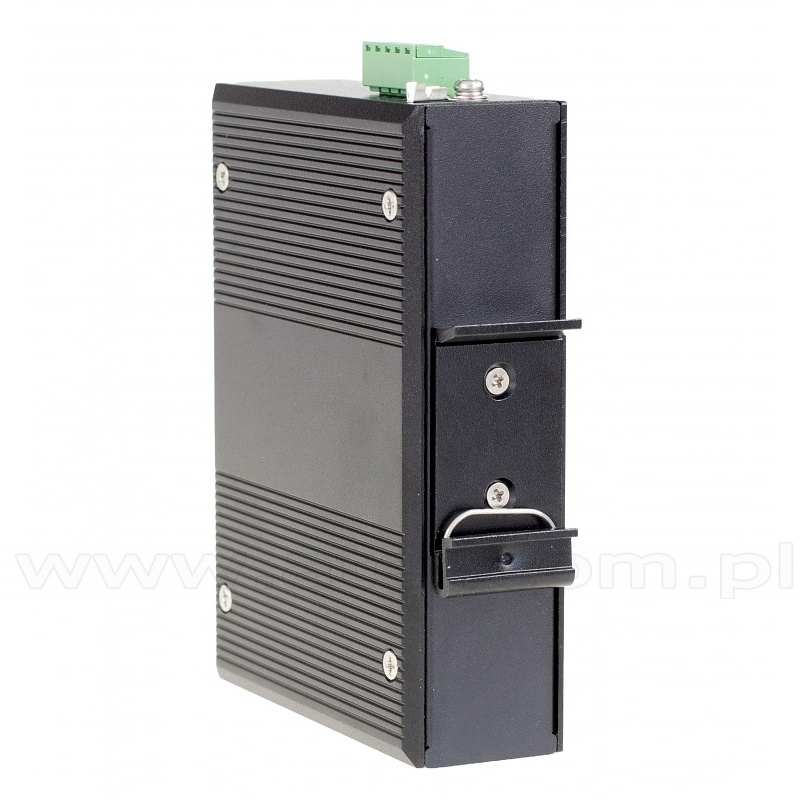

          Unmanaged industrial switch, 5x 10/1000 RJ-45 (Wave Industrial WO-IS-M5GT)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 5
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45 ports (5)
          Power Dual DC inputs. 9÷48VDC on 4-pin terminal block
          Power consumption (typical) 5.8W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 33mm x 115mm x 85mm
          Weight 330g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged industrial switch, 5x 10/1000 RJ-45 (Wave Industrial WO-IS-M5GT)
          Net Price: 39,30 EUR
          product card»
          #07666

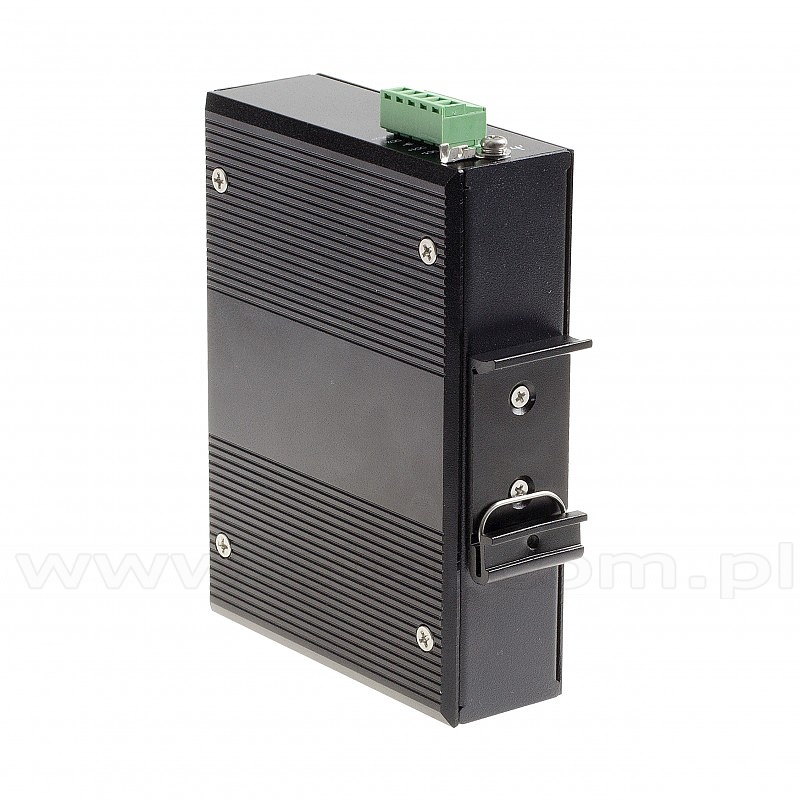

          Unmanaged switch, 4x 10/1000 RJ-45 + 2x 1000 SFP (Wave Industrial WO-IS-2GF4GC)

          WO-IS-2GF4GC is an industrial Ethernet switch with extended temperature ranges developed by Wave Optics to fulfill needs in industries including
          smart traffic, expressways, smart cities, safe cities, new energy, smart manufacturing, and so on. The two Gigabit fiber port and four Gigabit copper ports provide a high packet forwarding rate and an ample back plane bandwidth, making the transmission of images clear and smooth.
          Having an IP40 rated aluminum enclosure, a rail base designed to withstand severe vibration, and good EMC electromagnetic compatibility, this series of product is capable of working stably and reliably in extreme-temperature (-40°C to 85°C) and rugged industrial environments.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          100/1000Base-X SFP Ports 2
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3z for 1000Base-X
          MAC Table 2048 MAC addresses
          Power
          Input power Dual DC inputs. 9÷48VDC on 5-pin terminal block
          Power consumption (typical) 6W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x D x H) 37mm x 85m x 116mm
          Weight 430g
          Environmental
          Storage Temperature -40÷85°C (-40÷185°F)
          Operating Temperature -40÷85°C (-40÷185°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMS IEC61000-4-2(ESD) level 4,
          IEC 61000-4-4 (EFT) level 4,
          IEC61000-4-5(Surge) level 4
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          MTBF 500000h
          Unmanaged switch, 4x 10/1000 RJ-45 + 2x 1000 SFP (Wave Industrial WO-IS-2GF4GC)
          Net Price: 44,50 EUR
          product card»
          #07669
          NEW

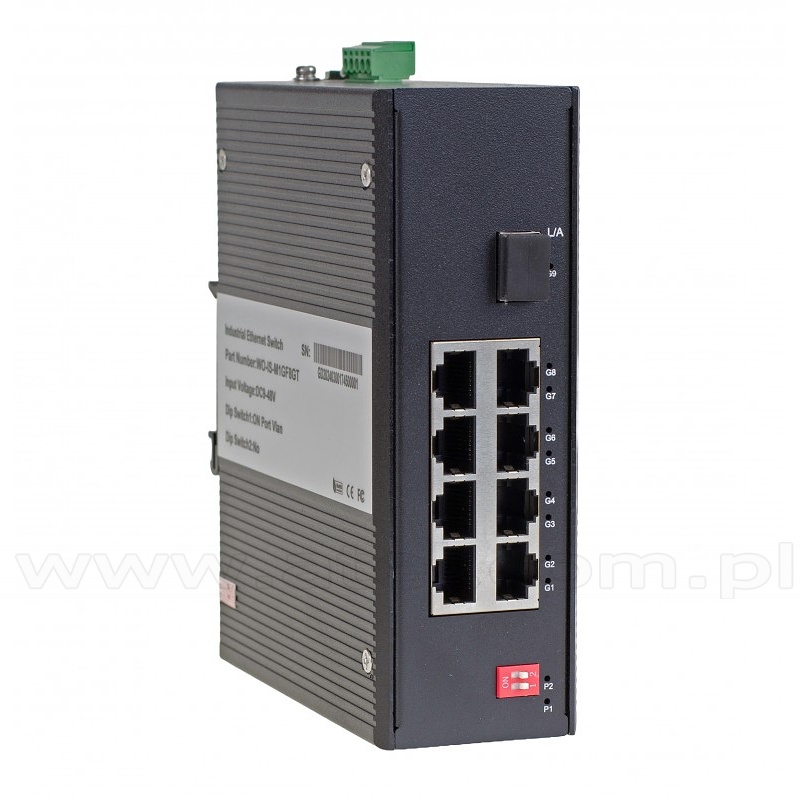

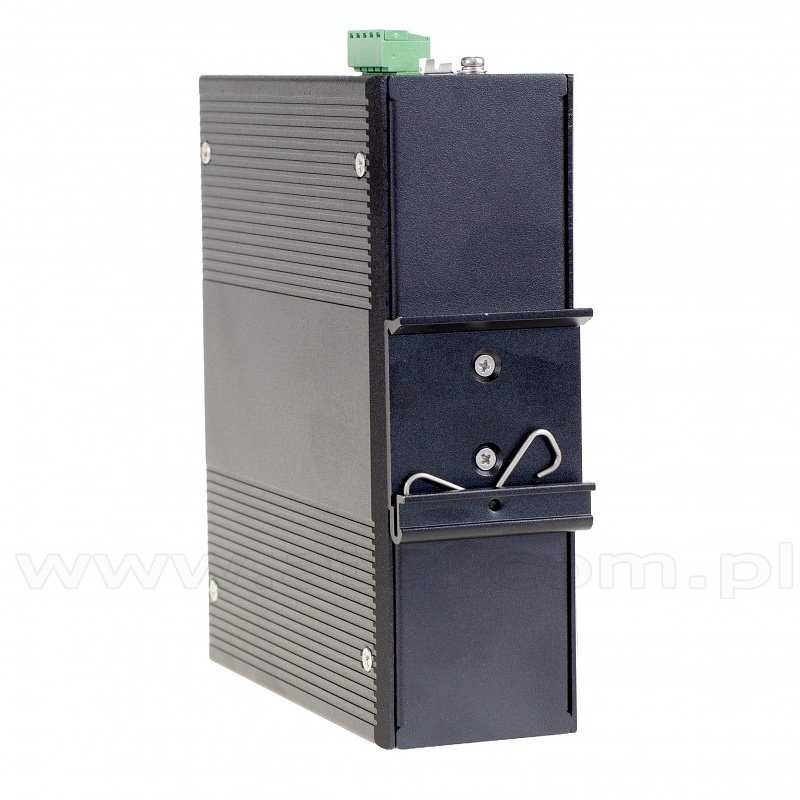

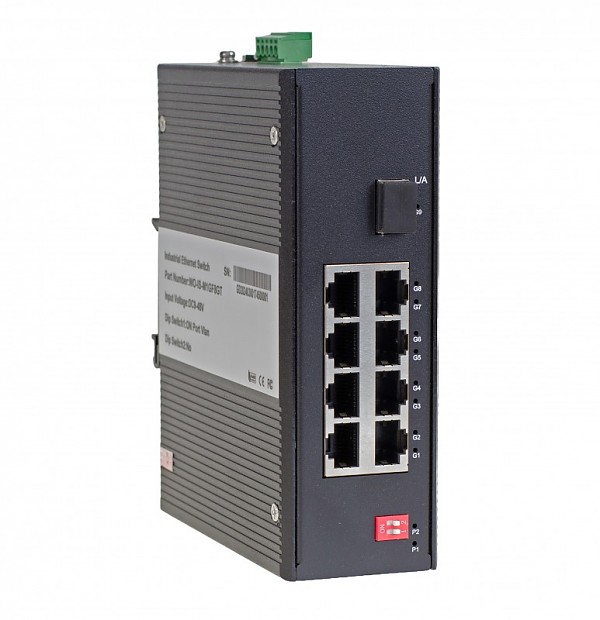

          Unmanaged industrial switch, 8x 100/1000 RJ-45+ 1x 1000 SFP (Wave Industrial WO-IS-M1GF8GT)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
          1000Base-FX SFP ports 1
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45 ports,
          SFP slot
          Power Dual DC inputs. 9÷48VDC on 4-pin terminal block
          Power consumption (typical) 12W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 48mm x 140mm x 116mm
          Weight 630g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged industrial switch, 8x 100/1000 RJ-45+ 1x 1000 SFP (Wave Industrial WO-IS-M1GF8GT)
          Net Price: 97,00 EUR
          product card»
      • » GIGABIT ETHERNET / MANAGED SWITCHES
          #07668
          NEW

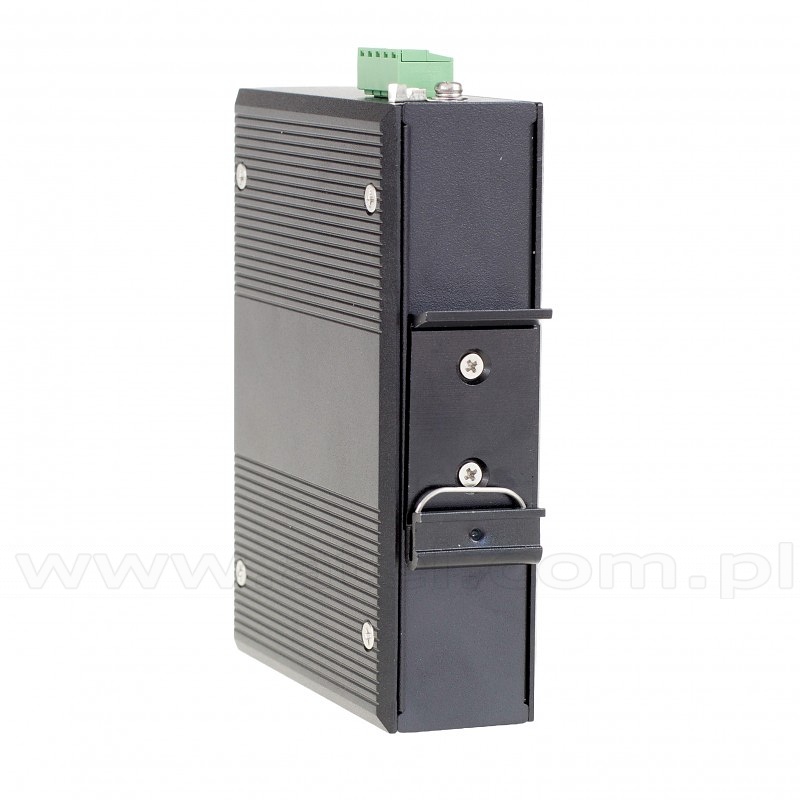

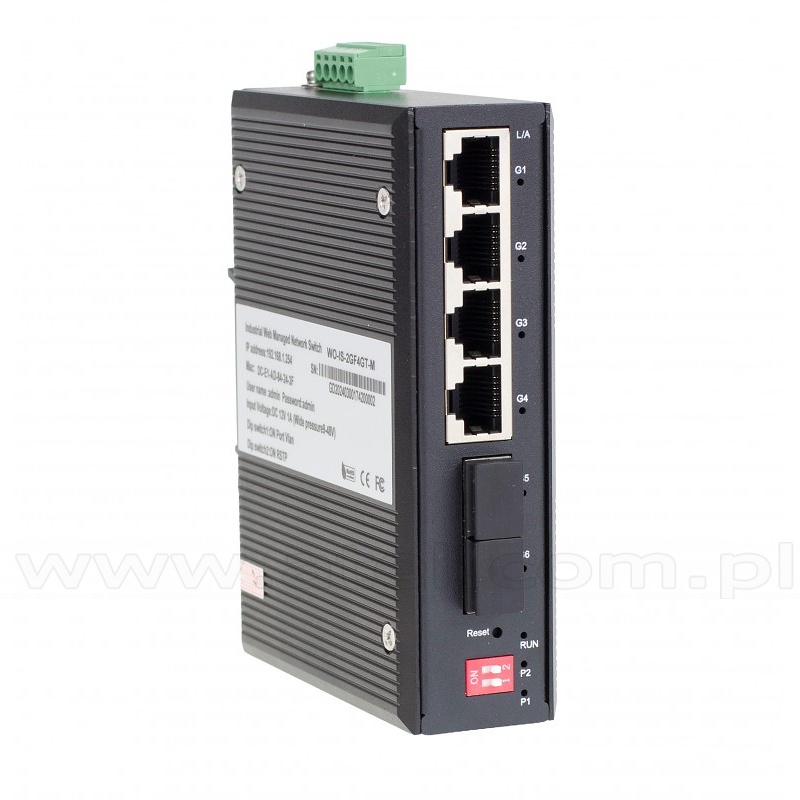

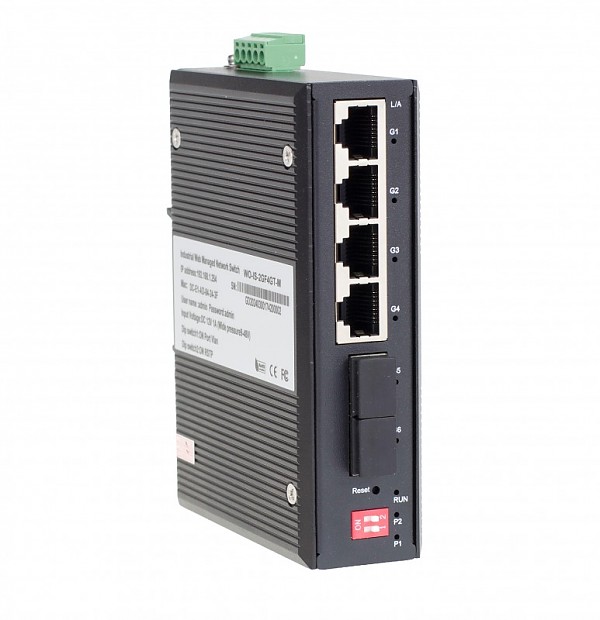

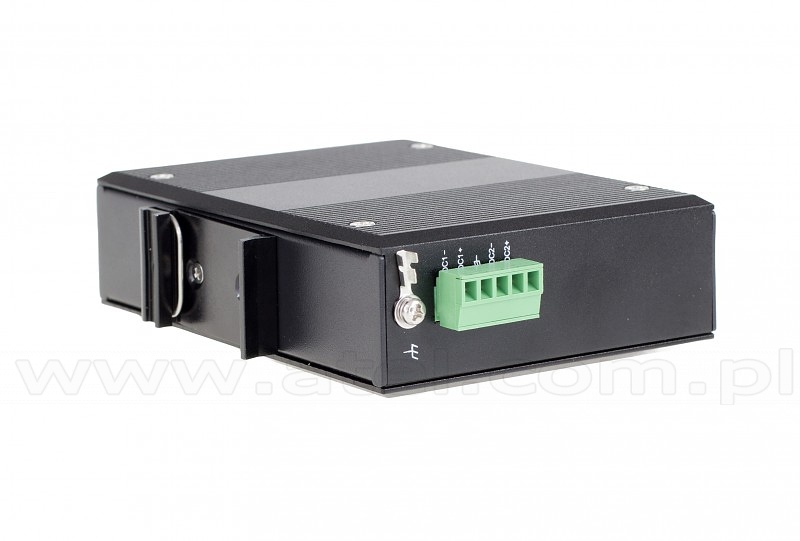

          Managed industrial switch, 4x 100/1000 RJ-45, 2x 1000 SFP (Wave Industrial WO-IS-M2GF4GT-M)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          1000Base-FX SFP ports 2
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45 ports (4),
          SFP slots (2)
          Power Dual DC inputs. 9÷48VDC on 4-pin terminal block
          Power consumption (typical) 6.8W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 33mm x 115mm x 85mm
          Weight 350g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Managed industrial switch, 4x 100/1000 RJ-45, 2x 1000 SFP (Wave Industrial WO-IS-M2GF4GT-M)
          Net Price: 78,20 EUR
          product card»
    • Industrial Media Converters
      • » GIGABIT ETHERNET MEDIA CONVERTERS
          #07673
          NEW

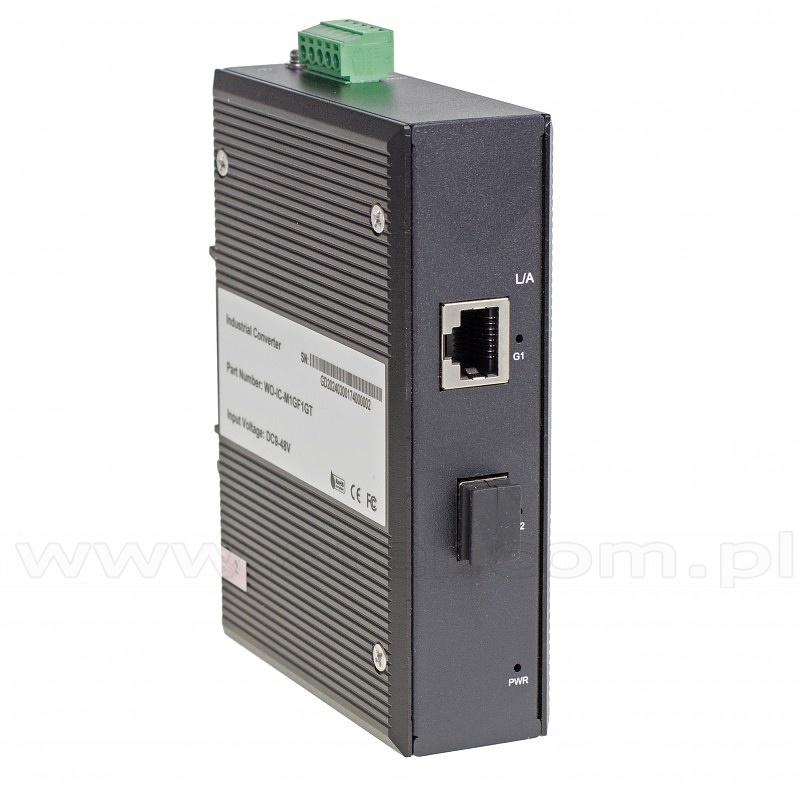

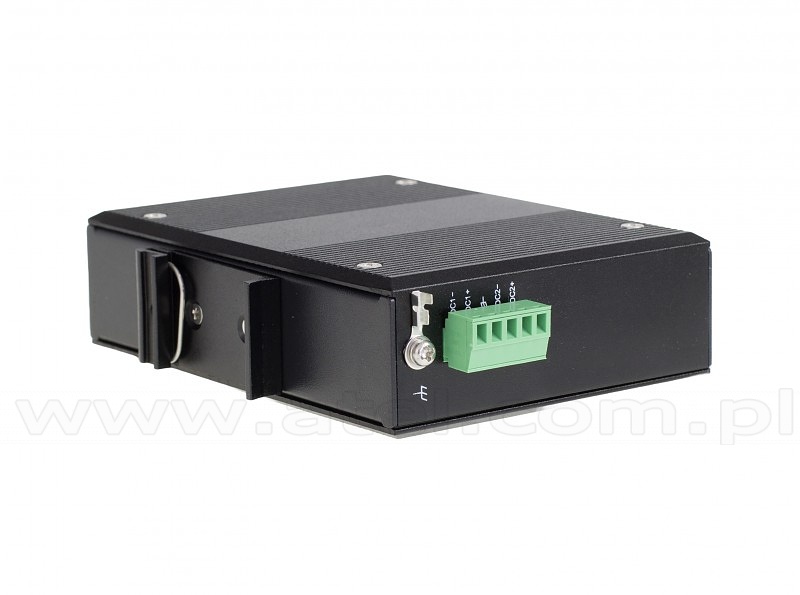

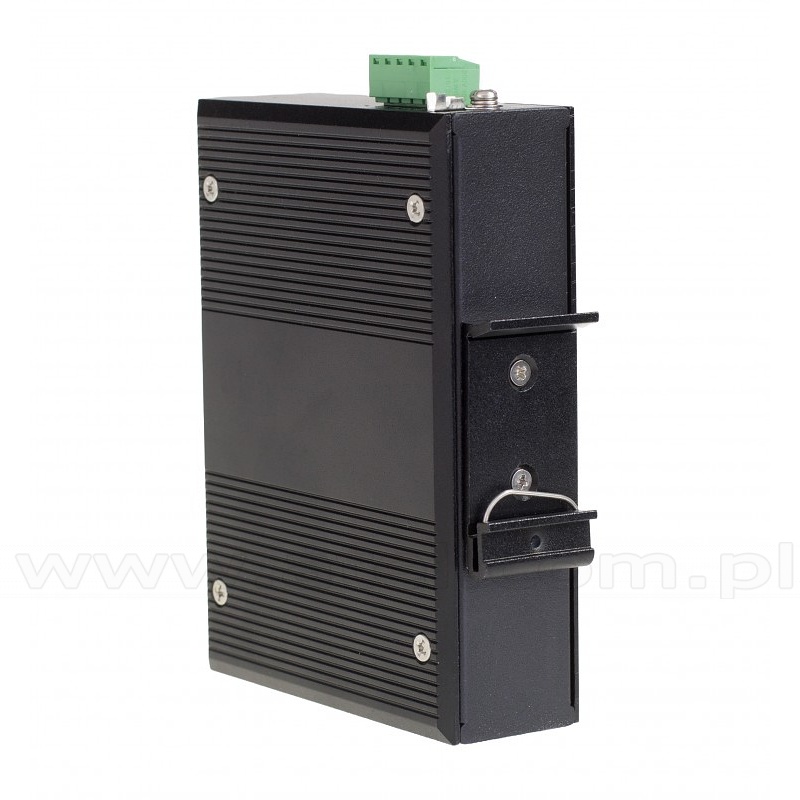

          Industrial Media converter 1x 100/1000TX (RJ-45) + 1x 1000FX (SFP) (Wave Industrial WO-IC-M1GF1GT)

          Physical Ports
          100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 1
          1000Base-FX SFP ports 1
          Technology
          Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.3z for 1000Base-X
          LED Indicators power,
          RJ45,
          SFP slot
          Power Dual DC inputs. 9÷48VDC on 4-pin terminal block
          Power consumption (typical) 3.3W
          Physical Characteristic
          Enclosure IP-40
          Dimension (W x H x D) 33mm x 115mm x 85mm
          Weight 330g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷85°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Industrial Media converter 1x 100/1000TX (RJ-45) + 1x 1000FX (SFP) (Wave Industrial WO-IC-M1GF1GT)
          Net Price: 44,50 EUR
          product card»


top

Page 1 of 3
