PRECISION MASTECH ENTERPRISES COMPANY was established in 1987 in manufacturing analogue and digital multi-meters and various testing instruments. It has specialized research and development engineers dedicated to produce better and more reliable products at competitive prices. The factory in Shenzhen China occupies a floor area of more than 20,000 square meters with a labor force of 500 plus highly trained employees. With a efficient management team, Mastech is able to provide prompt and timely delivery to the customers. ISO 9001:2000-certified manufacturer With many years of OEM experience, Precision Mastech Enterprises Co. provides buyers in Europe and the US with digital mulitmeters, voltage detectors, digital clamps and bench instruments. Atel Electronics is a distributor of Mastech products Manufacturer's webpage: http://www.mastech-group.com |
- Measuring Instruments
-
- » MASTECH#04090

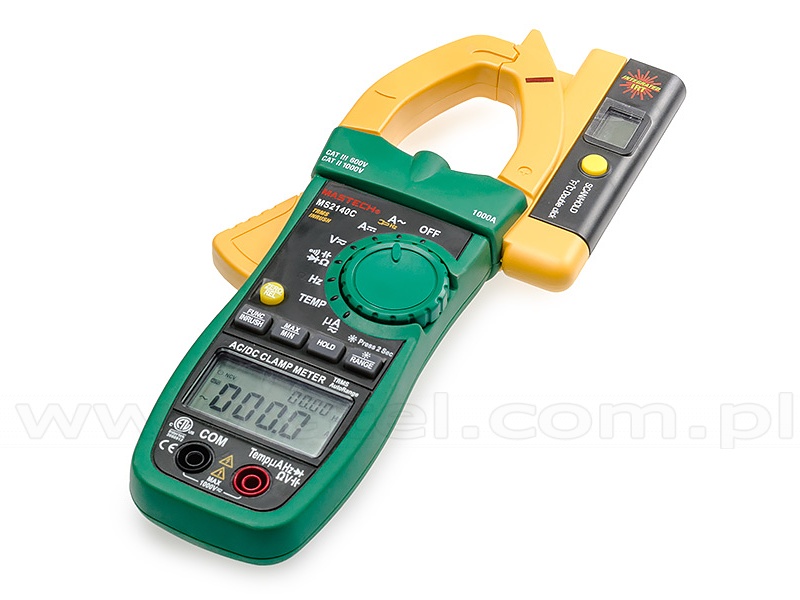

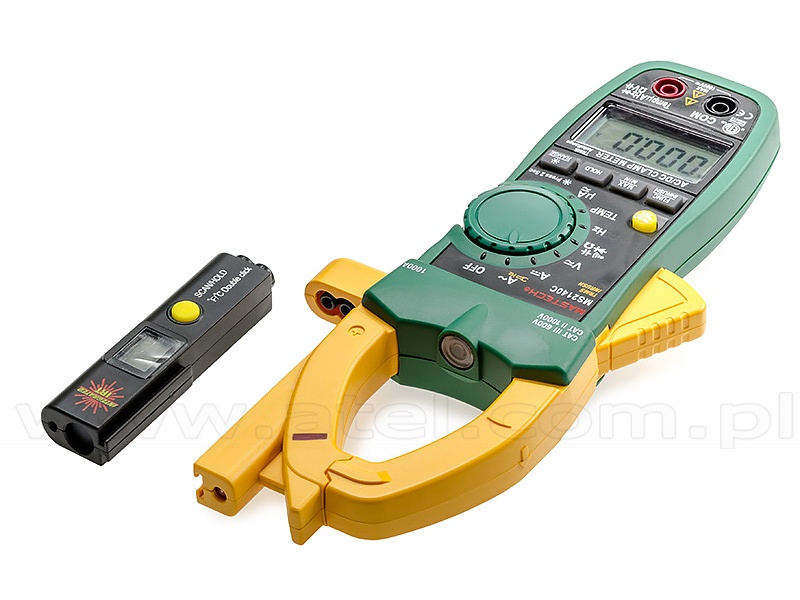

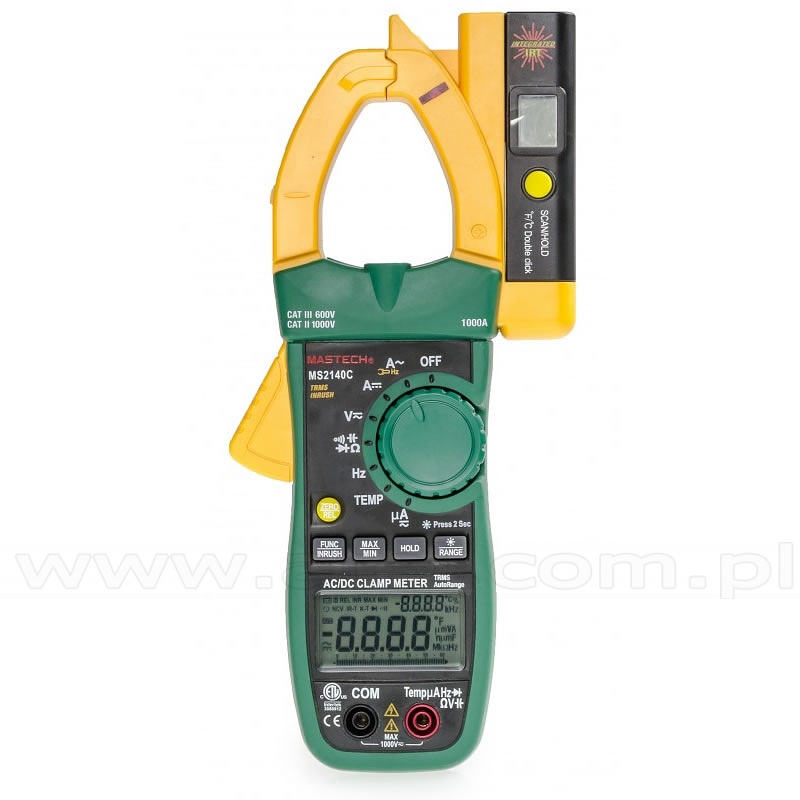

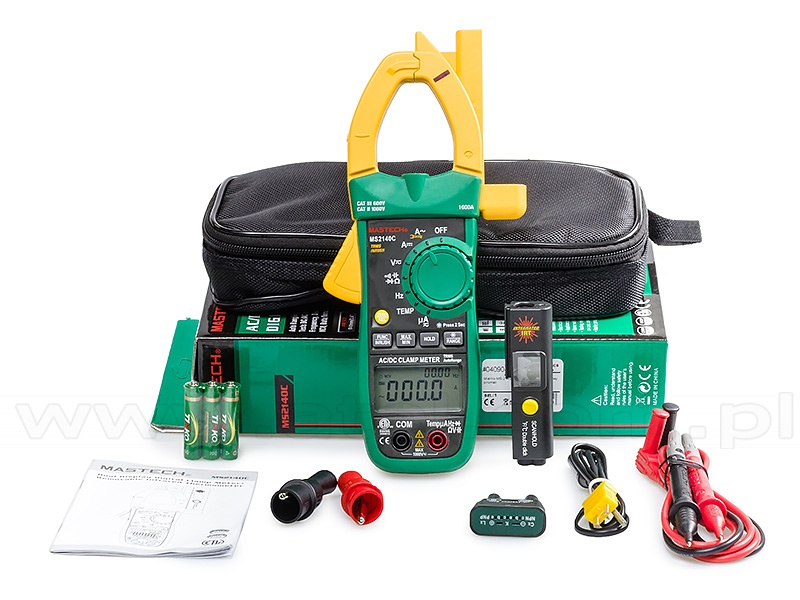

Mastech MS2140C - Digital clamp multimeter with infrared thermometer
Reliable digital clamp multimeter for measuring AC and DC currents. The device has an additional built-in non-contact temperature meter - a pyrometer, for additional thermal control of the tested elements.Multimeter Max. LCD display 5999 Range selection automatic Insulation class CAT II 1000V DC voltage 600m/6/60/600/1000 V ± 0,5% AC voltage 600m/6/60/600/1000 V ± 0,8% DC current 600/1000 A ± 2,5% AC current 600/1000 A ± 1,8% Resistance 600/6k/60k/600k ± 0,8%,
6M/60M Ω ± 1,2%Frequency range 60/600/6k/60k/600k/6M/60M Hz ± 0,3% Capacitance 60n/600n/6µ/60µ/600µ/6m/60m F ± 4% Temperature -40÷500°C ± 1,0% Continuity test yes Sampling time 300ms Diode test yes Max. diameter for conductor Ø40 mm Power 3x 1,5V AAA battery Manufacturer Mastech Infrared thermometer Temperature -20÷350 °C ± 2,5% Field of view 6÷1 Emmisivity 0,95 Sampling time 300ms Power 2xLR44
-
