UBIQUITI

UBIQUITI Products

UniFi, NanoStation, PicoStation, PowerStation, NanoBridge, Rocket

UBIQUITI
UBIQUITI

Ubiquity Products are versatile open architecture solutions designed for outdoor use. The products work under the control of an advanced operating system Air OS, which is equipped with both a complex and at the same time intuitive user interface. This can be used as an AP, Bridge, PMP Station or a Mesh networking client.

They have a lot of unique features such as 5/10/20MHz Channel Width regulations,  802.11e QoS (WMM), VLAN / 802.1q pass-through and Ipsec pass-through, download/upload, PPPoE client and advanced router. Another feature is SDK (Software Development Kit) - a developer tool kit which enables tools to be modified and adjusted to your own needs.

Manufacturer's website: http://ubnt.com/

  • Wireless Communication
    • Standard N
      • » WIRELESS ACCESS POINTS
          #08843

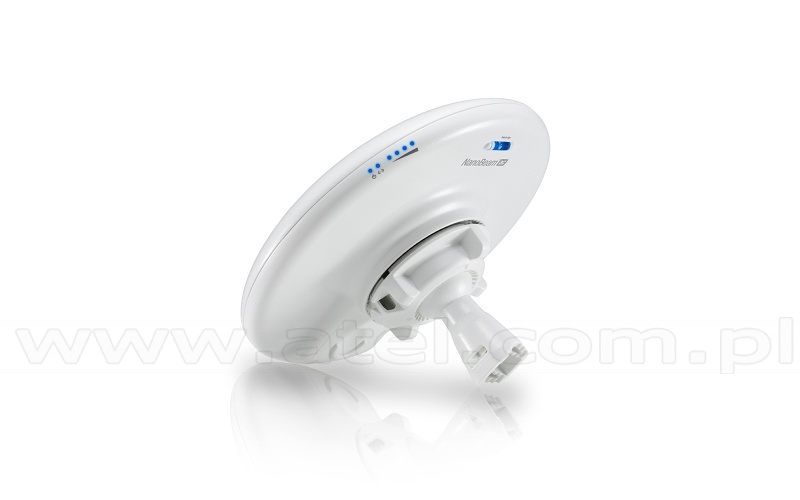

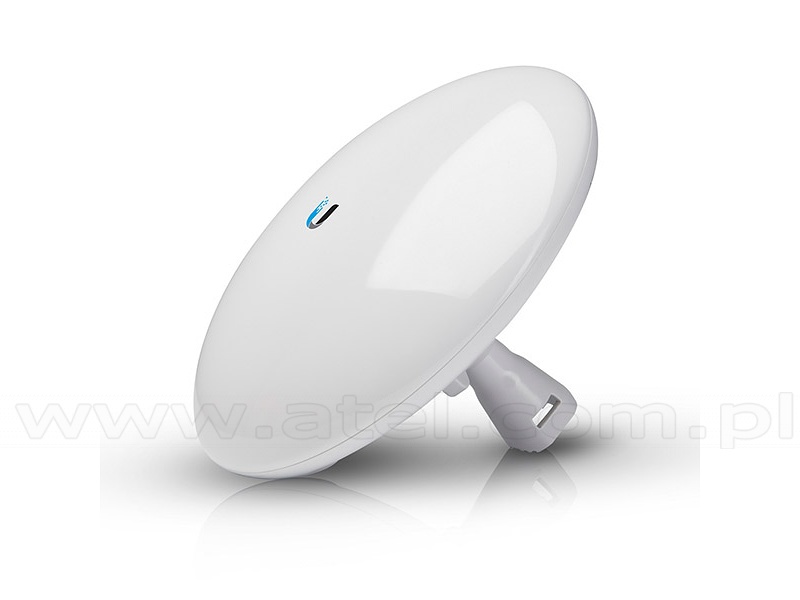

          Wireless access point Ubiquiti NanoBeam M2 MIMO (Ubiquiti NBE-M2-13)

          Standards IEEE 802.11n
          Ports 1x 10/100 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          18 dBi
          VSWR 1.5
          Diameter 189mm
          Weight 1.795 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 6 W
          Power PoE 24V
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti NanoBeam M2 MIMO (Ubiquiti NBE-M2-13)
          for special orders only
          Net Price: 77,00 EUR
          product card»
          #08141

          Wireless access point Ubiquiti NanoStation Loco M2 (Ubiquiti LOCOM2)

          Standards IEEE 802.11b/g/n,
          IEEE 802.3u
          Ports 1x 10/100 Mbps RJ-45
          Operating modes Access Point,
          Bridge,
          Client,
          WDS
          Chipset Atheros MIPS 24KC,
          400MHz
          Operating memory 32MB SDRAM
          Flash memory 8MB
          Frequency range 2400 MHz ÷ 2483,5 MHz
          Max. output power 20 dBm
          Antenna build-in,
          8 dBi,
          detachable RSMA
          Dimensions 163x80x31 mm
          Weight 0.18 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 5.5 W
          Power PoE 24V
          Operating temperatures -30°C ÷ 80°C
          Operating humidity 5% ÷ 90%,
          non-condensing
          Certificates CE,
          FCC,
          IC RS210
          Wireless access point Ubiquiti NanoStation Loco M2 (Ubiquiti LOCOM2)
          for special orders only
          Net Price: 42,80 EUR
          product card»
          #08928

          Wireless access point Ubiquiti NanoStation M2 (Ubiquiti NSM2)

          Standards IEEE 802.11b/g/n,
          IEEE 802.3u
          Ports 2x 10/100 Mbps RJ-45
          Operating modes Access Point,
          Bridge,
          Client,
          WDS
          Chipset Atheros MIPS 24KC,
          400MHz
          Operating memory 32MB SDRAM
          Flash memory 8MB
          Frequency range 2400 MHz ÷ 2483,5 MHz
          Gain 10.4-11.2 dBi
          Max. output power 23 dBm
          Dimensions 294 x 31 x 80 mm (11.57 x 1.22 x 3.15")
          Weight 400 g
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 5.5 W
          Power PoE 24V,
          0.5A
          Operating temperatures -30°C ÷ 75°C
          Operating humidity 5% ÷ 95%,
          non-condensing
          Certificates FCC Part 15.247,
          IC RS210,
          CE
          Shock & Vibration ETSI300-019-1.4
          Wireless access point Ubiquiti NanoStation M2 (Ubiquiti NSM2)
          for special orders only
          Net Price: 77,00 EUR
          product card»
          #08394

          Wireless Access Point UniFi UAP PRO (Ubiquiti UAP-PRO)

          The UniFi® Enterprise Wi-Fi System is a scalable enterprise
          access point solution designed to be easily deployed and
          managed. UniFi Access Point (AP) indoor models have a
          sleek design and can be easily mounted to a ceiling tile
          or wall using the included mounting hardware. UniFi AP
          (UAP) outdoor models have a form factor built to last
          outdoors.
          The UniFi Enterprise Wi-Fi System includes the UniFi
          Controller software. The software installs on any PC,
          Mac, or Linux machine within the network and is easily
          accessible through any standard web browser. Using the
          UniFi Controller software, an Enterprise Wi-Fi network
          can be quickly configured and administered without any
          special training. Real-time status, automatic UAP device
          detection, map loading, and advanced security options
          are all seamlessly integrated.
          Networking Interface (Mbps) 2 x 10/100/1000 Ethernet Ports
          Buttons Reset
          Antennas 2.4 GHz - 3 Integrated (Supports 3x3 MIMO with Spatial Diversity),
          5 GHz - 2 Integrated (Supports 2x2 MIMO with Spatial Diversity)
          Wi-Fi Standards 802.11 a/b/g/n
          Power Method Passive Power over Ethernet (48V),
          802.3af Supported
          Power Supply 48V,
          0.5A PoE Adapter (Included)
          Maximum Power Consumption 12 W
          Maximum TX Power 2.4 GHz - 30 dBm,
          5 GHz - 22 dBm
          BSSID Up to Four Per Radio
          Dimensions 200 x 200 x 36.5 mm
          Weight 298 g (358 g with Mounting Kits)
          Power Save Supported
          Wireless Security WEP,
          WPA-PSK,
          WPA-TKIP,
          WPA2 AES,
          802.11i
          Certifications CE,
          FCC,
          IC
          Mounting Wall/Ceiling (Kits Included)
          Operating Temperature -10 ÷ 70° C
          Operating Humidity 5 ÷ 80% Condensing
          Advanced Traffic Management
          VLAN 802.1Q
          Advanced QoS Per-User Rate Limiting
          Guest traffic isolation Supported
          WMM Voice,
          Video,
          Best Effort,
          and Background
          Concurrent Clients 200+
          Supported Data Rates (Mbps)
          802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
          802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23,
          HT 20/40)
          802.11b 1, 2, 5.5, 11 Mbps
          802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
          Wireless Access Point UniFi UAP PRO (Ubiquiti UAP-PRO)
          for special orders only
          Net Price: 195,00 EUR
          product card»
      • » WIRELESS ROUTERS
          #07014

          Security Gateway UNIFI (Ubiquiti UNIFI USG)

          Ports 3x 10/100/1000 Mbps RJ-45 (LAN),
          1x RJ45 Serial Port
          LEDs Per Data Port Status/Power/Speed/Link/Activity
          Processor Dual-Core 500 MHz,
          MIPS64 with Hardware Acceleration for Packet Processing
          System Memory 512 MB DDR2 RAM
          On-Board Flash Storage 2 GB
          Layer 3 Forwarding Performance 1,000,000 pps,
          3 Gbps (Line Rate)
          Max. Power Consumption 7 W
          Power 12VDC,
          1A Power Adapter (Included)
          Power Input 9 to 24VDC Supported Voltage Range
          Dimensions 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11")
          Weight 366 g
          Operating temperatures -10°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Certificates CE,
          FCC,
          IC
          Manufacturer Ubiquiti
          Security Gateway UNIFI (Ubiquiti UNIFI USG)
          for special orders only
          Net Price: 106,00 EUR
          product card»
