UBIQUITI

UBIQUITI Products

UniFi, NanoStation, PicoStation, PowerStation, NanoBridge, Rocket

UBIQUITI
UBIQUITI

Ubiquity Products are versatile open architecture solutions designed for outdoor use. The products work under the control of an advanced operating system Air OS, which is equipped with both a complex and at the same time intuitive user interface. This can be used as an AP, Bridge, PMP Station or a Mesh networking client.

They have a lot of unique features such as 5/10/20MHz Channel Width regulations,  802.11e QoS (WMM), VLAN / 802.1q pass-through and Ipsec pass-through, download/upload, PPPoE client and advanced router. Another feature is SDK (Software Development Kit) - a developer tool kit which enables tools to be modified and adjusted to your own needs.

Manufacturer's website: http://ubnt.com/

  • Wireless Communication
    • Wireless active devices 5GHz
      • » OUTDOOR DEVICES
          #07008

          Wireless access point Airmax NanoStation Loco M5 TDMA (Ubiquiti LOCOM5)

          Standards IEEE 802.11a,
          IEEE 802.11n,
          IEEE 802.3u
          Ports 1x 10/100 Mbps RJ-45
          Operating modes Access Point,
          Bridge,
          Client,
          WDS
          Chipset Atheros MIPS 24KC 400MHz
          Operating memory 32 MB SDRAM
          Flash memory 8 MB
          Frequency range 5470 MHz ÷ 5825 MHz
          Max. output power 27 dBm @ 6-24 Mbps,
          25 dBm @ 36 Mbps,
          23 dBm @ 48 Mbps,
          22 dBm @ 54 Mbps,
          27 dBm @ MSC0,
          27 dBm @ MSC1,
          27 dBm @ MSC2,
          27 dBm @ MSC3,
          26 dBm @ MSC4,
          24 dBm @ MSC5,
          22 dBm @ MSC6,
          21 dBm @ MSC7,
          27 dBm @ MSC8,
          27 dBm @ MSC9,
          27 dBm @ MSC10,
          27 dBm @ MSC11,
          26 dBm @ MSC12,
          24 dBm @ MSC13,
          22 dBm @ MSC14,
          21 dBm @ MSC15
          Receiver sensitivity -94 dBm @ 6-24 Mbps,
          -80 dBm @ 36 Mbps,
          -77 dBm @ 48 Mbps,
          -75 dBm @ 54 Mbps,
          -96 dBm @ MSC0,
          -95 dBm @ MSC1,
          -92 dBm @ MSC2,
          -90 dBm @ MSC3,
          -86 dBm @ MSC4,
          -83 dBm @ MSC5,
          -77 dBm @ MSC6,
          -74 dBm @ MSC7,
          -95 dBm @ MSC8,
          -93 dBm @ MSC9,
          -90 dBm @ MSC10,
          -87 dBm @ MSC11,
          -84 dBm @ MSC12,
          -79 dBm @ MSC13,
          -78 dBm @ MSC14,
          -75 dBm @ MSC15
          Antenna build-in,
          2x2 MIMO 13 dBi
          VSWR 1.6
          Beam width 15°
          Dimensions 163x80x30 mm
          Weight 0.2 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 8 W
          Power PoE 24V
          Operating temperatures -30°C ÷ 80°C
          Operating humidity 5% ÷ 95%,
          non-condensing
          Certificates CE,
          FCC,
          IC RS210
          Manufacturer Ubiquiti
          Wireless access point Airmax NanoStation Loco M5 TDMA (Ubiquiti LOCOM5)
          for special orders only
          Net Price: 61,40 EUR
          product card»
          #07006

          Wireless access point Airmax NanoStation M5 TDMA (Ubiquiti NSM5)

          Standards IEEE 802.11a,
          IEEE 802.11n,
          IEEE 802.3u
          Ports 2x 10/100 Mbps RJ-45
          Operating modes Access Point,
          Bridge,
          Client,
          WDS
          Chipset Atheros MIPS 24KC 400MHz
          Operating memory 32 MB SDRAM
          Flash memory 8 MB
          Frequency range 5470 MHz ÷ 5825 MHz
          Max. output power 27 dBm @ 6-24 Mbps,
          25 dBm @ 36 Mbps,
          23 dBm @ 48 Mbps,
          22 dBm @ 54 Mbps,
          27 dBm @ MSC0,
          27 dBm @ MSC1,
          27 dBm @ MSC2,
          27 dBm @ MSC3,
          26 dBm @ MSC4,
          24 dBm @ MSC5,
          22 dBm @ MSC6,
          21 dBm @ MSC7,
          27 dBm @ MSC8,
          27 dBm @ MSC9,
          27 dBm @ MSC10,
          27 dBm @ MSC11,
          26 dBm @ MSC12,
          24 dBm @ MSC13,
          22 dBm @ MSC14,
          21 dBm @ MSC15
          Receiver sensitivity -94 dBm @ 6-24 Mbps,
          -80 dBm @ 36 Mbps,
          -77 dBm @ 48 Mbps,
          -75 dBm @ 54 Mbps,
          -96 dBm @ MSC0,
          -95 dBm @ MSC1,
          -92 dBm @ MSC2,
          -90 dBm @ MSC3,
          -86 dBm @ MSC4,
          -83 dBm @ MSC5,
          -77 dBm @ MSC6,
          -74 dBm @ MSC7,
          -95 dBm @ MSC8,
          -93 dBm @ MSC9,
          -90 dBm @ MSC10,
          -87 dBm @ MSC11,
          -84 dBm @ MSC12,
          -79 dBm @ MSC13,
          -78 dBm @ MSC14,
          -75 dBm @ MSC15
          Antenna build-in,
          2x2 MIMO 14 dBi
          VSWR 1.6
          Beam width 15°
          Dimensions 294x80x30 mm
          Weight 0.4 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 8 W
          Power PoE 15V
          Operating temperatures -30°C ÷ 80°C
          Operating humidity 5% ÷ 95%,
          non-condensing
          Certificates CE,
          FCC,
          IC RS210
          Manufacturer Ubiquiti
          Wireless access point Airmax NanoStation M5 TDMA (Ubiquiti NSM5)
          for special orders only
          Net Price: 92,60 EUR
          product card»
          #08180

          Wireless access point Ubiquiti AirGrid M5 23dBi 1x1 MIMO HP (Ubiquiti AirGrid M5)

          Utilizing InnerFeed technology, the new AirGrid M Series represents the evolution of outdoor broadband wireless devices. Complete antenna and radio system integration provides revolutionary cost/performance solutions to the Worldwide Broadband Industry.
          Standards IEEE 802.11a,
          IEEE 802.3u
          Ports 1x 10/100 Mbps RJ-45
          Operating modes Access Point,
          Bridge,
          Client,
          WDS,
          Router
          Chipset Atheros MIPS 24KC,
          400MHz
          Operating memory 32 MB SDRAM
          Flash memory 8 MB
          Frequency range 5475MHz - 5825MHz
          Antenna build-in,
          23 dBi
          Weight 1.65 kg
          Grid dimensions 279.4 x 355.6 mm
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 3 W
          Power PoE 24V
          Operating temperatures -30°C ÷ 75°C
          Operating humidity 5% ÷ 95%,
          condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti AirGrid M5 23dBi 1x1 MIMO HP (Ubiquiti AirGrid M5)
          for special orders only
          Net Price: 50,90 EUR
          product card»
          #08181

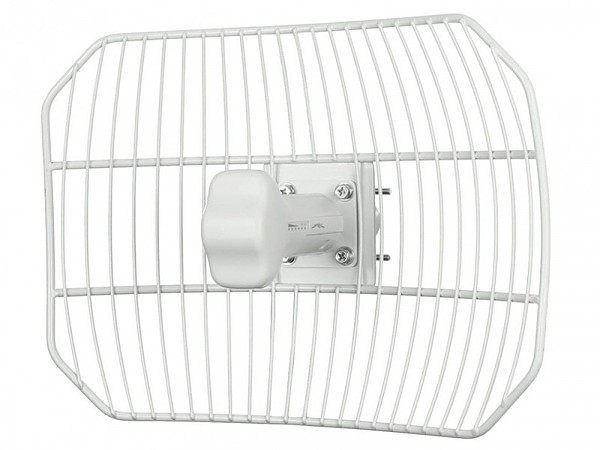

          Wireless access point Ubiquiti AirGrid M5 27dBi 1x1 MIMO HP (AirGrid M5)

          Utilizing InnerFeed technology, the new AirGrid M Series represents the evolution of outdoor broadband wireless devices. Complete antenna and radio system integration provides revolutionary cost/performance solutions to the Worldwide Broadband Industry.
          Standards IEEE 802.11a,
          IEEE 802.3u
          Ports 1x 10/100 Mbps RJ-45
          Operating modes Access Point,
          Bridge,
          Client,
          WDS,
          Router
          Chipset Atheros MIPS 24KC,
          400MHz
          Operating memory 32 MB SDRAM
          Flash memory 8 MB
          Frequency range 5475MHz - 5825MHz
          Antenna build-in,
          27 dBi
          Weight 2,75 kg
          Grid dimensions 431.8 x 609.6 mm
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 3 W
          Power PoE 24V
          Operating temperatures -30°C ÷ 75°C
          Operating humidity 5% ÷ 95%,
          condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti AirGrid M5 27dBi 1x1 MIMO HP (AirGrid M5)
          for special orders only
          Net Price: 59,10 EUR
          product card»
          #08846

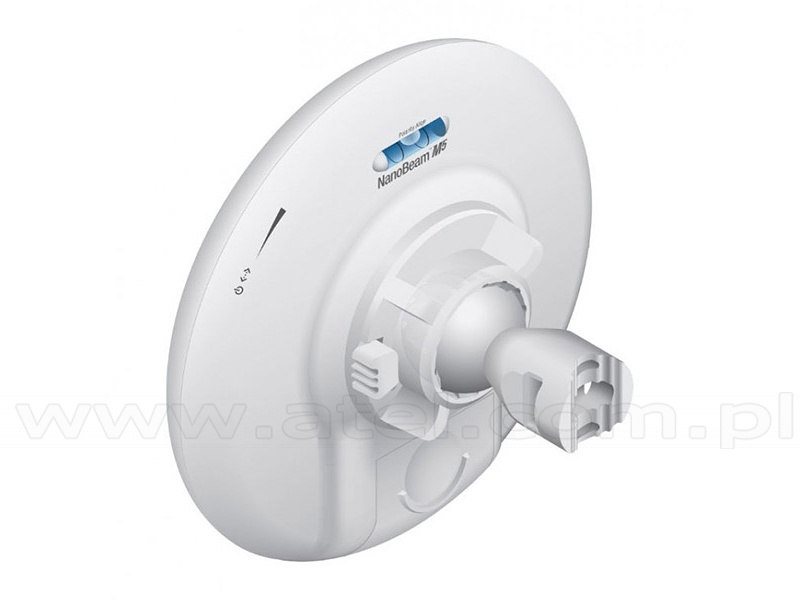

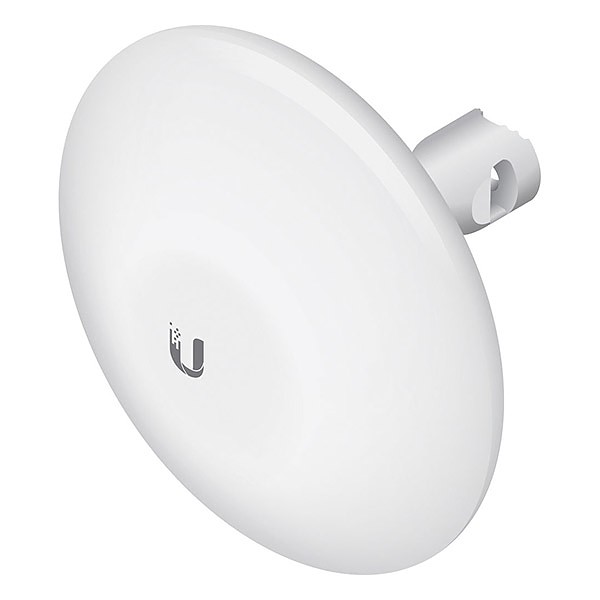

          Wireless access point Ubiquiti NanoBeam M5 MIMO (Ubiquiti NBE-M5-16)

          Standards IEEE 802.11a/n
          Ports 1x 10/100 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          16 dBi
          VSWR 1.5
          Diameter 190mm
          Weight 0.320 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 6 W
          Power PoE 24V
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti NanoBeam M5 MIMO (Ubiquiti NBE-M5-16)
          for special orders only
          Net Price: 58,10 EUR
          product card»
          #08874

          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-300)

          Standards IEEE 802.11a/n
          Ports 1x 10/100 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          22 dBi
          Range 20+ km
          VSWR 1.5
          Diameter 300mm
          Weight 1.203 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 6 W
          Power PoE 24V
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-300)
          for special orders only
          Net Price: 68,60 EUR
          product card»
          #06285

          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-300-ISO-EU)

          Standards IEEE 802.11a/n
          Ports 1x 10/100 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          22 dBi
          Range 20+ km
          VSWR 1.5
          Dimensions 364 x 364 x 276 mm (14.33 x 14.33 x 10.87")
          Weight 2.55 kg (5.62 lb)
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 6 W
          Power 24V,
          0.5A PoE,
          Passive PoE (Pairs 4, 5+; 7, 8 Return)
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Salt Fog Test IEC 68-2-11 (ASTM B117),
          Equivalent MIL-STD-810 G Method 509.5
          Vibration Test IEC 68-2-6
          Temperature Shock Test IEC 68-2-14
          UV Test IEC 68-2-5 at 40° C (104° F),
          Equivalent ETS 300 019-1-4
          Wind-Driven Rain Test ETS 300 019-1-4,
          Equivalent MIL-STD-810 G Method 506.5
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-300-ISO-EU)
          for special orders only
          Net Price: 83,70 EUR
          product card»
          #08875

          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-400)

          Standards IEEE 802.11a/n
          Ports 1x 10/100/1000 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          25 dBi
          Range 25+ km
          VSWR 1.5
          Diameter 400mm
          Weight 1.753 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 8 W
          Power PoE 24V
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-400)
          for special orders only
          Net Price: 80,70 EUR
          product card»
          #06286

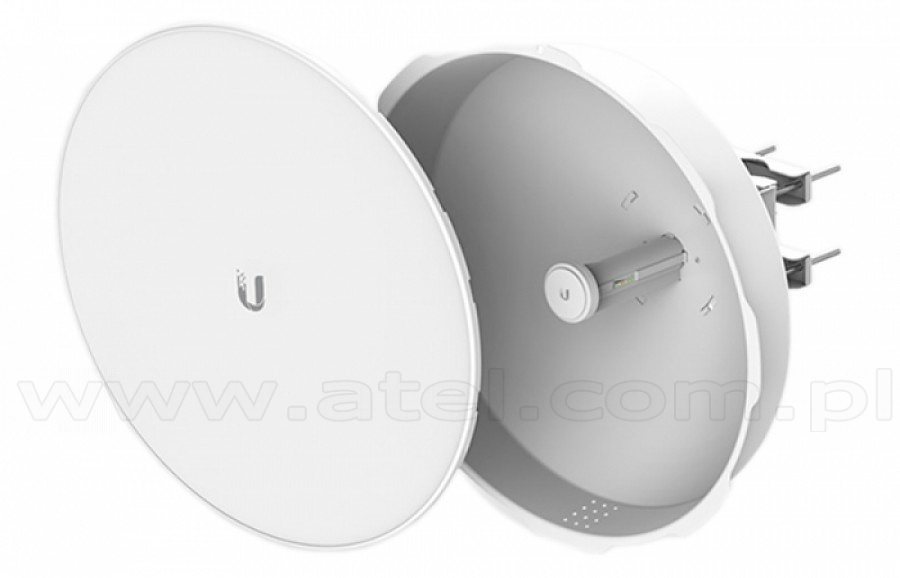

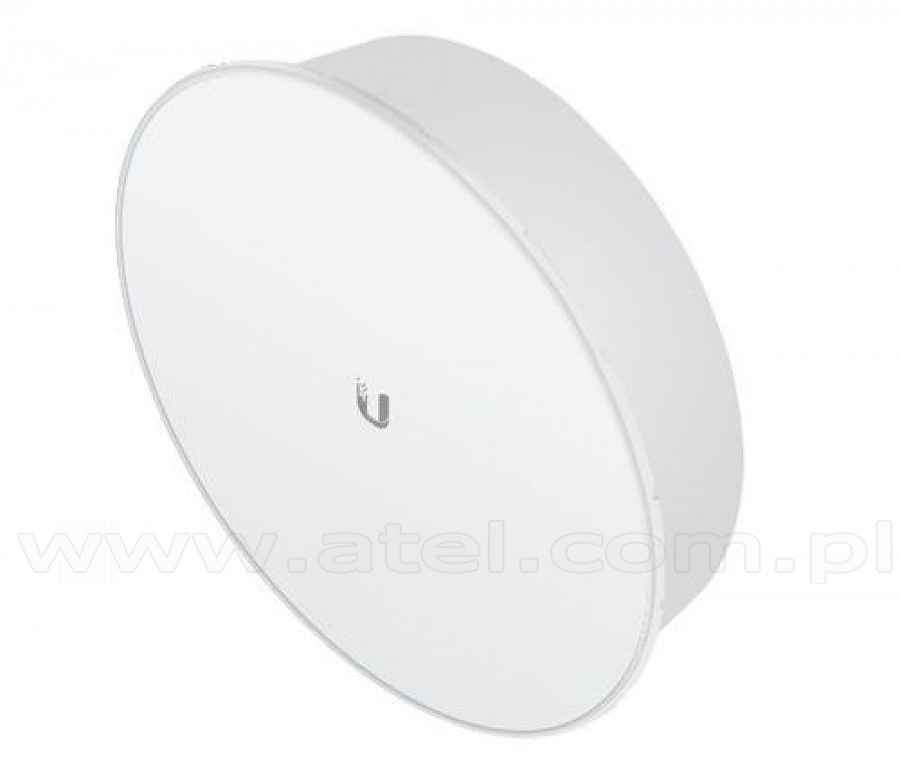

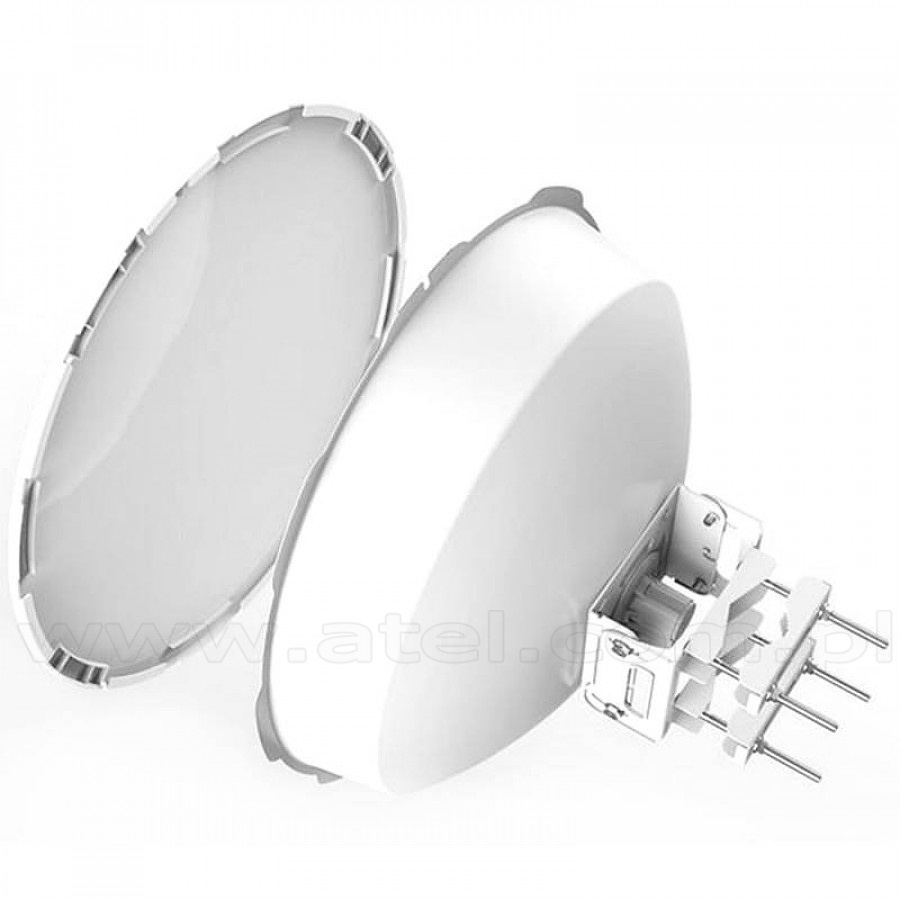

          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-400-ISO-EU)

          Standards IEEE 802.11a/n
          Ports 1x 10/100/1000 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          25 dBi
          Range 25+ km
          VSWR 1.5
          Dimensions 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
          Weight 3.22 kg (7.10 lb)
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 8 W
          Power PoE 24V
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Salt Fog Test IEC 68-2-11 (ASTM B117),
          Equivalent MIL-STD-810 G Method 509.5
          Vibration Test IEC 68-2-6
          Temperature Shock Test IEC 68-2-14
          UV Test IEC 68-2-5 at 40° C (104° F),
          Equivalent ETS 300 019-1-4
          Wind-Driven Rain Test ETS 300 019-1-4,
          Equivalent MIL-STD-810 G Method 506.5
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-400-ISO-EU)
          for special orders only
          Net Price: 96,30 EUR
          product card»
          #08876

          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-620)

          Standards IEEE 802.11a/n
          Ports 1x 10/100/1000 Mbps RJ-45
          Chipset Atheros MIPS 74KC,
          560 MHz
          Operating memory 64 MB DDR2
          Flash memory 8 MB
          Antenna build-in,
          29 dBi
          Range 30+ km
          VSWR 1.5
          Diameter 600mm
          Weight 6.4 kg
          Mounting mast or wall with the aid of antenna wall support
          Max. power consumption 8.5 W
          Power PoE 24V
          Operating temperatures -40°C ÷ 70°C
          Operating humidity 5% ÷ 95%,
          Non-condensing
          Manufacturer Ubiquiti
          Wireless access point Ubiquiti PowerBeam M5 MIMO 5GHz (Ubiquiti PBE-M5-620)
          for special orders only
          Net Price: 172,00 EUR
          product card»
