 F/UTP STRANDED CABLES
#07269

Cable F/UTP Wave Cables, cat.6, yellow, LSOH, 4x2x26 AWG, Cu, 305 m, stranded

High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).
Structure:
Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mm
Coating LSOH 0.46mm
Diameter 5.7 ± 0.2mm
Shield Al/PET (65/26µm)
Standards:
Category cat. 6; class E
Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2
Marking and packaging:
Cable marking Wave Cable F/UTP + index of length
Standard package 305m cardboard box
Manufacturer Wave Cables
Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded

Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.
WAVE CABLES
Cable F/UTP, cat.6, yellow, LSOH, 4x2x26 AWG, 305m, stranded (Wave Cables)
Net Price: 119,00 EUR  Unit: roll 305m  VAT: 23%
product card»
#07262

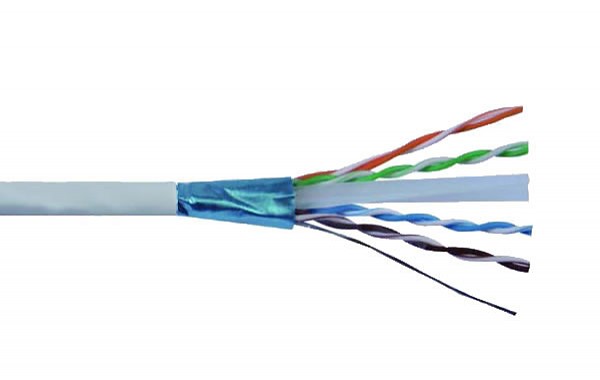

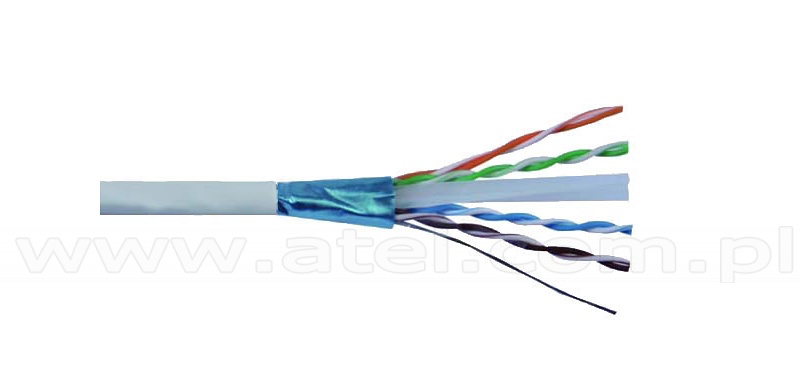

Cable F/UTP Wave Cables, cat.6, grey, LSOH, 4x2x26 AWG, Cu, 305 m, stranded

High quality category 6 cables, from the reputable Wave Cables, meet all the requirements of category 6. Their elasticity allows them to be used mainly in server cabinets.
The coating is made of halogen-free material, flame-retardant, with limited emission of smoke and corrosive gases (LSOH).
Structure:
Conductor stranded copper wire 26AWG,
7x0.152mm,
with coating HDPE 0.83mm
Coating LSOH 0.46mm
Diameter 5.7 ± 0.2mm
Shield Al/PET (65/26µm)
Standards:
Category cat. 6; class E
Standards IEC61156-5,
EN50288-3-1,
ANSI/TIA568C.2
Marking and packaging:
Cable marking Wave Cable F/UTP + index of length
Standard package 305m cardboard box
Manufacturer Wave Cables
Connectors:
#07408 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6, shielded

Our offer also includes ready-made patchcords of various lengths (0.5-20m) in six colors.
WAVE CABLES
Cable F/UTP, cat.6, grey, LSOH, 4x2x26 AWG, 305m, stranded (Wave Cables)
Net Price: 119,00 EUR  Unit: roll 305m  VAT: 23%
product card»
 U/FTP SOLID CABLES
top
#07264

Cable U/FTP Wave Cables, cat.6A, grey, LSOH, 4x2x23 AWG, Cu, 305 m, solid

High-quality, "twisted pair" type cable from Wave Cables that meets all the category 6A requirements. For use in internal installations.
Structure:
Conductor solid copper wire 23AWG,
0.57mm,
with coating PE 1.335mm
Coating LSOH min. 0.51mm
Diameter 7.1 ± 0.2mm
Shield Al/PET (50/12µm)
Standards:
Category cat. 6a; class E
Standards IEC61156-5,
EN50288-4-1,
ANSI/TIA568C.2
Marking and packaging:
Cable marking Wave Cable U/FTP + index of length
Standard package 305m wooden spool
Manufacturer Wave Cables
Connectors:
#04913 - Modular male connector, 8P8C (RJ-45), round, solid, cat. 6, shielded
WAVE CABLES
UFTP Cat6A Network Cable, grey, solid copper wire 23 AWG, 305m, solid
Net Price: 177,00 EUR  Unit: roll 305m  VAT: 23%
product card»
 S/FTP STRANDED CABLES
top
#07254

Cable S/FTP (PiMF) Wave Cables, cat.6A, grey, 4x2x26 AWG, Cu, 305 m, stranded

High quality category 6A cables, from the reputable Wave Cables, meet all the requirements of category 6.A Their elasticity allows them to be used mainly in server cabinets.
Structure:
Conductor stranded copper wire 26AWG,
7x0.148mm,
with coating HDPE 1.03mm
Coating PCV min. 0.46mm
Diameter 6.3 ± 0.2mm
Shield Al/PET (25/25µm)
Braid Copper Clad with Steel 4x16x0.1mm
Standards:
Category cat. 6a; class E
Standards IEC61156-6,
EN50288-4-2,
ANSI/TIA568C.2
Marking and packaging:
Cable marking Wave Cable S/FTP + index of length
Standard package 305m wooden spool
Manufacturer Wave Cables
Connectors:
#07166 Modular male connector, 8P8C (RJ-45), round, stranded, cat. 6A, shielded
WAVE CABLES
Cable S/FTP, cat.6A, grey, 4x2x26 AWG, 305m, stranded (Wave Cables)
Net Price: 172,00 EUR  Unit: roll 305m  VAT: 23%
product card»
 S/FTP SOLID CABLES
top
#07263

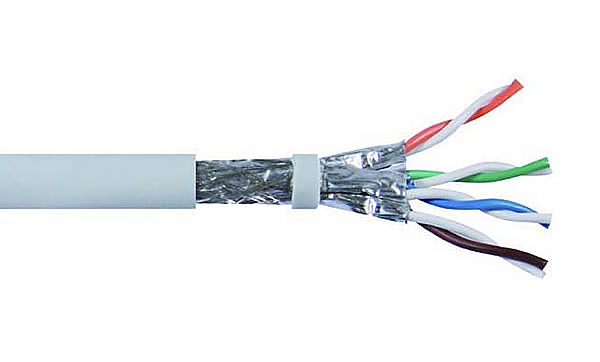

Cable S/FTP (PiMF) Wave Cables, cat.6A, grey, LSOH/LSZH, 4x2x23 AWG, Cu, 305 m, solid

High-quality, "twisted pair" type cable from Wave Cables that meets all the category 6A requirements. For use in internal installations.
Structure:
Conductor solid copper wire 23AWG,
0.57mm,
with coating PE 1.335mm
Coating LSOH min. 0.51mm
Diameter 7.3 ± 0.2mm
Shield Al/PET (50/12µm)
Braid Tin Plated Copper 4x16x0.1mm
Standards:
Category cat. 6a; class E
Standards IEC61156-5,
EN50288-4-1,
ANSI/TIA568C.2
Marking and packaging:
Cable marking Wave Cable S/FTP + index of length
Standard package 305m wooden spool
Manufacturer Wave Cables
WAVE CABLES
SFTP Cat6A Network Cable, grey, LSOH/LSZH, solid copper wire 23 AWG, 305m, solid
Net Price: 200,00 EUR  Unit: roll 305m  VAT: 23%
product card»
#07265

Cable S/FTP (PiMF) Wave Cables, cat.7, grey, LSOH/LSZH, 4x2x23 AWG, Cu, 305 m, solid

High-quality, "twisted pair" type cable from Wave Cables that meets all the category 7 requirements. For use in internal installations.
Structure:
Conductor solid copper wire 23AWG,
0.57mm,
with coating PE 1.335mm
Coating LSOH min. 0.51mm
Diameter 7.3 ± 0.2mm
Shield Al/PET (50/12µm)
Braid Tin Plated Copper 4x16x0.1mm
Standards:
Category cat.7; class F
Standards IEC61156-5,
EN50288-4-1,
ANSI/TIA568C.2
Marking and packaging:
Cable marking Wave Cable S/FTP + index of length
Standard package 305m wooden spool
Manufacturer Wave Cables
WAVE CABLES
SFTP cat 7 network cable solid copper wire 23 AWG, LSOH/LSZH, 305m box, solid, grey
Net Price: 221,00 EUR  Unit: roll 305m  VAT: 23%
product card»
